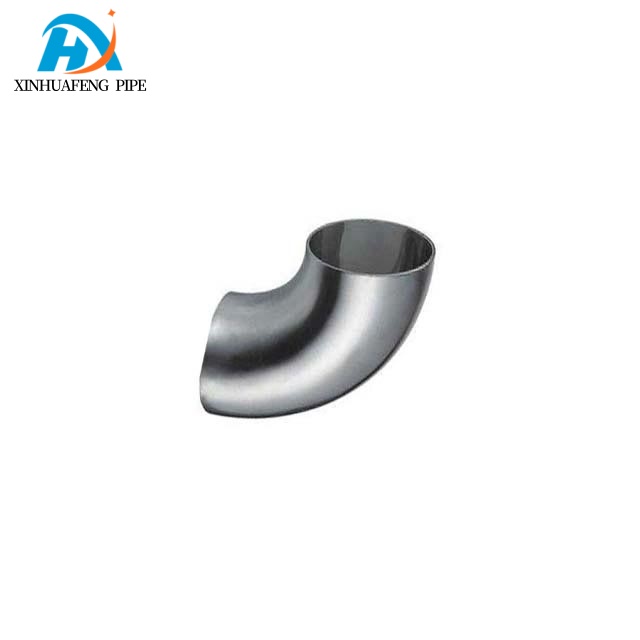

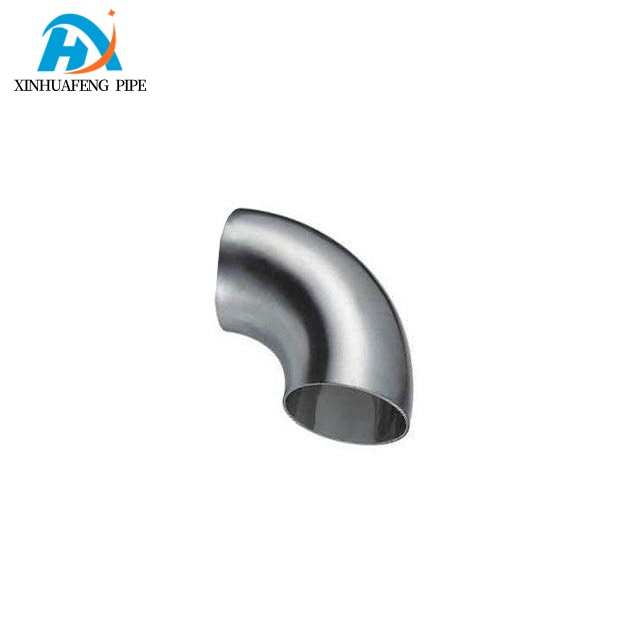

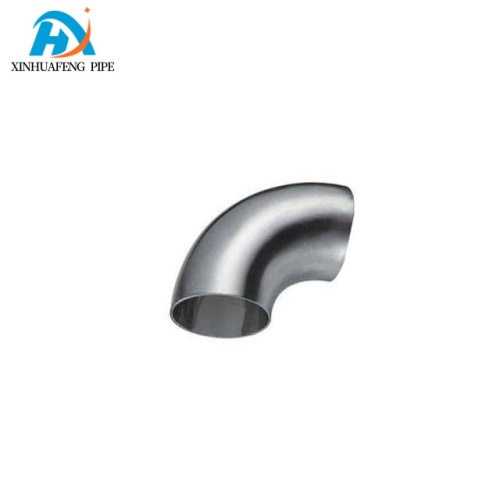

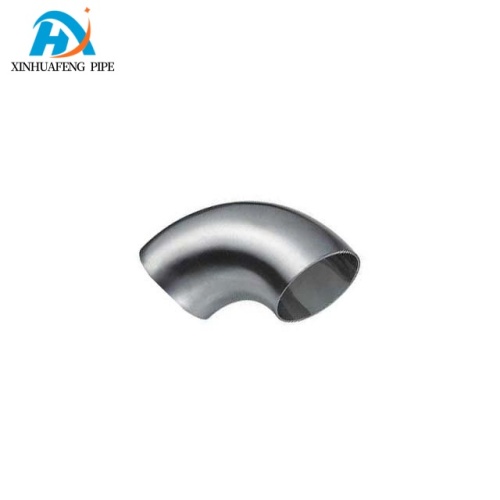

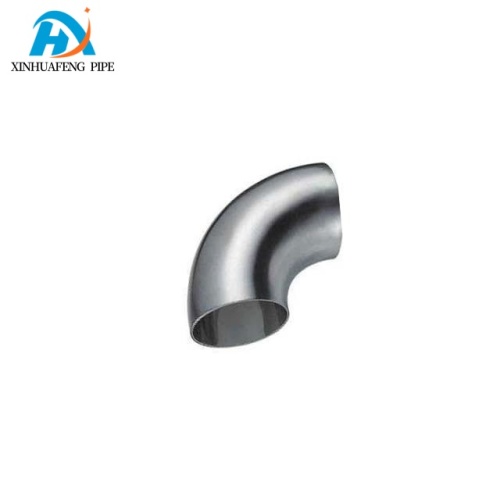

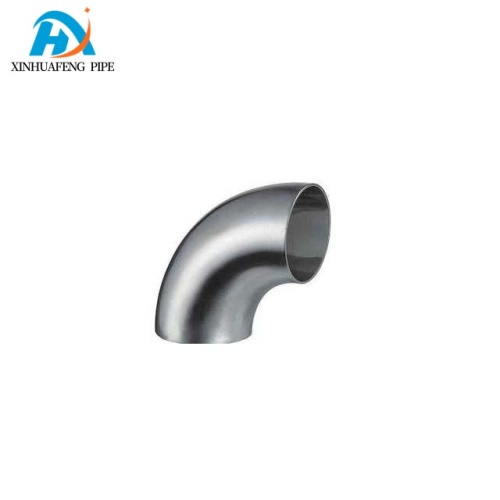

90 Degree Butt Weld Stainless Steel Elbow

The core hub of pipeline turning: The all-round adaptation and system coordination of 90-degree elbows
In the pipeline systems of numerous fields such as petroleum, chemical engineering, construction, water supply and drainage, 90-degree elbows have become indispensable core accessories due to their precise steering function. It is made of pipe materials such as metal and plastic through specific processing techniques and can be flexibly applied in various scenarios where the flow direction of fluids or gases needs to be changed. With five core advantages, it ensures the efficient operation of the pipeline system. Meanwhile, in coordination with accessories such as Rubber Expansion Joint and Bellow Expansion Joint, a stable and reliable fluid delivery network is constructed. ​
The core function of a 90-degree elbow is to change direction. It enables the pipeline system to break free from the limitations of a straight layout and flexibly adapt to different spatial layout requirements. In pipelines that require right-angle steering, whether it is the pressure-resistant metal model or the lightweight plastic model, fluid steering can be precisely achieved. When the pipeline is displaced due to temperature changes or vibrations, the 90-degree elbow can be used in combination with Rubber Expansion Joint - the elastic deformation of the rubber can absorb the displacement of the pipeline and prevent leakage at the connection between the elbow and the straight pipe due to stress concentration, especially in HVAC systems. This combination of "turning + compensation" can effectively deal with the pipeline expansion and contraction problems caused by the altercation of cold and hot. ​
The feature of convenient connection enables 90-degree elbows to be easily integrated into various pipeline systems. It can be used in conjunction with various connectors such as flanges, threads, and socket welders, and the Flange Adaptor further expands its compatibility range. When the elbow is connected to pipes or fittings of different specifications, the Flange Adapter can precisely bridge the interface differences, ensuring that the connection between the 90-degree elbow and fittings such as Flexible Metal Hose and Duckbill Check Valve is both fast and reliable. For instance, in a water supply and drainage system, a 90-degree elbow is connected to a Duckbill Valve through a Flange adapter, which not only enables a right-angle turn but also prevents the backflow of the medium with the help of a check Valve , achieving two goals at once. ​
Under high-pressure working conditions, the pressure resistance advantage of 90-degree elbows made of metal materials becomes prominent. In high-pressure transmission pipelines such as oil and natural gas, high-strength metal elbows can withstand huge pipeline pressure. At this time, when combined with Bellow Expansion Joint, a golden combination of "rigid turning + flexible compensation" can be formed - the bellows can absorb the vibration and displacement brought by high-pressure fluids and reduce the impact on the elbows. The pressure-resistant characteristic of the elbow ensures the stable steering of high-pressure fluids, and the two work together to enhance the safety factor of the system. ​
Corrosion resistance is the key to extending the service life of pipeline systems. 90-degree elbows made of stainless steel, alloy steel and other materials can resist the erosion of various corrosive media. This characteristic makes them stand out in chemical pipelines. In the corrosive medium transportation system, it can be combined with the Flexible Metal Hose that also has corrosion resistance. The flexible turning of the metal hose complements the right-angle turning of the elbow. Meanwhile, the sealing and anti-corrosion of the connection part are ensured through the Flange Adaptor, further enhancing the corrosion resistance of the entire pipeline. ​
The advantage of lightweighting is reflected in the 90-degree elbows made of aluminum alloy and plastic. They are light in weight and easy to install, making them highly suitable for scenarios such as building water supply and drainage and fire protection where installation convenience is highly demanded. In such systems, lightweight elbows can be combined with Dismantling Joint. When maintenance or replacement of elbows is required, they can be quickly disassembled and assembled through the detachable joint without complex operations, significantly reducing installation and maintenance costs. For instance, at the right-angle turning points of fire protection pipelines, lightweight elbows combined with detachable joints not only meet the turning requirements but also provide convenience for later system maintenance. ​
From high-pressure industrial pipelines to civil building pipe networks, 90-degree elbows have always been the "commander" of pipeline turning. It works together with Rubber Expansion Joint and Bellow Expansion Joint to solve displacement problems, and optimizes connection efficiency with Flexible Metal Hose and Flange Adaptor. With Dismantling Joint to enhance maintenance convenience and Duckbill Check Valve to safeguard one-way flow order. To ensure that the pipeline system maintains an efficient, stable and safe operation at right-angle turns, it is necessary to select 90-degree elbows of suitable materials and specifications and rationally match various auxiliary accessories. ​
