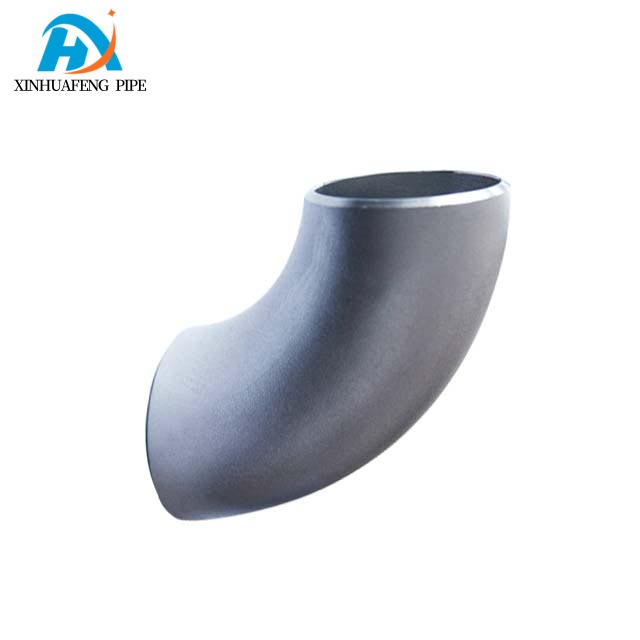

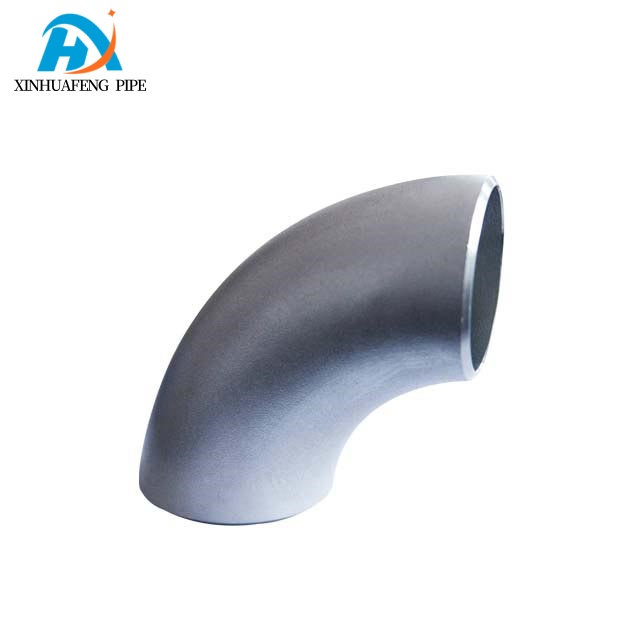

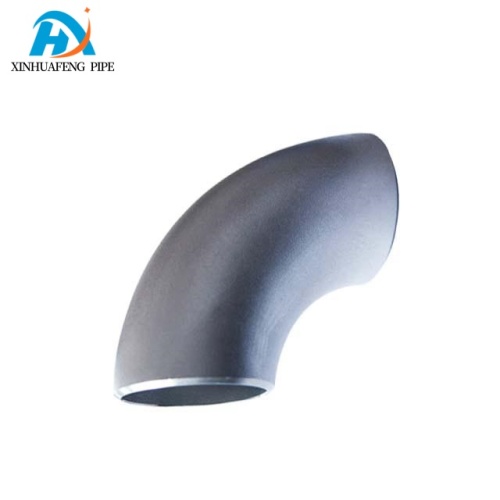

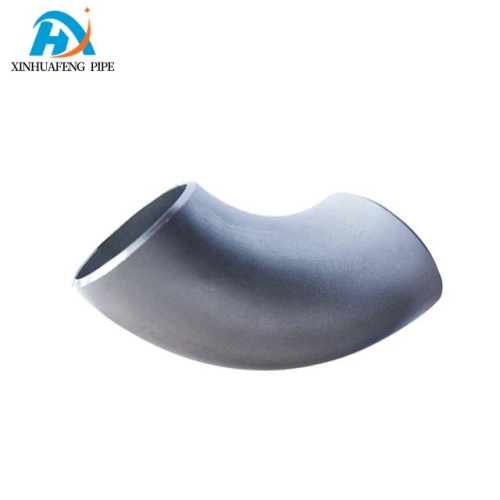

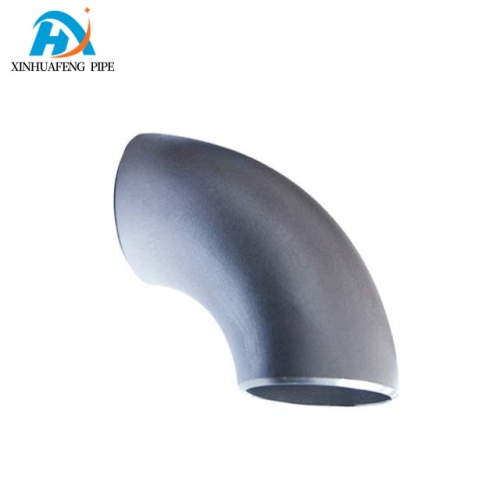

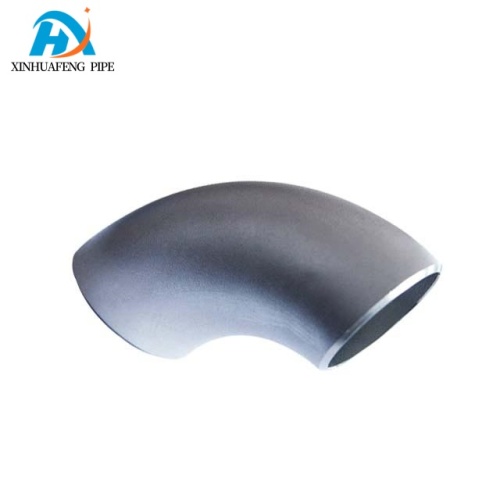

Sanitary 90 Degree Welded Elbow

Material Empowerment, adaptable to All: A Guide to Material Selection and System Compatibility for 90-Degree Elbows
The 90-degree elbow, as a core component for changing the flow direction in the pipeline system, its material selection directly determines its performance under different working conditions. From metal to plastic, the rich variety of materials enables 90-degree elbows to precisely adapt to diverse scenarios such as petroleum, chemical engineering, water supply and drainage, and refrigeration. Moreover, the coordination with accessories like Rubber Expansion Joint and Bellow Expansion Joint further expands its application boundaries in complex systems. ​
Among the family of metal materials, stainless steel 90-degree elbows stand out for their excellent corrosion resistance and high strength, making them an ideal choice for corrosive media and high-temperature environments. When transporting acidic or alkaline media in chemical pipelines, stainless steel elbows can be used in combination with Flexible Metal hoses. The corrosion resistance of the metal hoses forms double protection with the elbows, and at the same time, the sealing connection between the two is achieved through Flange Adaptor. Combined with Duckbill Check Valve, a complete pipeline with corrosion resistance and unidirectional transportation can be constructed. Facing the industrial scenarios of high temperature and high pressure, the alloy steel 90-degree elbow stands out with its special properties of high temperature resistance and high pressure resistance. It can work in coordination with the Bellow Expansion Joint. The bellows absorb the displacement of the pipeline caused by high temperature, while the elbow stably undertakes the steering task of the high-pressure fluid. The combination of the two ensures the safety of pipelines under special working conditions. ​
Carbon steel 90-degree elbows occupy the mainstream market of general industrial pipeline systems with the advantage of cost performance. In common industrial water pipes or gas transmission pipelines, carbon steel elbows can be connected with Rubber Expansion Joints through threads or flanges. The elastic compensation capacity of rubber can alleviate the vibration and displacement at the elbow and reduce the risk of damage to carbon steel materials due to stress concentration. The copper 90-degree elbow performs well in hot water pipes and refrigeration systems due to its excellent thermal conductivity and corrosion resistance. It can seamlessly connect with the copper interface of the Flexible Metal Hose. With the flexibility of the Metal Hose , it ADAPTS to the vibration of refrigeration equipment and ensures the stable transportation of cold and hot fluids when turning. The 90-degree aluminum elbow conquers weight-sensitive scenarios with its lightweight and corrosion resistance. In installations where the load on pipelines needs to be reduced, it can be combined with Dismantling Joint. The lightweight feature reduces installation difficulty, and the detachable joint facilitates later maintenance. It is especially suitable for outdoor pipelines with requirements for both weight and corrosion. ​
The 90-degree elbow made of plastic offers an economical and efficient option for low-pressure and normal-temperature scenarios. PVC elbows are low in price and easy to install. They are common accessories in water supply and drainage systems. At the turning point of civil water supply pipelines, PVC elbows can be connected to the Flange Adapter by adhesive bonding, and the other end of the adapter is connected to the Rubber Expansion Joint. The flexible compensation of rubber can reduce the damage to PVC material caused by water flow impact and extend the service life of pipelines. The PP elbow, with its corrosion resistance and high-temperature resistance characteristics, is installed in the low-pressure pipelines of the chemical industry. In the system transporting low-concentration chemical reagents, it can be combined with the equally corrosion-resistant Flexible Metal Hose. The two are connected through a Flange adapter to form a double guarantee of corrosion-resistant turning. The excellent low-temperature resistance of PE elbows makes them the "darling" in cold regions. In low-temperature fluid transportation pipelines, PE elbows can be matched with the plastic-coated models of Bellow Expansion Joint, which not only resist the erosion of the low-temperature environment but also compensate for the pipe displacement caused by low-temperature contraction with the help of corrugated pipes. ​
Whether it is the high-strength and corrosion-resistant metal type or the economical and lightweight plastic type, the material selection of the 90-degree elbow must be deeply matched with the system working conditions. When stainless steel elbows meet Duckbill Check Valve , corrosion resistance and anti-backflow are perfectly integrated. When carbon steel elbows are combined with Rubber Expansion Joint, the cost performance and flexible compensation complement each other. When PVC elbows are paired with Flange adaptors, they are easy to install and seamlessly fit the interfaces. At every right-angle turn in the piping system, the coordination of 90-degree elbows with fittings such as Bellow Expansion Joint, Flexible Metal Hose, and Dismantling Joint is based on material properties and centered on functional complementarity. Build an efficient, safe and durable fluid transportation network. ​
