The turning core of clean pipelines: precise matching and system guarantee of sanitary Flange elbows
In fields such as food, pharmaceuticals, and cosmetics, which have extremely high requirements for purity, sterility, and corrosion resistance, the Sanitary Flange Elbow, with its structure and materials specially designed for clean environments, has become a core accessory for the turning of pipeline systems. It is composed of a flange and a elbow. The flange is responsible for the sealing and stability of the pipe connection, and the elbow is responsible for the precise regulation of the fluid direction. From design, manufacturing to material selection, strict hygiene standards are followed. It works in coordination with accessories such as
Rubber Expansion Joint and
Flexible Metal Hose. Build a safe and reliable pipeline network for the transportation of clean fluids.
The classification of sanitary flange elbows fully ADAPTS to the steering requirements of different scenarios. 45 degree elbow guides fluid flow at a gentle Angle and is suitable for slight direction adjustment of long-distance clean pipelines. In the filling production line of food and beverages, it can be used in conjunction with the sanitary version of Flexible Metal Hose . The smooth inner wall of the metal hose and the rounded corner transition of the elbow jointly avoid hygiene dead corners, ensuring that the liquid raw materials are free of residue and easy to clean when turned.

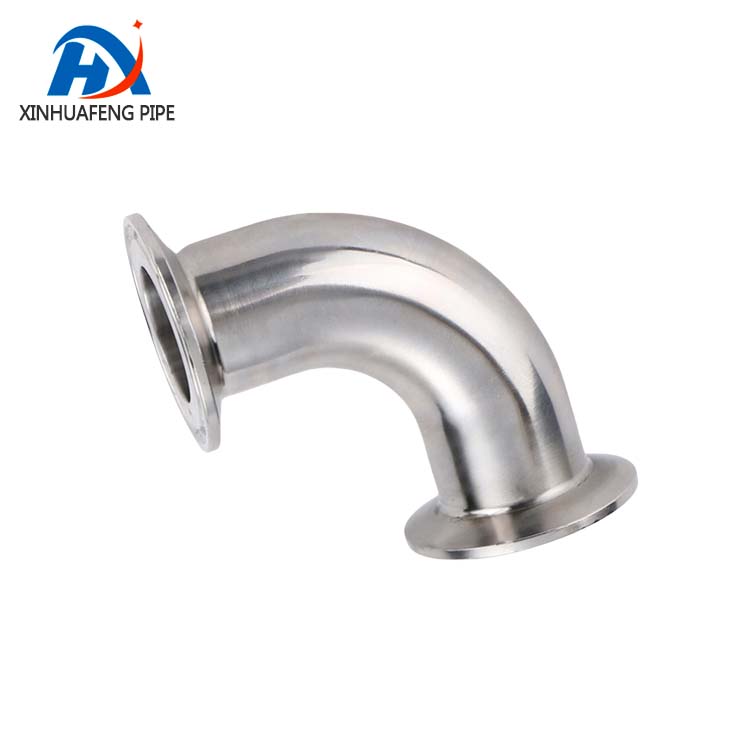

90 Degree Elbow is the main force of right-angle turning and is widely used in the purified water pipeline of the pharmaceutical workshop. When it is connected with the sanitary version of the Flange Adaptor , the adapter can precisely bridge the interface differences of flanges of different specifications, ensuring that there is no leakage or dirt accumulation at the connection part. Meet the strict requirements of GMP certification for pipeline cleanliness. The
180 Degree Elbow realizes the U-shaped return of the pipeline and is often used in the circulation filtration system of cosmetic raw materials. When paired with
Duckbill Check Valve's sanitary grade model, it can prevent the clean medium after filtration from flowing back and being contaminated. The two work together to ensure the unidirectional clean transportation of the medium.
In terms of structural design, every detail of the sanitary flange elbow is designed for cleanliness and stability. The flange part is made of corrosion-resistant materials such as stainless steel, and its surface is polished to a mirror finish. When connected to the pipe, seamless sealing is achieved through clamp or welding, avoiding the risk of fouling in traditional threaded connections. In the high-temperature sterilization pipeline of the dairy production line, this sealing structure can be combined with the food-grade version of Rubber Expansion Joint. The high-temperature resistance property of the rubber absorbs the temperature fluctuation displacement during the sterilization process, and the elbow maintains a clean seal with right-angle rotation. The two jointly meet the operational requirements of the high-temperature clean environment. The rounded corner transition design of the elbow part eliminates dead corners for fluid retention. When connected to the Flexible Metal Hose, the flexibility of the metal hose combined with the smooth turning of the elbow reduces the scouring of the inner wall of the pipe by fluid turbulence and lowers the risk of microbial growth.
In the application of different clean fields, the coordination between sanitary flange elbows and various accessories is even more crucial. In the sauce conveying pipeline of food processing, the high-viscosity medium has extremely high requirements for the wear resistance and cleanliness of the elbow. The sanitary grade stainless steel elbow can be connected to the sanitary grade version of
Dismantling Joint through Flange Adaptor. The detachable joint facilitates regular disassembly and cleaning of the inner wall of the elbow to avoid the residue and deterioration of the sauce. Meanwhile, in combination with the Flexible Metal Hose, the flexibility of the metal hose can relieve the pulse pressure during the conveying of the sauce and protect the elbow from impact damage. In the aseptic water delivery system of the pharmaceutical industry, the sanitary grade flange elbow needs to withstand the repeated tests of high-temperature sterilization. At this time, when paired with the sanitary grade model of
Bellow Expansion Joint, the metal material of the bellows can withstand the steam sterilization temperature, absorb the displacement caused by the thermal expansion and contraction of the pipeline, and the elbow maintains the aseptic seal at the turning part The two form a clean guarantee combination of "rigid steering + flexible compensation".
The choice of connection method directly affects the cleanliness and stability of the system. The sanitary flange elbow with welded connection has excellent sealing performance and is suitable for high-pressure clean pipelines. It can be directly connected to the welded end of the Bellow Expansion Joint to form a leak-free pressure-resistant turning unit. The elbow connected by clamp is easy to install and can be quickly disassembled and maintained. In the feeding pipeline of the cosmetic emulsifying pot, it can be combined with Dismantling Joint to disassemble and assemble the elbow quickly by clamp for disinfection, ensuring the aseptic transportation of each batch of raw materials. The sanitary elbow with threaded connection is suitable for low-pressure clean scenarios. When connected with the food-grade version of the
Threaded Rubber Expansion Joint, the elastic compensation of the rubber can reduce the influence of vibration on the threaded interface and avoid leakage contamination.
The selection and installation process should take into account both cleanliness standards and compatibility with accessories. In terms of material, sanitary Flange elbows mostly use 316L stainless steel and need to be matched with flange adaptors and Duckbill Check valves of the same material to avoid electrochemical corrosion caused by contact with dissimilar metals and contamination of the medium. At the interface of the equipment with slight vibration, select the combined scheme with Rubber Expansion Joint. The flexibility of the rubber can absorb the vibration and protect the sealed connection between the elbow and the pipeline. For pipelines that require frequent maintenance, the sanitary version of Dismantling Joint simplifies the disassembly process of elbows and, in combination with regular cleaning, ensures long-term cleanliness.
From fresh milk transportation to vaccine production, sanitary flange elbows have always been the "turning guards" of clean pipelines. It works in conjunction with the food-grade version of Rubber Expansion Joint to achieve flexible compensation and steering sealing in low-pressure clean scenarios; In combination with the sanitary grade model of Bellow Expansion Joint, it can cope with the displacement challenge of high-temperature and high-pressure clean pipelines; The seamless connection of clean pipelines of different specifications is achieved through Flange Adaptor, and the aseptic maintenance efficiency is improved with the help of Dismantling Joint; Build a clean delivery network with no blind spots and backflow prevention together with the clean versions of Flexible Metal Hose and Duckbill Check Valve . At every node that requires precise steering and ultimate cleanliness, sanitary flange elbows safeguard the safety of products in fields such as food, pharmaceuticals, and cosmetics with strict standards and reliable performance.
