Elbow: An indispensable core connecting component in pipeline systems
In the complex network of pipeline systems, elbows, with their core function of changing the direction of pipelines, have become key accessories to ensure the flexibility and efficiency of the system. Whether it is high-pressure pipelines in industrial production or water supply and drainage systems in civil buildings, choosing the appropriate type and material of elbows, combined with scientific design and installation, can significantly improve the operation quality and maintenance convenience of the system. The synergy with accessories such as
Rubber Expansion Joint and
Bellow Expansion Joint has further enhanced the stability of the piping system.
From the perspective of definition and application, elbows achieve the direction change of fluids in pipelines through the structure of curved pipe sections and are widely used in the transportation scenarios of liquids, gases and solid particles. In the chemical pipelines of the industrial field, elbows need to withstand the long-term erosion of corrosive media. At this time, stainless steel elbows become the first choice due to their excellent corrosion resistance. They can be connected to the
Duckbill Check Valve through the Flange Adaptor . The check Valve prevents the backflow of the medium from eroding the elbow, while the elbow stably guides the direction of the fluid. The two work together to ensure the safety of transporting corrosive media. In the building water supply and drainage system, plastic elbows are suitable for cold water transportation due to their light weight and corrosion resistance. When used in combination with Rubber Expansion Joint, the elastic compensation capacity of rubber can alleviate the vibration caused by water flow impact and reduce the leakage risk at the connection between elbows and pipes.
The elbow types classified by Angle are precisely adapted to different steering requirements. 45 degree elbow reduces flow resistance with a gentle turning Angle and is suitable for slight direction adjustment of long-distance pipelines. It is often used in combination with
Flexible Metal Hose for the transportation of high-flow fluids. The flexibility of the Metal Hose and the gentle turning of the elbow jointly reduce the energy loss caused by turbulence. The

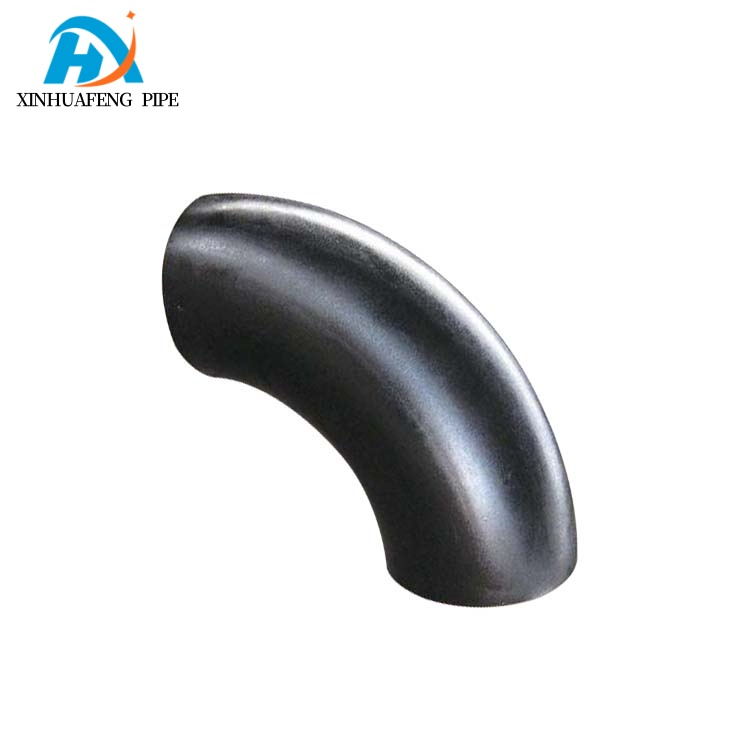

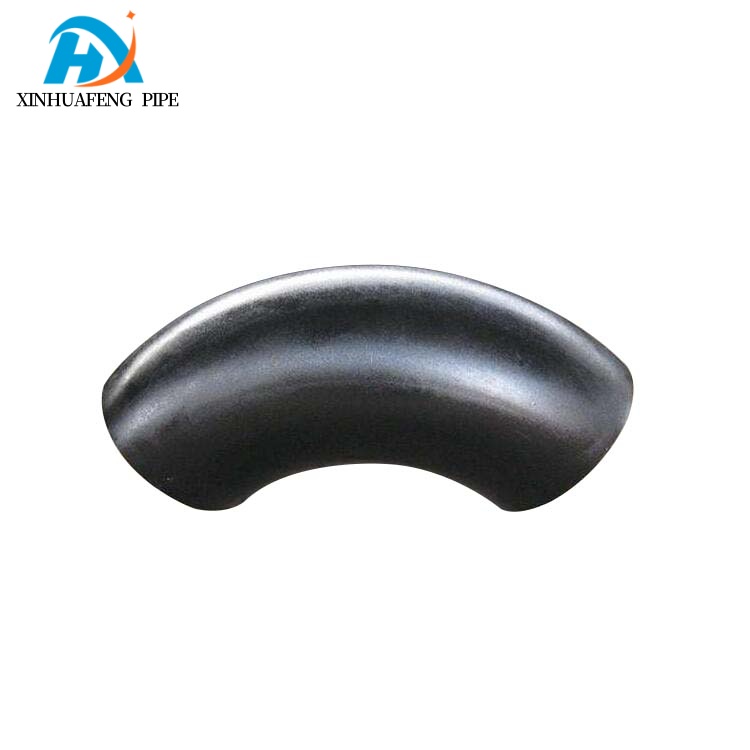

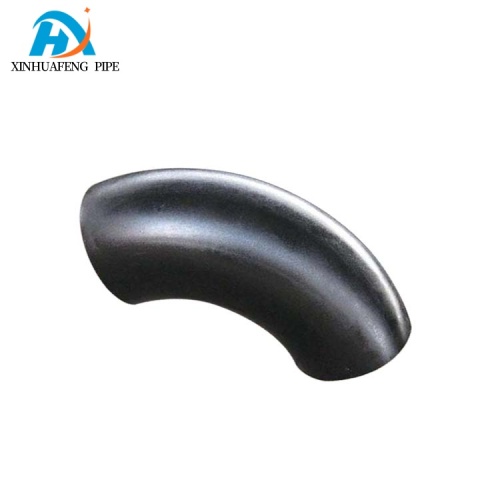

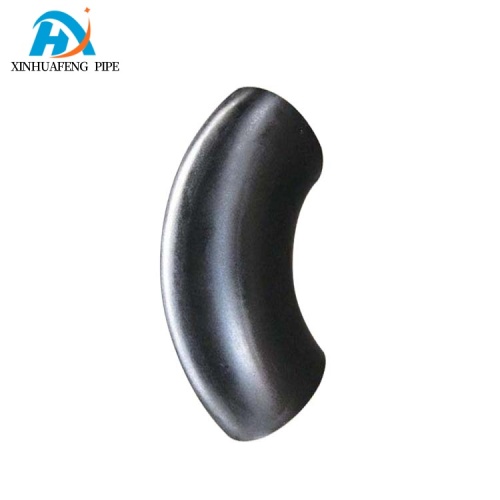

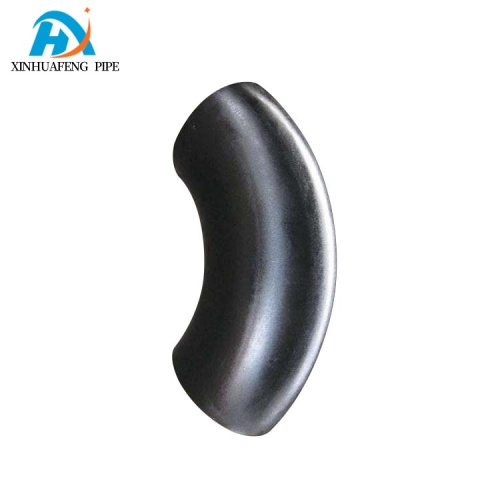

90 Degree Elbow is the main force for right-angle steering and is indispensable in scenarios such as equipment interfaces and wall corners. In installation environments with limited space, it can be combined with
Dismantling Joint, which not only meets the requirements of right-angle steering but also facilitates quick disassembly and replacement during later maintenance. The
180 Degree Elbow realizes the U-shaped return of the pipeline and is often used in the medium circulation system. When used in conjunction with the Bellow Expansion Joint, it can absorb the pipeline displacement caused by temperature changes during the circulation process and protect the elbow from stress damage. In addition, non-standard Angle elbows such as 60 degrees customized according to engineering requirements can be adapted to different accessories through Flange adaptors, meeting the personalized turning needs of complex pipelines.
The diversity of materials enables elbows to meet the challenges of various working conditions. Carbon steel elbows have outstanding cost performance and are a common choice for the transportation of industrial ordinary fluids. In low-pressure steam pipelines, they can work in coordination with
Rubber Expansion Joints. The high-temperature resistance of rubber combined with the strength of elbows not only compensates for the thermal expansion and contraction displacement of the pipeline but also ensures the stable transportation of steam. Alloy steel elbow, with its characteristics of high temperature and high pressure resistance, cooperates with Bellow Expansion Joint in thermal power generation pipelines. The bellows absorb the pipeline expansion and contraction caused by high temperature, and the elbow undertakes the steering task of high-pressure steam. The two form an efficient combination of "rigid steering + flexible compensation". The malleable cast iron elbow has high strength and good toughness, and is suitable for low-pressure large-diameter water pipes. It is connected to the Flange Adaptor through flange connection to ensure reliable interface sealing. Non-ferrous metals such as copper and aluminum elbows exert their advantages in specific scenarios. Copper elbows have excellent thermal conductivity and are compatible with the copper interfaces of Flexible Metal Hose in air conditioning and HVAC systems to achieve efficient turning of cold and hot fluids. Plastic elbows, with their economical and practical features, are installed in civil drinking water pipelines. They are connected to the pipelines through glue bonding and are equipped with Dismantling joints for easy maintenance in the later stage.
In practical applications, the coordination between elbows and various accessories is the key to the stable operation of the system. In high-pressure industrial pipelines, the welded ends of alloy steel elbow and Bellow Expansion Joint are directly joined to form pressure-resistant steering units that can withstand the long-term impact of high-pressure fluids. In the fire protection pipelines of civil buildings, carbon steel elbows are connected to Dismantling Joint through Flange Adaptor, which not only meets the requirements of right-angle turning but also provides convenience for later maintenance and replacement. In the corrosive medium transportation system, the stainless steel elbow is combined with the corrosion-resistant inner layer of the Flexible Metal Hose to achieve a sealed connection through the Flange Adaptor, providing double protection to extend the service life of the system. When selecting the type, it is necessary to precisely match it based on the characteristics of the medium, pressure level and temperature range. For example, when conveying media containing particles, choose wear-resistant material elbows and use Duckbill Check valves to prevent secondary wear on the elbows caused by particle backflow.
From industrial production to daily life, elbows have always been indispensable "turning hubs" in pipeline systems. It complements the elastic compensation of Rubber Expansion Joint and works in coordination with the high-voltage adapter of Bellow Expansion Joint. Through Flange Adapter , seamless connection of different interfaces is achieved, and maintenance efficiency is improved with the help of Dismantling Joint. Jointly build a safe and reliable fluid transportation network with Flexible Metal Hose and Duckbill Check Valve. Only by choosing elbows of appropriate angles and materials and scientifically matching them with various accessories can the pipeline system maintain an efficient and stable operating state in every turn.
