Stainless Steel Flange Type Expansion Joint

Stainless Steel Flange Type Bellow Expansion Joint and Key Pipeline Components​

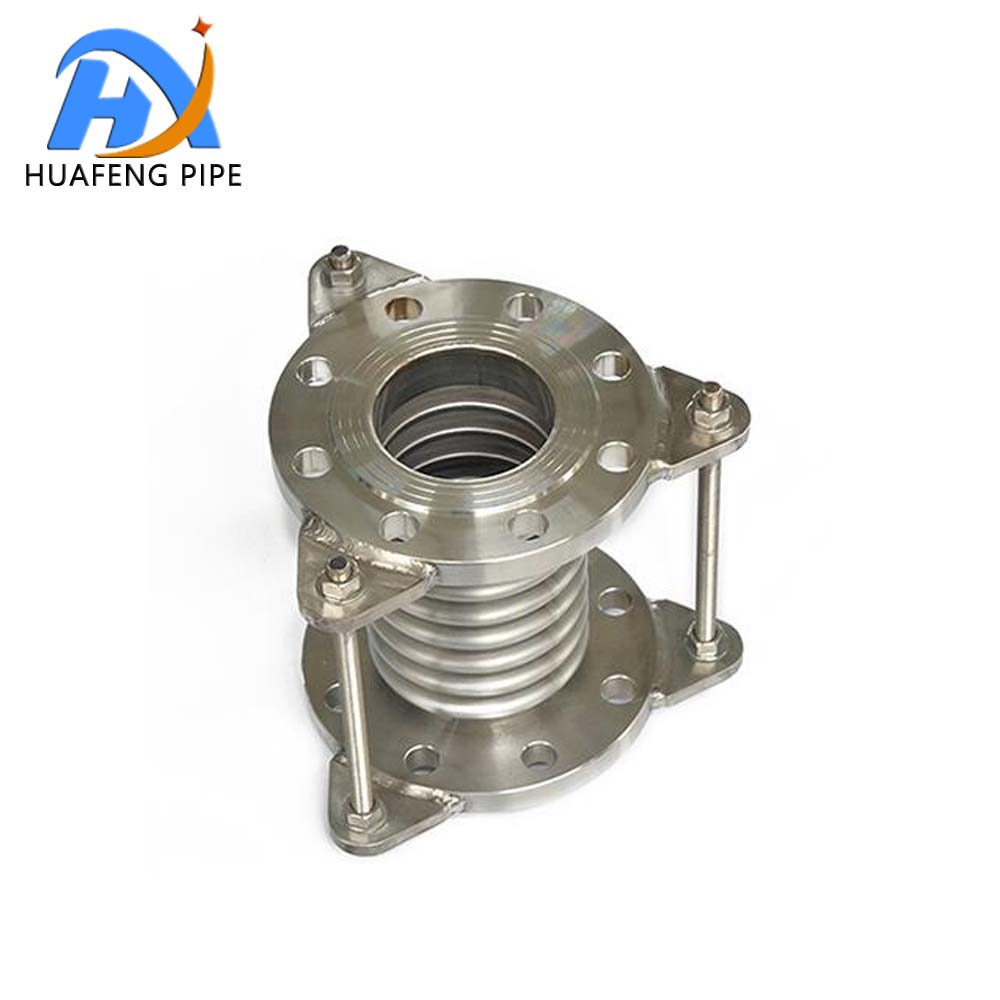

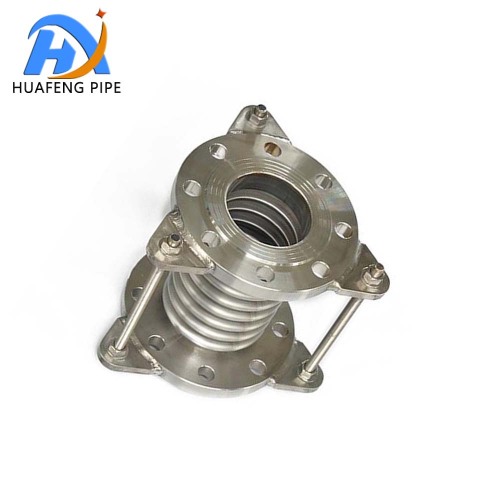

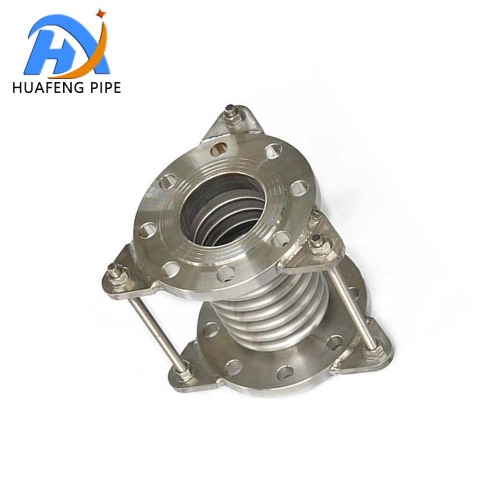

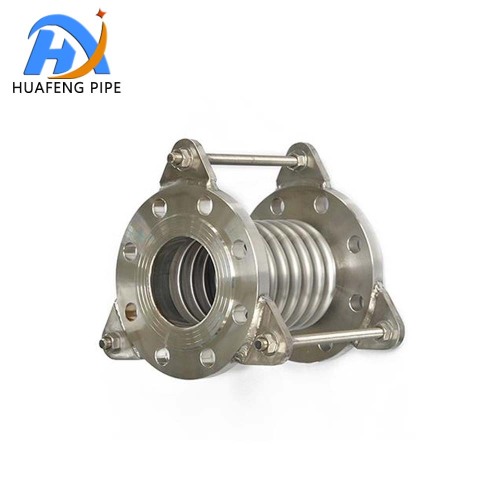

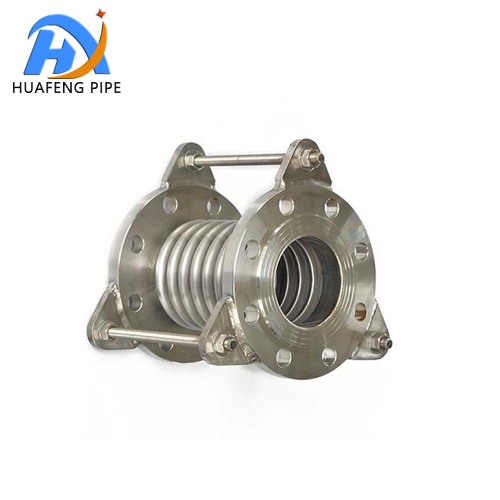

The Flange type Bellow Expansion Joint with stainless steel, a vital Bellow Expansion Joint variant, plays a critical role in pipeline systems under working conditions. Its core function is to absorb pipeline displacements under pressure, ensuring the system's stability. The Expansion Bellows, as the main component, must possess high pressure - bearing capacity to withstand the rigors of the working environment. A key design challenge lies in achieving a larger deflection within the limited length of the expansion joint, where a thinner wall thickness is preferable. However, selecting the right wall thickness is no easy task, as it must balance the conflicting demands of pressure range, compensation displacement, and pressure - bearing capacity. To meet both the compensation amount and pressure - bearing requirements, manufacturers have innovatively designed the bellows with a thin - walled, multi - layer structure, which resembles a closed spring in appearance.​
Under working conditions, the stress in the stainless steel Flange Bellows Expansion Joint generally comprises pressure stress and displacement stress. When choosing the wall thickness, factors such as the pressure - bearing strength, the fatigue life of the bellows under alternating deflection deformation, and deformation coordination must all be taken into account. If the media being transported is corrosive, material compatibility with the media becomes an additional crucial consideration alongside the working pressure to prevent corrosion. Thanks to advanced technology, computer software can be employed to calculate the wall thickness and the number of bellows waves based on the working pressure and compensation amount. Strict control is essential over various processes, including raw materials, welding and forming of stainless steel expansion joint pipe blanks, structural components, and welding of end tube flanges, to ensure the quality of the Bellow Expansion Joint.​
In the broader pipeline system ecosystem, other components also play indispensable roles. The Rubber Expansion Joint is a flexible connection device that offers excellent elasticity and shock - absorption properties, effectively compensating for pipeline displacements and reducing vibration impacts. Flexible Metal Hose provides exceptional flexibility, adapting to various complex displacement requirements of pipelines and enabling flexible connections in diverse pipeline setups. Dismantling Joint simplifies the installation, maintenance, and disassembly of pipelines, greatly facilitating system upkeep. Flange Adaptor ensures seamless connection between different flanges, enhancing compatibility and stability in the pipeline network. Meanwhile, the Duckbill Check Valve effectively prevents medium backflow, guaranteeing one - way circulation and boosting the overall safety of the pipeline system. Together, these components, including the high - performance Bellow Expansion Joint, form a comprehensive and reliable pipeline system that meets the diverse needs of various industries.​
