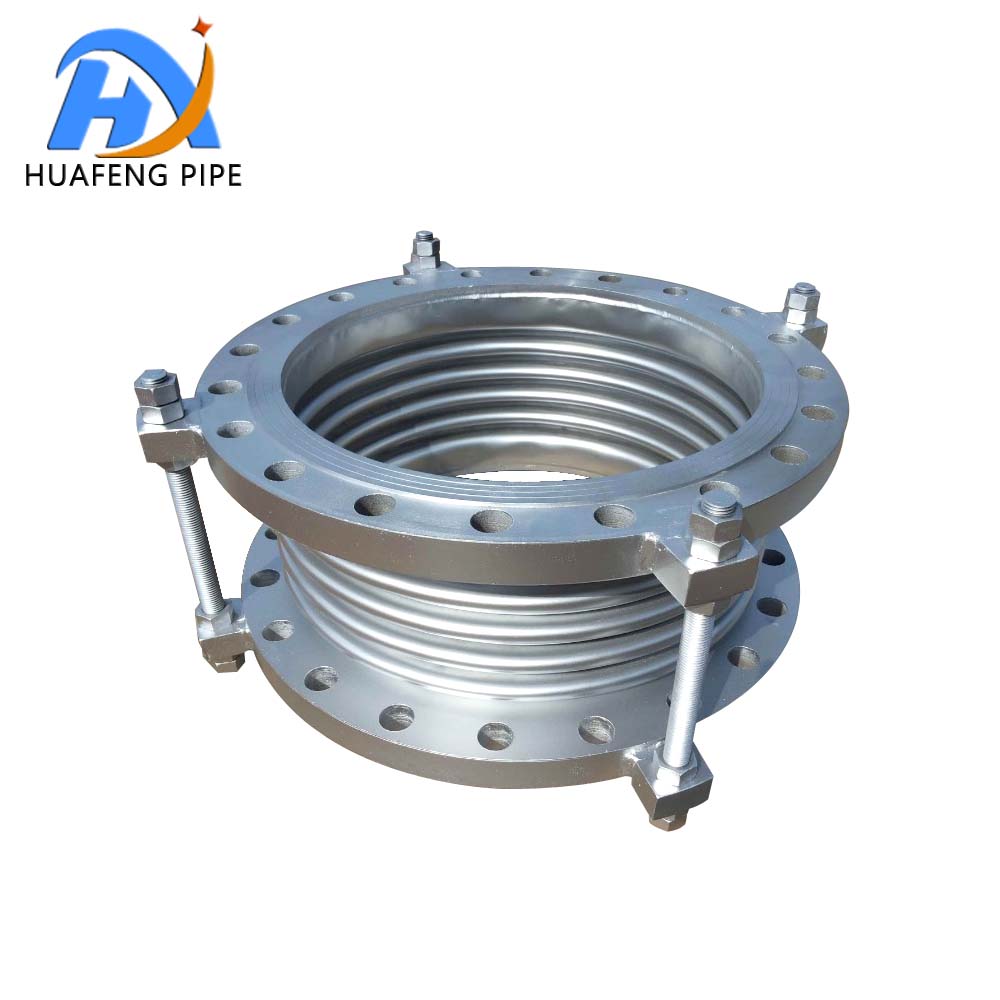

Flange -Type Corrugated Expansion Joint: Reliable Compensation for High-Demand Piping SystemsThe flange-type corrugated expansion joint—also known as a
Flange Corrugated Expansion Joint or flange metal expansion joint—stands as a critical pipeline compensation component, engineered to address thermal expansion, vibration, and sealing challenges in industrial systems. As a specialized
Bellow Expansion Joint variant, its flange connection design and corrugated metal structure deliver standout advantages, from high-temperature tolerance to vibration absorption, making it indispensable in harsh operating environments. It works in harmony with

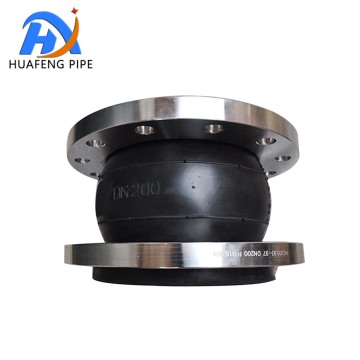

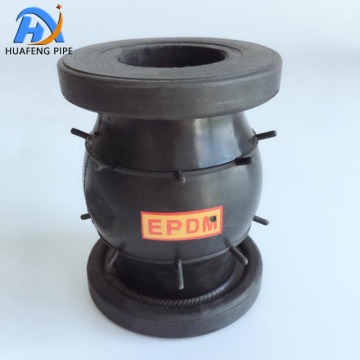

Rubber Expansion Joint,
Flexible Metal Hose, and other fittings, integrating seamlessly with

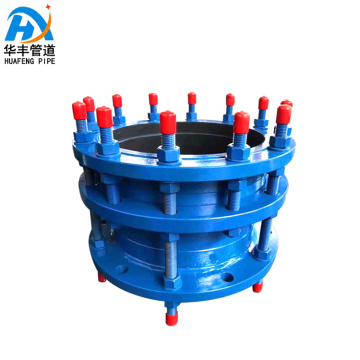

Dismantling Joint,

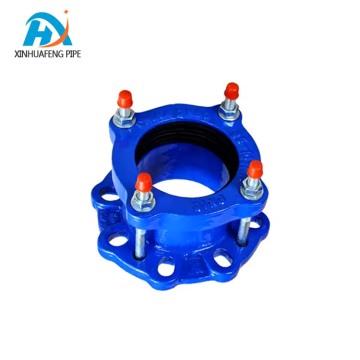

Flange Adaptor, and
Duckbill Check Valve to enhance pipeline safety and efficiency.
High temperature and high pressure resistance define the flange-type corrugated expansion joint’s performance, allowing it to thrive in extreme industrial environments where standard components falter. Constructed from robust metals like stainless steel or alloy steel, it withstands temperatures exceeding 500°C and pressures up to thousands of psi, making it ideal for power plant boilers, chemical reactors, and oil refinery pipelines. Unlike Rubber Expansion Joint, which degrades under extreme heat, this metal expansion joint retains flexibility and structural integrity, ensuring reliable operation in superheated steam lines or high-pressure hydrocarbon systems. Paired with Flange Adaptor, it connects to dissimilar flange standards, maintaining a tight seal even as temperatures and pressures fluctuate— a critical capability in energy sectors where system failure could have catastrophic consequences.
Vibration absorption adds another layer of protection, reducing equipment wear and extending pipeline lifespan. Industrial pumps, compressors, and turbines generate intense vibrations that propagate through rigid piping, causing fatigue in welds, valves, and supports. The flange-type corrugated expansion joint’s corrugated tube flexes to dampen these vibrations, acting as a buffer between vibrating equipment and the pipeline. In manufacturing plants with heavy machinery, it pairs with Rubber Expansion Joint in dual-damping systems: the
Rubber Joint absorbs high-frequency vibrations from auxiliary equipment, while the flange expansion joint mitigates low-frequency stress from main pipelines. This collaboration is particularly valuable in chemical processing, where vibration-induced leaks could release hazardous media— the expansion joint’s vibration absorption, combined with Duckbill Check Valve to prevent backflow, creates a safer operating environment.
Strong flexibility enables the flange-type corrugated expansion joint to adapt to complex piping layouts, accommodating axial, lateral, and angular displacements caused by thermal cycling, foundation settlement, or equipment movement. In long-distance pipelines, it handles expansion and contraction without compromising the flange seal, ensuring leak-free operation even as the pipeline shifts. Paired with Flexible Metal Hose in these systems, it creates a dynamic pathway: the metal hose adds fine-tuning flexibility for intricate routing around obstacles, while the flange expansion joint manages major displacements, all secured via flanges to maintain system cohesion. In construction projects with tight spaces, such as building utility shafts, its multi-directional flexibility eliminates the need for complex pipe bends, reducing installation time and costs— a benefit amplified by Flange Adaptor that bridge different pipe sizes or materials.
Simple maintenance minimizes downtime and operational costs, thanks to the flange-type corrugated expansion joint’s robust design and accessible components. Unlike welded expansion joints that require cutting for replacement, this flange-connected variant can be easily disassembled by removing bolts, allowing for inspection of the corrugated tube, limiting devices, and gaskets. Routine maintenance involves checking for corrosion, bellows fatigue, or loose fasteners— tasks simplified by Dismantling Joint that isolate sections of the pipeline, enabling technicians to work safely without shutting down the entire system. In food processing facilities, where hygiene is critical, this ease of maintenance ensures the expansion joint can be cleaned and inspected regularly, complying with strict safety standards. Its durability reduces the need for frequent replacements, lowering lifecycle costs compared to less robust components like Rubber Expansion Joint in high-wear environments.
Excellent sealability is a hallmark of the flange-type corrugated expansion joint, achieved through precision-engineered flange connections that prevent fluid leakage— even when handling corrosive, toxic, or high-temperature media. Flanges are bolted tightly to mating flanges on pipes, valves, or tanks, with gaskets selected for chemical compatibility and temperature resistance, ensuring a leak-tight seal that withstands pressure surges. In wastewater treatment plants, this sealability is critical: the expansion joint pairs with Duckbill Check Valve to prevent backflow of sludge and sewage, with the flange connection ensuring no leakage of harmful pathogens into the environment. In pharmaceutical production, where media purity is paramount, the flange seal prevents contamination, working with Flexible Metal Hose to create a sterile pathway for sensitive drugs— the metal hose adds flexibility, while the expansion joint maintains a secure seal.
Compatibility with other pipeline components enhances the flange-type corrugated expansion joint’s versatility across industries. It works with Bellow Expansion Joint in large-scale systems to split compensation duties: the flange-type variant handles high-pressure zones with flange connections, while standard bellows manage expansion in lower-pressure sections, all secured via flanges to maintain system integrity. In marine applications, where saltwater corrosion is a constant threat, it pairs with Flexible Metal Hose and anti-corrosion Flange Adaptor to create a rugged, seawater-resistant pipeline— the metal hose resists abrasion from waves, while the expansion joint absorbs thermal expansion, ensuring reliable operation in offshore drilling platforms. For maintenance-heavy industries like mining, Dismantling Joint simplify access to the expansion joint, allowing for quick inspections and replacements without disrupting production.
In summary, the flange-type corrugated expansion joint stands as a versatile and reliable component in high-demand piping systems, offering high-temperature tolerance, vibration absorption, and superior sealability. Its ability to collaborate with Rubber Expansion Joint for flexible damping, Bellow Expansion Joint for shared compensation, and Flexible Metal Hose for routing adaptability makes it indispensable in energy, chemical, and manufacturing sectors. Supported by Dismantling Joint, Flange Adaptor, and Duckbill Check Valve, it ensures pipelines operate safely, efficiently, and durably— proving that flange-connected metal bellows are essential for solving the toughest industrial piping challenges.
