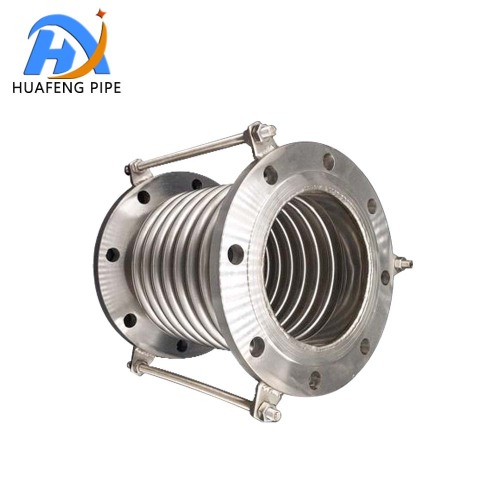

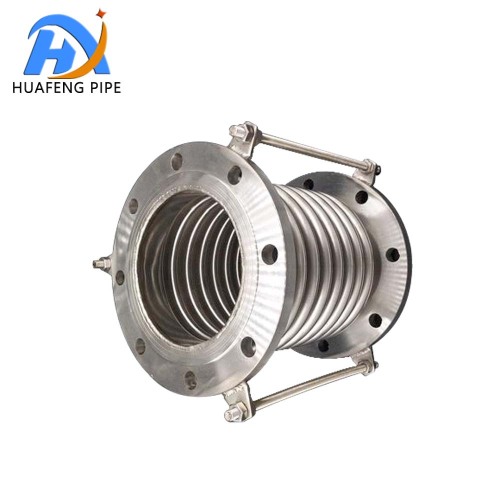

Flanged Stainless Steel Bellow Expansion Joint

Flange Type Bellow Expansion Joint: Reliable Pipeline Compensation for Harsh Environments​
The Flange type Bellow Expansion Joint—also widely known as Flange Bellows Expansion Joint or Flange Corrugated Expansion Joint—stands as a cornerstone of pipeline compensation systems, engineered to maintain stability and safety in diverse industrial environments. As a critical Bellow Expansion Joint variant, it leverages the unique properties of corrugated pipes to absorb displacements, resist corrosion, and simplify installation, making it indispensable in industries ranging from chemical processing to power generation. When integrated with Rubber Expansion Joint, Flexible Metal Hose, and other key components, it forms a comprehensive solution that addresses the most demanding pipeline challenges.​
At the heart of this expansion joint’s performance is its good elasticity, derived from the corrugated pipe—the core component designed with exceptional flexibility and pressure resistance. This elasticity allows it to compensate for axial, lateral, and angular displacements over a wide range, adapting to pipeline shifts caused by thermal expansion, foundation settlement, or mechanical vibration. In high-temperature steam pipelines, for example, it works alongside Rubber Expansion Joint to balance flexibility and resilience: the bellows expansion joint handles large axial expansion from heated steam, while the Rubber Joint absorbs low-frequency vibrations from turbines, protecting welds and valves from fatigue. In refrigeration systems, its elasticity accommodates cold-induced contraction, paired with Flange Adaptor to ensure a tight seal between dissimilar materials, maintaining system efficiency even in sub-zero temperatures.​
Large compensation capacity is another defining advantage, made possible by the corrugated pipe’s unique structure. Unlike rigid pipeline components, the bellows’ ridges allow for significant deformation without compromising integrity, enabling it to absorb substantial displacements that would otherwise stress the system. In long-distance oil and gas pipelines, it collaborates with Flexible Metal Hose to manage combined movement: the metal hose adds durability against abrasion from crude oil, while the flange bellow expansion joint compensates for lateral shifts caused by ground movement, preventing pipeline buckling. In chemical plants with complex piping layouts, it pairs with Dismantling Joint to simplify installation around obstacles, leveraging its compensation capacity to accommodate minor misalignments without forcing connections—a critical feature in reducing installation time and costs.​
Corrosion resistance, high and low temperature resistance expand the flange type bellow expansion joint’s application across harsh environments. Constructed from materials like stainless steel (304, 316L) or nickel alloys, it withstands exposure to acids, alkalis, saltwater, and extreme temperatures, making it ideal for coastal projects, wastewater treatment plants, and high-temperature industrial processes. In marine pipeline systems, it connects via flanges to Duckbill Check Valve to prevent saltwater backflow, withstanding corrosion from salt spray and seawater immersion. In pharmaceutical production, where hygiene and chemical resistance are paramount, stainless steel variants pair with Flange Adaptor to create a sterile, corrosion-resistant pathway for 药液 (liquid pharmaceuticals), ensuring compliance with strict industry standards. For cryogenic applications like LNG transport, it handles extreme low temperatures without losing elasticity, working alongside Bellow Expansion Joint in series to manage large thermal contractions.​
Easy installation is a key practical benefit, stemming from the expansion joint’s compact structure, light weight, and standardized design. Its flanged ends allow for straightforward bolted connection to pipelines or Flange Adaptor, minimizing downtime during system setup or upgrades. In tight industrial spaces, it integrates seamlessly with Dismantling Joint, enabling incremental adjustments during installation to avoid forced alignment—preserving the bellows’ elasticity and extending service life. In power plant cooling water systems, this ease of installation is invaluable: the flange bellow expansion joint connects quickly to pumps and heat exchangers, paired with Flexible Metal Hose to navigate around equipment, ensuring efficient water flow while compensating for thermal expansion. Its standardized manufacturing also simplifies replacement, with interchangeable parts reducing inventory costs for maintenance teams.​
The flange type bellow expansion joint’s versatility shines in its compatibility with essential pipeline components, enhancing system performance across applications. In HVAC systems, it works with Rubber Expansion Joint to balance thermal and vibrational needs: the bellows manage ductwork expansion from temperature swings, while the rubber joint dampens noise from fans, creating comfortable indoor environments. In fire protection systems, it connects via flanges to Flexible Metal Hose to form a flexible, high-pressure pathway, ensuring water reaches sprinklers even in buildings with complex architectures. In mining operations, it pairs with Duckbill Check Valve to prevent backflow of abrasive slurry, with the bellows expansion joint absorbing vibrations from slurry pumps and the check valve blocking reverse flow, protecting downstream equipment.​
In wastewater treatment plants, the flange bellow expansion joint plays a critical role in maintaining operational efficiency. It compensates for displacements in sewage pipelines, resisting corrosion from chemicals and biological waste, while its elasticity dampens vibrations from aeration equipment. Paired with Dismantling Joint, it allows for easy access to clogged pipes or damaged Duckbill Check Valve, minimizing maintenance downtime and ensuring continuous treatment processes. In municipal water supply networks, it connects to pumps via Flange Adaptor, absorbing water hammer effects and compensating for thermal expansion, ensuring reliable water delivery to communities.​
The synergy between the flange type bellow expansion joint and other components is key to its success. When combined with Bellow Expansion Joint in series, it handles extra-large displacements in long pipelines, such as those in desalination plants. When used alongside Rubber Expansion Joint, it balances the bellows’ high-temperature resistance with the rubber’s vibration-damping properties, ideal for combined heat and power systems. Its compatibility with Flexible Metal Hose adds durability in abrasive environments, while Flange Adaptor and Dismantling Joint enhance installation flexibility—making it a versatile solution for nearly any pipeline compensation need.​
In summary, the flange type bellow expansion joint exemplifies the reliability and adaptability of Bellow Expansion Joint technology. Its good elasticity, large compensation capacity, corrosion resistance, and easy installation make it a vital component in harsh industrial environments. When paired with Rubber Expansion Joint, Flexible Metal Hose, Dismantling Joint, Flange Adaptor, and Duckbill Check Valve, it forms a robust pipeline system capable of withstanding displacements, resisting corrosion, and simplifying maintenance. From chemical plants to power stations, this expansion joint ensures pipelines operate safely, efficiently, and durably—proving its value as an essential pipeline compensation solution.​
