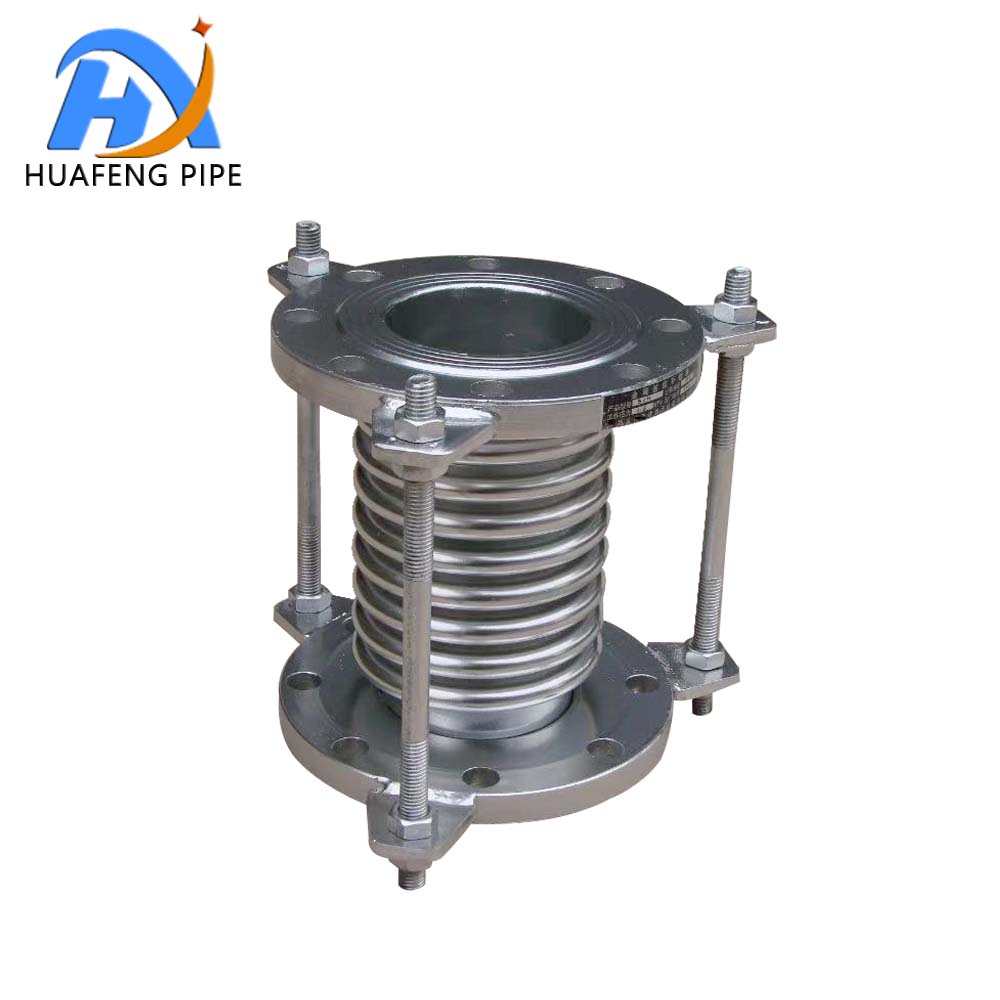

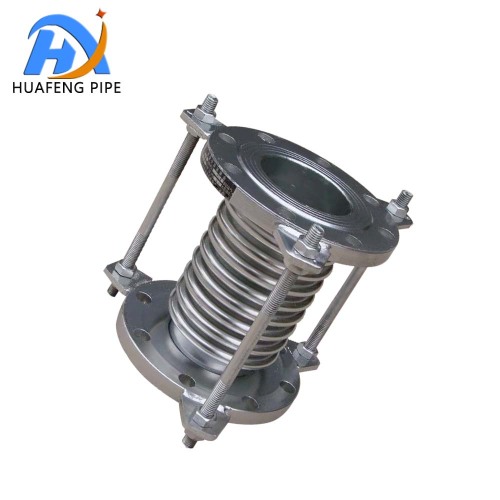

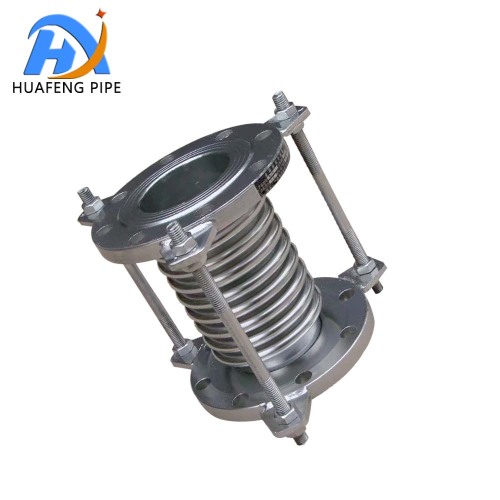

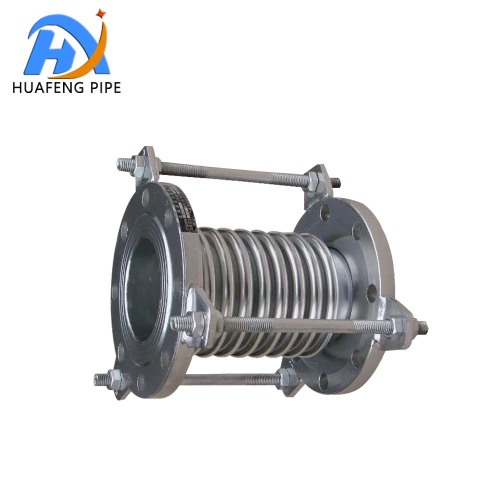

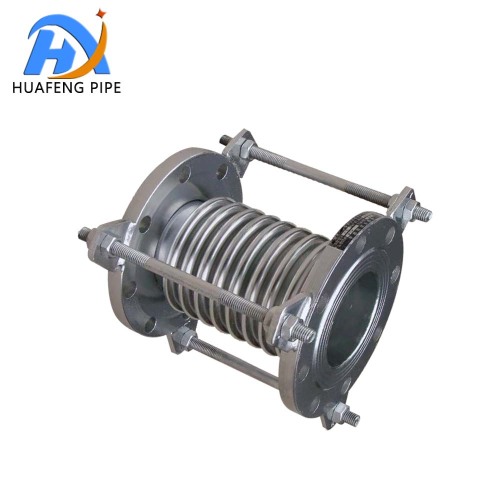

Flanged Metal Bellows Expansion Joint

Flange Type Bellow Expansion Joint: Core Component for Pipeline Displacement Compensation​
The Flange type Bellow Expansion Joint stands as a vital safeguard in pipeline systems, engineered to absorb displacements from thermal expansion, vibration, and external forces—ultimately protecting pipelines from damage and ensuring operational stability. As a key Bellow Expansion Joint variant, it combines the flexibility of corrugated pipes with the reliability of flange connections, making it indispensable in industries spanning petroleum, chemicals, pharmaceuticals, and food processing. Its ability to compensate for length changes, dampen vibrations, and reduce noise, when paired with components like Rubber Expansion Joint and Flexible Metal Hose, forms a comprehensive pipeline protection system that enhances resilience across diverse operational conditions.​
At the heart of its functionality lies a robust structural design comprising three key elements: the corrugated pipe, flanges, and connecting pieces. The corrugated pipe, as the core component, boasts exceptional flexibility and elasticity, enabling it to absorb and release deformation energy caused by thermal fluctuations or mechanical stress. Its multiple ridges act as a series of flexible hinges, allowing for axial, lateral, and angular displacement without compromising integrity. The flanges, typically made of carbon steel, stainless steel, or alloy steel, provide secure connection points to pipelines or equipment, ensuring leak-free integration via bolted joints. Compatibility with Flange Adaptor further enhances versatility, enabling seamless connection between different flange standards or sizes—a critical feature in retrofitted or mixed-standard pipeline systems. In chemical processing plants, for example, stainless steel flanges on the expansion joint pair with Flange Adaptor to connect to carbon steel pipelines, preventing galvanic corrosion while maintaining a tight seal.​
The application range of flange type Bellow Expansion Joints spans industries where pipeline stability is paramount. In petroleum refineries, they compensate for thermal expansion in high-temperature crude oil lines, working alongside Rubber Expansion Joint to manage combined displacements: the bellows handle large axial expansion from heated oil, while the Rubber Joint absorbs lateral vibrations from pumps, protecting welds and valves from fatigue. In pharmaceutical and food processing facilities, where hygiene and corrosion resistance are critical, Stainless Steel Flange bellow expansion joints connect to Flexible Metal Hose with sanitary flanges, ensuring smooth media flow without contamination risks. These joints also excel in wastewater treatment plants, where they absorb vibrations from aeration equipment and compensate for pipeline shifts due to ground settlement, often paired with Dismantling Joint for easy maintenance access.​
A key advantage of the flange type bellow expansion joint is its ability to absorb length changes caused by temperature variations—a function vital in systems with extreme thermal cycles. In power plant steam pipelines, for instance, it expands and contracts with high-temperature steam flow, preventing pipe buckling or rupture. When paired with Bellow Expansion Joint in series, it can handle even larger axial displacements, making it suitable for long-distance steam distribution lines. In HVAC systems, it works with Rubber Expansion Joint to balance thermal movements: the bellows manage ductwork expansion, while the rubber joint dampens fan vibrations, ensuring efficient heating and cooling without noise pollution. This synergy of components ensures pipelines adapt to temperature changes without compromising performance.​
Vibration absorption and noise reduction are additional strengths of this expansion joint, particularly in industrial environments with heavy machinery. The corrugated pipe’s flexibility allows it to absorb mechanical vibrations from pumps, compressors, and turbines, reducing stress on pipeline supports and connections. In manufacturing plants, it pairs with Flexible Metal Hose to create a vibration-damping pathway: the metal hose adds durability against abrasion, while the bellows expansion joint dissipates vibrational energy, protecting sensitive instruments and extending equipment lifespan. In urban water supply networks, it connects via flanges to pumps and valves, reducing noise from water flow and preventing vibration transfer to residential buildings—enhancing quality of life for nearby communities.​
Installation and maintenance efficiency are streamlined by the expansion joint’s flange design and compatibility with essential fittings. Its flanged ends allow for quick bolted connection to pipelines or Flange Adaptor, minimizing downtime during system setup or repairs. When maintenance is required, integration with Dismantling Joint enables easy removal of the expansion joint, providing access to downstream components like Duckbill Check Valve or filters. This is especially valuable in industries like chemicals, where regular inspections are necessary to prevent leaks of hazardous materials. The connecting pieces, which secure the expansion joint to the pipeline, also simplify alignment adjustments during installation, ensuring optimal performance from day one.​
Material selection plays a critical role in the expansion joint’s performance across diverse environments. Carbon steel variants are cost-effective for general industrial use, while stainless steel (304, 316L) offers superior corrosion resistance for chemical or marine applications. In corrosive offshore pipelines, galvanized flange bellow expansion joints pair with Duckbill Check Valve and stainless steel Flange Adaptor to resist saltwater erosion, ensuring long-term reliability in harsh coastal conditions. For high-temperature applications, alloy steel bellows withstand extreme heat, making them suitable for furnace exhaust lines or steam turbines, where they work with Bellow Expansion Joint to manage thermal stress.​
In summary, the flange type bellow expansion joint emerges as a versatile and robust Bellow Expansion Joint variant, essential for protecting pipelines from displacement, vibration, and thermal stress. Its ability to collaborate with Rubber Expansion Joint for vibration damping, Flexible Metal Hose for enhanced flexibility, Flange Adaptor for seamless connections, Dismantling Joint for easy maintenance, and Duckbill Check Valve for backflow protection solidifies its role across industries. Whether in petroleum, chemicals, pharmaceuticals, or urban infrastructure, this expansion joint ensures pipelines operate safely, efficiently, and durably—proving that precision engineering is key to pipeline system resilience.​
