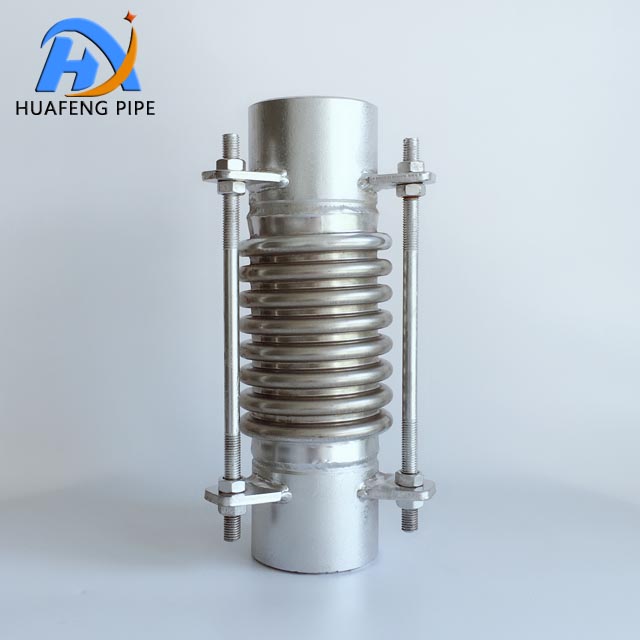

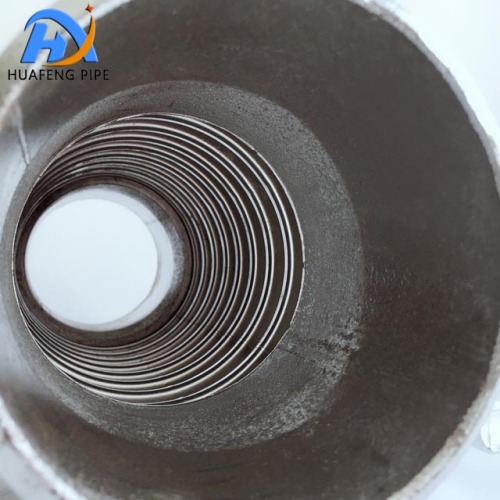

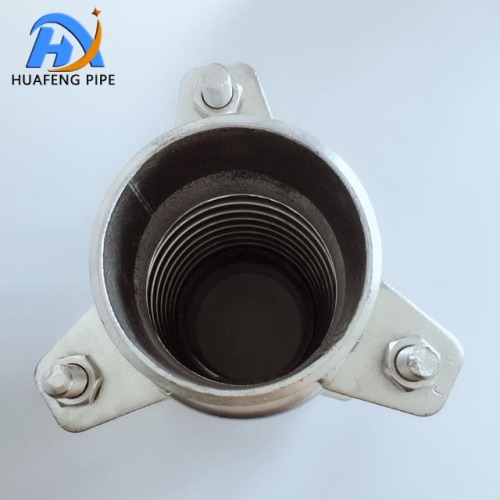

Stainless Steel Welded Expansion Joint

Welded Bellows Expansion Joint: Durable Solutions for High-Demand Pipeline Systems​
The welded bellows expansion joint stands as a paragon of durability and performance in industrial piping, offering a suite of advantages that set it apart in demanding environments. With inherent flexibility, fatigue resistance, high-pressure tolerance, low-temperature resistance, and corrosion resistance, it outperforms alternatives like the Flange Bellows Expansion Joint with a significantly longer service life. Designed for precision, its welded connections simplify installation while ensuring leak-tight integrity—though proper welding techniques are critical to maintain its mechanical and corrosion-resistant properties. This robust component works in harmony with Rubber Expansion Joint, Flexible Metal Hose, and other key fittings, integrating seamlessly with Dismantling Joint, Flange Adaptor, and Duckbill Check Valve to elevate pipeline reliability across industries.​

At the core of the welded bellows expansion joint’s appeal is its exceptional flexibility and fatigue resistance, enabled by the corrugated metal bellows design that bends and flexes to absorb axial, lateral, and angular displacements. This resilience makes it ideal for pipelines subject to constant thermal cycling, such as those in power plants or chemical processing facilities, where temperature fluctuations cause repeated expansion and contraction. Unlike rigid pipe sections that crack under stress, the welded bellows endure thousands of cycles without degradation, outlasting many Rubber Expansion Joint that may harden or tear over time. In manufacturing plants with high-speed machinery, it pairs with Flexible Metal Hose to create a dynamic pipeline system: the metal hose adds fine-tuning flexibility, while the welded bellows handle major displacements, ensuring long-term performance even in high-vibration environments.​

High-pressure tolerance and extreme temperature resistance expand the joint’s application range, making it indispensable in systems handling intense operational conditions. It thrives in high-pressure environments like oil and gas transmission lines, where crude oil or natural gas flows under extreme pressure, and in cryogenic facilities transporting liquid nitrogen or LNG, withstanding temperatures as low as -200°C without brittleness. Unlike Rubber Expansion Joint that degrade under extreme heat or cold, the welded bellows retain their flexibility and structural integrity, even in sustained high-temperature operations exceeding 500°C. In boiler systems, it works alongside standard Bellow Expansion Joint to manage thermal expansion: the welded variant handles high-pressure zones near the boiler, while the standard bellows manage secondary lines, all secured via precise welds to prevent leaks.​

A key advantage of the welded bellows expansion joint is its extended service life compared to Flange -type alternatives. The welded connection eliminates the wear and tear associated with flange bolts and gaskets, which can loosen or degrade over time, reducing the risk of leaks and maintenance needs. In wastewater treatment plants, where corrosion and vibration are constant challenges, this longevity reduces downtime for replacements, outperforming Flange Bellows Expansion Joint that require frequent gasket checks. Paired with Dismantling Joint, maintenance becomes efficient: technicians can isolate sections for inspection without shutting down the entire system, ensuring the joint’s welds and bellows remain in optimal condition. This durability is further enhanced by its corrosion resistance, making it ideal for coastal or chemical environments where saltwater or aggressive media would damage less robust components.​

Welding precision and protection are critical to maintaining the welded bellows expansion joint’s performance, particularly for stainless steel variants. Stainless steel readily reacts with oxygen during argon arc welding, forming oxidation that can cause weld defects, reducing mechanical strength and corrosion resistance. To prevent this, protective measures such as internal pipe argon filling, self-shielding welding wire, or argon-free welding protective agents are employed, ensuring the weld retains its integrity. In chemical processing plants, where corrosion resistance is non-negotiable, these protections prevent weld degradation, ensuring the joint remains leak-free when transporting acids or alkalis. The welded connection also simplifies installation: unlike flanged joints that require precise alignment, only the outer diameter of the connecting pipe needs to be determined, reducing construction time and costs— a benefit amplified by Flange Adaptor when integrating with existing flanged systems.​

Compatibility with other pipeline components enhances the welded bellows expansion joint’s versatility. It pairs with Flexible Metal Hose in complex layouts, where the metal hose adds fine-tuning flexibility and the welded bellows handle major displacements, ensuring the system adapts to thermal and mechanical stress. In marine applications, this combination resists saltwater corrosion, with the welded bellows’ protective welds preventing seawater intrusion. The joint also works with Duckbill Check Valve in backflow-prone systems, such as sewage lines: the valve prevents reverse flow, while the welded bellows absorb pressure surges, protecting the pipeline from damage. In industrial pump systems, it collaborates with Rubber Expansion Joint to dampen vibrations: the Rubber Joint reduces high-frequency noise, while the welded bellows absorb low-frequency stress, extending pump and pipeline lifespan.​

In summary, the welded bellows expansion joint redefines durability and performance in industrial piping, offering flexibility, fatigue resistance, and extended service life that outshine alternatives like Flange Bellows Expansion Joint. Its ability to withstand high pressure, extreme temperatures, and corrosion— backed by precise welding protections— ensures reliability in the most demanding environments. When paired with Rubber Expansion Joint, Flexible Metal Hose, Dismantling Joint, Flange Adaptor, and Duckbill Check Valve, it forms a comprehensive system that adapts to thermal stress, resists corrosion, and minimizes maintenance. Whether in chemical plants, power generation, or marine applications, this welded joint proves that precision engineering and protective welding techniques are key to solving complex pipeline challenges.​
