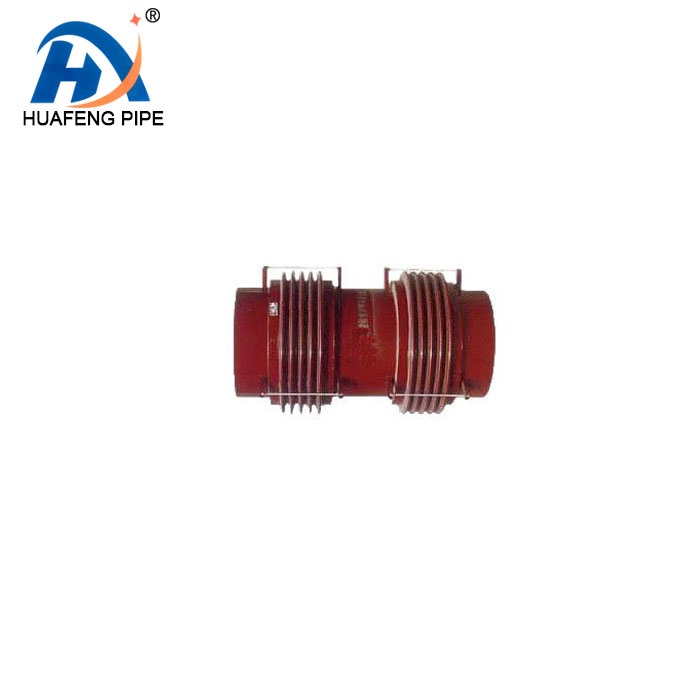

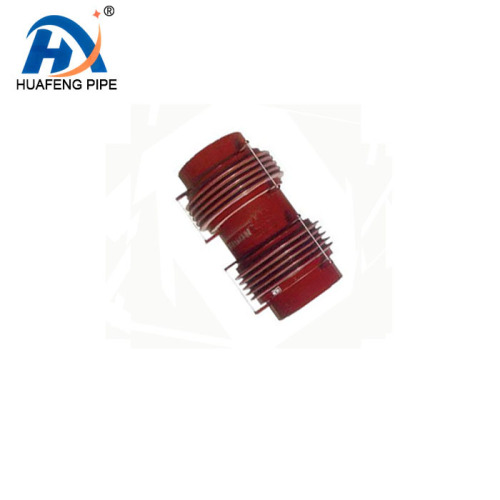

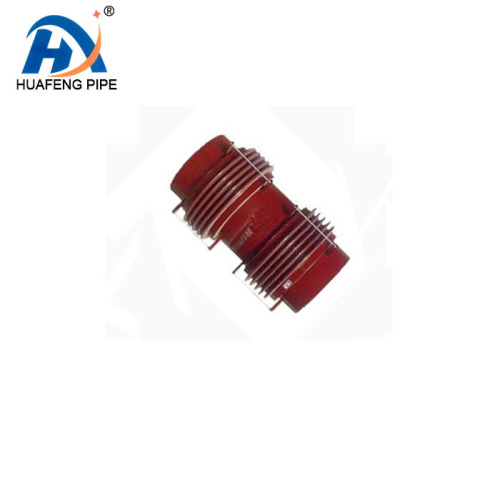

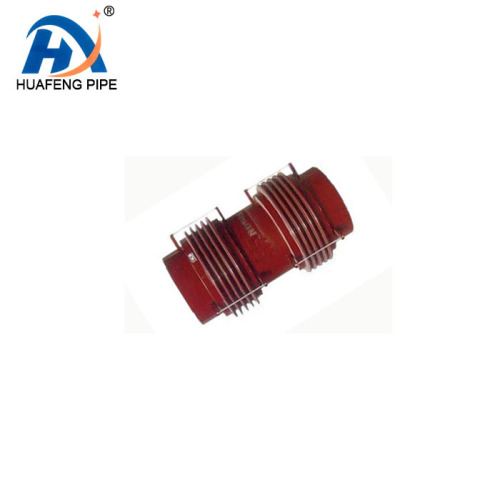

Heavy Duty Welded Expansion Joint

Heavy Duty Welded Expansion Joint: High-Strength Solution for Extreme Industrial Piping​
The Heavy Duty Welded Expansion Joint stands as a robust cornerstone in high-pressure, high-stress industrial piping systems, engineered to withstand extreme conditions while accommodating thermal expansion, vibration, and mechanical stress. As a specialized Bellow Expansion Joint variant, its welded construction delivers unmatched strength and leak-tight integrity, making it indispensable in industries like oil and gas, power generation, and heavy manufacturing. This heavy-duty solution complements flexible components such as Rubber Expansion Joint and Flexible Metal Hose, working in tandem with Dismantling Joint, Flange Adaptor, and other fittings to ensure pipeline reliability in the most demanding environments.​
At the core of its design is the welded construction, which fuses the metal bellows (typically crafted from high-strength alloys like carbon steel, stainless steel, or Inconel) to end fittings via precision welding. This creates a seamless, rigid connection that eliminates potential leak points found in bolted joints, making it ideal for high-pressure systems handling fluids or gases at pressures exceeding 1,000 psi. In oil and gas transmission pipelines, where crude oil or natural gas flows under extreme pressure, the heavy-duty welded expansion joint absorbs axial and lateral displacements caused by thermal cycling or ground movement, outperforming standard Bellow Expansion Joint by resisting fatigue and deformation over time. Paired with Flange Adaptor, it bridges different pipeline standards, ensuring compatibility with existing infrastructure while maintaining the joint’s high-pressure rating.​
Extreme pressure and temperature resistance define the heavy duty welded expansion joint’s performance, allowing it to thrive in environments where standard components fail. In coal-fired power plants, it is installed in boiler systems to handle superheated steam at temperatures exceeding 500°C, withstanding both high heat and pressure to prevent pipeline rupture. Unlike Rubber Expansion Joint, which degrades under extreme heat, this welded variant retains flexibility and structural integrity, even in sustained high-temperature operations. It works alongside standard Bellow Expansion Joint in these systems: the heavy-duty joint manages high-pressure zones near the boiler, while the standard bellows handle thermal expansion in lower-pressure secondary lines, all secured via reinforced welds to ensure system cohesion.​
Vibration absorption and stress mitigation are critical advantages in heavy machinery applications. Industrial pumps, compressors, and turbines generate intense vibrations that can damage rigid pipelines and cause joint fatigue. The heavy duty welded expansion joint’s metal bellows flex to absorb these vibrations, reducing stress on pipe supports, welds, and adjacent equipment. In manufacturing plants with large-scale machinery, it pairs with Rubber Expansion Joint in dual-damping systems: the Rubber Joint dampens high-frequency vibrations from auxiliary equipment, while the welded expansion joint absorbs low-frequency stress from main pipelines, extending the lifespan of the entire system. This collaboration is particularly valuable in steel mills, where rolling mill vibrations propagate through water cooling lines, requiring both flexibility and strength to maintain pipeline integrity.​
The heavy duty welded expansion joint’s durability and long service life make it a cost-effective choice for long-term industrial operations. Its welded construction resists corrosion, abrasion, and mechanical wear, even in harsh environments like chemical processing plants or offshore drilling platforms. In offshore applications, where saltwater exposure and wave-induced movement are constant, a stainless steel welded joint paired with Flexible Metal Hose creates a rugged, flexible pipeline: the metal hose adds fine-tuning flexibility, while the heavy-duty joint handles major displacements and pressure surges, protected by anti-corrosion coatings to resist saltwater erosion. This durability reduces maintenance frequency, lowering operational costs compared to components like Rubber Expansion Joint that require more frequent replacement in extreme conditions.​
Compatibility with key pipeline components enhances the joint’s versatility across industries. It integrates seamlessly with Dismantling Joint to facilitate maintenance in high-pressure systems, allowing technicians to isolate sections for inspection or repair without shutting down the entire pipeline—a critical advantage in continuous-process industries like chemical manufacturing. In wastewater treatment plants handling high-pressure sludge lines, the heavy duty welded expansion joint pairs with Duckbill Check Valve to prevent backflow: the Valve ensures unidirectional flow of abrasive sludge, while the joint’s welded bellows resist wear from particulate matter, ensuring long-term performance with minimal maintenance. For retrofitting older systems, Flange Adaptor enables the joint to connect to non-welded pipelines, upgrading pressure resistance without extensive infrastructure overhauls.​
Installation of the heavy duty welded expansion joint requires precision welding by certified technicians to ensure integrity, but its long-term reliability justifies the initial effort. Welded connections are inspected via non-destructive testing (NDT) methods like radiography or ultrasonic testing to verify weld quality, ensuring the joint meets industry standards for high-pressure service. Once installed, it requires minimal maintenance beyond periodic visual inspections, thanks to its durable construction. In mining operations, where pipeline access is limited, this low-maintenance design is invaluable— the joint withstands abrasive slurry flow and vibration, with Dismantling Joint providing access only when necessary, reducing downtime in remote locations.​
In summary, the Heavy Duty Welded Expansion Joint redefines reliability in extreme industrial piping, offering high-pressure resistance, temperature tolerance, and durability that surpass standard Bellow Expansion Joint and Rubber Expansion Joint. Its ability to collaborate with Flexible Metal Hose for fine flexibility, Dismantling Joint for maintenance access, Flange Adaptor for compatibility, and Duckbill Check Valve for backflow protection makes it indispensable in oil and gas, power generation, and heavy manufacturing. Whether handling high-pressure crude oil, superheated steam, or abrasive slurries, this welded joint ensures pipelines remain leak-free, flexible, and resilient—proving that strength and precision engineering are essential for solving the toughest industrial piping challenges.​
