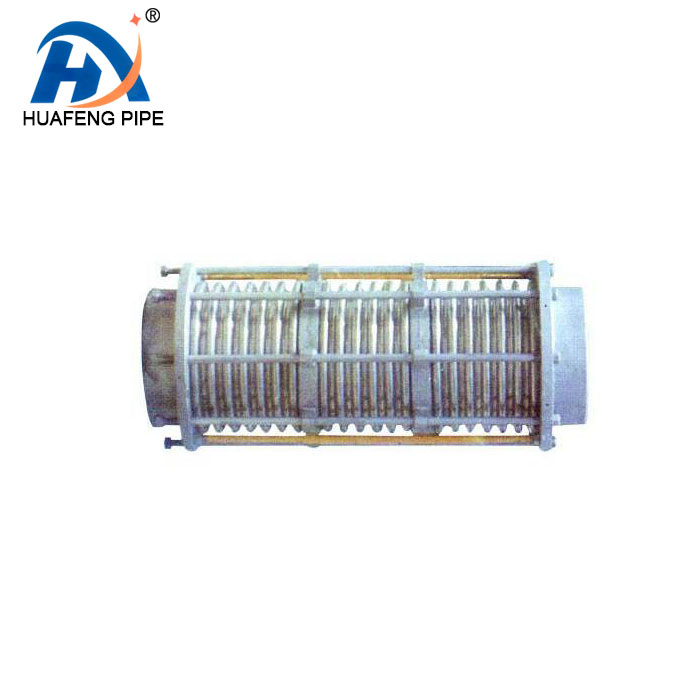

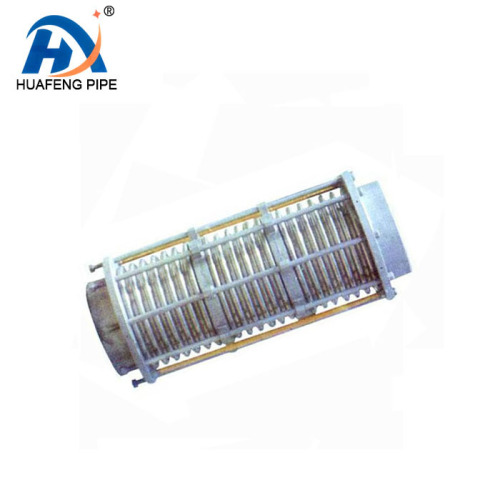

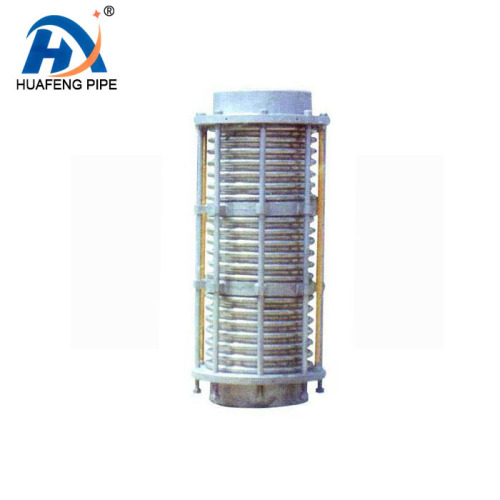

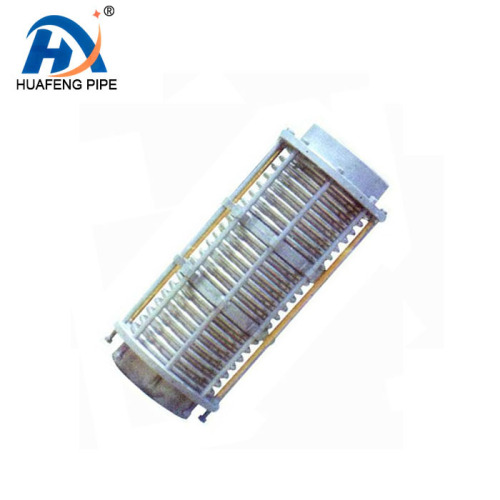

Custom Exhaust Duct Expansion Joint: Tailored Flexibility for Industrial Ventilation Systems
The Custom Exhaust Duct Expansion Joint emerges as a precision-engineered solution for industrial ventilation systems, designed to address the unique challenges of exhaust ductwork—from thermal expansion and vibration absorption to space constraints and media compatibility. As a specialized component in ducting systems, it complements traditional options like
Rubber Expansion Joint and
Bellow Expansion Joint, offering tailored performance in environments where off-the-shelf solutions fall short. From power plants to manufacturing facilities, this custom joint ensures exhaust ducts operate efficiently, working in harmony with
Flexible Metal Hose,
Flange Adaptor, and other fittings to enhance system durability and adaptability.
At the core of its design, the custom exhaust duct expansion joint is crafted to meet specific operational demands, whether handling high-temperature flue gases, corrosive fumes, or large-scale duct displacements. Unlike standard Bellow Expansion Joint, which may have fixed dimensions, this custom variant is engineered with precise length, diameter, and material specifications to fit unique duct layouts. In waste incineration plants, for example, it is designed to withstand extreme temperatures of exhaust gases, with a heat-resistant fabric or metal bellows core that outperforms Rubber Expansion Joint—which may degrade under sustained high heat. Paired with Flange Adaptor, it connects seamlessly to existing duct flanges, ensuring a tight seal that prevents leakages of harmful fumes into the workplace.
Thermal expansion compensation is a primary function, critical for exhaust ducts that undergo significant temperature fluctuations during operation. When exhaust gases flow through ductwork, heat causes the metal ducts to expand, creating stress that can lead to warping or joint failure. The custom expansion joint’s flexible design absorbs this axial, lateral, or angular movement, protecting duct supports, welds, and adjacent equipment. In power plant boiler exhaust systems, it works alongside standard Bellow Expansion Joint to split compensation duties: the custom joint handles complex lateral shifts in tight spaces near the boiler, while the bellows manage axial expansion in long straight duct sections, all secured via reinforced flanges to maintain system integrity. This collaboration ensures the entire exhaust system adapts to thermal changes without compromising performance.
Vibration absorption and noise reduction are key advantages, particularly in facilities with high-powered exhaust fans or machinery. Exhaust fans generate vibrations that propagate through rigid ductwork, creating noise pollution and accelerating wear on duct components. The custom exhaust duct expansion joint’s flexible structure dampens these vibrations, acting as a buffer between fan outlets and ductwork. In manufacturing plants with heavy machinery, it pairs with Rubber Expansion Joint in dual-damping systems: the
Rubber Joint reduces high-frequency vibrations from nearby equipment, while the custom exhaust joint absorbs duct-specific vibrations, creating a quieter work environment. This noise reduction is amplified in commercial buildings with rooftop exhaust units, where the joint minimizes sound transmission to occupied spaces below.
Customization extends to material selection, ensuring compatibility with the exhaust media—whether it’s abrasive particulate-laden air, corrosive chemical fumes, or high-moisture exhaust. For metal processing facilities, where exhaust contains metal dust and sparks, a custom expansion joint with a fire-resistant fabric cover and stainless steel bellows core resists abrasion and heat, outperforming standard Flexible
Metal Hose in durability. In chemical factories, where exhaust carries corrosive vapors, a fluoropolymer-lined custom joint protects against chemical attack, paired with
Duckbill Check Valve to prevent backflow of fumes— the Valve ensures unidirectional flow, while the joint’s lining resists degradation, reducing maintenance needs in harsh environments.
Space adaptability is a standout feature, making the custom exhaust duct expansion joint indispensable in complex industrial layouts. Exhaust systems often navigate around structural beams, equipment, and other obstacles, requiring expansion joints that fit into tight or irregularly shaped spaces. Unlike rigid Bellow Expansion Joint with fixed bending radii, the custom joint is designed with flexible segments or angled configurations to accommodate duct turns and elevation changes. In food processing plants, where exhaust ducts weave around production lines, it connects to Flexible Metal Hose to create a maneuverable pathway: the metal hose adds fine-tuning flexibility, while the custom joint handles major displacements, all installed with
Dismantling Joint to simplify future inspections or modifications.
Installation and maintenance are streamlined by the custom joint’s compatibility with standard fittings, despite its tailored design. It connects to ductwork via flanges, with Flange Adaptor enabling transitions between different flange sizes or standards—critical for retrofitting older exhaust systems with new components. In pharmaceutical cleanrooms, where hygiene is paramount, a custom expansion joint with smooth, easy-to-clean surfaces is paired with Dismantling Joint, allowing for quick removal during sanitization protocols without disrupting the entire ventilation system. This ease of maintenance contrasts with rigid duct sections, which require cutting or welding for access, reducing downtime in critical operations.
The custom exhaust duct expansion joint’s role in system safety cannot be overstated, particularly in handling hazardous exhaust media. In industrial paint booths, where exhaust contains volatile organic compounds (VOCs), it is designed with gas-tight seals to prevent leaks, ensuring compliance with environmental regulations. Paired with Duckbill Check Valve in emergency exhaust lines, it prevents backdraft of flammable fumes, with the joint’s reinforced construction resisting pressure surges during emergency shutdowns. This safety-focused design, combined with its ability to collaborate with Flexible Metal Hose for auxiliary vent lines, makes it a vital component in risk-mitigation strategies for industrial facilities.
In summary, the Custom Exhaust Duct Expansion Joint redefines adaptability in industrial ventilation, offering tailored solutions that address thermal expansion, vibration, and space constraints unique to exhaust systems. Its ability to collaborate with Rubber Expansion Joint for vibration damping, Bellow Expansion Joint for thermal compensation, Flexible Metal Hose for fine flexibility, and Flange Adaptor for compatibility makes it indispensable across industries. Whether handling high-temperature incinerator exhaust, corrosive chemical fumes, or space-constrained factory ductwork, this custom joint ensures exhaust systems operate safely, efficiently, and durably—proving that tailored engineering is key to solving complex ventilation challenges.
