The core hub of pipeline turning: The definition, classification and system coordination of elbows
In the pipeline systems of industrial, construction and civil fields, elbows, as key connecting components for changing the flow direction of fluids, support the flexible layout of pipelines like "joints". It adjusts the flow direction of the fluid through the curved pipe section, precisely matching the design and layout requirements of the pipeline. Moreover, the rich classification, materials and manufacturing processes enable the elbow to work in coordination with accessories such as
Rubber Expansion Joint and
Bellow Expansion Joint to build an efficient and stable fluid transportation network.

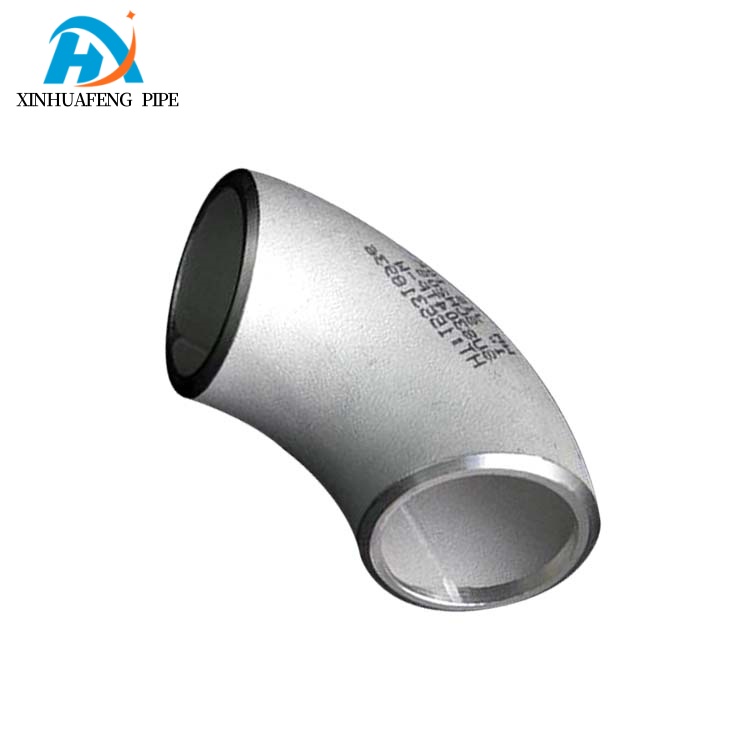

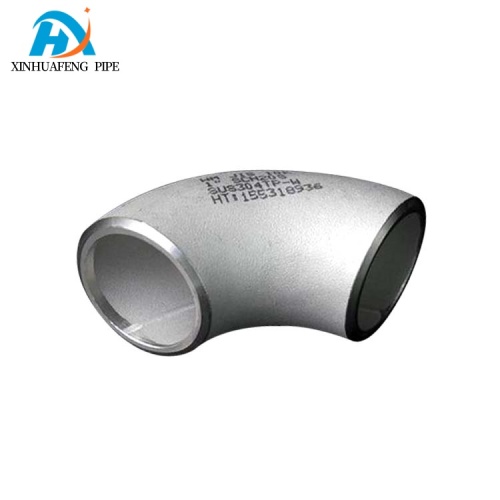

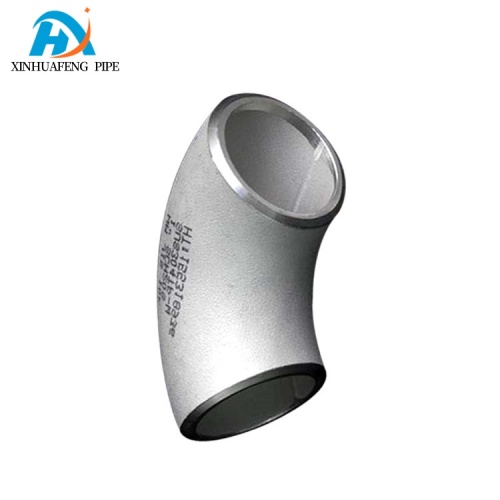

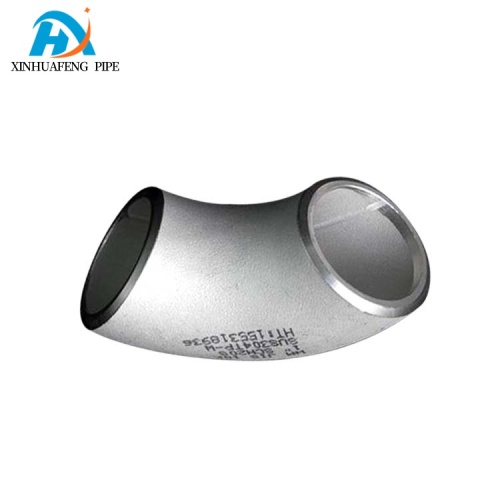

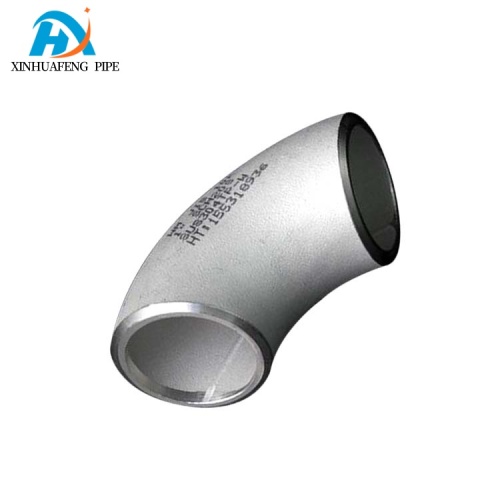

From a classification perspective, the "Angle family" of elbows covers a wide range of steering requirements. 45 degree elbow features smooth steering to reduce flow resistance and is suitable for slight direction adjustments in long-distance pipelines. 90 Degree Elbow is the main force for right-angle turns and is indispensable in equipment connections and space corners.
180 Degree Elbow realizes the U-shaped return of the pipeline and is often used in medium reflux or equipment circulation systems. In addition, special-angle elbows such as 60 degree elbows customized according to engineering requirements can meet the precise turning needs of complex pipelines. Classified by bending radius,
Long Radius Elbow (with a curvature radius of 1.5D) has the advantage of low flow resistance and is often used in combination with
Flexible Metal Hose for high-flow pipelines. The flexibility of the Metal Hose and the smooth turning of the elbow reduce turbulent impact.
Short Radius Elbow (curvature radius 1D) is adapted to space-constrained scenarios with a compact structure and can be combined with
Dismantling Joint to achieve convenient installation and maintenance in a narrow space.
The diversity of materials enables elbows to adapt to different working conditions. Stainless steel elbows have strong corrosion resistance. In pipelines of corrosive media in the chemical industry, they can be connected to the
Duckbill Check Valve through the Flange Adapter . The check Valve prevents the backflow of the medium, and the elbow ensures stable rotation. The two work together to safeguard the safety of the pipeline. carbon steel elbow has a high cost performance and is the first choice for the transportation of common industrial fluids. When combined with Rubber Expansion Joint, the elastic compensation of rubber can alleviate the vibration and displacement at the elbow. cast iron elbow has high strength and is suitable for low-pressure large-diameter pipelines. It can work in coordination with Bellow Expansion Joint. The bellows absorbs the displacement caused by pipeline settlement and protects the elbow from stress damage. non-ferrous metals such as copper and aluminum elbows exert their advantages in heat conduction and lightweight scenarios. Copper elbows are compatible with the copper interfaces of Flexible Metal Hose to achieve stable steering of cold and hot fluids in air conditioning and HVAC systems. Plastic elbows, with their corrosion resistance and light weight, have entered the water supply and drainage field. They are connected to Flange adaptors through glue bonding, forming an economical and practical steering solution.
The manufacturing process directly affects the performance of the elbow. welded elbows is formed by welding, with high strength and good sealing performance, suitable for high-pressure pipelines, and can be directly joined with the welded end of Bellow Expansion Joint to form pressure-resistant steering unit; Youdaoplaceholder0 is processed by stamping, with high precision and good consistency. It is compatible with the flange end of Rubber Expansion Joint in the building water supply and drainage system, and is easy to install and has reliable sealing. cast elbows is produced by casting process and is suitable for custom complex shapes. In special Angle turning scenarios, it can be combined with Dismantling Joint for easy maintenance and replacement in the later stage. To improve the welding quality, the end of the elbow is usually machined with a bevel to ensure that a full weld seam is formed when welding with the pipe or fitting. For example, butt-welded elbows. At the welding point with the straight pipe, the bevel design can effectively avoid defects such as incomplete penetration. When connected with the welding end of the Flange Adaptor , it can better guarantee the pressure resistance performance of the entire pipeline.
In practical applications, the coordination between elbows and various accessories is of vital importance. In high-pressure and high-temperature industrial pipelines, alloy steel elbow is combined with Bellow Expansion Joint. The bellows compensate for temperature displacement, and the elbow undertakes high-pressure steering. In the water pipes of civil buildings, plastic elbow is combined with Rubber Expansion Joint. The rubber absorbs the vibration of the water pump, and the elbow realizes right-angle turning. The two jointly reduce noise. In the fire protection system, the carbon steel elbow is connected to the Dismantling Joint through Flange Adaptor, which not only meets the steering requirements but also facilitates later maintenance and replacement. When selecting the type, the material and type should be matched according to the medium, pressure and temperature. For example, when conveying media containing particles, wear-resistant material elbows should be selected and combined with Flexible Metal Hose. The flexible dispersion of particle impact of the metal hose can extend the service life of the elbow.
From industrial workshops to civil buildings, elbows have always been at the core of pipeline turning. It complements the flexible compensation of Rubber Expansion Joint, cooperates with the high-voltage adapter of Bellow Expansion Joint, achieves interface compatibility through Flange adapter, and improves maintenance efficiency with the help of Dismantling Joint Build a security defense line together with Flexible Metal Hose and Duckbill Check Valve. Only by choosing elbows with appropriate angles, radii, materials and processes, and scientifically matching various accessories, can every pipe turn become a guarantee for the efficient operation of the system.
