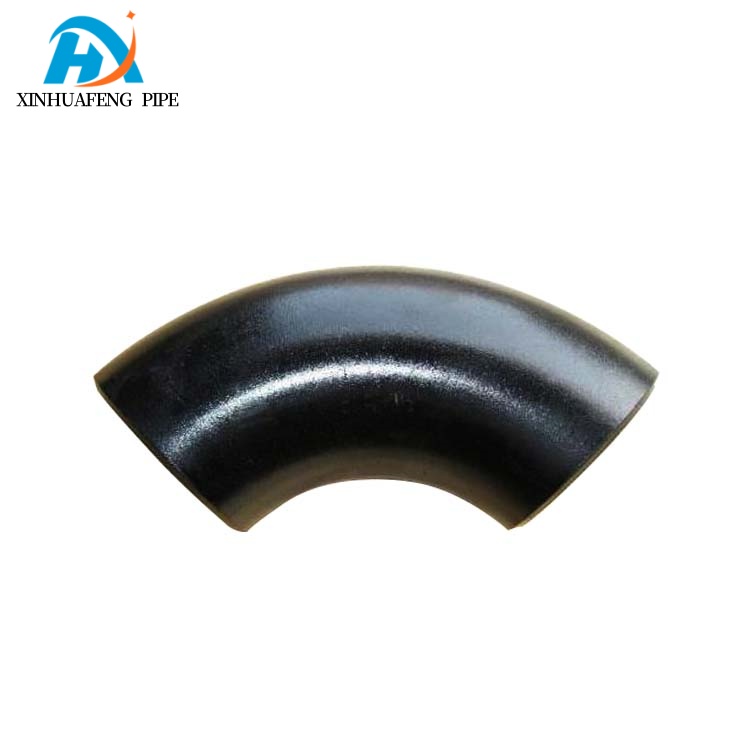

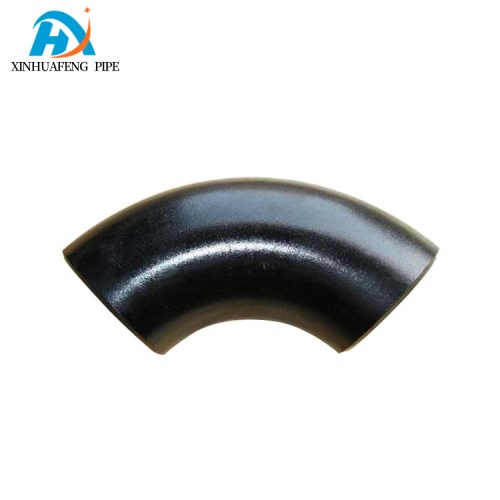

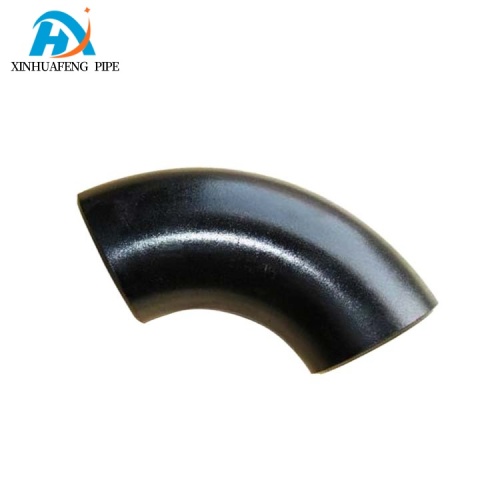

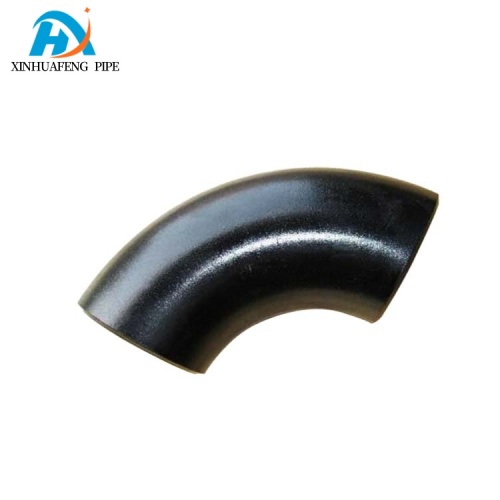

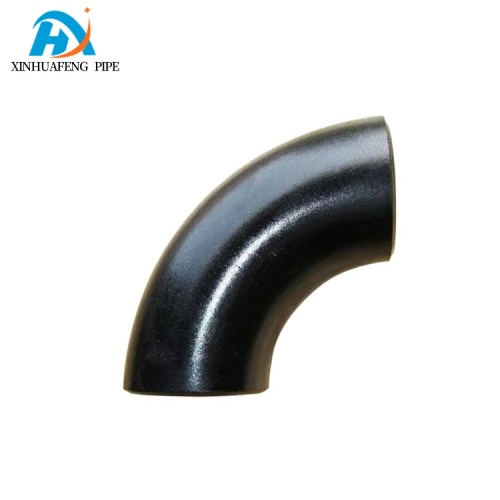

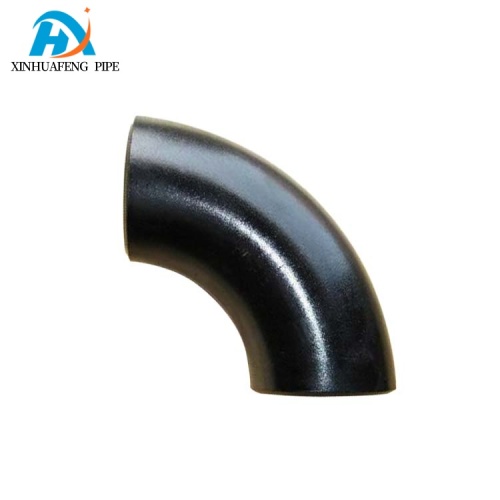

Elbow manufacturing process and selection: Precise solutions for Pipeline turning
In complex pipeline systems, elbows, as the core components for changing the flow direction of fluids, their performance and selection directly affect the overall operational efficiency of the system. According to the production process, the elbow family includes several categories such as Welded elbows, stamped elbows, push-formed elbows, cast elbows and butt welded elbows, and different processes endow them with different strengths and suitable scenarios; Classified by the radius of curvature,
Long Radius Elbow (R=1.5D) and
Short Radius Elbow (R=1.0D) respectively meet the requirements of different Spaces and fluids with low resistance loss and compact structure, and become the "steering wheel" for pipeline turning.
The selection and installation of elbows need to take into account multiple factors, and these factors are often closely related to other core components in the pipeline system. When considering fluid characteristics (flow velocity, flow rate, pressure, temperature), if the conveyed medium has high pressure and fast flow velocity, the high-intensity characteristics of Welded elbows or butt-welded elbows are more suitable. At this time,
Bellow Expansion Joint can be used together. The elastic compensation capacity of the bellows is utilized to alleviate the pressure shock at the elbow, and when combined with long- Radius Elbows , it reduces resistance loss. For scenarios with large temperature fluctuations, the
Rubber Expansion Joint can work in synergy with the elbow. The elastic deformation of the rubber can absorb the pipe displacement caused by temperature changes, avoiding damage at the connection between the elbow and the straight pipe due to stress concentration.
From the perspective of pipeline system requirements, the steering design of elbows should aim at reducing resistance and protecting equipment. In complex pipelines that require frequent turns, although the short Radius Elbow has a compact structure, it is prone to generating local turbulence. At this time, Flexible Metal hoses can be installed before and after the elbow to utilize the flexibility of the Metal Hose to disperse the turbulent impact, and at the same time cooperate with the Flange Adaptor . Ensure that the connection and seal between the elbow and the hose are reliable. Due to the advantage of low flow resistance, long radius elbow is often combined with
Duckbill Check Valve for unidirectional fluid transportation systems. The smooth turning of the elbow reduces the impact on the check Valve , and the Duckbill Valve prevents the backflow of the medium from causing reverse pressure on the elbow.
The coordination of the installation position is the key for the elbow to function effectively. In areas with limited space, the compact structure of stamped elbows or cast elbows is easier to arrange. At this time, the
Dismantling Joint can be used to simplify installation and later maintenance - when it is necessary to replace the elbow or inspect the surrounding accessories, there is no need to disassemble the entire pipe section. Quick operation can be carried out through the detachable joint. Significantly enhance efficiency. At the turning nodes that need to be connected to pipes of different specifications, the Flange Adaptor can precisely adapt to the interface differences between the elbow and the straight pipe. Whether it is a flange connection elbow or a threaded connection pipeline, seamless connection can be achieved through the adapter, jointly ensuring the smoothness of fluid turning with the elbow.
The selection of connection methods also needs to be coordinated with system accessories. The butt-welded elbows with welding connection is suitable for high-voltage systems and can be directly connected to the welded end of the Bellow Expansion Joint to form a steering compensation unit combining rigidity and flexibility. The threaded connection elbow can be combined with the
Threaded Rubber Expansion Joint to achieve the dual functions of steering and displacement compensation in low-pressure pipelines. The elbow with Flange connection is even more convenient to be combined with accessories such as Flange Adaptor and Duckbill Check Valve, ensuring sealing performance through the tight fit of the flange surface.
From process classification to selection and installation, every detail of elbows is closely related to the stability of the pipeline system. It works together with Rubber Expansion Joint and Bellow Expansion Joint to solve displacement and vibration problems, and collaboratively optimizes steering and connection efficiency with
Flexible Metal Hose and Flange Adaptor. With the help of Dismantling Joint to enhance maintenance convenience and Duckbill Check Valve to safeguard the order of fluid unidirectional flow. Only by precisely matching the process, radius and system requirements, and ensuring that elbows and various accessories perform their respective duties, can an efficient, stable and safe pipeline transportation network be established.
