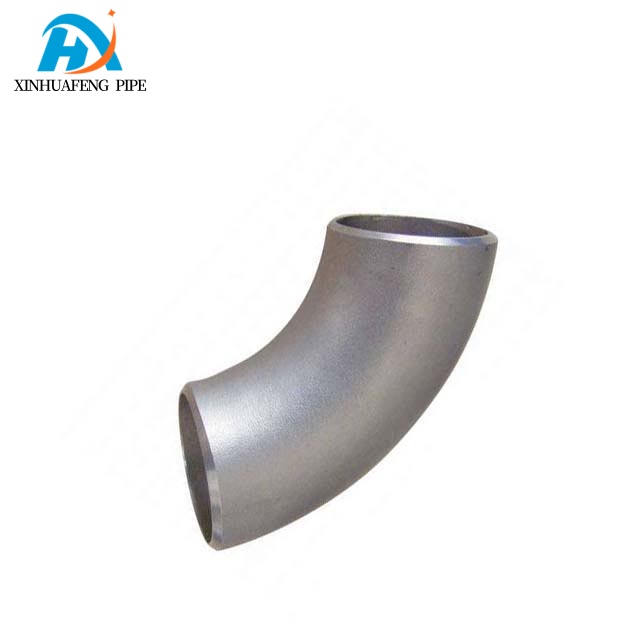

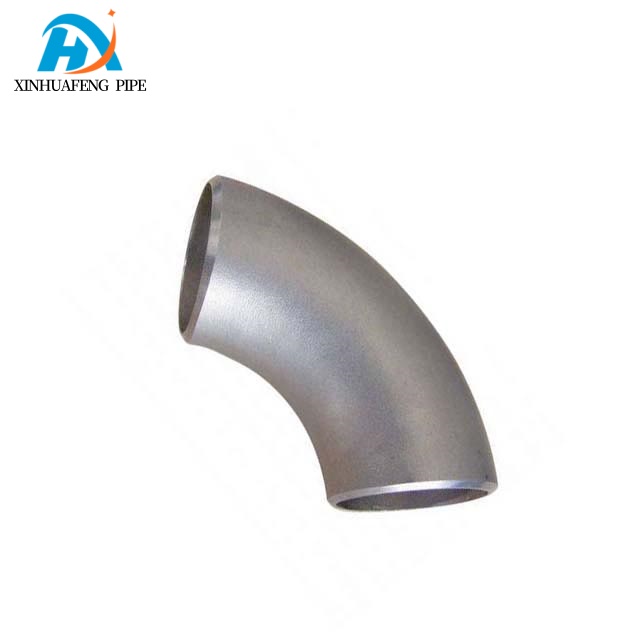

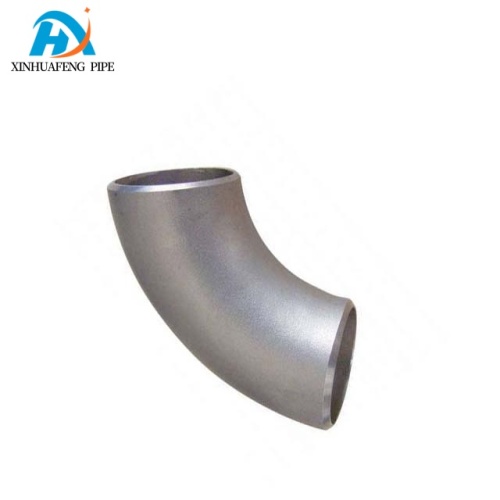

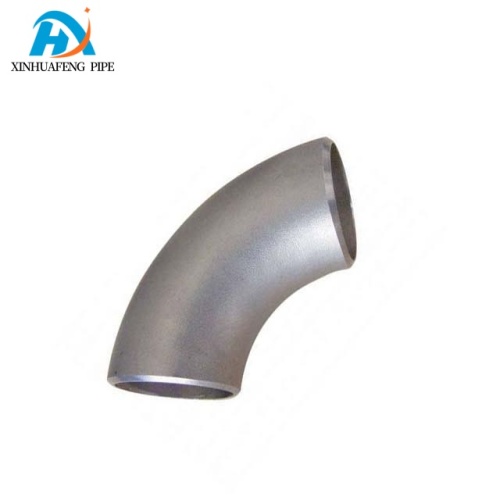

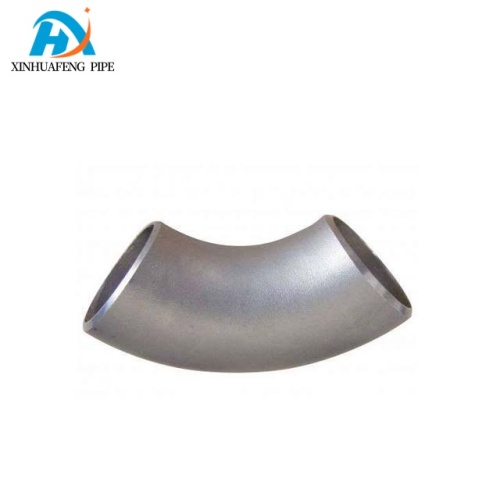

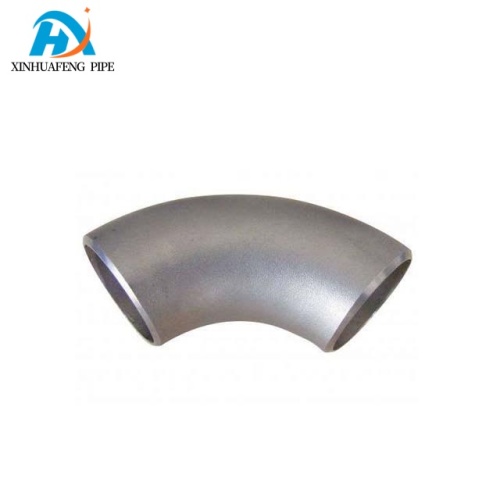

Seamless 90 Degree Carbon Steel Elbow

Selection, installation and maintenance of 90-degree elbows: Full-cycle guarantee for pipeline turning
As a core component for the turning of pipeline systems, the accuracy of 90-degree elbow selection, the standardization of installation and the timeliness of maintenance directly determine the operational efficiency and lifespan of the system. From the selection decision that matches the working conditions to the installation operation with reliable sealing, and then to the maintenance and upkeep to prevent potential problems, every link needs to take into account the characteristics of the pipeline and the coordination of accessories, and the scientific coordination with accessories such as Rubber Expansion Joint and Bellow Expansion Joint, This can further enhance the stability of the system. ​
During the selection stage, the choice of 90-degree elbows should be based on a comprehensive assessment of the working conditions. First, it is necessary to match the material of the pipe - in the metal pipe system, stainless steel elbows are suitable for corrosive media, while carbon steel elbows are suitable for ordinary industrial scenarios. At this time, the material compatibility with the accessories should be considered simultaneously. For example, stainless steel elbows should be matched with Stainless Steel Flange adaptors to avoid electrochemical corrosion caused by contact of different metals. For plastic pipes, elbows made of corresponding materials such as PVC and PP should be selected to ensure the bonding or hot-melt connection strength with the pipes. For pressure grades and operating temperatures, alloy steel elbows under high-pressure and high-temperature working conditions need to be matched with Bellow Expansion Joints. The elastic compensation capacity of the bellows can alleviate the stress impact of high temperature and high pressure on the elbows. In medium and low pressure normal temperature scenarios, the combination of carbon steel elbows and Rubber Expansion Joints is more economical. The flexible deformation of rubber can absorb the influence of pipeline vibration on elbows. ​
The characteristics of the medium are the key basis for selection. When transporting corrosive media, in addition to choosing elbows made of corrosion-resistant materials, Flexible Metal hoses should also be installed before and after the elbows. The corrosion-resistant inner layer of the Metal Hose forms double protection with the elbows, and the sealing connection is achieved through Flange Adaptor at the same time. For pipelines containing granular media, wear-resistant material elbows should be selected and combined with Duckbill Check valves to prevent secondary erosion of the elbows caused by medium backflow. The selection of connection methods needs to be coordinated with system accessories. Welded elbows are suitable for butt connection with the welded end of the Bellow Expansion Joint, and threaded elbows can be directly connected to the Threaded Rubber Expansion Joint. The Flange elbow is convenient for combination with Flange Adaptor and Dismantling Joint , reserving convenience for later maintenance. In addition, select the appropriate Angle and radius of curvature according to the pipeline layout. Long Radius Elbows combined with Flexible Metal Hose can reduce flow resistance, and short radius elbows combined with Dismantling Joint are more suitable for space-constrained scenarios. ​
The core of the installation process is to ensure reliable sealing and standardized operation. For the elbow with Flange connection, the interface should be precisely aligned through the Flange Adaptor, and the bolts should be evenly tightened. When connecting with the flange end of the Rubber Expansion Joint, the space for rubber expansion should be reserved to avoid excessive compression affecting the compensation performance. After the installation of the welded elbow, the welding quality inspection must be carried out to ensure that the weld seam has no pores or cracks and can form a continuous pressure-resistant pipeline with the welded end of the Bellow Expansion Joint. For elbows connected by threads, sealant should be applied during installation. When connected to the threaded Flexible Metal Hose, the tightening force should be controlled to prevent thread slippage. It is worth noting that installing Dismantling Joint at the connection between the elbow and the straight pipe can provide great convenience for later maintenance, allowing for the inspection and repair of the elbow or peripheral accessories without the need to disassemble the entire pipeline. ​
Maintenance and upkeep are the key to extending the service life of elbows. During regular inspections, it is necessary to focus on checking whether there is leakage at the connection points between the elbow and Rubber Expansion Joint, Bellow Expansion Joint, and whether there is corrosion or cracking on the inner wall of the elbow. Any problems found should be dealt with in time. For easily clogged pipelines, such as PVC elbows in sewage pipes, they need to be cleaned regularly together with the Duckbill Check Valve to remove dirt and impurities on the inner walls and ensure smooth fluid flow. When the elbow is severely damaged, it can be quickly disassembled and replaced through Dismantling Joint. After replacement, the elbow needs to be precisely reconnected with the Flange Adapter or other accessories. If necessary, check the aging degree of the Flexible Metal Hose simultaneously to ensure the coordination of the entire system. ​
From the matching of working conditions during selection to the standardized operation during installation and the timely repair during maintenance, the full-cycle management of 90-degree elbows cannot be separated from the coordination with various accessories. Elastic complementarity with Rubber Expansion Joint, high-pressure fit with Bellow Expansion Joint, sealing connection with Flange Adaptor, convenient maintenance with Dismantling Joint, and Flexible Metal The flexible coordination of Hose and the anti-backflow synergy with Duckbill Check Valve jointly build a safety defense line for pipeline turns, ensuring that every 90-degree turn is a guarantee for the stable operation of the system. ​
