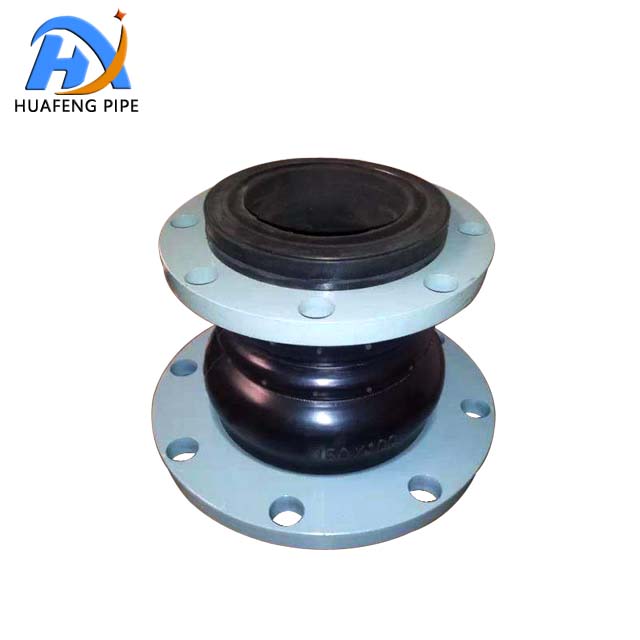

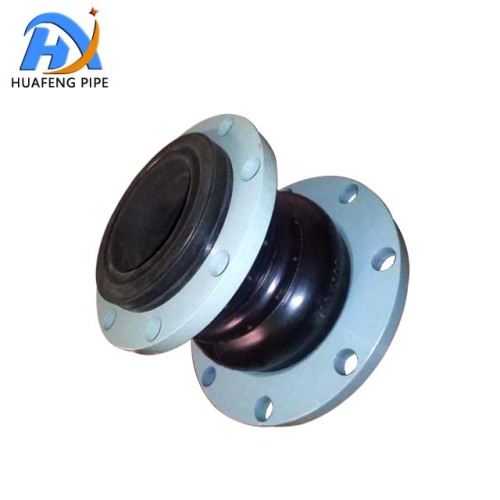

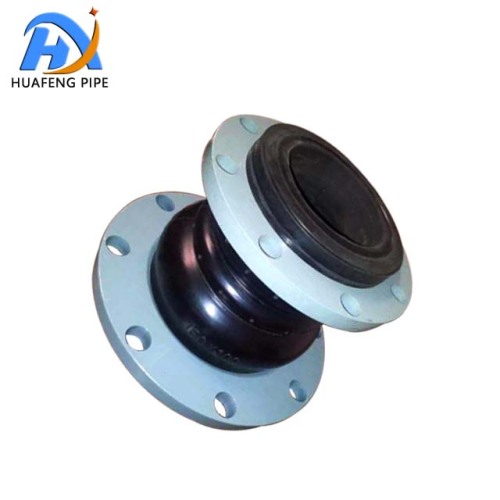

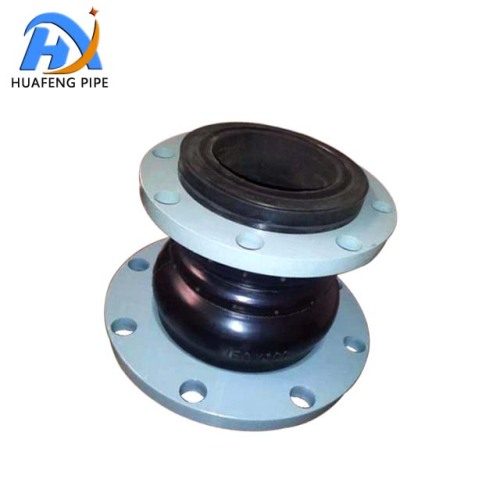

EPDM Single Sphere Expansion Joint with Flanges

Single Ball Rubber Expansion Joint: The "stable choice" for vibration and displacement pipelines and installation guide
In pipeline systems where there are problems such as vibration, equipment interference or settlement due to thermal Expansion and contraction, Rubber Expansion Joint is undoubtedly the core accessory for ensuring operational safety. Whether it is pipeline shaking caused by equipment vibration or displacement settlement due to temperature changes, this flexible connector can effectively resolve them with its outstanding performance. Work in synergy with products such as Bellow Expansion Joint, Flexible Metal Hose, Dismantling Joint, Flange Adaptor, Duckbill Check Valve, etc., to ensure leak-free and efficient operation of the pipeline system. ​

Precise selection: The "First Line of defense" for adapting to working conditions
The selection of Rubber Expansion Joint should be centered on the actual working conditions of the pipeline, which is the prerequisite for ensuring its efficiency. First, the appropriate model should be determined based on the working pressure of the pipeline, the connection type, the medium characteristics and the compensation amount. The noise reduction and displacement requirements determine the installation quantity of the joints - this is consistent with the selection logic of Bellow Expansion Joint. Both need to achieve the best compensation effect through precise parameter matching. When there is an instantaneous overpressure situation in the pipeline, the selection criteria need to be further upgraded: If the instantaneous pressure exceeds the working pressure, a rubber expansion joint with a higher pressure rating should be selected. For example, when the start-up instantaneous pressure is greater than 1.0MPa, a 1.6MPa grade product should be chosen; if it exceeds 1.6MPa, it should be upgraded to 2.5MPa. This "leeway" selection approach is similar to the selection principle of the pressure resistance grade of the Flexible Metal Hose in high-pressure pipelines, both with safety as the primary consideration. ​

For pipelines transporting acidic, alkaline media, oil products or high-temperature fluids, the selection of Rubber Expansion Joints requires more caution. Under such special working conditions, not only should products with a higher pressure rating be selected, but also dedicated Rubber Joints of corresponding materials should be matched. Their medium resistance performance is in line with the material selection standards for corrosion-resistant seals of Duckbill Check Valve . They must not be mixed with ordinary water joints. For instance, in chemical acid and alkali pipelines, special corrosion-resistant rubber expansion joints, when used in conjunction with Flange adaptors, can effectively resist the erosion of the medium. However, if ordinary joints are mistakenly used, it may lead to leakage and failure at best, and at worst, cause safety accidents. ​

Installation Specifications: The "Key Link" Ensuring Performance
The installation details of Rubber Expansion Joint directly affect its usage effect, and flange matching is the primary concern. The Flange connected to the rubber expansion joint shall be a valve flange or a flange that complies with the GB/T9115.1 (RF) standard. If it is matched with a Flange Adapter , it is necessary to ensure that the flange standard of the adapter is exactly the same as that of the rubber expansion joint. Avoid seal failure due to dimensional deviation - this is as important as the flange connection requirements of Bellow Expansion Joint. Precise mating is the basis for preventing leakage. ​

In terms of medium adaptation, the common Rubber Expansion Joint is suitable for the common water system at 0-60℃, while special medium pipelines must use dedicated joints: Oil pipelines require oil-resistant rubber expansion joints, high-temperature pipelines need high-temperature resistant models, and corrosive pipelines need acid and alkali resistant special models. This "specific model for specific use" principle is the same as Duckbill Check Valve's logic of selecting rubber materials based on medium types, eliminating performance degradation caused by improper materials. When the rubber expansion Joint is installed in combination with Dismantling joint, attention should be paid to the installation direction of the detachable joint to ensure that the pipeline can be quickly disassembled during later maintenance without affecting the flexible compensation function of the rubber expansion joint. ​

System Collaboration: A "Secure Network" with Multi-component Linkage
In complex piping systems, the performance of the Rubber Expansion Joint needs to be maximized through the synergy with other fittings. In the outlet pipeline of the pump set with intense vibration, it forms a "double Flexible protection" with the Flexible Metal Hose. The rubber expansion Joint absorbs high-frequency vibration, and the metal hose enhances the overall flexibility. Combined with the convenient disassembly function of Dismantling joint, it not only ensures stable operation but also facilitates later maintenance. In municipal drainage systems, rubber expansion joints are used in conjunction with Duckbill Check valves. The former resolves the displacement caused by pipe settlement, the latter prevents sewage from flowing back, and the Flange Adaptor ensures the sealed connection of pipes of different diameters. Multiple safeguards enhance the reliability of the system. ​

For industrial pipelines with the problem of thermal Expansion and contraction, the combination of Rubber Expansion Joint and Bellow Expansion Joint can be regarded as a "golden pair" : Rubber expansion joints are responsible for lateral vibration and small displacement, while bellows expansion joints are responsible for axial thermal compensation. The two are precisely connected through Flange adaptors. In high-temperature pipelines, high-temperature resistant rubber expansion joints should also be selected to complement the high-temperature resistance performance of bellows. This multi-accessory collaborative system design can comprehensively cover various pipeline problems such as vibration, displacement, and medium corrosion, ensuring that every section of the pipeline is under safety protection. ​

From selection to installation, every link of Rubber Expansion Joint bears the safety responsibility of the piping system. It ADAPTS to complex working conditions with precise selection, builds a solid sealing defense line with standardized installation, and mitigated the risks of vibration and displacement with the coordination of accessories such as Bellow Expansion Joint and Flexible Metal Hose. Whether it is used in conjunction with Dismantling Joint for convenient maintenance, or ensures connection sealing through Flange Adaptor, or jointly guards the medium flow direction with Duckbill Check Valve, this single ball rubber expansion joint is proving with professional performance: It is not only a "flexible connector" for pipelines, but also a "reliable guardian" for the stable operation of the system. ​
