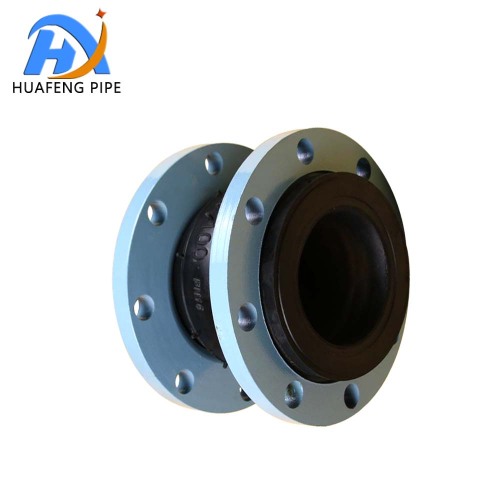

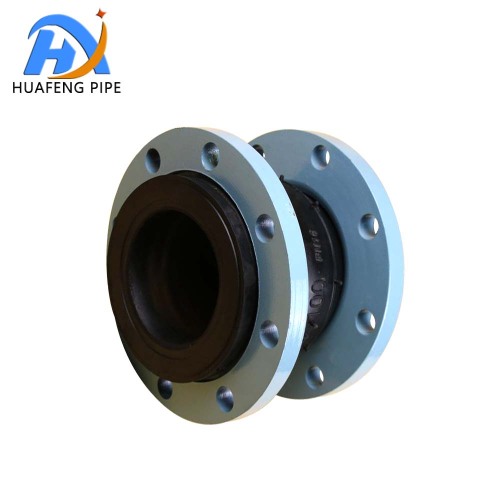

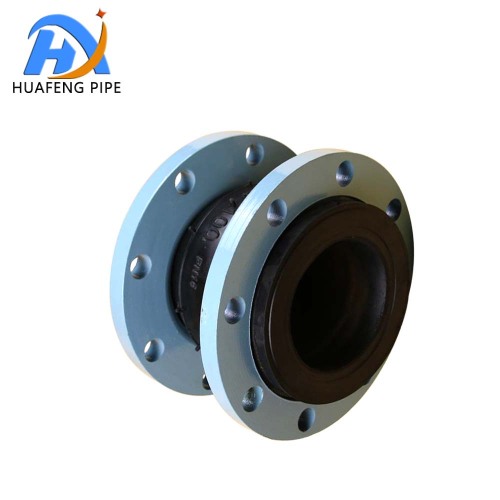

Industrial Grade Flexible Rubber Expansion Joint

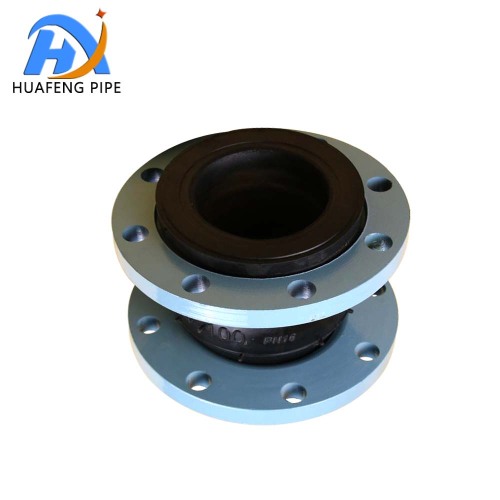

Single Sphere Flexible Rubber Joint: Reliable Support for Pipeline Engineering Stability​
The single sphere flexible Rubber Joint stands as a high-quality solution in pipeline engineering, delivering exceptional performance in absorbing vibrations, compensating displacements, and ensuring long-term stable operation of pipeline systems. As a core Rubber Expansion Joint variant, it is strategically installed at pipeline joints, where its elastic properties mitigate the impact of mechanical vibrations and thermal movements—proven through rigorous tests to offer superior durability in diverse applications. From water pump inlets/outlets to industrial fluid lines, it works in harmony with Bellow Expansion Joint, Flexible Metal Hose, and other components to form robust, adaptive systems that meet the demands of complex pipeline projects.​
At the heart of its functionality is the ability to absorb pipeline vibrations and displacements, a critical role in safeguarding pipeline integrity. In water supply systems, where pumps generate constant vibration, the single sphere flexible rubber joint acts as a buffer, reducing stress on pipe welds and valves. Installed at pump inlets and outlets—specifically on the water source side with a metal reducing joint between it and the water source (positioned at the reducer’s larger diameter end)—it ensures optimal alignment and load distribution. This setup prevents excessive strain on the joint, complemented by Flange Adaptor to bridge different pipe sizes, ensuring seamless integration into existing systems. In industrial plants, it pairs with Flexible Metal Hose to enhance flexibility: the metal hose accommodates complex routing, while the rubber joint dampens vibrations, protecting sensitive equipment like meters and pressure gauges.​
Proper installation and usage guidelines are paramount to maximizing the Single Sphere Rubber Joint’s performance. When pipeline displacement exceeds the joint’s compensation capacity, increasing the number of parallel joints ensures safe operation—avoiding overloading that could lead to premature failure. It is strictly prohibited to adjust pipeline deviations by forcing the joint into extreme flexural displacement or exceeding its expansion, displacement, or deflection limits. In chemical processing lines, where precise alignment is critical, this discipline is reinforced by pairing the joint with Dismantling Joint: the dismantling joint allows for incremental adjustments during installation, reducing the risk of forced alignment and preserving the rubber joint’s elasticity. This combination simplifies maintenance, enabling quick removal for inspection without disrupting the entire pipeline.​
Material diversity is a key strength of single sphere Rubber Joints , with classifications tailored to specific media and environments. Natural rubber joints excel in general water-based systems, offering cost-effectiveness and good elasticity. EPDM rubber joints stand out in high-temperature or ozone-exposed environments, making them ideal for HVAC systems and outdoor pipelines. In corrosive chemical lines, PTFE-lined rubber joints provide a non-reactive barrier against acids and solvents, while nitrile rubber joints deliver superior oil resistance for petroleum applications. For extreme conditions, fluoroelastomer rubber joints offer exceptional heat and chemical resistance, and butyl rubber flexible joints—formulated with butyl rubber—boast excellent airtightness and resistance to gases, making them suitable for vacuum systems or gas pipelines. This material versatility ensures compatibility with media ranging from drinking water to industrial sludge, often paired with Duckbill Check Valve to prevent backflow and enhance system safety.​
The single sphere rubber joint’s durability and adaptability shine in collaborative systems with other pipeline components. In power plant cooling loops, it works alongside Bellow Expansion Joint to manage combined thermal and vibrational stresses: the bellows handle large axial expansion from heated water, while the rubber joint absorbs lateral vibrations from cooling towers, ensuring pipeline stability. In wastewater treatment plants, it connects to Flexible Metal Hose to transport sludge, with the metal hose resisting abrasion and the rubber joint compensating for pump-induced pulsations—paired with Duckbill Check Valve to prevent sludge backflow and minimize contamination risks. This synergy of components ensures reliable operation even in harsh, high-maintenance environments.​
Installation efficiency is further enhanced by the joint’s compatibility with essential fittings. Flange Adaptor enables quick connection to dissimilar flanges, simplifying retrofits in aging pipeline networks. In fire protection systems, the single sphere rubber joint integrates with Flexible Metal Hose to create flexible sprinkler lines, adapting to building layouts while absorbing vibrations from fire pumps. When maintenance is required, Dismantling Joint allows for easy removal, ensuring inspections or replacements are completed with minimal downtime—a critical advantage in industries where operational continuity is vital.​
In specialized applications, the single sphere rubber joint’s material-specific formulations deliver targeted performance. In food processing plants, EPDM rubber joints with sanitary flanges ensure compliance with hygiene standards, paired with Dismantling Joint for easy cleaning and inspection. In marine pipelines, nitrile rubber joints resist saltwater corrosion, working with Stainless Steel Flange Adaptor and Duckbill Check Valve to form a seawater-resistant assembly that prevents backflow and accommodates vessel-induced vibrations. In pharmaceutical production, PTFE-lined rubber joints maintain media purity, collaborating with Bellow Expansion Joint to handle thermal expansion in high-purity fluid lines.​
In summary, the single sphere flexible rubber joint emerges as an indispensable Rubber Expansion Joint in pipeline engineering, combining vibration absorption, displacement compensation, and material versatility to ensure system stability. Its proper installation—paired with Flange Adaptor, metal reducers, and Dismantling Joint—maximizes durability, while its compatibility with Bellow Expansion Joint, Flexible Metal Hose, and Duckbill Check Valve extends its application range across industries. With diverse material options from EPDM to butyl rubber, it adapts to water, chemicals, oil, and gases, proving its value as a reliable, high-performance solution for long-term pipeline success.​
