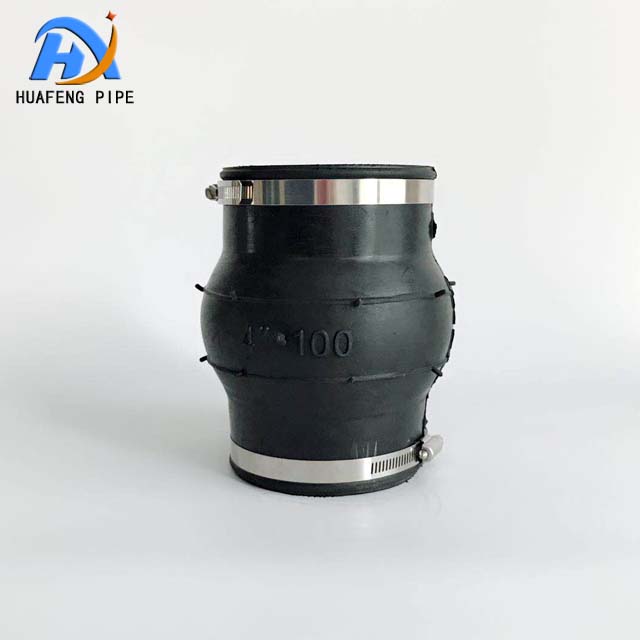

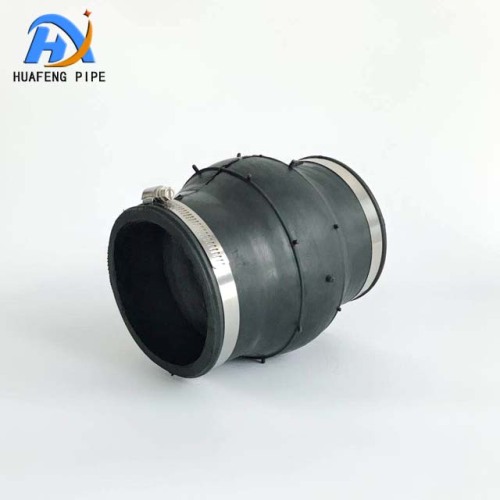

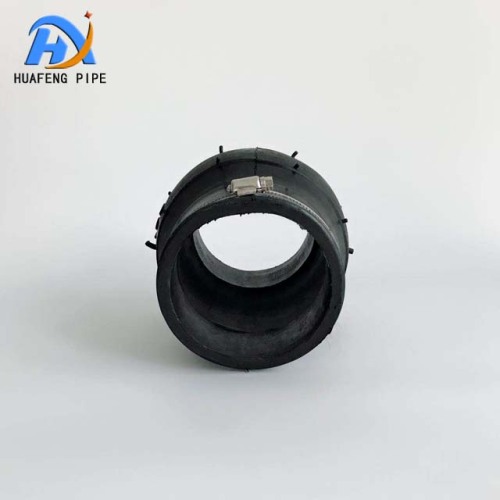

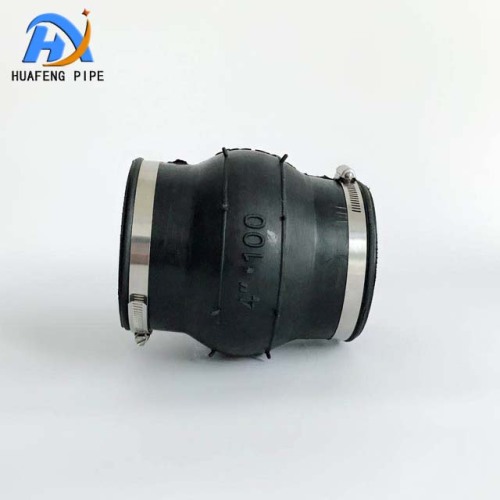

The single sphere
Rubber Expansion Joint stands as a meticulously engineered component in modern piping systems, defined by its multi-layered rubber tube construction that blends flexibility and durability. Comprising an inner rubber layer, a reinforcement layer of multi-layer nylon cord fabric coated with rubber, and an outer rubber layer, this specialized Rubber Expansion Joint is tailored to meet diverse operational demands by utilizing different rubber materials based on the conveyed media. Its ability to deliver large displacement compensation, vibration absorption, and corrosion resistance makes it a cornerstone in industries ranging from chemicals to power generation, working in harmony with
Bellow Expansion Joint,
Flexible Metal Hose, and other fittings to enhance pipeline resilience.
At the core of its design, the single sphere rubber expansion joint’s layered structure delivers exceptional performance. The inner rubber layer forms a tight seal against media, with material selection—such as EPDM for water systems or Nitrile for oil-based media—ensuring compatibility with specific fluids. The reinforcement layer of nylon cord fabric, bonded with rubber, adds tensile strength and structural rigidity, enabling the joint to withstand high internal pressures while maintaining flexibility. The outer rubber layer protects against external abrasion, UV exposure, and environmental corrosion, extending the joint’s service life. This robust construction allows it to connect seamlessly to pipelines via flanges, with compatibility for
Flange Adaptor to bridge different Flange sizes or standards—critical for retrofitting existing systems in industries like construction and petroleum.
A key advantage of the single sphere rubber expansion joint is its large displacement compensation capability, addressing the challenges posed by temperature changes, vibrations, and foundation settlement in piping systems. In chemical plants, where thermal fluctuations cause pipes to expand and contract, the joint’s elastic design absorbs axial, lateral, and angular displacements, preventing stress-induced damage to valves and welds. When paired with Bellow Expansion Joint in long-distance pipelines, it forms a dynamic compensation system: the bellows handle large axial expansion, while the Rubber Joint absorbs lateral shifts, ensuring the pipeline remains intact across varying conditions. In power generation facilities, it compensates for foundation settlement in condensate piping, working with
Dismantling Joint to simplify maintenance—allowing quick removal for inspection without disrupting the entire system.
Vibration absorption and noise reduction are standout features of the single sphere rubber expansion joint, enhancing the stability and comfort of piping systems. In industrial settings with pumps, compressors, or motors, mechanical vibrations can propagate through rigid pipes, causing noise pollution and component wear. The joint’s rubber layers act as natural dampers, dissipating vibrational energy before it reaches sensitive equipment. In fire protection systems, it pairs with Flexible Metal Hose to create a quiet, flexible pathway: the metal hose resists high-pressure water flow, while the rubber joint dampens vibrations from fire pumps, ensuring reliable operation without noise disruption. In commercial buildings, it is installed between HVAC units and ductwork, working with Bellow Expansion Joint to balance vibration and thermal movement—the bellows manage duct expansion, while the rubber joint reduces fan noise, creating a comfortable indoor environment.
Ease of installation and strong corrosion resistance further solidify the single sphere rubber expansion joint’s role as a versatile component. Its lightweight design and standardized flanged connections simplify transportation and mounting, with Flange Adaptor enabling quick integration into diverse pipeline setups. In seawater desalination plants, where corrosion is a constant threat, EPDM
Rubber Joints resist saltwater erosion, connecting via stainless steel flanges to
Duckbill Check Valve to prevent backflow. This corrosion-resistant assembly ensures long-term performance in harsh marine environments, a critical advantage for coastal infrastructure. In metallurgy industries, where pipelines handle abrasive slurries, Nitrile rubber joints withstand wear and chemical exposure, paired with Flexible Metal Hose to enhance durability against particulate matter.
The single sphere rubber expansion joint’s broad applicability spans industries where reliable pipeline performance is essential. In the chemical industry, it transports acids, alkalis, and solvents, working with Bellow Expansion Joint to manage thermal and pressure-induced displacements. In petroleum facilities, it connects to crude oil pipelines, absorbing vibrations from pumps and compensating for ground settlement, often paired with Dismantling Joint for easy maintenance access. In condensate piping systems, it ensures smooth flow of condensed steam, while in fire protection networks, it enhances system flexibility to navigate building structures. Its presence in seawater desalination equipment highlights its ability to thrive in extreme environments, where corrosion resistance and displacement compensation are paramount.
Compatibility with essential pipeline components amplifies the single sphere rubber expansion joint’s functionality. In chemical dosing systems, it pairs with Duckbill Check Valve and Flange Adaptor to control fluid flow: the check valve prevents reagent backflow, the adaptor ensures a secure seal, and the rubber joint compensates for pipeline movement, all while resisting chemical corrosion. In agricultural irrigation, it works with Flexible Metal Hose to handle water flow and vibration from irrigation pumps, ensuring consistent water distribution across fields. For systems requiring frequent maintenance, such as pharmaceutical production lines, its compatibility with Dismantling Joint simplifies replacement, minimizing downtime and ensuring compliance with hygiene standards.
In summary, the single sphere rubber expansion joint emerges as a vital Rubber Expansion Joint solution, combining layered durability, displacement compensation, and vibration damping to enhance pipeline performance across industries. Its ability to collaborate with Bellow Expansion Joint for thermal management, Flexible Metal Hose for durability, Flange Adaptor for seamless integration, Dismantling Joint for maintenance ease, and Duckbill Check Valve for backflow protection makes it indispensable in chemical, construction, petroleum, and power sectors. Whether addressing temperature-induced shifts, reducing operational noise, or withstanding corrosive media, this joint proves its value as a cornerstone of reliable, efficient piping systems.
