Single Sphere Rubber Expansion Joint: Elastic Connector for Metal Pipeline Stability​

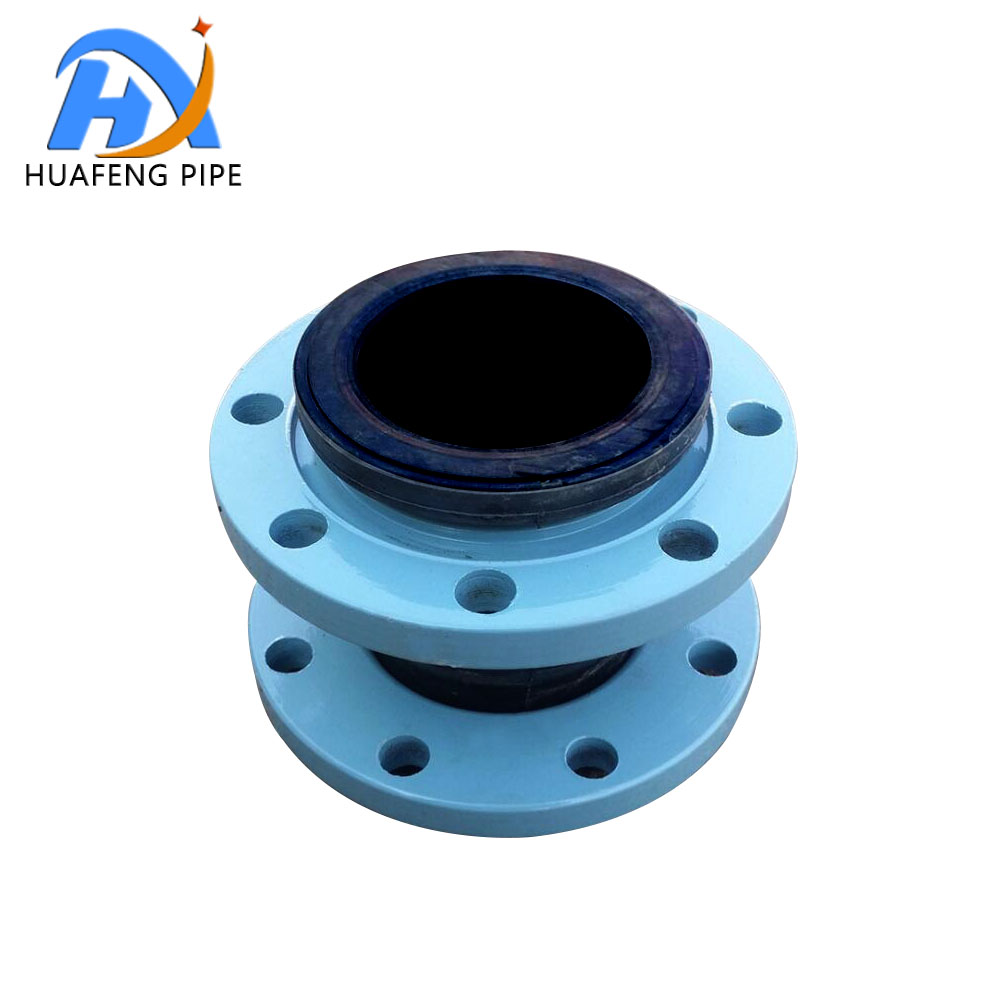

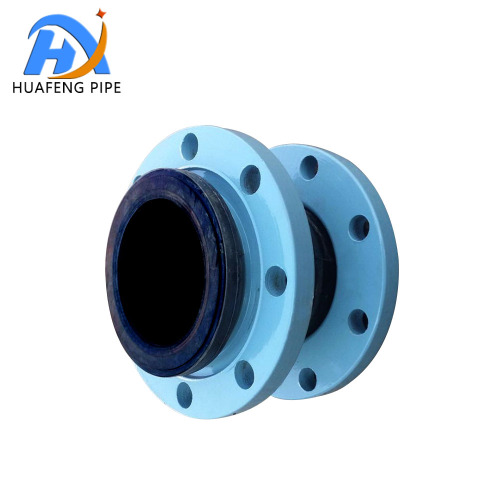

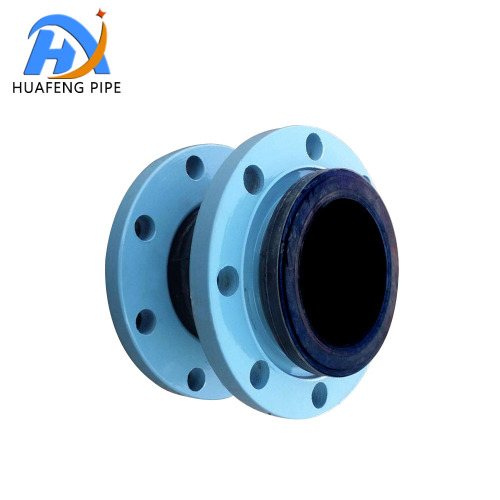

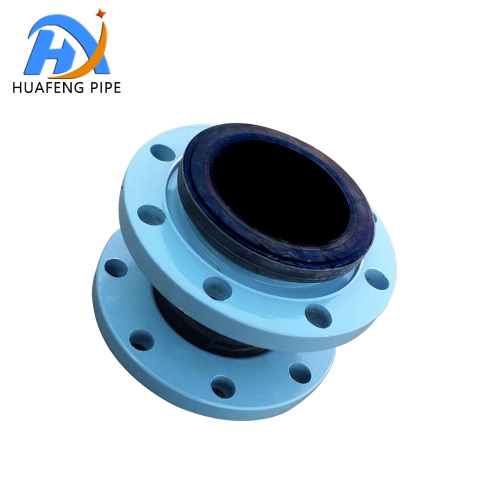

The single sphere Rubber Expansion Joint emerges as a precision-engineered rubber product, specifically designed for metal pipe connections, thanks to its unique structure and the natural elasticity of rubber, Become a key component in various pipeline systems. As a variant of the core Rubber Expansion Joint, it consists of an inner rubber layer, an outer rubber layer, a cord layer and a steel wire ring forming a tubular rubber assembly. After vulcanization molding, it is combined with a metal Flange or a parallel loose sleeve, perfectly balancing sealing performance, flexibility and durability. Whether it is reducing vibration and noise, compensating for thermal Expansion and contraction, or simplifying installation and maintenance, it performs exceptionally well. Working in coordination with accessories such as Bellow Expansion Joint and Flexible Metal Hose, it provides reliable guarantees for pipeline systems in industries such as petroleum, chemical engineering, and municipal services. ​

The structural design of single-sphere Rubber Expansion Joints is the basis of their performance. The inner rubber layer is in direct contact with the medium to ensure sealing performance and medium compatibility. The outer rubber layer resists external wear, ultraviolet rays and environmental corrosion, thus extending the service life. The curtain layer is made of high-strength fiber material. After being bonded with rubber, the overall tensile strength is enhanced, enabling it to withstand higher internal pressure. The steel wire ring provides rigid support for the flange connection part, ensuring the stability of the connection with the pipeline. This multi-layer structure enables it to adapt to different working conditions. For instance, in municipal water supply systems, the inner layer made of EPDM rubber resids chlorine corrosion, while the outer layer protects against microbial erosion in the soil. In oil pipelines, nitrile rubber material demonstrates excellent oil resistance. Through the Flange Adaptor , it can easily connect metal flanges of different standards, solving the problem of specification mismatch in the renovation of old pipelines and playing an important role in industrial upgrading projects. ​

The softness and elasticity of rubber are the core advantages of this expansion joint, enabling it to effectively reduce vibration and noise and compensate for thermal expansion and contraction. In pipeline systems equipped with pumps, compressors and other devices, mechanical vibrations can be transmitted through metal pipes, generating noise and accelerating component wear. The rubber expansion joint with a single spherical structure absorbs vibration energy through elastic deformation, functioning like a natural shock absorber and minimizing the impact of vibration on valves and elbows. In the steam pipeline of the power plant, it complements the Bellow Expansion Joint: the bellows deal with the significant axial expansion caused by the high temperature of the steam, while the rubber expansion joint absorbs the lateral vibration, jointly ensuring the stability of the pipeline during the thermal cycle. In the central air conditioning system, it is used in combination with Flexible Metal Hose . The metal hose enhances the bending flexibility of the pipe, while the rubber expansion joint reduces the noise generated by the vibration of the fan, creating a quiet indoor environment. ​

The unique single-sphere structure endows it with excellent water flow impact buffering capacity, reducing the impact wear of the pipeline system and extending its service life. In the water supply system of high-rise buildings, the water hammer effect may cause instantaneous high-pressure impact on the pipelines. However, the single-ball rubber expansion joint absorbs the impact force through the elastic deformation of the ball, protecting the water pump and valves from damage. In the sewage treatment plant, it is connected to the sludge conveying pipeline and used in conjunction with the Duckbill Check Valve: the check Valve prevents sludge backflow, and the rubber expansion joint buffers the flow impact when the sludge pump starts, reducing the wear at the pipeline connection. This buffering effect is equally important in the slurry conveying system of the mine. Working in coordination with the Flexible Metal Hose, it can not only adapt to the slight misalignment of the pipeline but also reduce the scouring of the pipeline by slurry particles. ​

The ease of installation and low maintenance cost are another major highlights of the single-ball rubber expansion joint. Its unique structural design enables rapid integration into the pipeline system without the need for complex installation procedures, significantly reducing the construction period. In the emergency repair of municipal pipe networks, workers can quickly complete the replacement through standardized flanges. Combined with Dismantling Joint , it can achieve maintenance without stopping water supply, reducing the impact on residents' water use. In industrial production lines, it is connected to pipes of different diameters through a Flange Adapter , simplifying the pipe modification work during equipment layout adjustment. In terms of maintenance, it is only necessary to regularly check the tightness of the flange bolts, the integrity of the rubber layer and the sealing performance, without incurring high maintenance costs. When used together with Bellow Expansion Joint, the advantage of this low-cost maintenance is more obvious. The composite compensation system formed by the two only requires routine inspections respectively to ensure long-term stable operation. ​

In a wide range of application scenarios, single-sphere rubber expansion joints demonstrate strong adaptability. In the fire protection system, it connects the fire pump with the pipeline, absorbs the pressure fluctuation when the pump starts through the elasticity of rubber, and forms a Flexible fire protection pipeline with a Flexible Metal Hose to adapt to the complex spatial layout of buildings. In the seawater desalination plant, the rubber material resistant to salt corrosion and the Stainless Steel Flange Adaptor work together to resist the erosion of seawater. At the same time, they work with the Duckbill Check Valve to prevent the backflow of seawater and ensure the continuity of the desalination process. In the cooling water pipeline of the metallurgical industry, it compensates for the pipe Expansion and contraction caused by temperature changes, and collaborates with the Bellow Expansion Joint to handle axial and lateral displacements to ensure the efficient operation of the cooling system. ​

The synergistic effect of single-ball rubber expansion joints with other Pipe Fittings further expands their application value. On the feed pipe of the chemical reactor, it, together with the Bellow Expansion Joint, absorbs the displacement caused by the vibration and temperature changes of the equipment to protect the precise flowmeters and valves. In agricultural irrigation systems, pipes of different specifications are connected through Flange adaptors, rubber expansion joints compensate for pipe misalignment caused by soil settlement, and Flexible Metal Hose ADAPTS to the complex terrain changes in the field. In the food processing workshop, the expansion joints made of sanitary rubber are used in conjunction with Dismantling joints, which facilitate regular disassembly and cleaning to ensure the hygiene standards of food production. ​

In conclusion, as a key Rubber Expansion Joint, the Single Ball Rubber Expansion Joint, with its unique structural design, excellent elastic performance and convenient installation and maintenance, has become an ideal choice for metal pipe connections. It works in coordination with Bellow Expansion Joint to handle displacement compensation, with Flexible Metal Hose to enhance pipeline flexibility, with Flange Adaptor to achieve specification adaptation, and through Dismantling Joint to simplify maintenance. Together with Duckbill Check Valve, it ensures the unidirectional flow of media and plays an irreplaceable role in various industrial and civil pipeline systems, providing a solid guarantee for the long-term stable operation of pipelines. ​
