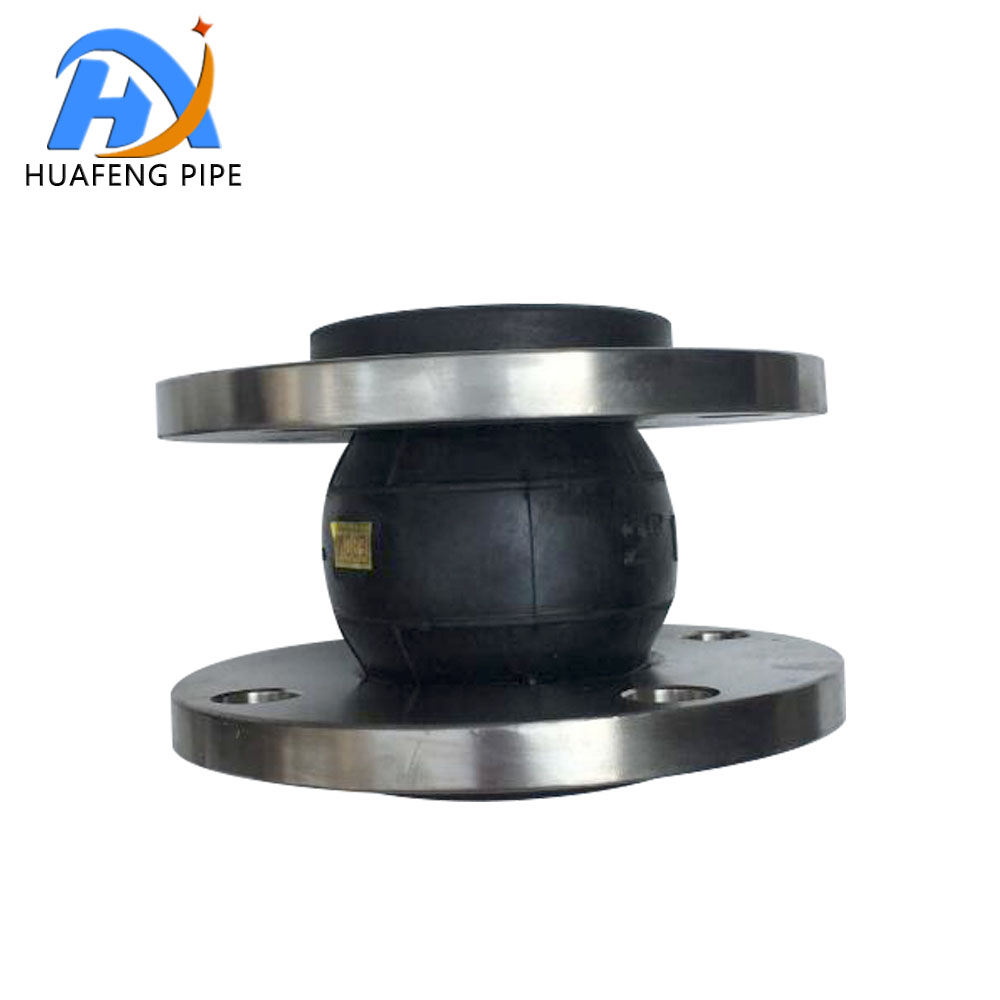

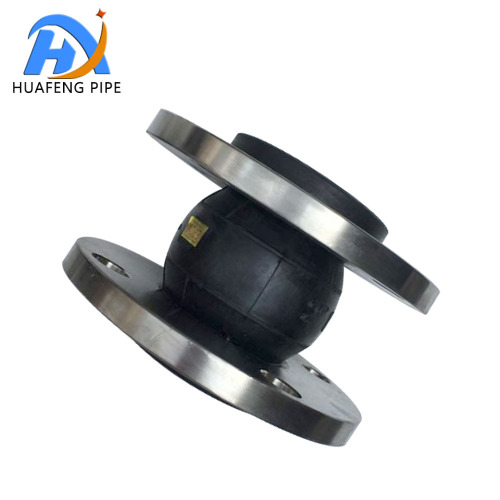

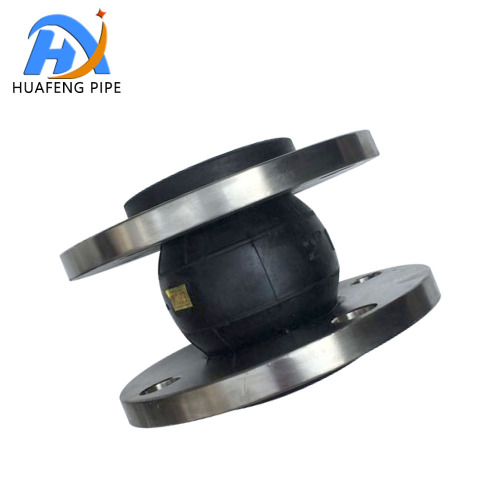

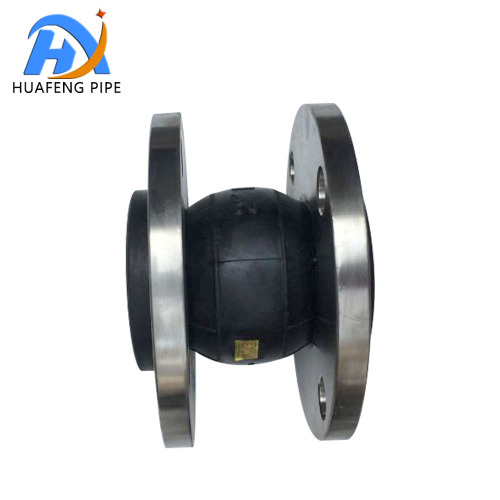

Single Ball Rubber Expansion Joint: The all-rounder of flexible connections, ensuring the performance of pipeline systems
Rubber Expansion Joint, also known as rubber hose flexible joint, single ball rubber expansion joint, and deflectable Rubber Joint , has become an indispensable flexible connection component in pipeline systems due to its core advantages of high elasticity, high air tightness, medium resistance and weather resistance. It works in coordination with products such as
Bellow Expansion Joint,
Flexible Metal Hose,
Dismantling Joint,
Flange Adaptor,
Duckbill Check Valve, etc., and plays a key role in various working conditions. To ensure the smooth operation of pipelines and the long-term use of equipment.
The way of selection: The core criterion for adapting to working conditions
The key to choosing Rubber Expansion Joint lies in precisely matching the application environment. The characteristics of the medium are the primary consideration factor. The requirements for rubber materials vary greatly among different media. The materials of
Rubber Expansion Joints needed for transporting ordinary clean water and corrosive acid and alkali media are completely different. This selection logic is consistent with the principle of Duckbill Check Valve in choosing sealing materials based on the medium, both with medium adaptability as the core. After determining the medium compatibility, it is necessary to further select the model in combination with technical parameters such as pipe diameter and pressure to ensure that the product performance is perfectly matched with the pipeline working conditions. Only by choosing the right product can the elasticity, sealing performance and other characteristics of the single ball rubber Expansion Joint be fully exerted. Just as the Bellow Expansion Joint needs to match the axial compensation amount of the pipeline to achieve the best effect, precise selection is the prerequisite for ensuring the system efficiency.
For example, in chemical pipelines, when transporting acidic media, acid-resistant Rubber Expansion Joint should be selected and combined with Flange Adaptor to achieve sealing connection. Its corrosion resistance performance can be comparable to the corrosion-resistant coating of Flexible Metal Hose . In the municipal drainage system, for the transportation of ordinary sewage, standard rubber expansion joints can be selected and used in conjunction with Duckbill Check valves. The former absorbs pipe vibration, and the latter prevents the backflow of sewage. The two work together to enhance the stability of the system.
Performance advantage: The unique charm of flexible connections
The "small but beautiful" feature of Rubber Expansion Joint shows its advantages in pipeline installation and operation. The small size and light weight make it easy to install. When used in conjunction with Dismantling Joint for maintenance, disassembly and replacement can be completed quickly, significantly reducing construction and operation and maintenance costs. This is more Flexible than rigid connection Pipe Fittings and complements the light and easy-to-install characteristics of the Flexible Metal Hose.
During the installation process, the flexibility of the Rubber Expansion Joint is irreplaceable. It allows for horizontal, axial and angular displacements of the pipeline, is not restricted by the installation deviation of the pipeline, and the flange does not need to be strictly parallel to achieve a sealed connection. This "fault tolerance" effectively solves the alignment problem in pipeline construction. In contrast, although Bellow Expansion Joint can compensate for axial displacement, it is slightly inferior in multi-angle deflection. The two complement each other and jointly cover the flexible connection requirements of different scenarios. After being matched with the Flange Adapter , the adaptability range of the rubber expansion joint is further expanded, and it can be easily connected with flanges of different standards, improving the installation efficiency.
During the operation stage, the noise reduction and shock absorption capabilities of the Rubber Expansion Joint are particularly outstanding. It can effectively reduce the noise transmitted by the structure. Its powerful vibration absorption performance can weaken the impact of equipment vibration on the pipeline. This advantage is more obvious in the inlet and outlet pipelines of power equipment such as water pumps and fans. When used in conjunction with the Flexible Metal Hose, a "double shock absorption barrier" is formed. The former absorbs high-frequency vibrations, and the latter buffers low-frequency impacts. Coupled with the convenient maintenance function of Dismantling Joint, the operation of equipment and pipelines becomes quieter and more stable, significantly extending the service life of pipelines, pumps, valves and other equipment.
System synergy: The interactive efficiency of multiple components
In complex piping systems, the Rubber Expansion Joint does not exist in isolation but forms an efficient linkage with other fittings. In industrial pipelines with severe vibration, it is used in combination with Bellow Expansion Joint. Rubber expansion joints deal with lateral and angular displacements, while bellows expansion joints undertake axial compensation. The two are precisely connected through Flange Adaptor to comprehensively relieve pipeline stress.
In the municipal water supply system, the Rubber Expansion Joint is installed at the outlet of the water pump, forming a golden combination of "shock absorption + anti-backflow + sealing" with the Duckbill Check Valve and Flange Adaptor, ensuring the stable transportation of water flow while Reduce the damage to pipelines caused by vibration. In sections of pipelines that require frequent maintenance, the combination of rubber expansion joints and Dismantling joints makes maintenance work simple, easy to disassemble and does not affect other pipeline components. This advantage is particularly important in the pipeline systems of large industrial plants.
Rubber Expansion Joint, with its unique flexible characteristics, plays an irreplaceable role in the piping system. From precise selection to installation and operation, with advantages such as strong adaptability, high flexibility, shock absorption and noise reduction, it works in synergy with accessories such as Bellow Expansion Joint and Flexible Metal Hose. With the assistance of Dismantling Joint, Flange Adaptor and Duckbill Check Valve, we provide reliable flexible connection solutions for various pipeline systems, ensuring smooth operation of pipelines and extending the service life of equipment, thus becoming the "flexible guardian" in pipeline engineering.
