Single Ball Rubber Expansion Joint: The "shock absorption and noise reduction pioneer" of pipeline systems and the core of flexible connections
Among various pipeline systems, the
Single Sphere Rubber Expansion Joint, with the core mission of "shock absorption and noise reduction, flexible connection", has become a key component to ensure the stable operation of the system. It is also known as
Rubber Expansion Joint,
Rubber Flexible Expansion Joint, shock absorber, pipe shock absorber, shock-absorbing hose, etc. With its high elasticity, high air tightness, medium resistance and weather resistance, Work in coordination with accessories such as
Bellow Expansion Joint, Flexible Metal Hose , Dismantling Joint , Flange Adaptor ,
Duckbill Check Valve, etc. Inject dual guarantees of safety and reliability into the pipeline system.
Core function: The "Pipeline Guardian" for shock absorption and noise reduction
The core value of Rubber Expansion Joint is concentrated in the control of vibration and noise. In the outlet pipes of power equipment such as water pumps, fans and compressors, it can efficiently absorb the vibration generated by the operation of the equipment by virtue of the elastic characteristics of rubber, and significantly reduce the noise transmitted by the structure. This "Flexible buffering" ability complements the shock absorption characteristics of the Flexible Metal Hose - the former is good at absorbing high-frequency vibration. The latter performs outstandingly in low-frequency displacement compensation. The combination of the two can build a comprehensive shock absorption and noise reduction network. In places with high requirements for noise reduction such as hospitals and residential areas, the application of
Rubber Expansion Joints can significantly improve the operating environment of pipelines. Its noise reduction effect, together with the low vibration transmission characteristics of
Bellow Expansion Joints, enhances the environmental protection performance of the system.
Flexibility and ease of use are another major advantage of Rubber Expansion Joint. It can adapt to the slight displacement and angular deviation of pipelines, simplifying the installation process. This feature makes it more practical in complex pipeline layouts. When used in conjunction with the Flange Adapter , it can easily achieve the sealing connection of pipes with different Flange standards, and its installation convenience far exceeds that of rigid connectors. When combined with Dismantling Joint, the disassembly and replacement during later maintenance are more efficient, significantly reducing operation and maintenance costs, which is particularly important in municipal pipe networks and industrial pipelines.
Material and craftsmanship: The "cornerstone of quality" with outstanding performance
The outstanding performance of Rubber Expansion Joint stems from the exquisite material combination and manufacturing process. It fully exploits the advantages of rubber such as elasticity, high air tightness, medium resistance, weather resistance and radiation resistance, and is compounded with high-strength polyester cord fabric that is resistant to cold and heat through cross-layering, and vulcanized and formed in a high-temperature and high-pressure mold. This composite structure of "rubber + curtain fabric" is like a "flexible skeleton" for pipe connections. It not only retains the elastic buffering capacity of rubber but also enhances the overall strength through the curtain fabric, enabling it to absorb vibrations while withstanding certain pressure. This technological logic is similar to the Bellow Expansion Joint's bellows metal reinforced structure. The former excels in flexible composite, while the latter excels in rigid expansion and contraction.

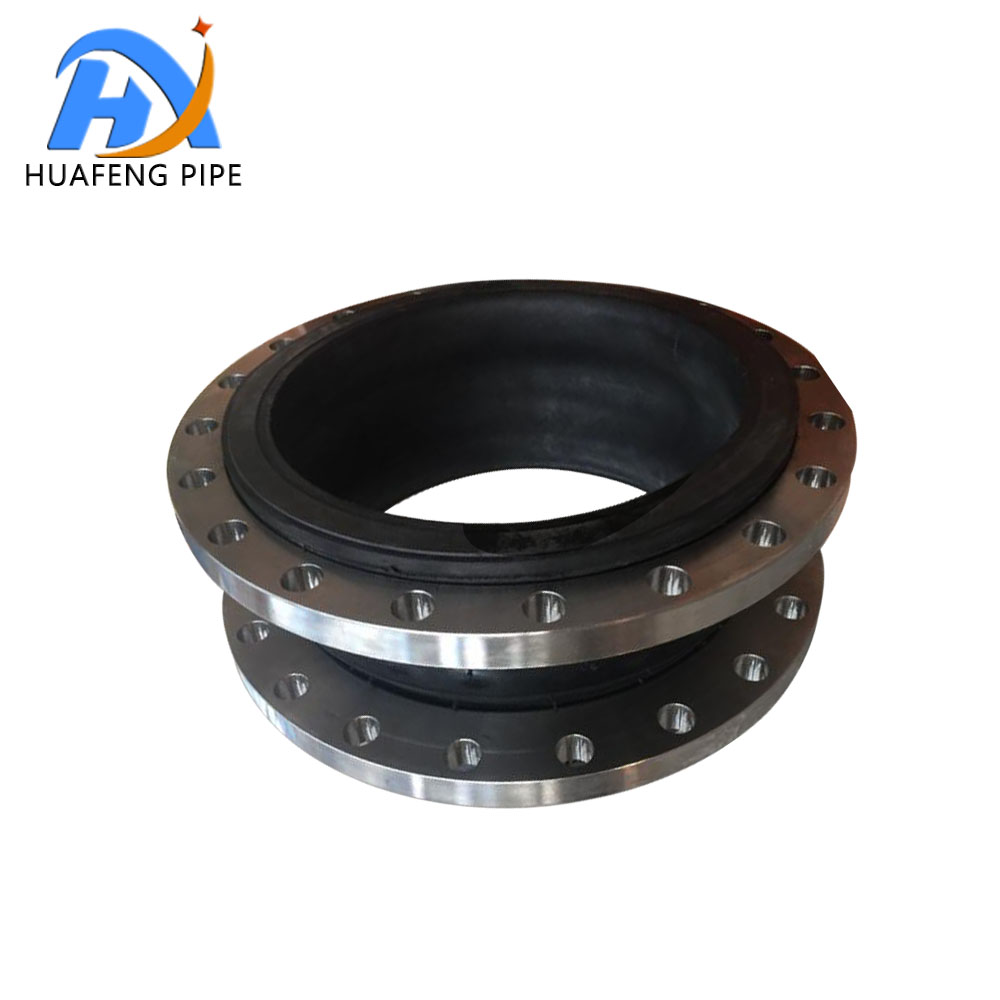

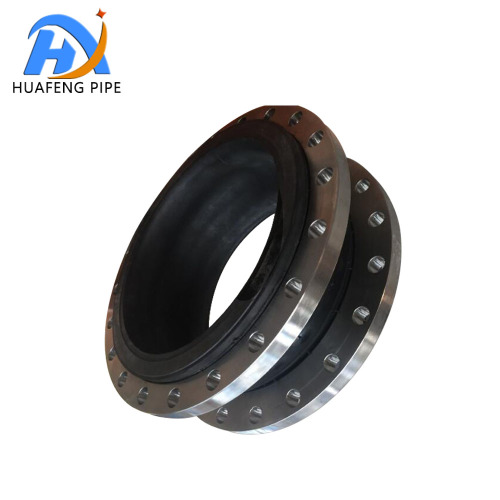

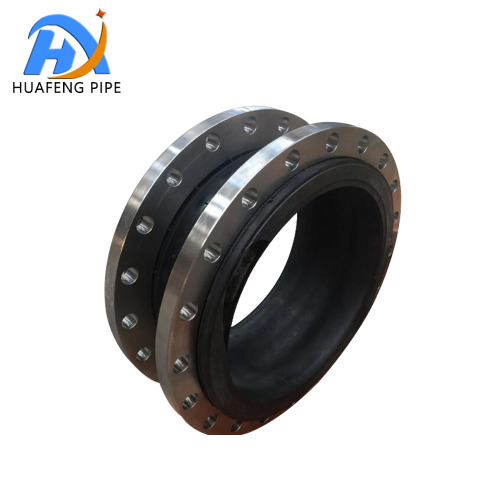

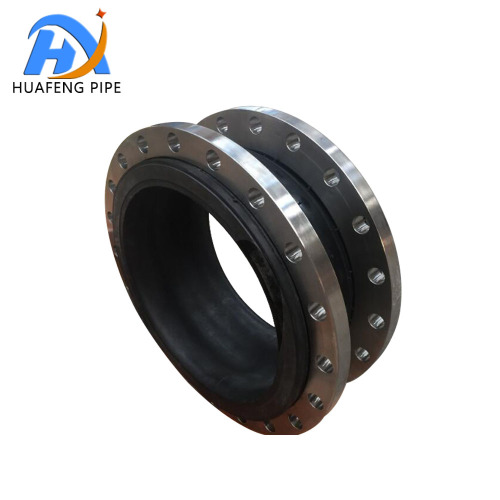

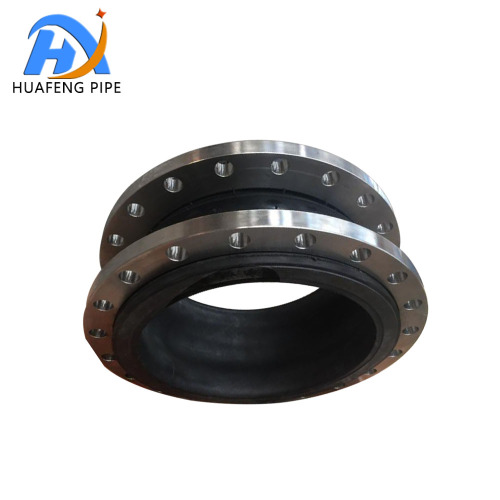

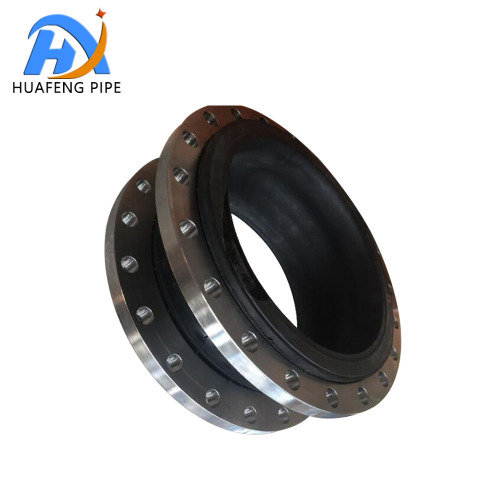

The product structure is composed of fabric-reinforced rubber components and flat union joints. This design ensures the sealing and flexibility of the connection. Rubber components are in direct contact with the medium, and their medium resistance performance can be customized according to the working conditions. For example, oil-resistant rubber is suitable for oil pipelines, and acid and alkali resistant rubber is suitable for chemical pipelines, which is consistent with the material selection standard of the sealing parts of Duckbill Check Valve . The flat union joint works perfectly with the Flange Adaptor to ensure precise sealing in the connection of pipes of different diameters, laying a material foundation for the safe operation of the system.
Performance advantage: The "All-rounder" for multi-scenario adaptation
The high elasticity of Rubber Expansion Joint enables it to freely expand and contract when the pipeline expands and contracts due to heat and cold, and when the equipment vibrates, effectively compensating for displacement and protecting the pipeline and equipment from stress damage. In industrial circulating water systems, it is used in conjunction with Bellow Expansion Joint. The former absorbs lateral vibration and the latter compensates for axial thermal displacement. The two are precisely connected through Flange Adaptor to comprehensively address various displacement problems during pipeline operation. High air tightness ensures no medium leakage in pressure pipelines, forming a double guarantee with the sealing function of Duckbill Check Valve. Especially in flammable and explosive pipelines such as gas and chemical industries, this sealing performance is directly related to system safety.
The medium tolerance and weather resistance enable the Rubber Expansion Joint to handle various working conditions with ease. In municipal sewage pipes, it can resist corrosive substances in sewage and, when combined with the corrosion-resistant coating of Flexible Metal Hose, extend the service life of the pipes. In outdoor open-air pipelines, its weather resistance can resist the erosion of natural factors such as ultraviolet rays, wind and rain, complementing the outdoor anti-corrosion treatment of Bellow Expansion Joint to jointly adapt to complex environments.
All-field application: A Secure and reliable "system guarantee"
The application fields of Rubber Expansion Joint are extensive, and it works in synergy with other fittings to exert value in various pipeline systems. In the industrial field, in petrochemical pipelines, it is connected to pipelines of different specifications with the Flange Adaptor. While absorbing the vibration of the pump set, it cooperates with the Duckbill Check Valve to prevent the backflow of the medium. In the clean pipelines of the pharmaceutical industry, food-grade rubber expansion joints are combined with Flexible Metal Hose to ensure the hygiene and safety of drug delivery, and their sealing performance is highly consistent with the aseptic requirements of the system.
In municipal construction, the water supply pipeline reduces the influence of pump vibration on the pipe network through Rubber Expansion Joint, and in combination with Dismantling Joint, facilitates maintenance. In the drainage pipe, it works in conjunction with the Duckbill Check Valve. The former absorbs the impact and vibration of water flow, the latter prevents the backflow of sewage, and the Flange Adaptor ensures the sealed connection of pipes of different diameters. In the building water supply and drainage system, rubber expansion joints connect equipment such as air conditioners and water pumps, and adapt to equipment displacement with Flexible Metal hoses, effectively protecting the pipeline system and prolonging the service life of the equipment.
System Synergy: Maximizing the Efficiency of Accessory Linkage
In a complete piping system, the Rubber Expansion Joint does not exist in isolation but forms an efficient linkage with various fittings. When cooperating with Bellow Expansion Joint, it can simultaneously deal with vibration and thermal displacement. The former is responsible for flexible buffering, and the latter undertakes rigid compensation. When used in series with the Flexible Metal Hose, it can adapt to more complex pipeline routing and displacement requirements. The flexible characteristics of the two complement each other, enhancing the overall flexibility of the system.
The precise adaptation of the Flange Adaptor enables the Rubber Expansion Joint to be connected with pipes of different standards, ensuring the sealing performance. The addition of Dismantling Joint makes maintenance more convenient, especially in pipeline sections that require frequent inspection and repair, the combination of the two greatly improves operation and maintenance efficiency; The unidirectional diversion function of the Duckbill Check Valve, combined with the shock-absorbing seal of the rubber expansion joint, ensures the stable operation of the system while preventing the backflow of the medium.
From industrial production to municipal construction, from equipment connection to pipeline laying, Rubber Expansion Joint has always provided safe and reliable guarantees for pipeline systems with its core advantages of high elasticity and high air tightness. It works in coordination with accessories such as Bellow Expansion Joint and Flexible Metal Hose to solve vibration problems with flexible connections and resist environmental challenges with exquisite craftsmanship. With the assistance of Dismantling Joint, Flange Adaptor and Duckbill Check Valve, it has become a key force in enhancing the safety and reliability of the pipeline system, safeguarding the stable operation of various projects.
