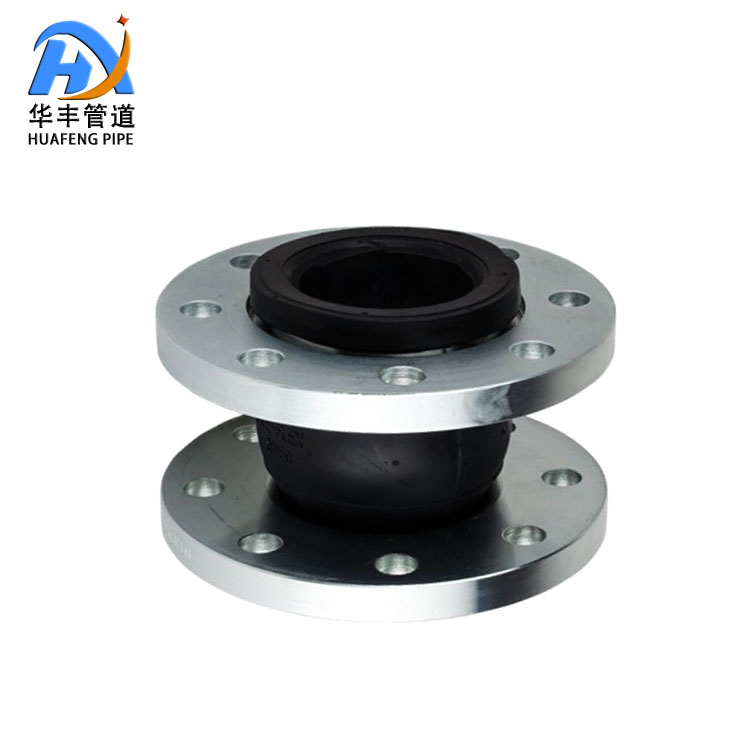

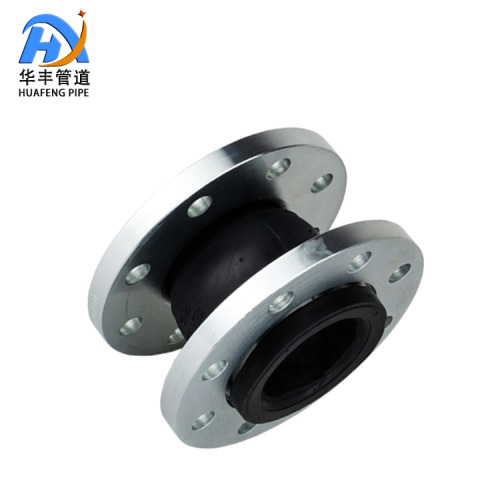

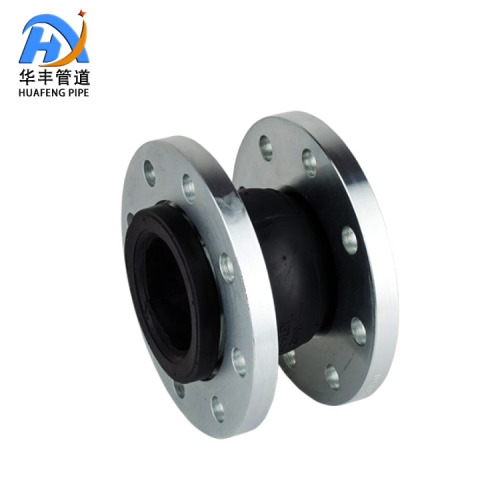

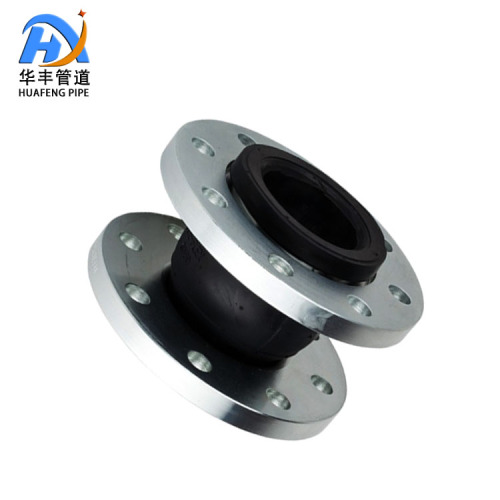

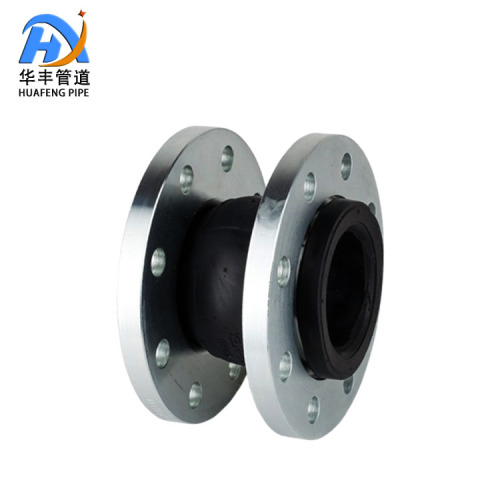

Flexible Rubber Expansion Joint

Installation and maintenance of single ball Rubber Expansion Joints: Ensuring the flexibility and safety of pipeline systems

Rubber Expansion Joint, as the "flexible link" of the pipeline system, its installation quality and maintenance level directly affect the stability of the overall system. From the initial inspection to the later maintenance, every link needs to be precisely controlled. Meanwhile, it works in coordination with accessories such as Bellow Expansion Joint, Flexible Metal Hose, Dismantling Joint, Flange Adaptor, Duckbill Check Valve, etc. Only in this way can its core value of shock absorption and compensation be fully exerted. ​

Before installation: Conduct a thorough inspection to lay a solid safety foundation

The inspection work before installing the Rubber Expansion Joint is the first line of defense for system safety. It is necessary to carefully check whether there are defects such as damage, deformation or cracks in the body of the rubber Expansion Joint to ensure its elastic performance is intact - this step is as important as the visual inspection before installing the Bellow Expansion Joint. Both, as flexible compensation elements, the integrity of the initial state directly determines the subsequent operation effect. At the same time, it is necessary to pay special attention to checking the flatness of the Flange connection surface. If it is installed in conjunction with the Flange Adapter , it is necessary to confirm that the flange size of the adapter is completely matched with the rubber expansion joint to avoid sealing failure due to dimensional deviation. For the piping system paired with the Duckbill Check Valve , it is also necessary to simultaneously inspect the sealing surface condition of the check valve to lay a solid foundation for the overall installation quality. ​

During installation: Equal emphasis is placed on scientific positioning and standardized operation

The selection of the installation position of Rubber Expansion Joint directly affects its service life. It should be installed in the straight pipe section of the pipeline, away from elbows, tees and other parts that are prone to stress concentration. This is consistent with the installation principle of the Flexible Metal Hose . Both need to avoid complex Pipe Fittings to reduce additional stress. If Bellow Expansion Joints are installed simultaneously in the pipeline system, the spacing between the two needs to be reasonably planned to ensure that their respective compensation functions are not disturbed. ​

The installation and fastening process must strictly follow the specifications: the flange connection surface should fit closely, and the bolts should be tightened symmetrically and gradually and evenly, avoiding being too tight or too loose - this operation is in line with the installation requirements of Dismantling Joint. Uniform force application is the key to ensuring sealing and stability. For systems with a working pressure exceeding 1.6MPa, elastic pressure pads should be added to the installation bolts to prevent bolt loosening due to vibration during operation. This is particularly important in high-pressure pipelines where Flexible Metal Hose is installed simultaneously. When the Rubber Expansion Joint is installed vertically, vertical load support should be provided at the end of the pipe. Anti-pull-off devices should be added if necessary to prevent the joint from falling off under pressure. If it is installed in series with the Duckbill Check Valve, it is also necessary to ensure that the installation direction of the check valve is correct. Avoid affecting the flow direction of the medium and the system pressure. ​

During maintenance: Regular maintenance can extend the service life

Daily maintenance is the core guarantee for the Rubber Expansion Joint to maintain its performance and is as important as the regular inspection and repair of the Bellow Expansion Joint. During use, the appearance condition of the rubber expansion Joint should be inspected regularly. If aging, cracking or local damage is found, it should be replaced in time to avoid affecting the system operation due to leakage. When replacing, the convenient disassembly function of Dismantling joint can be utilized to reduce interference with the overall pipeline. Meanwhile, the Flange connection surface and the sealing part of the Flange Adaptor should be cleaned regularly to keep the interface clean and dry. This operation is as crucial as maintaining the cleanliness of the Valve port of the Duckbill Check Valve, which can effectively prevent sealing failure caused by the accumulation of impurities. ​

For the piping system matched with Flexible Metal Hose, it is necessary to simultaneously check whether the corrugated pipe of the metal hose is deformed or corroded, and form a maintenance closed loop of "double flexible protection" with the rubber expansion joint. In the drainage pipes containing the Duckbill Check Valve, during maintenance, it is necessary to ensure that the duckbill part of the check valve has good elasticity, working together with the rubber expansion joint to resist the impact caused by the backflow of the medium and extend the service life of the entire pipeline system. ​

From the meticulous inspection before installation to the standardized operation during installation, and then to the regular maintenance during use, the full life cycle management of Rubber Expansion Joint requires professionalism and rigor. It works in conjunction with Flexible components such as Bellow Expansion Joint and Flexible Metal Hose to achieve convenient installation and maintenance with the assistance of Dismantling Joint and Flange Adaptor. Strengthen system security in collaboration with Duckbill, Check and Valve. Only by strictly controlling every link can rubber expansion joints truly become the "flexible guardians" of the pipeline system, ensuring the stable operation of various industrial, municipal and building pipelines. ​
