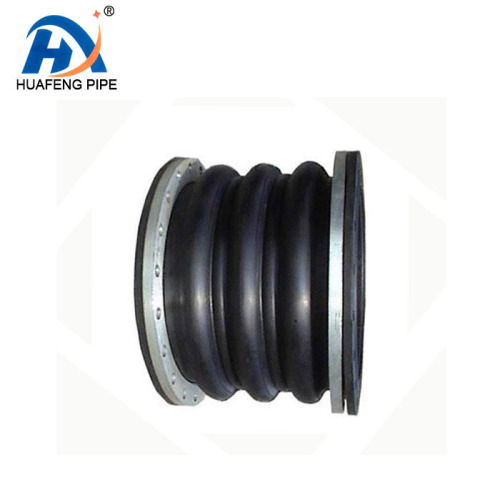

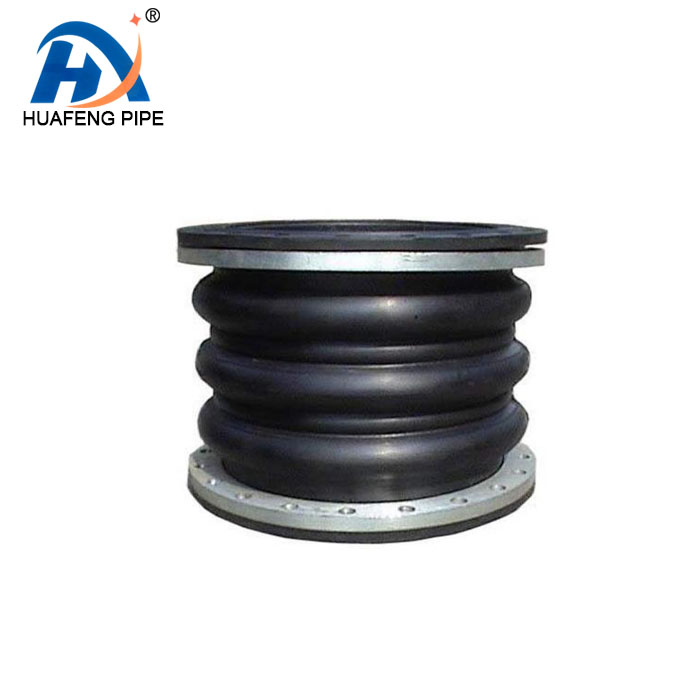

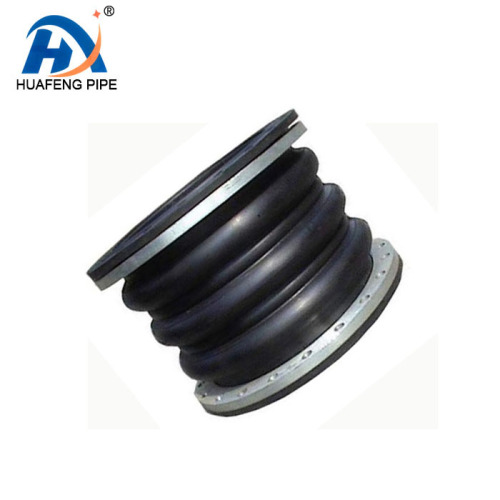

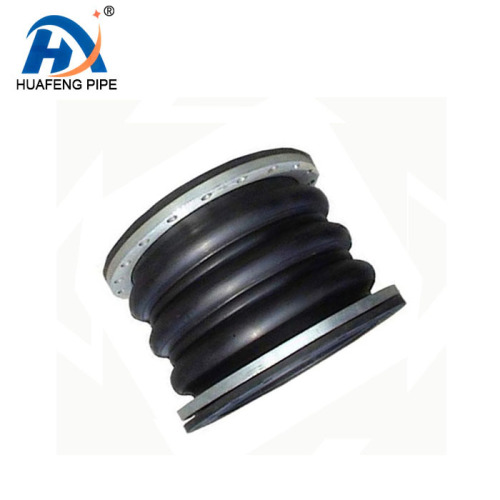

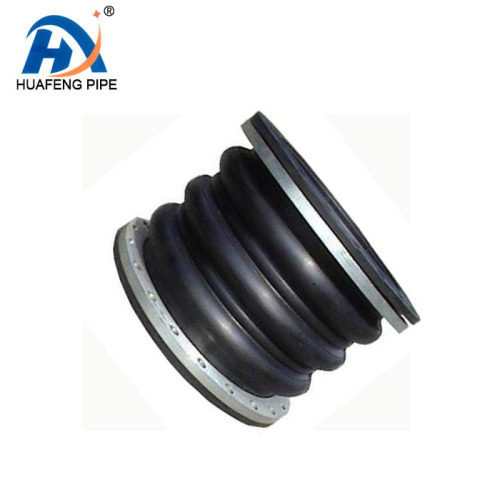

Heavy Duty Double Ball Expansion Joint: The Ultimate Solution for High-Pressure Pipeline Stability
In the demanding landscape of industrial pipeline systems, the Heavy Duty Double Ball Expansion Joint emerges as a robust safeguard against the stresses of high pressure, vibration, and thermal expansion. Designed with reinforced double spherical rubber elements, this specialized
Rubber Expansion Joint combines exceptional flexibility with industrial-grade durability, making it indispensable in heavy-duty applications such as petroleum refining, chemical processing, and power generation. Its ability to absorb axial, lateral, and angular displacements while maintaining a tight seal ensures pipeline integrity, even under extreme operational conditions. When integrated with complementary components like
Bellow Expansion Joint and
Flexible Metal Hose, it forms a comprehensive protection system that elevates pipeline performance and longevity.
The heavy-duty design of this double ball expansion joint begins with premium materials and engineering precision. Its inner core features a smooth, wear-resistant rubber lining that minimizes flow resistance and prevents media contamination, while reinforced polyester cords and external steel wire support rings enhance structural strength, enabling it to withstand high internal pressures and negative pressure collapse. This construction makes it an ideal partner for
Flange Adaptor in high-pressure systems—where the adaptor ensures a secure connection to pipes or equipment, the expansion joint absorbs vibrations from pumps, compressors, or turbines, reducing stress on welded or flanged joints. In corrosive environments, it can be paired with
Stainless Steel Flange Adaptor and
Duckbill Check Valve, creating a corrosion-resistant assembly that prevents media backflow while accommodating pipeline movement.
One of the key advantages of the Heavy Duty Double Ball Expansion Joint is its versatility in handling complex displacement scenarios. Unlike standard Rubber Expansion Joint, its dual spherical design allows for greater angular deflection and axial movement, making it suitable for pipelines with significant misalignment or thermal expansion. In power plant steam lines, for example, it works alongside Bellow Expansion Joint to manage combined thermal and pressure-induced displacements: the bellows handle large axial expansion, while the double ball joint absorbs lateral shifts and vibration, protecting critical components like 180-degree elbows and valves. In mining operations, where pipelines endure constant vibration from heavy machinery, it pairs with Flexible Metal Hose to create a flexible yet rugged pathway, with the metal hose adding extra durability against abrasion and the expansion joint dampening vibration transfer.
Installation and maintenance efficiency are further enhanced by the expansion joint’s compatibility with essential fittings. When mounted between flanged pipes, it integrates seamlessly with
Dismantling Joint, allowing for quick removal during inspections or replacements without disrupting the entire pipeline—a critical feature in industries where downtime is costly. For systems requiring frequent maintenance, this combination of Heavy Duty Double Ball Expansion Joint and Dismantling Joint simplifies access to downstream components like Duckbill Check Valve or filters, streamlining upkeep procedures. In high-pressure water injection systems, the expansion joint connects via Flange Adaptor to Bellow Expansion Joint, leveraging the bellows’ high-pressure tolerance and the
Rubber Joint’s vibration absorption to ensure reliable operation in oilfield applications.
The Heavy Duty Double Ball Expansion Joint also excels in optimizing fluid dynamics within pipelines. Its smooth inner bore reduces turbulence and pressure drop, enhancing pump efficiency and reducing energy consumption—a benefit amplified when used in conjunction with Flexible Metal Hose in high-velocity systems. In chemical processing plants, where viscous or abrasive media are transported, the expansion joint’s wear-resistant rubber lining and double ball design minimize media buildup, while its compatibility with Duckbill Check Valve prevents backflow-related erosion. When paired with Bellow Expansion Joint in hybrid systems, it balances flexibility and pressure resistance: the rubber joint handles low-frequency vibrations and minor displacements, while the bellows manage high-temperature expansion, creating a versatile solution for multi-parameter pipeline challenges.
Material compatibility and application-specific customization further expand the utility of this heavy-duty expansion joint. For extreme temperature environments, it can be manufactured with heat-resistant rubber compounds, working alongside Bellow Expansion Joint to withstand steam or hot oil temperatures. In offshore or marine settings, corrosion-resistant versions with galvanized steel flanges integrate with Flange Adaptor and Flexible Metal Hose to resist saltwater degradation, ensuring long-term performance in harsh coastal or subsea pipelines. Whether paired with Dismantling Joint for easy maintenance or with Duckbill Check Valve for backflow prevention, the Heavy Duty Double Ball Expansion Joint adapts to diverse industrial needs, proving its value as a core component in modern pipeline protection systems.
In summary, the Heavy Duty Double Ball Expansion Joint redefines reliability in heavy-duty pipeline applications. As a premium Rubber Expansion Joint, it complements Bellow Expansion Joint in managing thermal and pressure-induced displacements, works with Flexible Metal Hose to enhance flexibility and durability, and integrates seamlessly with Flange Adaptor, Dismantling Joint, and Duckbill Check Valve to create comprehensive, system-wide solutions. From high-pressure oil and gas pipelines to vibration-intensive power generation systems, this expansion joint ensures stability, reduces maintenance costs, and extends pipeline lifespan, solidifying its role as an essential fitting in industrial infrastructure.
