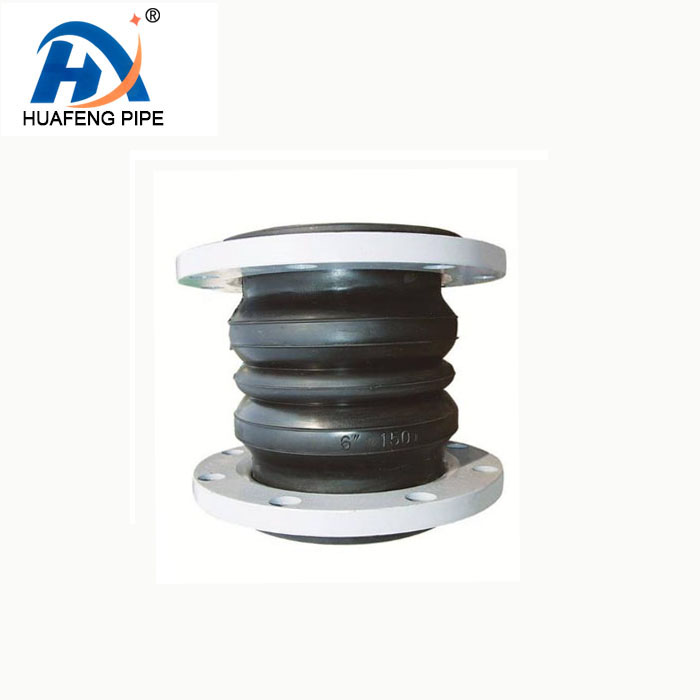

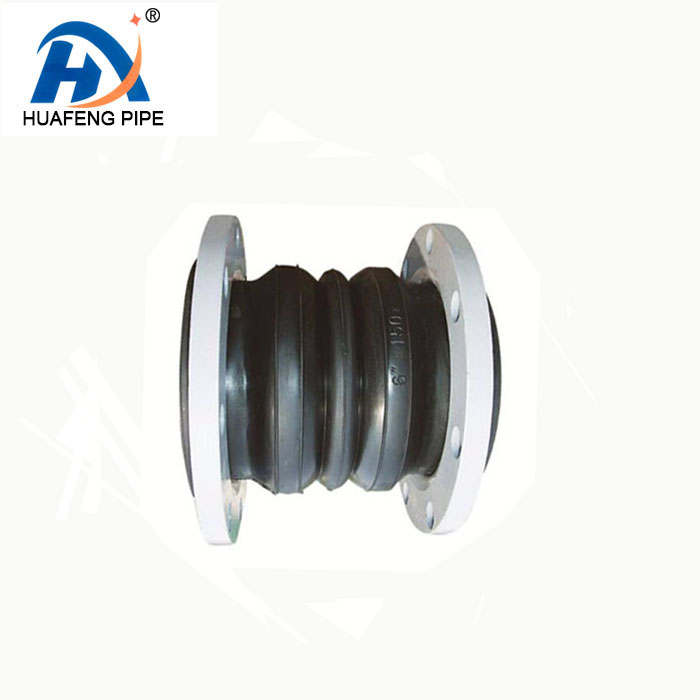

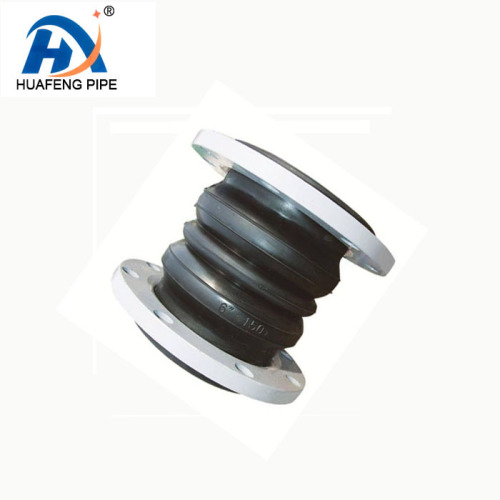

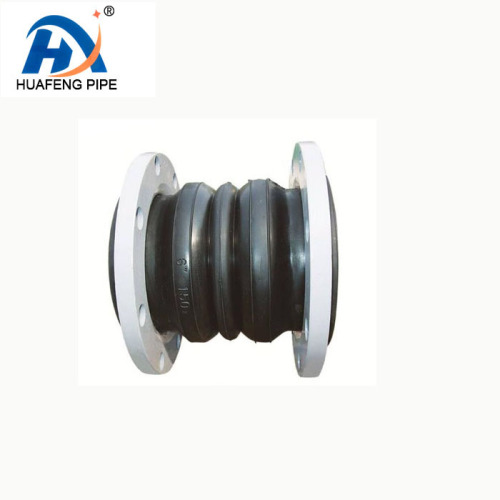

Double Sphere Flanged
Rubber Expansion Joint: Flexible Core of Industrial Pipeline Systems
In the complex operation of industrial pipeline systems, the Double Sphere Flanged Rubber Expansion Joint emerges as a key component that combines flexibility and reliability, playing an irreplaceable role in solving pipeline displacement, vibration and sealing problems. As a high-performance Rubber Expansion Joint, it features two spherical rubber structures, flanged connection ends and reinforced layers, which can effectively absorb axial, lateral and angular displacements, making it widely used in water supply and drainage, chemical industry, HVAC and other fields. When used in conjunction with
Bellow Expansion Joint,
Flexible Metal Hose and other accessories, it can build a more stable and efficient pipeline operation system.
The structural design of the Double Sphere Flanged Rubber Expansion Joint gives it excellent performance. Compared with single-sphere expansion joints, its double-sphere structure provides greater flexibility and displacement compensation capacity, which can better adapt to pipeline misalignment caused by foundation settlement or temperature changes. The flanged ends are usually made of carbon steel or stainless steel, which can be firmly connected with pipeline flanges through bolts, ensuring the tightness of the connection. At the same time, it is compatible with
Flange Adaptor, which can easily solve the connection problem between different Flange standards or sizes. In the water treatment pipeline system, the expansion joint is connected to the water pump and Valve through the Flange Adaptor, which can not only absorb the vibration generated by the water pump operation, but also compensate the slight displacement of the pipeline, thus reducing the risk of leakage at the flange connection.
Vibration reduction and noise reduction are important advantages of the Double Sphere Flanged Rubber Expansion Joint. In industrial production environments, mechanical equipment such as pumps and compressors will generate strong vibration during operation, which will be transmitted along the pipeline and affect the service life of pipeline components and the stability of the system. This expansion joint can effectively absorb these vibrations through the elastic deformation of the rubber sphere, reducing the impact of vibration on valves, elbows and other components. In HVAC systems, it is often used in conjunction with Flexible
Metal Hose. The Flexible Metal Hose has good wear resistance and flexibility, and the double-sphere expansion joint can further enhance the vibration absorption effect of the pipeline system, ensuring the quiet operation of the HVAC system and improving the comfort of the indoor environment.
In terms of corrosion resistance and medium adaptability, the Double Sphere Flanged Rubber Expansion Joint can be customized according to different working conditions. It can be made of EPDM, NBR, Viton and other rubber materials to meet the use requirements of different media such as water, oil, acid and alkali. In chemical pipeline systems, it can be used with
Stainless Steel Flange Adaptor and
Duckbill Check Valve to form a corrosion-resistant pipeline assembly. The Duckbill Check Valve can prevent the backflow of chemical media, and the expansion joint can compensate for the displacement of the pipeline, thus ensuring the safe and stable operation of the chemical transportation system. In marine or coastal engineering, the galvanized flanged double-sphere rubber expansion joint can be used with Flexible Metal Hose to resist the corrosion of salt spray and seawater, ensuring the long-term effective operation of the pipeline in harsh environments.
The Double Sphere Flanged Rubber Expansion Joint also performs well in installation and maintenance. Its flanged connection mode is simple and convenient, and no welding operation is needed during installation, which can greatly shorten the construction period and reduce the installation cost. When the pipeline needs maintenance or replacement of components, it can be easily disassembled by matching with
Dismantling Joint, which provides convenience for the maintenance of downstream equipment such as Duckbill Check Valve and filters. In the wastewater treatment system, this combination is particularly practical. The Dismantling Joint allows maintenance personnel to quickly disassemble the expansion joint for inspection and cleaning, and the smooth inner wall of the expansion joint is not easy to accumulate dirt, reducing the frequency of cleaning and maintenance.
In high-temperature and high-pressure pipeline systems, the Double Sphere Flanged Rubber Expansion Joint can work with Bellow Expansion Joint to give full play to their respective advantages. The Bellow Expansion Joint has good high-temperature resistance and can compensate for large axial displacement caused by high temperature, while the double-sphere rubber expansion joint can absorb lateral displacement and vibration, and the two work together to ensure the safe operation of high-temperature and high-pressure pipelines. In power plant steam pipelines, this combination can effectively deal with the thermal expansion and contraction of pipelines caused by temperature changes and the vibration generated by equipment operation, protecting key components such as boilers and heat exchangers.
In conclusion, the Double Sphere Flanged Rubber Expansion Joint is an indispensable important component in industrial pipeline systems. As a high-quality Rubber Expansion Joint, it can work with Bellow Expansion Joint to deal with various displacement problems in pipeline operation, and can enhance the flexibility and reliability of the pipeline system when used with Flexible Metal Hose. At the same time, its good compatibility with Flange Adaptor, Dismantling Joint and Duckbill Check Valve makes it play an important role in various industrial fields. Whether in water treatment, chemical industry, power or HVAC systems, it can provide effective protection for the safe, stable and efficient operation of pipelines.
