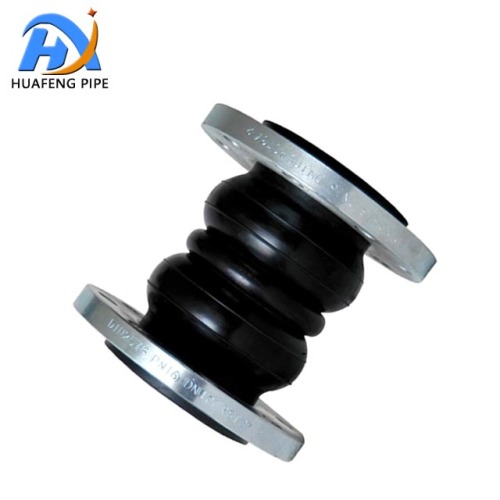

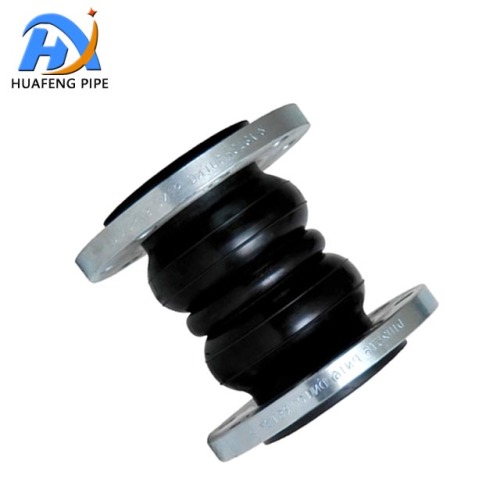

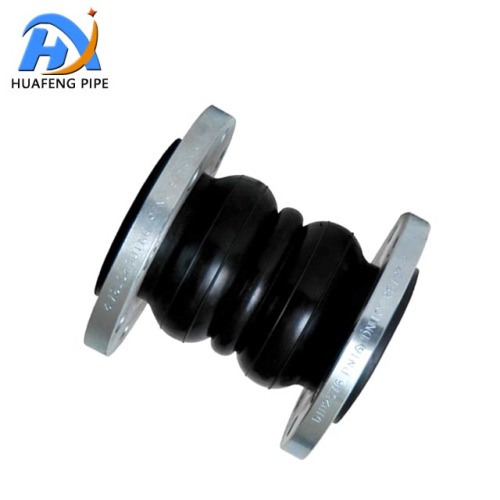

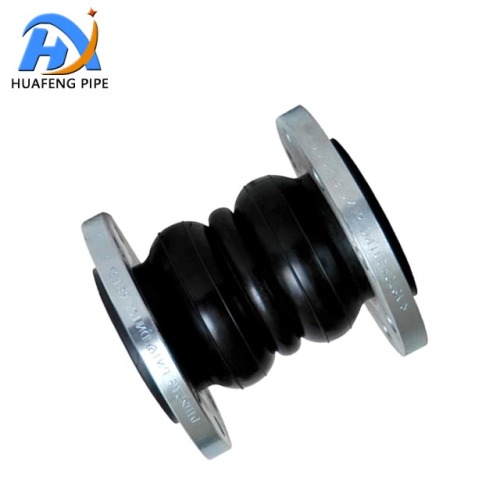

Custom Double Sphere Rubber Expansion Joint

Double-Sphere Rubber Expansion Joint: Flexible Vibration-Damping Core for Pipeline Systems​
The double-sphere rubber expansion joint stands as a versatile and reliable connector in modern pipeline systems, engineered with a sophisticated structure that blends flexibility, durability, and functionality. Composed of an inner rubber layer, a reinforced layer of multi-layer nylon cord fabric with adhesive coating, and an outer rubber layer, this specialized Rubber Expansion Joint integrates two hemispherical rubber components linked by a metal ring—earning it the common names of double-sphere rubber coupling or flexible joint. Its unique design delivers exceptional shock absorption, displacement compensation, and noise reduction, making it a staple in factories, computer rooms, urban pipeline networks, and beyond. When paired with Bellow Expansion Joint, Flexible Metal Hose, and other fittings, it forms a comprehensive solution for stabilizing complex pipeline operations.​
At the core of the double-sphere rubber expansion joint’s performance is its innovative double-spherical design, which sets it apart from standard single-sphere variants. This structure endows the joint with greater displacement capacity, allowing for significant axial, lateral, and angular movement to accommodate pipeline shifts caused by thermal expansion, foundation settlement, or equipment vibration. The reinforced nylon cord fabric layer enhances tensile strength, enabling the joint to withstand high internal pressures without deformation or bursting. Its flanged ends, often fitted with metal rings, ensure secure connection to pipelines via bolts, with seamless compatibility for Flange Adaptor to bridge different Flange sizes or standards. In urban water supply networks, for example, it connects via Flange Adaptor to pumps and valves, where its double spheres flex to absorb vibrations from the pump while compensating for minor pipeline misalignments, reducing leakage risks at joint connections.​
Shock absorption and noise reduction are defining advantages of the double-sphere rubber expansion joint, critical for maintaining stable and quiet pipeline operations. In factory settings with heavy machinery, the joint’s rubber spheres act as natural dampers, absorbing vibrations generated by compressors, motors, and pumps before they propagate through the pipeline. This capability is amplified when paired with Flexible Metal Hose —the metal hose adds durability against abrasion, while the Rubber Joint dampens high-frequency vibrations, creating a quieter working environment. In data center computer rooms, where equipment sensitivity demands minimal noise and vibration, the double-sphere joint works alongside Bellow Expansion Joint to isolate pipeline movement: the bellows handle thermal expansion from HVAC systems, while the rubber joint reduces operational noise, ensuring uninterrupted performance of critical IT infrastructure.​
Displacement compensation is another key function of this versatile joint, enabling it to adapt to complex pipeline layouts and dynamic operational conditions. Its ability to bend freely and rotate within the pipeline simplifies installation in tight or irregular spaces, such as urban underground networks with multiple turns and elevation changes. When paired with Dismantling Joint, maintenance becomes equally streamlined: the dismantling joint allows quick removal of the rubber expansion joint for inspection or replacement, without disrupting the entire pipeline. In chemical processing plants, where pipeline shifts are common due to temperature fluctuations, the double-sphere joint collaborates with Bellow Expansion Joint to manage combined displacements—the bellows handle large axial expansion, while the rubber joint absorbs lateral movement, protecting rigid components like elbows and valves from stress-induced damage.​
Material compatibility and corrosion resistance ensure the double-sphere rubber expansion joint performs reliably across diverse media and environments. The inner rubber layer can be customized with EPDM, NBR, or Viton compounds to resist chemicals, oils, or high temperatures, making it suitable for applications ranging from wastewater treatment to food processing. In corrosive industrial pipelines, it pairs with Stainless Steel Flange Adaptor and Duckbill Check Valve to form a corrosion-resistant assembly: the flange adaptor ensures a tight seal between dissimilar materials, the check Valve prevents media backflow, and the rubber joint compensates for pipeline movement, all while withstanding aggressive substances. In marine or coastal projects, galvanized metal rings and resistant rubber compounds protect the joint from saltwater corrosion, ensuring long-term performance in harsh environments.​
The double-sphere rubber expansion joint’s versatility extends to its integration with other critical pipeline components. In HVAC systems, it connects to Flexible Metal Hose to create flexible ducting pathways, allowing for easy installation around structural obstacles while reducing vibration transfer to building frameworks. In power plant cooling water lines, it works with Bellow Expansion Joint to manage thermal expansion and pump-induced vibrations, ensuring efficient heat transfer without compromising pipeline integrity. For high-pressure applications, such as industrial water supply systems, it is paired with reinforced Flange Adaptor to handle elevated pressures, while its double-sphere design maintains flexibility to absorb pressure surges.​
In summary, the double-sphere rubber expansion joint emerges as a cornerstone of modern pipeline systems, embodying the best qualities of a Rubber Expansion Joint with enhanced displacement capacity, shock absorption, and adaptability. Its ability to collaborate with Bellow Expansion Joint for thermal compensation, Flexible Metal Hose for durability, Flange Adaptor for seamless connections, Dismantling Joint for easy maintenance, and Duckbill Check Valve for backflow protection makes it indispensable across industries. Whether in factories, computer rooms, or urban networks, this joint ensures pipeline stability, reduces operational noise, and extends system lifespan—proving that flexibility and reliability are key to efficient pipeline performance.​
