Heavy Duty Flexible Rubber Compensator: Robust Flexibility for Industrial Pipeline Stability
In the demanding realm of industrial pipeline systems, the Heavy Duty Flexible Rubber Compensator stands as a rugged yet adaptable solution, engineered to tackle extreme displacement, high pressure, and intense vibration challenges. As a specialized variant of the
Rubber Expansion Joint, it combines reinforced rubber construction with heavy-duty design elements to deliver superior compensation capacity, making it indispensable in industries such as oil and gas, mining, and heavy manufacturing. When integrated with
Bellow Expansion Joint,
Flexible Metal Hose, and other critical components, it forms a resilient pipeline system capable of withstanding the harshest operational conditions.

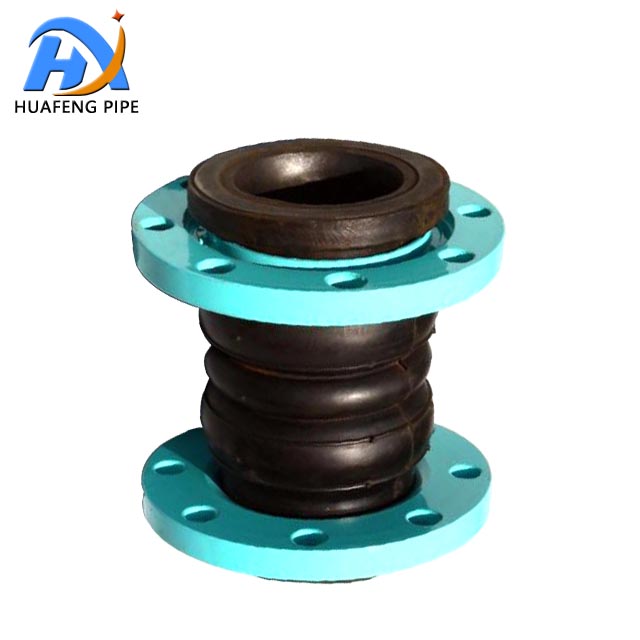

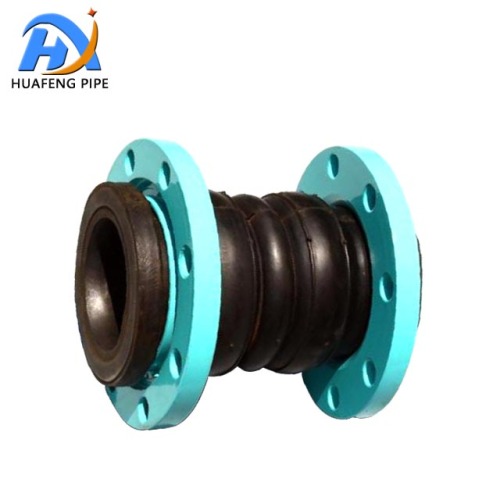

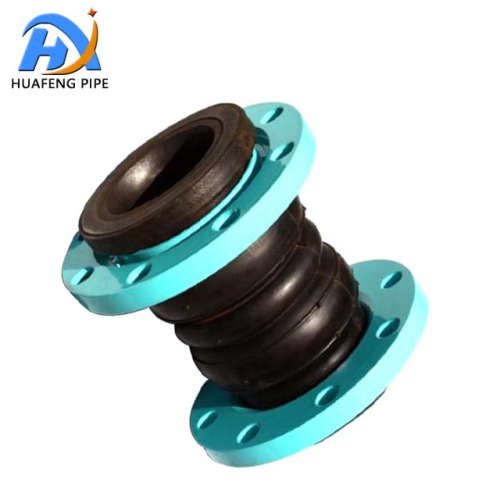

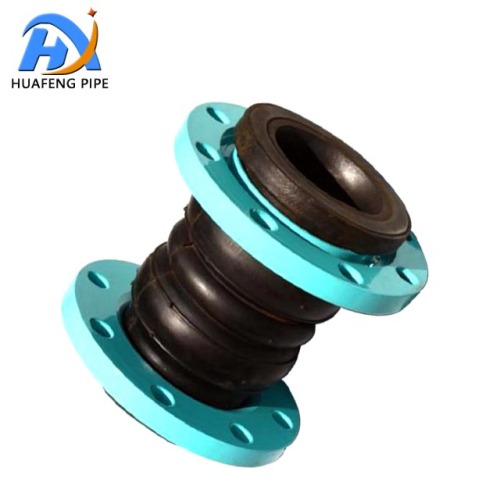

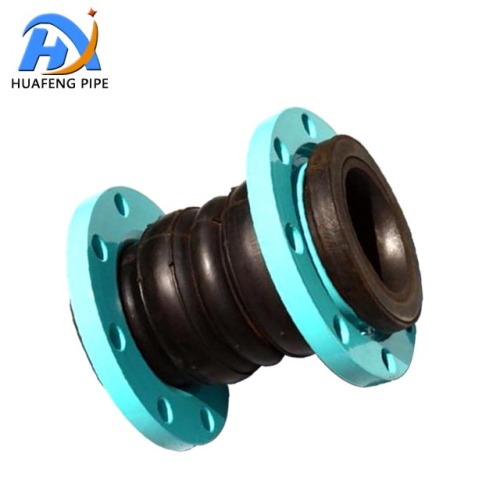

The structural integrity of the Heavy Duty Flexible Rubber Compensator lies in its reinforced design. Unlike standard
Rubber Expansion Joints, it features multiple layers of high-strength polyester cords or steel wire mesh embedded within durable rubber compounds (such as EPDM or Nitrile), enhancing resistance to internal pressure and preventing bursting under extreme loads. Its flanged ends, typically fabricated from carbon steel or stainless steel, ensure secure connection to pipelines via bolts, with seamless compatibility for
Flange Adaptor to bridge different Flange sizes or standards. In oilfield pipeline networks, for example, it connects via Flange Adaptor to pumps and valves, where its heavy-duty construction absorbs pulsations from high-pressure crude oil flow while accommodating minor pipeline shifts caused by ground movement.
A defining feature of this compensator is its ability to handle large-scale displacement across multiple axes. Its flexible rubber body allows for significant axial compression, lateral offset, and angular rotation, making it ideal for pipelines subject to foundation settlement, thermal expansion, or equipment vibration. In mining operations, where ore slurry pipelines endure constant abrasion and movement, it pairs with Flexible Metal Hose to create a dynamic pathway: the metal hose adds abrasion resistance against coarse particles, while the rubber compensator absorbs lateral shifts and vibration from mining machinery, protecting welded joints and elbows from fatigue failure. In chemical processing plants, it works alongside Bellow Expansion Joint to manage combined thermal and pressure-induced displacements, with the bellows handling axial expansion from high temperatures and the rubber compensator mitigating lateral movement, ensuring long-term integrity in corrosive environments.
Vibration damping and noise reduction are critical functions of the Heavy Duty Flexible Rubber Compensator, particularly in heavy industrial settings. Powerful equipment like compressors, turbines, and crushers generate intense vibrations that can propagate through pipelines, causing loosened connections, increased wear, and operational noise. The compensator’s rubber body acts as a shock absorber, dissipating vibrational energy before it reaches sensitive components. In power generation facilities, it is installed between boilers and steam lines, working with Bellow Expansion Joint to dampen low-frequency vibrations while the bellows compensates for thermal expansion, protecting heat exchangers and control valves from damage. In manufacturing plants, it pairs with Flexible Metal Hose to create a quiet, flexible pipeline system, reducing noise pollution and improving workplace safety.
Corrosion resistance and media compatibility are paramount in harsh environments, and the Heavy Duty Flexible Rubber Compensator is engineered to excel in this regard. Available in specialized rubber compounds resistant to oils, acids, alkalis, and hydrocarbons, it maintains flexibility and sealing performance even when exposed to aggressive media. In offshore drilling platforms, galvanized flanged versions resist saltwater corrosion, connecting via Flange Adaptor to
Duckbill Check Valve to prevent seawater backflow while accommodating vessel movement-induced pipeline shifts. In wastewater treatment plants, it is paired with
Stainless Steel Dismantling Joint and Duckbill Check Valve , forming a corrosion-resistant assembly that handles abrasive sludge flow, with the
Dismantling Joint enabling easy access for maintenance and the check valve preventing contamination from reverse flow.
Installation and maintenance efficiency are enhanced by the compensator’s design and compatibility with essential fittings. Its flanged connections allow for straightforward installation without welding, reducing downtime during system setup or repairs. When maintenance is required, integration with Dismantling Joint enables quick removal of the compensator, providing access to downstream components like filters or valves. This is especially valuable in industries with tight maintenance windows, such as petrochemical refineries, where minimizing downtime is critical. The compensator’s smooth inner bore also resists debris buildup, reducing the need for frequent cleaning and ensuring consistent flow performance over time.
In high-pressure and high-temperature applications, the Heavy Duty Flexible Rubber Compensator complements Bellow Expansion Joint to address complex operational challenges. While the bellows expansion joint excels at handling extreme temperatures and large axial expansion, the rubber compensator manages lateral displacement, vibration, and pressure surges, creating a balanced system. In thermal power plants, this combination is used in steam distribution lines, where the bellows compensates for thermal growth and the rubber compensator absorbs vibrations from turbines, protecting critical infrastructure like boilers and condensers. In industrial heating systems, it works with Flange Adaptor and Bellow Expansion Joint to ensure reliable operation under cyclic temperature and pressure conditions.
In summary, the Heavy Duty Flexible Rubber Compensator is a cornerstone of robust industrial pipeline systems. As a heavy-duty iteration of the Rubber Expansion Joint, it delivers unmatched flexibility and durability, complementing Bellow Expansion Joint in managing complex displacements and enhancing system resilience when paired with Flexible Metal Hose. Its compatibility with Flange Adaptor, Dismantling Joint, and Duckbill Check Valve ensures seamless integration into diverse industrial environments, from oilfields to wastewater treatment plants. By absorbing vibration, compensating for displacement, and resisting corrosion, this compensator plays a vital role in ensuring the safe, efficient, and long-term operation of critical pipeline infrastructure.
