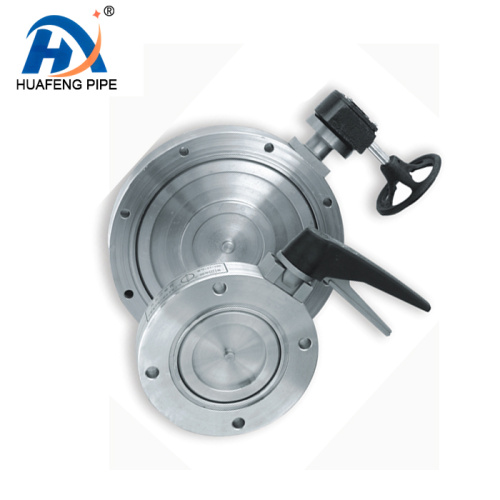

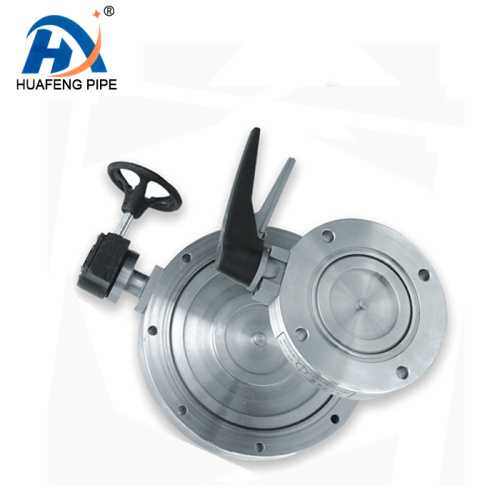

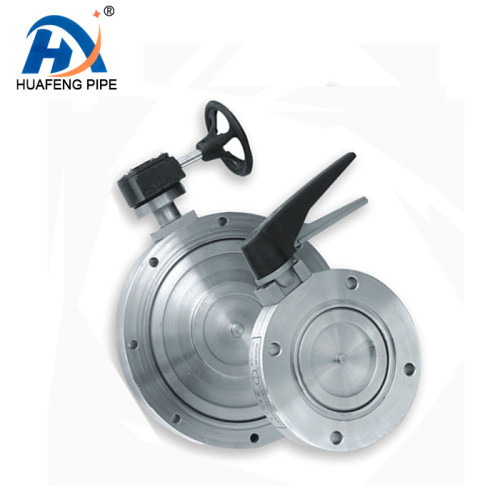

Stainless Steel Lever Operated Butterfly Valve

Stainless steel lever Butterfly Valve : A lightweight and efficient tool for regulating pipeline flow

Stainless Steel Lever Operated Butterfly Valve , with the corrosion resistance of stainless steel material and the convenience of lever operation, has become the preferred choice for flow control in medium and small diameter pipeline systems. It features a compact structure, effortless operation and reliable sealing. Rubber Expansion Joint, Bellow Expansion Joint, Flexible Metal Hose, Dismantling Joint, Flange Adaptor , Duckbill Check Valve and other accessories work in coordination to provide precise flow control solutions for pipeline systems in fields such as food, chemical engineering, and municipal services. ​

Material advantage: "Corrosion-resistant protective shield" of stainless steel

Stainless Steel material is the core competitiveness of Stainless Steel Lever Operated Butterfly Valve. The Valve Body and Valve Plate are made of 304 or 316 stainless steel, which has excellent corrosion resistance, resistance to high and low temperatures, and oxidation resistance. It can resist the erosion of various media such as water, steam, weak acids and alkalis. In the clean pipeline of food processing, it is combined with the food-grade Rubber material of Rubber Expansion Joint to achieve sanitary connection through Flange Adaptor. The smooth and easy-to-clean characteristics of the stainless steel surface comply with food hygiene standards. In chemical low-concentration acid and alkali pipelines, its corrosion resistance performance echoes the corrosion-resistant seals of Duckbill Check Valve, and together with the corrosion-resistant branch pipes of Flexible Metal Hose , they jointly construct a corrosion-resistant pipeline network. ​

The high strength of stainless steel makes valves more stable in environments with pressure fluctuations. In the water system of HVAC, the Stainless Steel Lever Operated Butterfly Valve can withstand the pressure shock caused by water temperature changes and, in combination with the Bellow Expansion Joint, compensate for the thermal displacement of the pipeline. The Rubber Expansion Joint absorbs the vibration of the fan. The three work together to ensure the smooth operation of the air conditioning system. ​

Operating characteristics: "Labor-saving and high-efficiency" lever design

The Lever operation design of the Stainless Steel Lever Operated Butterfly Valve focuses on convenience. Through the lever principle, the operating force is amplified. Just by easily pulling the lever, the valve plate can rotate 0-90 degrees to complete the opening, closing and flow regulation of the valve. Compared with traditional handwheel valves, it is more effortless to operate and is especially suitable for scenarios that require frequent operations. In the laboratory pure water system, the lever operation can precisely control the flow rate of pure water. Combined with the Flexible characteristics of the Flexible Metal Hose, it can adapt to the slight displacement of the experimental equipment. The Flange Adaptor ensures the sealed connection with pipes of different specifications. ​

The compact structural design gives the valve an advantage in narrow Spaces. In the cooling pipeline of the industrial control cabinet with dense equipment, the Stainless Steel Lever Operated Butterfly Valve can be flexibly installed. The lever operation does not require reserving excessive space. When used in conjunction with Dismantling Joint, the valve can be quickly disassembled and replaced during later maintenance. Significantly enhance maintenance efficiency, and its compact structure echoes the lightweight characteristics of the Rubber Expansion Joint. ​

Sealing performance: "Zero leakage guarantee" for precise fit

The sealing components of the Stainless Steel Lever Operated Butterfly Valve are made of special materials that are heat-resistant and corrosion-resistant. The valve plate and the Valve Seat are precisely processed and fit closely when closed to achieve zero leakage. This sealing advantage complements the Check seal function of Duckbill Check Valve. In the drinking water pipeline, the food-grade sealing material of the valve ensures that the water quality is not contaminated. Combined with the non-toxic Rubber of Rubber Expansion Joint, it is connected through Flange Adaptor to form a safe water transmission path. In the compressed air pipeline, reliable sealing performance can reduce air pressure loss. Combined with Bellow Expansion Joint to compensate for pipeline expansion and contraction, it ensures the normal operation of pneumatic equipment. ​

The streamlined design of the Valve plate reduces fluid resistance. When fully open, the valve plate is flush with the inner wall of the pipe, allowing the fluid to pass through in a straight line with a low flow resistance coefficient. This characteristic has obvious advantages in irrigation pipelines - Stainless Steel Lever Operated Butterfly Valve regulates irrigation water volume In combination with the field branch pipes of Flexible Metal Hose, the water flow resistance is small and the distribution is uniform, improving the irrigation efficiency. ​

Scene Adaptation: The "All-Rounder of Regulation" in Multiple fields

The food and beverage industry is the "core territory" of Stainless Steel Lever Operated Butterfly Valve. In the raw material conveying pipeline of the juice production line, the stainless steel material and food-grade sealing parts meet the hygiene standards. The lever operation can quickly adjust the juice flow rate. Combined with the food-grade model of Rubber Expansion Joint, the storage tank and the filling equipment are connected through Flange Adaptor to ensure that the production process is pollution-free. ​

In the sprinkler irrigation system of municipal greening, the valve controls the fragmented sprinkler irrigation area. The lever operation is convenient for manual on-site adjustment. Combined with the wear-resistant property of the Flexible Metal Hose, it ADAPTS to the complex outdoor terrain. The Dismantling Joint is convenient for anti-freezing maintenance of the valve in winter. In the inlet and outlet pipes of the small-scale sewage treatment equipment, the Stainless Steel Lever Operated Butterfly Valve controls the sewage flow, and its corrosion resistance performance cooperates with the Duckbill Check Valve. The former regulates the treated water volume, and the latter prevents sewage backflow. Jointly ensure the handling effect. ​

In the laboratory piping system, valves can precisely control the flow of various media. The stainless steel material is resistant to the corrosion of experimental reagents. When combined with Bellow Expansion Joint, it compensates for the displacement of the pipeline caused by temperature changes. The Flexible Metal Hose connects experimental instruments to meet the frequent movement requirements. The convenience of lever operation enhances the efficiency of experiments. ​

System Collaboration: "Efficiency Upgrade" through Accessory Linkage

In a complete piping system, the synergy between Stainless Steel Lever Operated Butterfly Valve and other accessories is significant. In a small central air conditioning system, the valve regulates the water volume of the fan coil unit. The lever operation can be flexibly adjusted according to the room temperature. The Rubber Expansion Joint absorbs the vibration of the equipment, and the Bellow Expansion Joint compensates for the thermal expansion and contraction of the pipeline. The combination of the three enhances the comfort and energy efficiency of the air conditioning. ​

In the water circulation system of aquarium farming, the Stainless Steel Lever Operated Butterfly Valve controls the filtered water volume. The stainless steel material is resistant to water corrosion and cooperates with the Duckbill Check Valve to prevent backflow of water. The Flexible Metal Hose connects the oxygenation equipment to ensure stable water quality. In the make-up water pipeline of a small boiler, the valve regulates the make-up water volume, cooperates with the Bellow Expansion Joint to deal with the thermal displacement of the pipeline, and the Flange Adaptor solves the connection problem of pipelines of different diameters. ​

Stainless Steel Lever Operated Butterfly Valve, with the corrosion resistance of stainless steel, the convenience of lever operation and reliable sealing performance, has become an ideal choice for medium and small diameter pipeline systems. It works in coordination with various Pipe Fittings . Through its comprehensive advantages of efficient regulation and flexible adaptation, it provides a solid guarantee for the safe operation of pipeline systems in multiple fields.

Manual Butterfly Valves, also known as butterfly valve, Flip Valve or Manual Clamp Butterfly Valve, are a type of simply structured control valve. They offer advantages such as a straightforward design, compact size, light weight, and material efficiency. However, for large-diameter valves where a low flow resistance coefficient is required, general automatic control valves are not preferred. Common materials used for manual butterfly valves include cast iron, carbon steel, and stainless steel.

I. Cast Iron: Cast iron can be further classified into gray cast iron, malleable cast iron, ductile cast iron, and nickel cast iron. Here, we will focus on the most commonly encountered types: gray cast iron and ductile cast iron.

Manual Butterfly Valve Types made of gray cast iron should not be used with media such as hydrochloric acid or nitric acid. However, they can be used in concentrated sulfuric acid environments because concentrated sulfuric acid forms a passivation film on the surface of gray cast iron, preventing further corrosion.

Ductile Cast Iron: Also abbreviated as ductile iron, common grades include QT400-15 and QT450-10. Ductile iron is generally suitable for operating conditions with a pressure PN≤25kg and an operating temperature range of -10°C to 300°C, with applicable media including steam, general gases, and oils. Ductile iron manual butterfly valves outperform gray cast iron valves in terms of performance, offering improved corrosion resistance and the ability to operate in environments with certain concentrations of sulfuric acid, nitric acid, and acidic salts.

II. Carbon Steel: Common carbon steel grades include WCA, WCB, and WCC.

III. Stainless Steel: Common stainless steel grades include 304, 316, and 316L. Stainless steel is the highest-performing material among those mentioned and also the most expensive.
