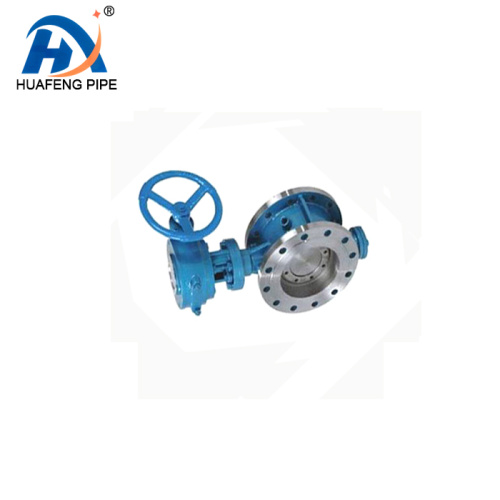

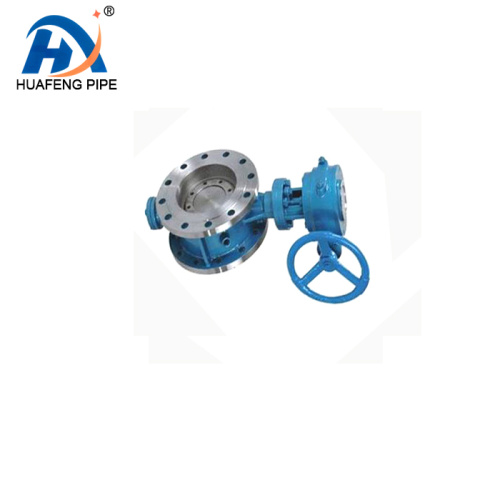

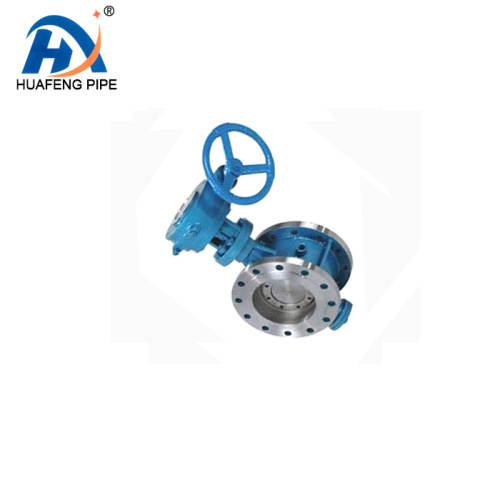

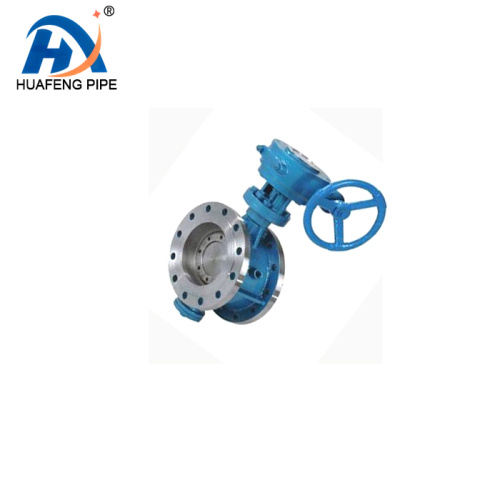

Ductile Iron Wafer Butterfly Valve

Ductile iron wafer Butterfly Valve : A key component for flow regulation in high-strength pipelines
Youdaoplaceholder0 Iron Wafer Butterfly Valve , with the high strength of Ductile iron material and the convenience of wafer structure, has become the main force for flow control in medium and low pressure pipeline systems. It combines pressure resistance and installation flexibility. Rubber Expansion Joint, Bellow Expansion Joint, Flexible Metal Hose, Dismantling Joint, Flange Adaptor , Duckbill Check Valve and other accessories work in coordination to provide stable and reliable flow control solutions for pipeline systems in municipal, industrial, agricultural and other fields. ​
Material advantage: "Strength Empowerment" of Ductile Iron
Ductile Iron material is the core competitiveness of Ductile Iron Wafer Butterfly Valve. Compared with ordinary cast iron, ductile iron has higher strength, toughness and corrosion resistance, and can withstand the pressure shock of medium and low pressure pipelines. This material property makes it perform well in the main municipal water supply pipes - combined with the metal bellows of Bellow Expansion Joint, the former withstands water pressure with a high-strength Valve Body The latter compensates for the thermal displacement of the pipeline. The two are connected through a Flange Adaptor to jointly ensure the structural safety of the water supply system. ​
The weather resistance of ductile iron gives valves an advantage in outdoor pipelines. In stormwater drainage pipes, Ductile Iron Wafer Butterfly Valve can resist stormwater erosion and soil corrosion, and its corrosion resistance corresponds to the corrosion-resistant seals of Duckbill Check Valve. Cooperate with Rubber Expansion Joint to absorb the impact and vibration of water flow to ensure the long-term stable operation of the drainage system. The lightweight ductile iron structure reduces the installation difficulty. Similar to the lightweight feature of the Flexible Metal Hose , it is convenient to complete pipe connections in narrow Spaces. ​
Structural feature: "Installation convenience" of the wafer design
Youdaoplaceholder0 The Wafer structure design of Iron Wafer Butterfly Valve focuses on installation efficiency. The valve is fixed by clamping the two flanges with bolts, without the need for additional Flange extension sections. This design has excellent compatibility with the Flange Adaptor. In industrial circulating water pipelines, it can be quickly connected to pipes with different flange standards. When used in conjunction with Dismantling Joint, When replacing valves for later maintenance, there is no need to disassemble the entire pipeline, significantly reducing operation and maintenance costs. ​
The compact structure enables it to be flexibly installed in complex pipeline layouts. In the water system of HVAC, ductile iron wafer Butterfly Valves can be installed on the inlet and outlet water pipes of fan coil units. Together with Rubber Expansion Joint to absorb equipment vibration, Bellow Expansion Joint compensates for the expansion and contraction of pipelines caused by temperature changes. The three work together to enhance the operational stability of the air conditioning system. The precise fit between the Valve Plate and the Valve Seat ensures the sealing performance, achieving zero leakage when closed. This sealing advantage complements the Check seal function of the Duckbill Check Valve. The former controls the on-off of the flow, while the latter prevents the backflow of the medium. ​
Scene Adaptation: The "Regulatory Main Force" of Medium and Low Pressure Pipelines
The municipal water supply system is the "main battlefield" of Ductile Iron Wafer Butterfly Valve. In the water supply branch pipes of the community, it regulates the water volume entering the household. The ductile iron material can withstand the daily water pressure fluctuations. The Flange Adaptor is compatible with PE pipes of different diameters. The addition of Dismantling Joint facilitates regular maintenance of the valve. Cooperate with Bellow Expansion Joint to compensate for the thermal expansion and contraction of the pipeline to ensure the stability of water supply for residents. ​
In industrial medium and low-pressure pipelines, ductile iron wafer butterfly valves also perform exceptionally well. In the low-concentration conveying pipeline of chemical raw materials, it controls the flow of raw materials. The corrosion-resistant valve seat is combined with the corrosion-resistant Rubber material of Rubber Expansion Joint to resist slight medium erosion. In the compressed air pipeline of the air compressor, the valve regulates the air volume and is connected to the pressure-resistant Flexible Metal Hose to adapt to the vibration displacement of the equipment and ensure the stable operation of the pneumatic system. ​
In the field pipelines for agricultural irrigation, the Ductile Iron Wafer Butterfly Valve controls the amount of irrigation water. The Ductile iron material is resistant to outdoor wind and sun exposure. When combined with the field branch pipes of the Flexible Metal Hose, it ADAPTS to the undulating terrain. The Rubber Expansion Joint absorbs the water hammer impact when the water pump starts, reduces the damage to the valve and extends the service life of the irrigation system. ​
System Collaboration: "Efficiency Upgrade" through Accessory Linkage
In a complete piping system, the synergy between Ductile Iron Wafer Butterfly Valve and various fittings is significant. In the fire protection pipeline system, it serves as a zonal control valve to regulate the fire protection water volume. The Ductile Iron Valve body withstands the fire protection high pressure, cooperates with the Bellow Expansion Joint to compensate for the thermal displacement of the pipeline, and the Flange Adaptor ensures a sealed connection with the fire protection pipeline. When a fire occurs, it can be quickly opened to ensure water supply. ​
In the middle section of the sewage treatment pipeline, the ductile iron wafer butterfly Valve regulates the sewage flow, cooperates with the Duckbill Check Valve to prevent the backflow of treated sewage, Dismantling Joint facilitates the regular cleaning and maintenance of the valve, and the Flexible Metal Hose is connected to the online monitoring equipment. Adapt to the slight settlement and displacement of pipelines to ensure the orderly progress of the sewage treatment process. ​
In the secondary pipe network of the heating system, Ductile Iron Wafer Butterfly Valve regulates the heating water volume, Bellow Expansion Joint compensates for the Expansion and contraction of the pipeline caused by temperature changes, and Rubber Expansion Joint absorbs the vibration of the circulating pump. The three are connected through Flange adaptors to form a stable heating control network, enhancing the heating comfort of residents. ​
Youdaoplaceholder0 Iron Wafer Butterfly Valve occupies an irreplaceable position in medium and low pressure pipeline systems due to the high strength of Ductile iron and the convenience of the wafer structure. It works in coordination with various Pipe Fittings . Through stable structural performance, reliable sealing effect and convenient installation and maintenance, it provides a solid guarantee for flow control in municipal, industrial, agricultural and other fields, and becomes an efficient and durable regulatory backbone in the pipeline system. ​

Butterfly valves demonstrate superior sealing performance. Employing advanced sealing materials and structural designs, they effectively prevent fluid leakage, ensuring stable production processes and minimizing resource waste and environmental pollution. Their extensive application scope makes them indispensable across diverse industries: in water supply and drainage systems, they precisely control water flow to ensure smooth urban water supply and wastewater treatment operations; in petrochemical fields, they manage control requirements for various corrosive and high-pressure fluids; and in HVAC systems, they play a critical role in regulating air and water flow.

Distinguished by outstanding quality, Butterfly Valve Types undergo rigorous testing and market validation, ensuring stable performance and long service life. We provide professional pre-sales consultation and attentive after-sales service to guarantee a worry-free experience throughout your selection and usage. Choosing a butterfly valve means opting for an efficient, reliable, and energy-saving fluid control solution for your industrial production.
