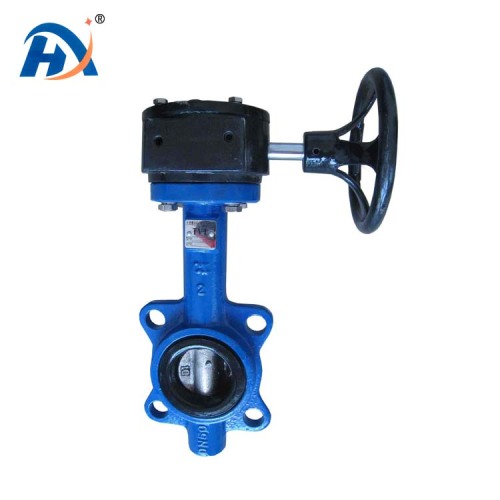

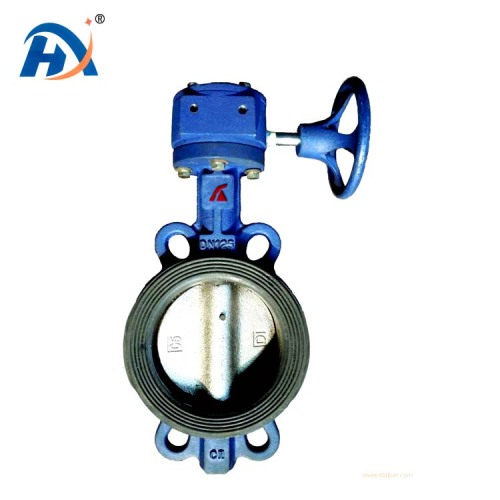

Turbine Cast Steel Butterfly Valve

Turbine Butterfly Valve: The core of pipeline flow regulation driven by worm gear transmission
The Turbine Butterfly Valve transmits torque to the Valve Plate by means of worm gears to achieve opening, closing and regulating functions. With its simple structure and precise control ability, it has become the main force for flow regulation in pipeline systems. It is associated with Rubber Expansion Joint, Bellow Expansion Joint, Flexible Metal Hose, Dismantling Joint, Flange Adaptor , Duckbill Check Valve and other accessories work in coordination to provide stable and reliable flow control solutions for pipeline systems in multiple fields such as industry and municipal administration. ​
Structural Analysis: A Simple and Efficient "Transmission Control Body"
The structural design of the turbine butterfly Valve focuses on functionality and reliability. It mainly consists of the Valve Body , Valve Seat , valve stem, valve plate (butterfly plate), worm gear transmission device and sealing assembly. The valve body is mostly circular or elliptical, and the internal streamlined design minimizes fluid resistance to the greatest extent. This characteristic echoes the low flow resistance design concept of Bellow Expansion Joint. In water supply pipelines, the combination of the two can reduce energy loss. The disc-shaped valve plate rotates around the valve shaft. Opening, closing and regulation are achieved by controlling the rotation Angle. Its simple structure complements the lightweight feature of the Flexible Metal Hose , facilitating installation in complex pipeline layouts. ​
The worm gear transmission device is the "power core" of the turbine butterfly valve. By manually or electrically driving the worm gear, the rotational motion is transmitted to the valve stem through meshing transmission, thereby driving the valve plate to act. This transmission method makes operation more effortless and control more precise, and its advantages are particularly obvious in large-diameter pipelines. The sealing assembly ensures the tightness when the Valve is closed. Its sealing performance can be comparable to the Check seal function of the Duckbill Check Valve. In chemical pipelines, the corrosion-resistant sealing assembly, in combination with the corrosion-resistant Rubber material of Rubber Expansion Joint, forms a double leak-proof barrier. ​
Working principle: The "flow password" determined by the rotation Angle
The working principle of the turbine butterfly valve revolves around "rotary transmission". During operation, the worm gear device is driven. The worm meshes with the worm shaft to transmit the rotational motion to the valve stem. The valve stem drives the valve plate to rotate. The rotation Angle of the valve plate determines the valve opening degree, thereby controlling the fluid flow rate. In the closed state, the Valve plate completely covers the valve seat to block the fluid. This sealing logic complements the one-way seal of the Duckbill Check Valve - the former actively controls the on-off, while the latter passively prevents backflow. In the sewage treatment pipeline, the two are connected through the Flange Adaptor to jointly ensure the orderly transportation of sewage. ​
When in the open state, the valve plate and the valve seat form a gap for fluid passage, and the streamlined valve body design reduces resistance loss. In the industrial circulating water system, the turbine butterfly valve regulates the circulating water volume, cooperates with the Bellow Expansion Joint to compensate for the thermal displacement of the pipeline, and the Rubber Expansion Joint absorbs the vibration of the water pump. The three work together to enhance the operational efficiency of the system. The precise Angle control enables the turbine butterfly valve to achieve stepless flow regulation, making it suitable for scenarios that require stable flow control, such as water volume regulation in air conditioning systems. ​
Scene Adaptation: The "All-Rounder of Regulation" in Multiple fields
The structure and performance of the turbine butterfly valve make it suitable for pipeline systems in multiple fields. In the municipal water supply trunk line, it can be remotely electrically controlled to achieve a wide range of water volume regulation. When combined with Dismantling Joint, it is convenient for later maintenance. The Flange Adaptor ensures a sealed connection with pipes of different diameters. In the cooling water pipeline of thermal power plants, the turbine butterfly valve regulates the cooling water volume, cooperates with the Bellow Expansion Joint to cope with the thermal expansion and contraction of the pipeline, and connects the monitoring device with the Flexible Metal Hose to adapt to the slight displacement of the pipeline. ​
In chemical production, the corrosion-resistant material of the turbine butterfly valve is combined with the corrosion-resistant model of Rubber Expansion Joint. The acid and alkali pipelines are connected through Flange Adaptor. The precise control of worm gear transmission can avoid excessive medium transportation. In the agricultural irrigation system, the manual turbine butterfly valve regulates the flow of the irrigation branch pipe and cooperates with the Flexible Metal Hose field pipeline to adapt to terrain changes and achieve precise irrigation. Its labor-saving operation mode significantly reduces labor costs. ​
System Collaboration: "Efficiency Upgrade" through Accessory Linkage
The efficiency of the turbine butterfly valve is doubled in coordination with other accessories. In the high-pressure pipeline system, it works in coordination with the Bellow Expansion Joint. The former controls the flow rate, the latter compensates for the pipeline displacement under high pressure, and the Flange Adaptor enhances the connection sealing performance, jointly responding to the high-pressure challenge. In the outlet pipeline of the equipment with intense vibration, the turbine butterfly valve is combined with the Rubber Expansion Joint. The latter absorbs the vibration to protect the valve sealing assembly and extend the service life of the valve. ​
In the ventilation and air conditioning system, the turbine butterfly valve regulates the air volume, the Fabric Expansion Joint compensates for the displacement of the air duct, and the Flexible Metal Hose connects the air outlet. The three work together to enhance the air conditioning effect. In the drainage and flood prevention system, the turbine butterfly Valve controls the flood drainage flow, and the Duckbill Check Valve prevents backflow of floodwaters. The Dismantling Joint facilitates maintenance and repair before the flood season, ensuring the emergency reliability of the system. ​
The turbine butterfly valve, with its precise control through worm gear transmission and simple structural design, plays a core role in pipeline flow regulation. It works in coordination with various Pipe Fittings , providing efficient flow control solutions for multi-field pipeline systems through reliable sealing performance and precise regulation capabilities, safeguarding the stability and safety of fluid transportation. ​
