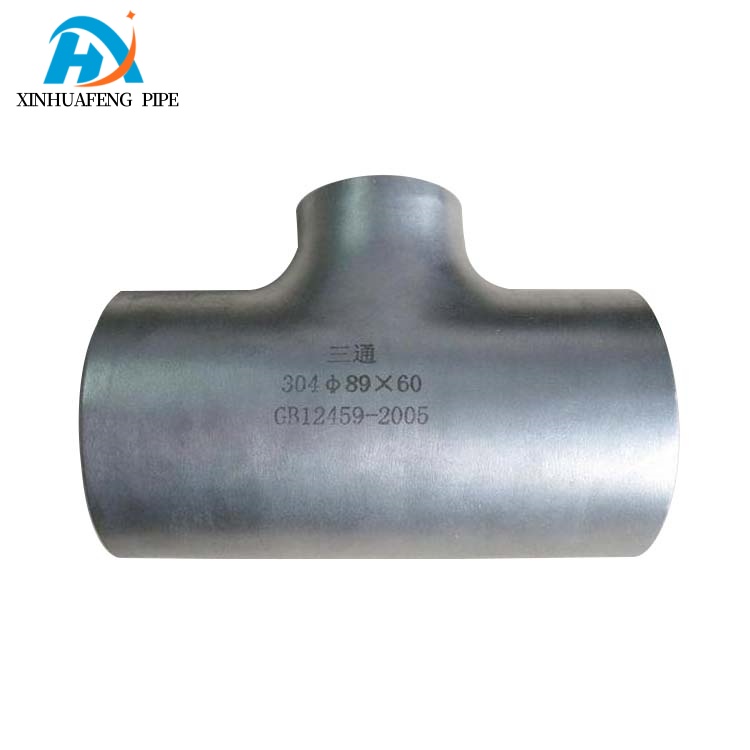

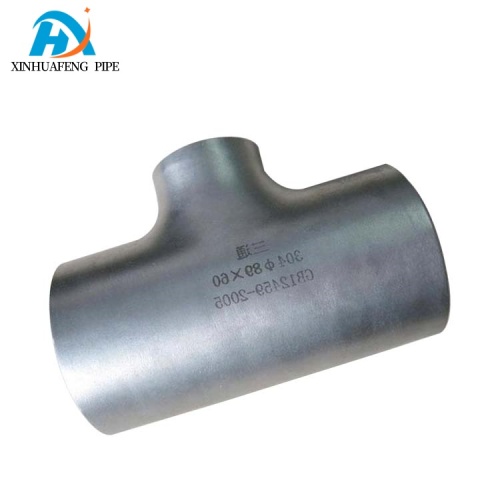

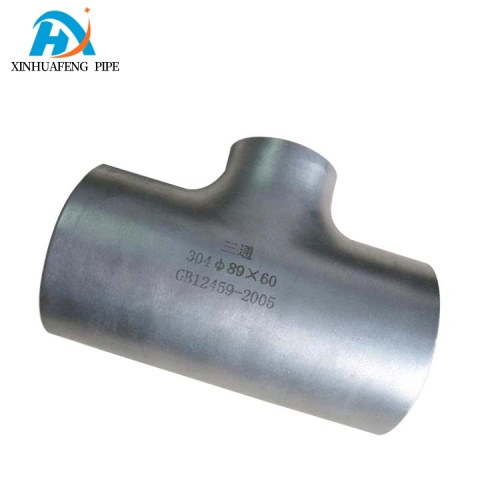

Reducer tee: A core accessory for connecting pipes in all scenarios in terms of material, specification and applicationAmong various pipe connections,
Reducing Tee, with its diverse materials and rich specifications, has become a fundamental component for building complex pipe systems. It is widely used in water systems, gas systems, oil systems and other scenarios, undertaking the important responsibility of connecting reducers and reducers. It is indispensable in industrial fields such as petroleum, chemical engineering, pharmaceuticals and food processing.
Rubber Expansion Joint,
Bellow Expansion Joint,
Flexible Metal Hose,
Dismantling Joint,
Flange Adaptor,
Duckbill Check Valve and other accessories work in concert to jointly build a pipeline network that meets diverse process requirements.
Material selection: The "first line of defense" for adapting to working conditions
The material diversity of Reducing Tee enables it to handle different working environments with ease. The core of material selection lies in adapting to the characteristics of the working conditions. The stainless steel reducer tee, with its excellent corrosion resistance, has become the first choice for pipelines of corrosive media in chemical, pharmaceutical and other industries, forming a "triple protection" with the corrosion-resistant Rubber material of Rubber Expansion Joint and the corrosion-resistant coating of Flexible Metal Hose . Effectively resist medium erosion in acid and alkali solution transportation pipelines. Plastic material three-way fittings, with their advantages of being lightweight and low-cost, are suitable for civil water supply systems. They can be combined with Flange adaptors to achieve rapid connection, and their hygiene characteristics are in line with the pipeline requirements of the food processing industry. The three-way fittings made of cast iron material are suitable for low-pressure gas pipelines with high strength. Complementary to the metal rigid structure of Bellow Expansion Joint, they ensure the stability of the pipeline system during gas transmission.
The matching logic of Reducing tees of different materials with other accessories is clear: In high-temperature industrial pipelines, stainless steel tees are combined with the high-temperature resistant metal bellows of Bellow Expansion Joint, which can withstand the continuous erosion of high-temperature media; In municipal sewage pipes, corrosion-resistant plastic tees are combined with Duckbill Check valves. The former achieves diversion, while the latter prevents backflow of sewage. Together, they enhance the system's corrosion resistance and anti-pollution capabilities. The precise matching of materials is the foundation for the performance of reducers and also the prerequisite for the safe operation of pipeline systems.
Specification parameters: The "size code" for precise connection
The specification parameters of Reducing Tee directly determine its compatibility with pipes, with pipe diameter and length being the two core indicators. Common pipe diameters include various specifications such as 1/8", 1/4", 3/8", 1/2", 3/4", and 1", while lengths are available in options like 6.35mm, 10mm, 19mm, 22.5mm, and 23.3mm. This rich specification system is consistent with the multi-specification adaptability feature of the Flange Adaptor. Ensure precise alignment in the connection of pipes of different diameters. For example, in the water supply system, for the main pipe with a diameter of 1" and the branch pipe with a diameter of 3/4", after selecting the corresponding specification of reducer tees and combining them with
Rubber Expansion Joints, the vibration generated by the water flow impact can be absorbed, making the pipe diameter transition more stable.
The specification selection needs to be closely matched with the flow demand of the pipeline. This is the same as the specification selection principle of Flexible Metal Hose, both aiming to ensure the efficiency of medium transportation. In the oil transportation pipeline, the reducer tee with a main pipe of 3/4" and a branch pipe of 1/2" needs to precisely match the pipeline flow velocity to avoid turbulence caused by specification deviation. At this time, when used in conjunction with Bellow Expansion Joint, it can compensate for the axial displacement of the pipeline caused by flow rate changes and ensure smooth oil transportation. Precise specification parameters are the foundation for the coordinated operation of reducers and other accessories, and also the guarantee for the efficient operation of the pipeline system.
All-scenario Application: The "Connecting Link" between Industry and People's Livelihood
The application scenarios of Reducing Tee are widespread in both industrial and civilian fields, and it forms efficient interaction with other accessories in various systems. In the industrial field, stainless steel reducers in oil pipelines connect oil pipelines of different diameters. Combined with the high-pressure resistance characteristics of Flexible Metal Hose, they can adapt to the high-pressure environment of oil transportation. In the chemical reaction pipeline, it is combined with Rubber Expansion Joint and Dismantling Joint. The former realizes the diversion, the rubber expansion joint absorbs the vibration of the reaction vessel, and the detachable joint is convenient for later maintenance. The three work together to ensure the stable operation of the reaction system.
The pharmaceutical and food processing industries have strict requirements for pipeline hygiene. Reducing Tee is made of food-grade stainless steel and is combined with the smooth inner wall design of the Flange Adaptor to avoid medium residue contamination. At the same time, it is consistent with the aseptic connection characteristics of Bellow Expansion Joint. Ensure the hygiene and safety of the processing of drugs and food. In the municipal field, in the gas system, cast iron reducers connect gas pipes of different diameters and cooperate with Duckbill Check valves to prevent gas backflow, while Rubber Expansion joints are installed before and after the gas meter to reduce the vibration effect caused by gas flow.
In water systems, Reducing tees are more widely used. In the water supply pipeline of the community, it diverts the main water pipe to the branch pipes of each household, precisely connects to pipes of different specifications with the Flange Adaptor, and connects the branch pipes to the user water meters with the Flexible Metal Hose to adapt to the displacement caused by building settlement. In the sewage treatment pipeline, the plastic reducer tee realizes the diversion of sewage. When used in conjunction with the Dismantling Joint, it facilitates the dredging and maintenance of the pipeline. The Duckbill Check Valve prevents the treated sewage from flowing back.
Standard guarantee: The core principles for selection, installation and maintenance
The effectiveness of Reducing Tee cannot be achieved without standardized selection, installation and maintenance. When selecting the type, the appropriate material and specification should be chosen in combination with the working conditions. For example, high-temperature resistant stainless steel tees should be preferred in high-temperature environments, which is consistent with the material selection standard of Bellow Expansion Joint. When installing, it is necessary to ensure a sealed connection with the pipeline. When the flanged three-way is matched with the Flange Adaptor, the flatness of the sealing surface should be checked. For the welded three-way, the quality of the weld seam should be guaranteed to avoid leakage.
During the maintenance process, it is crucial to regularly inspect the corrosion and wear conditions of the reducer tee. It can be quickly disassembled and inspected in combination with Dismantling Joint. If damage is found, it should be replaced in time. When replacing, attention should be paid to the specification compatibility with peripheral accessories such as Rubber Expansion Joint. Only by adhering to relevant norms and standards can Reducing Tee fully play its role in connection and diversion in collaboration with various accessories, ensuring the quality and performance of the pipeline system.
From material compatibility to specification matching, from industrial production to municipal and public welfare, Reducing Tee empowers various pipeline systems as a core accessory. It performs its own duties and works closely together with accessories such as Rubber Expansion Joint and Bellow Expansion Joint. It ADAPTS to different working conditions with various materials and meets connection requirements with rich specifications. With the assistance of Dismantling Joint, Flange Adaptor and Duckbill Check Valve, a safe, efficient and reliable complex pipeline network has been constructed, providing solid pipeline support for production in various industries and people's livelihood security.
