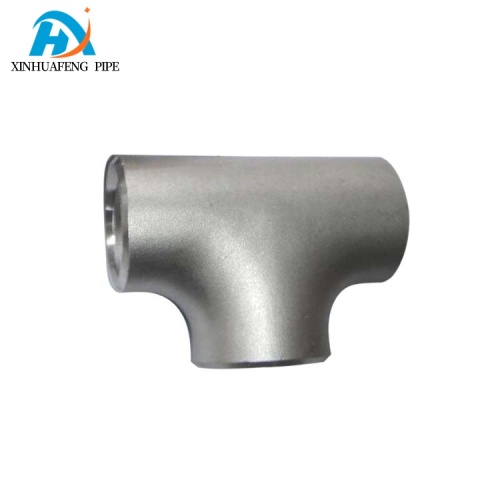

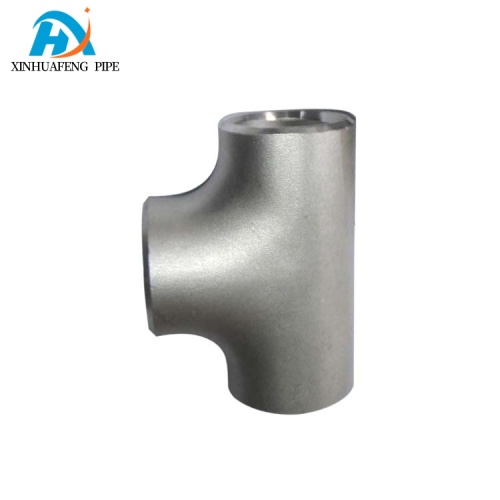

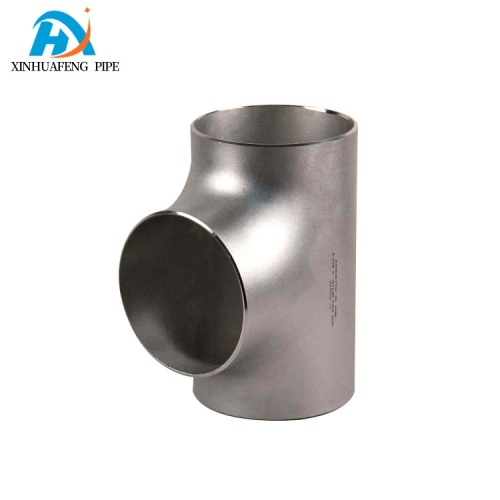

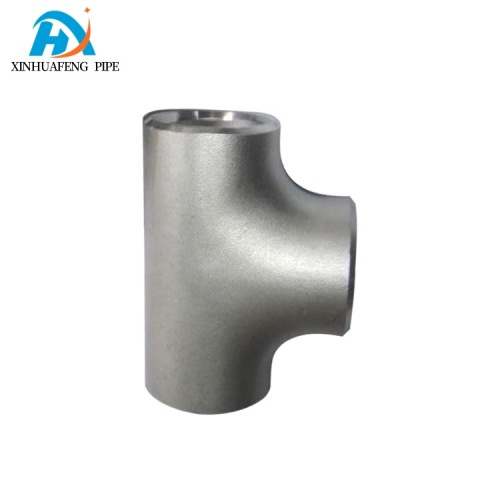

High Pressure Pipe Tee Fitting

Three-way Pipe Fittings: The core for branch connections and flow direction regulation in pipeline systems
Tee, also known as tee fitting, tee Pipe Fitting or tee joint, is a key connection accessory for changing the flow direction of fluids in pipeline systems, mainly used in scenarios where the main pipeline branches into branch pipes. Its unique three-opening structure and diverse classifications can meet the requirements of different pipe diameters and flow directions. Rubber Expansion Joint, Bellow Expansion Join, Flexible Metal Hose, Dismantling Joint, Flange Adaptor, Duckbill Check Valve and other accessories work together to build an efficient pipeline branch network. ​
Shape and structure: "Fluid diversion station" with three-way connection
The core structure of a three-way pipe fitting consists of three openings, which can be configured as "one in and two out" or "two in and one out". The shapes are mostly T-shaped or Y-shaped, and the diameters of the openings can be either equal or unequal. The T-shaped tee is suitable for right-angle branch scenarios. At the branch of the main pipe of municipal water supply, it connects the main and branch pipes through the Flange Adaptor. The water flow is smoothly diverted through the T-shaped structure, and combined with the Rubber Expansion Joint to absorb the vibration of water pressure fluctuations, ensuring the stability of water supply pressure in each branch. The Y-shaped tee is more suitable for conveying fluids containing impurities due to its gentle flow channel. In the aeration pipeline of sewage treatment, the Y-shaped tee reduces sludge deposition and, in combination with the Flexible Metal Hose branch pipe, achieves uniform aeration distribution. ​
The equal-diameter opening tee ensures smooth connection of pipes of the same diameter. In industrial compressed air pipelines, the pressure loss of the pipeline after the equal-diameter tee branch is small. When combined with the Bellow Expansion Joint to compensate for the thermal displacement of the pipeline, the Dismantling Joint is convenient for later pipeline maintenance. The reducer opening design meets the connection requirements of different pipe diameters of the main and branch pipes. In the air conditioning water system, the reducer tee connects the main pipe and the branch pipe of the fan coil unit. Through the Flange Adapter, different pipe diameters are adapted to ensure precise water distribution. ​
Classified by pipe diameter: "Size matches" that meet the requirements
The three connection ends of the Equal Tee are of the same size, making it suitable for branch connections of pipes of the same diameter. In building fire protection pipelines, the equal tee branches the main pipe into a sprinkler branch pipe and, in combination with the Flange Adaptor, achieves a sealed connection. The Duckbill Check Valve prevents the backflow of fire water. The three parties work together to ensure that the sprinkler system is fully activated in case of fire. The symmetrical structure of it enables uniform fluid distribution. In the pure water system of the laboratory, the equal-diameter tee combined with the Flexible Metal Hose branch pipes can supply water to multiple devices simultaneously, and the water flow is stable without interference. ​
The main pipe end size of the Reducing diameter tee is the same, while the branch pipe end size is smaller. It is specially designed for the connection of pipes of different diameters. In the community branch pipes of municipal water supply, the reducer tee branches the large-diameter main pipe into small-diameter inlet pipes. Combined with Rubber Expansion Joint to absorb the vibration of the water pump and Bellow Expansion Joint to compensate for the thermal expansion and contraction of the pipeline, it ensures the stability of the inlet water pressure. In the chemical raw material conveying pipeline, the reducer tee can adjust the flow rate of the branch pipe according to the process requirements. When combined with the reducer adapter's diameter reduction function, it can achieve seamless connection of pipes of different specifications. ​
By function classification: "Scene adaptor" for flow direction regulation
The Straight tee is used to connect three pipes with the same flow direction. In long-distance water transmission pipelines, the pipes branched by the straight tee maintain a straight flow direction with small pressure loss. It cooperates with the Bellow Expansion Joint to compensate for the axial displacement of the pipes. Youdaoplaceholder0 Joint is convenient for pipeline dredging and maintenance. Its smooth flow channel design echoes the low flow resistance characteristics of Rubber Expansion Joint. ​
Elbow tee is suitable for pipe branches that need to change the flow direction. At the connection between the vertical pipe and the horizontal pipe of the building water supply and drainage, the elbow tee can achieve a 90-degree turning branch. Combined with the Flexible characteristics of the Flexible Metal Hose, it can adapt to the changes in the pipe direction of the wall and the ground. The Flange Adaptor ensures a sealed connection at the turning point. In the duct system of HVAC, elbow tees change the direction of airflow, reduce wind resistance loss, and work in conjunction with fabric expansion joints to lower the transmission of fan vibration. ​
The Reducing Tee has both reducing and branching functions. In the raw material conveying pipeline of food processing, the reducing tee connects the main raw material pipe and the metering branch pipe. The food-grade material is combined with the food-grade Rubber of Rubber Expansion Joint, and the sanitary connection is achieved through Flange Adaptor. Ensure that the raw material transportation is pollution-free. Its precise size adaptation capability is particularly important in the purified water pipelines of the pharmaceutical industry, as it can prevent dead corner contamination caused by the connection of different pipe diameters. ​
Scene Collaboration: A "branch network" with multi-component linkage
Three-way pipe fittings work in coordination with other accessories in various pipeline systems. In the municipal rainwater and sewage diversion pipeline, the reducer tee connects the main pipe and the branch pipe of the rainwater inlet. The Duckbill Check Valve prevents sewage from mixing into the rainwater pipe. The Rubber Expansion Joint absorbs the impact and vibration of water flow. The Flange Adaptor is adapted to different pipe materials. In the industrial circulating water system, the pipe after the straight tee branch compensates for thermal displacement through the Bellow Expansion Joint and is connected to the cooling equipment through the Flexible Metal Hose. The cooperation of the three ensures the efficient utilization of the circulating water. ​
In the steam pipeline of the thermal power plant, the pipes after the branches of the three-way fittings made of high-temperature resistant materials are respectively connected to different equipment and cooperate with the Bellow Expansion Joint to withstand high temperature and high pressure. Youdaoplaceholder0 Joint facilitates regular maintenance of the valves. Its temperature resistance performance forms protection with the temperature-resistant models of Rubber Expansion Joint in different temperature ranges. In the agricultural irrigation system, the equal-diameter tee branches the main water pipe into the field branch pipe. Combined with the wear-resistant property of the Flexible Metal Hose, it ADAPTS to the changes of farmland terrain and realizes precise irrigation. ​
Three-way pipe fittings, with their diverse structures and classifications, have become the "core hub" for branch connections in pipeline systems. It works in coordination with various pipe fittings. Through the advantages of size matching and flow direction regulation, it provides reliable solutions for pipe branches in municipal, industrial, agricultural and other fields, ensuring the efficient operation of the system in the key links of fluid diversion. ​
