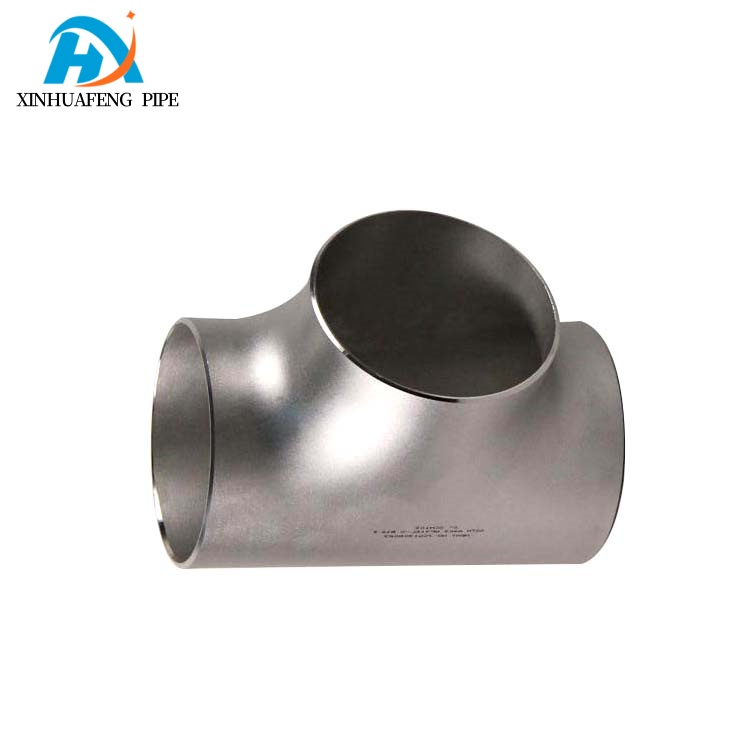

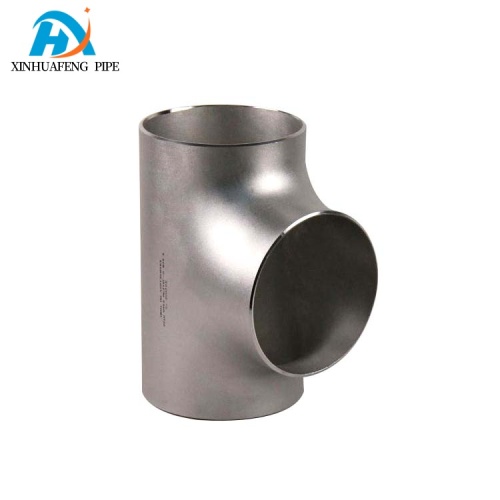

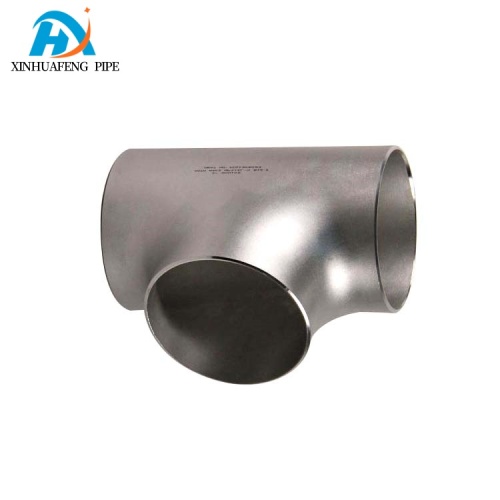

Introduction to Equal Tee The Equal Tee, also known as a tee
Pipe Fitting, tee joint, or
Equal Diameter Tee, is a crucial chemical pipe fitting in pipeline systems, primarily used to change the direction of fluid flow, especially when a main pipeline branches into sub-pipelines. With three openings—one inlet and two outlets, or two inlets and one outlet—it comes in T-shape and Y-shape, with equal diameter pipe ends, making it ideal for the juncture of three identical pipelines. Its primary function of altering fluid flow direction makes it an indispensable component in various industrial, municipal, and commercial pipeline networks.
Equal Tees are classified by pipe diameter and crafted from a wide range of materials to suit different applications. These materials include carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, and PVC, among others. This diverse material selection allows the tee to adapt to various fluid types, pressure levels, and environmental conditions, whether handling corrosive chemicals in industrial plants or clean water in municipal supply systems.
In terms of manufacturing processes, Equal Tees are produced using two main methods. Hydraulic bulging is a forming process that utilizes the axial compensation of metal material to bulge out the branch pipe, resulting in a tee with uniform wall thickness and strong structural integrity. Hot pressing, on the other hand, involves flattening a tube blank larger than the tee diameter to the size of the tee diameter, drilling a hole in the area where the branch pipe will be stretched, and then forming it through processes such as heating, placing it into a forming mold, radial compression, and stretching of the branch pipe area. This method ensures precise dimensions and reliable performance, especially for tees used in high-pressure pipeline systems.
Within a comprehensive pipeline system, the Equal Tee works in harmony with other essential components to ensure smooth and efficient fluid flow. When connecting the tee to different pipeline sections or equipment with varying Flange specifications, a
Flange Adaptor is essential to ensure a secure and compatible fit, simplifying installation and preventing leaks. For handling pipeline displacements caused by thermal expansion, contraction, or pressure fluctuations at the tee juncture, a
Bellow Expansion Joint manages major axial, lateral, and angular adjustments, while a
Rubber Expansion Joint absorbs vibrations and minor displacements, reducing stress on the tee and connected pipelines.
A
Flexible Metal Hose can be integrated into the system near the tee to provide routing flexibility, allowing the pipeline to adapt to complex layouts or minor misalignments at the branching point without compromising flow efficiency. For maintenance and repair purposes, a
Dismantling Joint simplifies access to the tee and surrounding pipeline sections, enabling quick inspections, replacements, or cleaning—minimizing downtime in critical operations. Additionally, in pipeline systems where backflow prevention is necessary, a
Duckbill Check Valve can be installed downstream of the tee to ensure fluid flows in the intended direction, protecting equipment and maintaining system integrity.
Whether in chemical processing plants, municipal water supply networks, or industrial fluid distribution systems, the Equal Tee plays a vital role in facilitating efficient fluid branching. When combined with components like Rubber Expansion Joint, Bellow Expansion Joint, Flexible Metal Hose , Dismantling Joint, Flange Adaptor, and Duckbill Check Valve , it contributes to the construction of robust, reliable, and high-performance pipeline systems that meet the diverse needs of modern industry.
