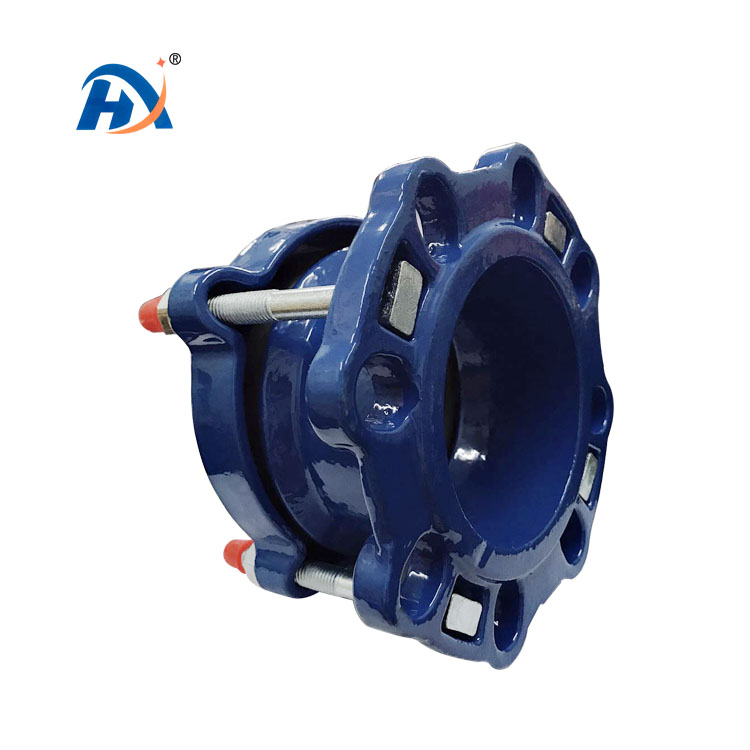

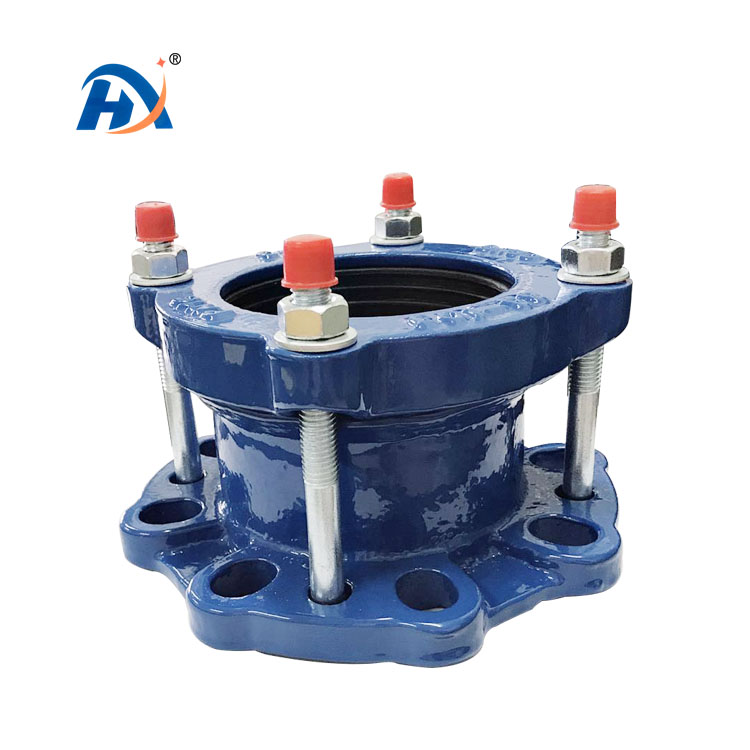

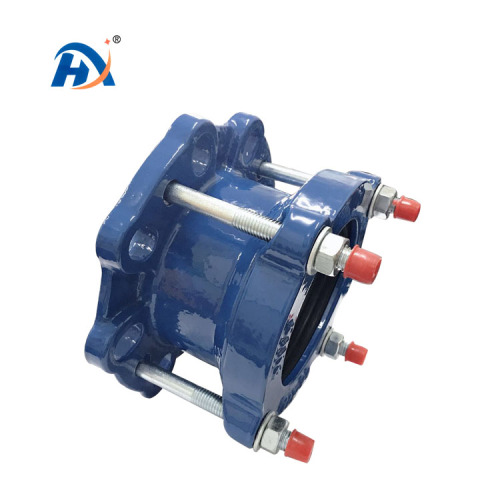

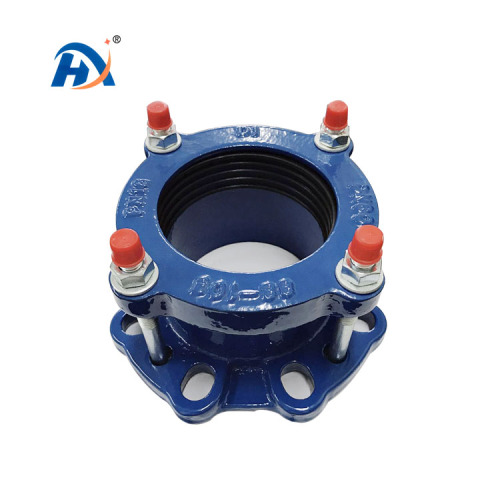

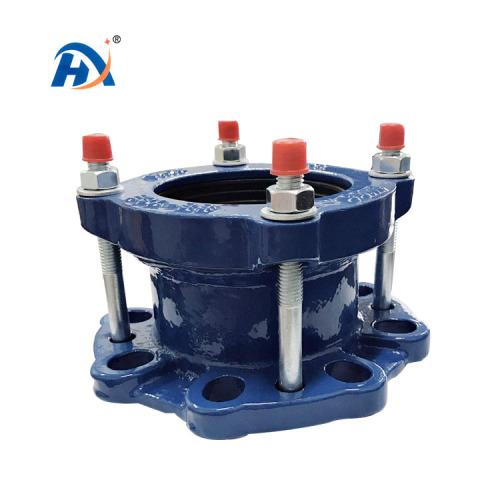

Ductile Iron Flange Adaptor Coupling with Flexible Joint

Ductile iron Flange fit coupling: The core of flexible connection for industrial pipelines
In the connection technology of industrial pipeline systems, Ductile Iron Flange Adaptor Coupling with Flexible Joint, with the composite design of "rigid foundation + flexible buffer", has become an innovative benchmark of connection technology. It combines the high strength of ductile iron, the versatility of flange fitting and the compensation capacity of flexible joints Rubber Expansion Joint, Bellow Expansion Joint, Flexible Metal Hose, Dismantling Joint, Flange Adaptor and Duckbill Check Components such as Valve work together to build an efficient and well-adapted pipeline connection network. ​

As a core advantage, ductile iron material endows couplings with outstanding structural strength and corrosion resistance. Its rigid body can stably bear the axial pressure of the pipeline system, while the integrated flexible Joint absorbs the trace displacement of the pipeline through elastic deformation. This "combination of rigidity and flexibility" characteristic enables it to precisely compensate for the thermal Expansion and contraction of high-temperature pipelines when cooperating with the Bellow Expansion Joint - the bellows is responsible for the regulation of a wide range of displacements. Flexible joints handle minor vibrations, providing a double guarantee to prevent pipe joints from leaking due to excessive stress. ​

The standardized interface design of Flange Adaptor is the key to system compatibility. Couplings are seamlessly connected to various pipe components through flange plates. When combined with Rubber Expansion Joint, the elasticity of rubber is utilized to enhance the shock absorption effect of the system and reduce the noise generated during the operation of pumps and valves. When connecting the Flexible Metal Hose , the angular deviation during the installation of the metal hose can be eliminated through the flexible joint, allowing the conveying function of the metal bellows and the connection function of the coupling to form a perfect combination of "flexible transmission + rigid locking". ​

Under complex working conditions, the sealing performance of flexible joints and the corrosion resistance of ductile iron form a dual protection. In the chemical wastewater system, couplings can work in coordination with the Duckbill Check Valve. The check valve blocks the backflow of the medium, while the coupling prevents the leakage of corrosive wastewater through the Flexible sealing structure. Together with the corrosion-resistant mesh sleeve of the Flexible Metal Hose, they jointly deal with the erosion of acidic and alkaline media. In damp environments such as municipal drainage, the ductile iron body that has undergone anti-corrosion treatment can resist rust. Combined with the convenient maintenance function of Dismantling Joint, component inspection and repair can be completed quickly, reducing operation and maintenance costs. ​

The flexibility of system adaptation makes this coupling suitable for multiple field scenarios. In industrial pipelines, it connects to Bellow Expansion Joint through Flange Adaptor to solve the connection problem between high-temperature equipment and pipelines. In the municipal pipe network, it is combined with Rubber Expansion Joint to achieve shock absorption and noise reduction, ensuring the living environment of residents. In the sewage treatment system, combined with the anti-backflow function of Duckbill Check Valve and the quick disassembly and assembly design of Dismantling Joint, the system maintenance efficiency is greatly improved. ​

From industrial fluid transmission to municipal infrastructure, Ductile Iron Flange Adaptor Coupling with Flexible Joint, with the triple advantages of "rigid bearing + flexible compensation + universal flange", becomes the all-rounder of connection technology. It is deeply coordinated with the Flexible transmission of the Flexible Metal Hose, the security protection of the Duckbill Check Valve, the convenient operation and maintenance of the Dismantling Joint, and through the standardized connection of the Flange Adaptor, We provide stable, compatible and corrosion-resistant connection solutions for various pipeline systems, redefining the efficiency and reliability of industrial connections. ​

Ductile iron flange adaptor is Pipe Fittings used to connect different Types Of Flanges, enabling the connection between ductile iron pipes and pipes made of other materials such as PVC and steel, thereby ensuring the sealing performance and stability of the piping system. Ductile Iron Flanged Adaptor typically adopt a double-flange structure and achieve flexible connections with pipes of different materials like steel pipes, cast iron pipes, and PE pipes through flange plates. Their design integrates the advantages of socket-spigot joints and flanged joints, allowing for flexible adaptation to various pipe diameters and pressure requirements. Some models also incorporate a loose-fitting compensation structure, which permits free expansion and contraction within a certain range to accommodate displacements caused by thermal expansion and contraction of the pipes or ground settlement.

Application Areas: Municipal water supply and drainage systems, industrial water transmission systems, gas pipeline systems, etc., particularly suitable for projects requiring frequent maintenance or subject to complex stresses.

Ductile cast iron flange adapters play a crucial role in piping systems. By selecting appropriate adapters and employing correct installation methods, the safe operation and long-term stability of the piping system can be ensured.
