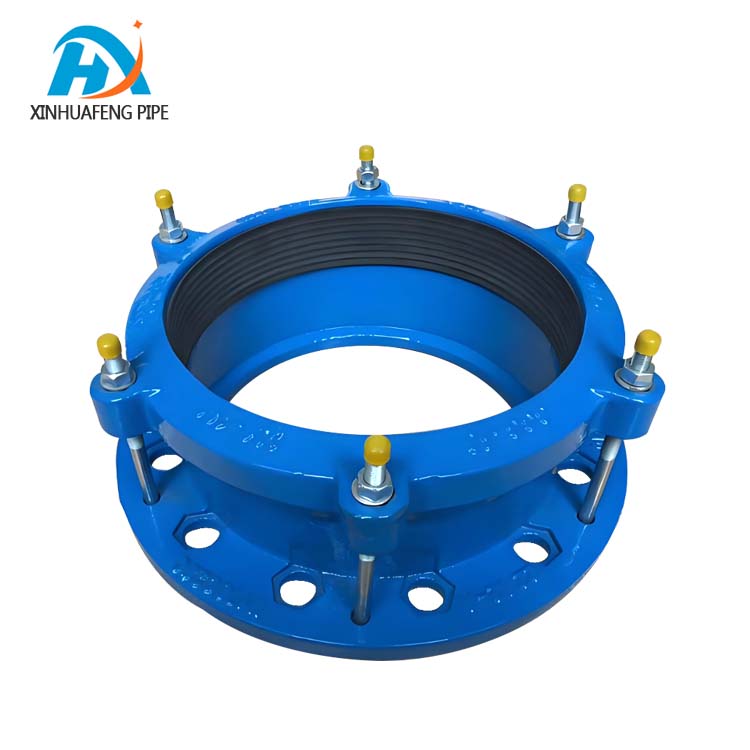

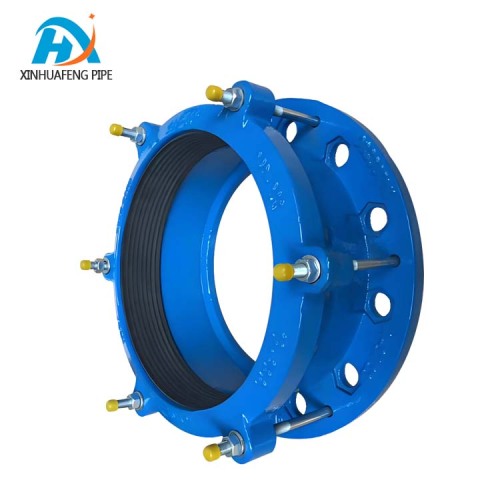

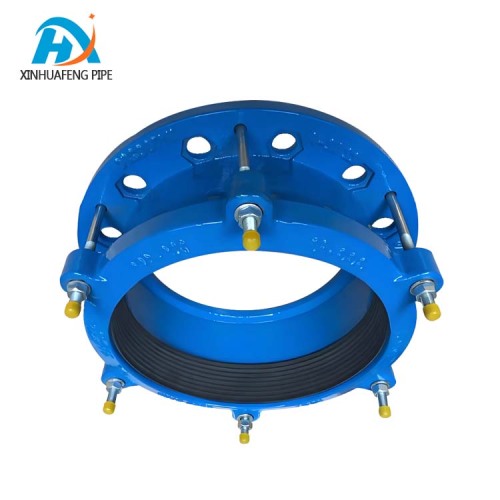

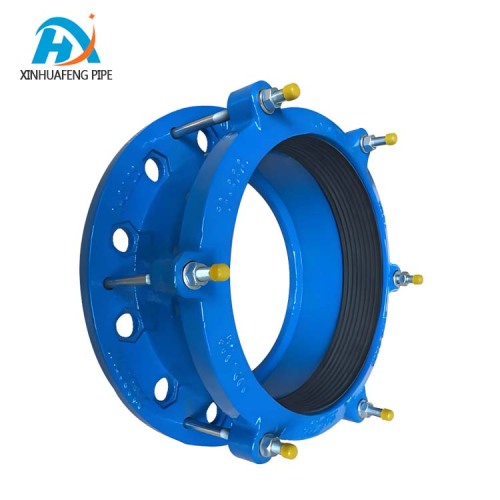

Cast Iron Flange Adapter for Pipe Connections

Ductile iron Flange Adapter: The preferred choice for high-strength sealed pipe connections
In the connection technology of pipeline systems, Ductile Iron Flange Adaptor is designed with Flange connection as the core. With the excellent performance of Ductile iron, it has become a "reliable link" for industrial and municipal pipelines. It takes high strength, high toughness and corrosion resistance as its core advantages, and achieves a sealed connection through the precise fit of flange plates and bolts. Rubber Expansion Joint, Bellow Expansion Joint, Flexible Metal Hose, Dismantling Joint, Flange Adaptor and Duckbill Check Components such as Valve work together to build a safe and efficient fluid transmission network. ​

The material advantages of ductile iron lay a solid performance foundation for the adapter. Ductile iron treated by special processes has high tensile strength and yield strength, and can easily withstand the medium pressure of high-pressure pipeline systems. In industrial steam pipelines, it can precisely connect with Bellow Expansion Joint. The high-strength characteristic of the adapter bears the axial force generated by the expansion and contraction of the bellows. Ensure that no interface loosening occurs during the transmission of high-temperature and high-pressure steam. Meanwhile, the excellent toughness makes the adapter less likely to break under impact loads - when the pipeline is impacted by water hammer, it can complement the elastic buffering function of the Rubber Expansion Joint. The rubber part absorbs the impact energy, and the adapter resids the instantaneous pressure through toughness, protecting the integrity of the entire pipeline system. ​

In the face of complex corrosive environments, the corrosion resistance of ductile iron demonstrates significant advantages. In the chemical wastewater treatment system, the adapter can be connected to the Flexible Metal Hose for transporting corrosive media. The corrosion-resistant mesh sleeve of the metal hose and the anti-corrosion material of the adapter form a "double barrier", effectively resisting the erosion of acid and alkali solutions. In the municipal sewage network, its cooperation with the Duckbill Check Valve is even more crucial. The check valve blocks the backflow of sewage, while the adapter protects against the corrosion of sulfides in the sewage through its anti-corrosion property. Together, they ensure the long-term stable operation of the network. ​

Structural design and sealing performance are the core competitiveness of the adapter. Its structure consists of key components such as flange plates and connecting bolts. The connection holes on the flange plates are tightly locked with the flange ends of pipes or equipment through bolts. With the uniform pre-tightening force of the bolts, excellent sealing performance is achieved, effectively blocking medium leakage from the source. This sealing design is particularly important when used in conjunction with Dismantling Joint - when the pipeline needs maintenance, after disassembling the joint to separate the pipeline, the adapter can quickly restore the sealing state by re-tightening the bolts, and with the standardized interface of the Flange adapter, the maintenance efficiency is greatly improved. ​

In multi-scenario applications, the performance characteristics of the adapter complement the functions of various pipe components. In high-pressure industrial pipelines, it is connected to the Bellow Expansion Joint, and the displacement compensation function of the bellows is utilized to cope with the thermal expansion and contraction of the pipeline. The adapter ensures the stable connection of different flange specifications with high strength. At the outlet of the pump valve with intense vibration, the Rubber Expansion Joint is connected through the adapter. The elastic shock absorption of the rubber combined with the rigid seal of the adapter not only reduces noise but also prevents medium leakage. For the terminal connection of Flexible Metal Hose, the adapter can precisely adjust the concentricity of the flange, avoid local wear of the metal hose caused by installation deviation, and extend the service life. ​

From the strong acid in the chemical workshop to the clean water transportation in the municipal water plant, Ductile Iron Flange Adaptor, with its multiple advantages of "high strength load-bearing + tough impact resistance + corrosion-resistant sealing", has become the preferred component for pipeline connection. It forms a linkage with the standardized design of the Flange Adaptor, the anti-backflow function of the Duckbill Check Valve, and the convenient maintenance of the Dismantling Joint. In collaboration with components such as Rubber Expansion Joint and Bellow Expansion Joint, it provides safe, sealed and durable connection solutions for various pipeline systems, highlighting the technical essence of "rigid connection + flexible adaptation" in modern pipeline engineering.
