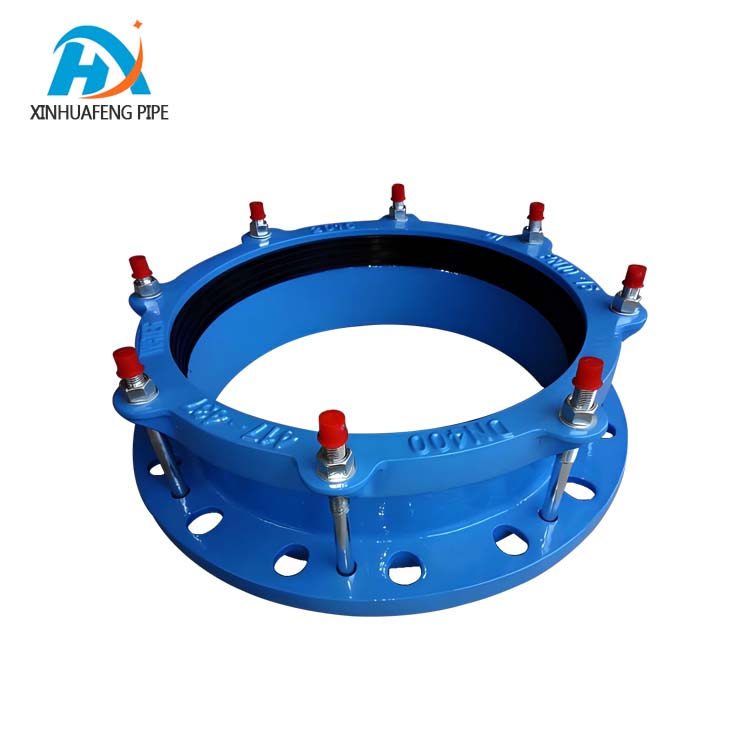

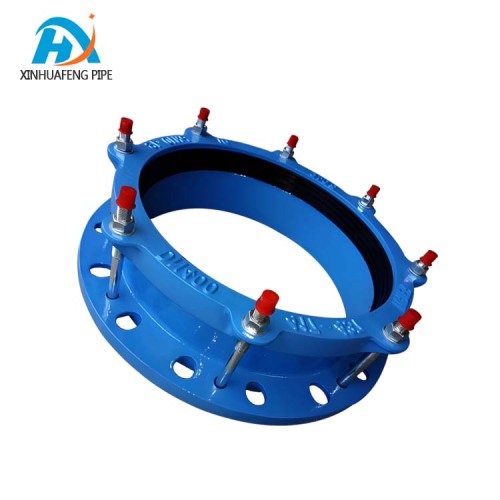

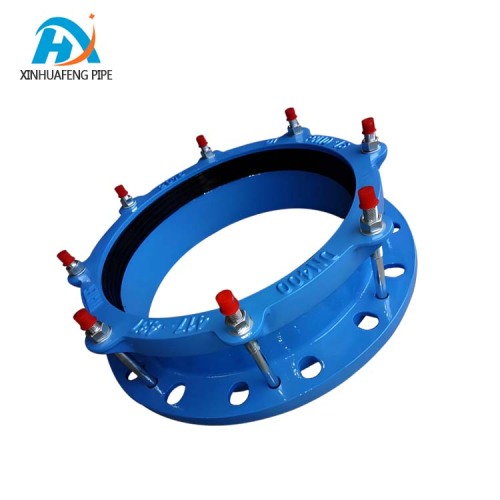

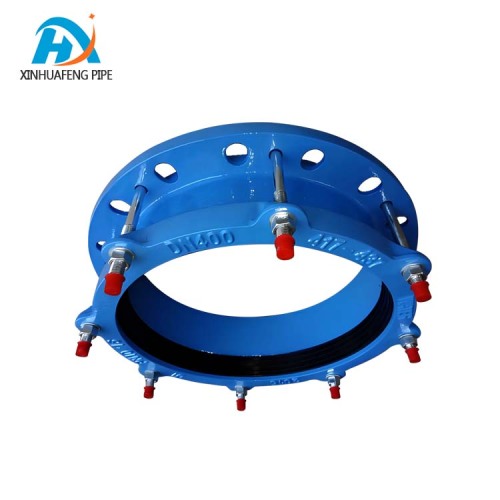

Ductile iron Flange Adapter: The all-round adapter core for cross-specification pipe connectionsIn industrial and municipal pipeline systems, Flange connections of different specifications and materials have always been engineering difficulties. And
Ductile Iron Flange Adaptor (Ductile iron flange adapter), with the excellent performance and precise design of ductile iron, has become the key equipment to solve this problem. It is specially designed for connecting flanges of different specifications or types. With the material advantages of high strength and high toughness, it builds a "seamless bridge" in the pipeline systems of multiple fields. And in coordination with components such as
Rubber Expansion Joint,
Bellow Expansion Joint,
Flexible Metal Hose,
Dismantling Joint,
Duckbill Check Valve, etc. Build an efficient and compatible fluid transmission network.
The wide range of application fields highlights the versatility of ductile iron flange adapters. In industrial scenarios, it is the "connection hub" of pipeline systems for chemical, petroleum, and water treatment equipment - facing high pressure and corrosive media, the ductile iron material of the adapter can resist acid and alkali erosion and can precisely connect to the Flexible Metal Hose for transporting chemical raw materials through the standardized interface of the adapter. Let the corrosion-resistant mesh sleeve of the metal hose and the anti-corrosion performance of the adapter form a dual protection. In high-temperature oil pipelines, it can work in coordination with the Bellow Expansion Joint. The adapter stably connects flanges of different specifications, and the bellows compensate for the thermal expansion and contraction of the pipeline. The combination of the two ensures the safe transmission of high-pressure media.
In municipal engineering, ductile iron flange adapters also play a core role. In the water supply and drainage pipe network, it can be connected to the Duckbill Check Valve . The anti-backflow function of the check valve is utilized to block the backflow of sewage. The tight connection of the adapter enhances the sealing effect and prevents pipe network leakage from polluting the environment. In the gas pipeline system, the Rubber Expansion Joint is connected through the adapter. The elastic properties of the rubber absorb pipeline vibration, and the adapter ensures the stable connection of gas pipelines with different flange specifications, reducing potential safety hazards.
The advantages of material and performance are the foundation for the reliable operation of the adapter. After spheroidizing treatment, the mechanical properties and ductility of ductile iron are significantly enhanced, and it has higher strength and toughness than ordinary cast iron, capable of withstanding the axial thrust and radial load of high-pressure pipelines. This feature enables it to ensure connection stability through a rigid structure when connecting flanges of different materials such as steel and PVC, and to compensate for minor installation deviations through moderate deformation, thus avoiding interface fracture caused by stress concentration in traditional rigid connections. For example, when connecting the steel Bellow Expansion Joint with the PVC pipe, the adapter can buffer the stress caused by the difference in the thermal expansion coefficients of the two materials and protect the integrity of the interface.
In terms of system compatibility, the design of the ductile iron flange adapter fully takes into account the requirements of multi-component coordination. Through it, Dismantling Joint (disassembly joint) can quickly connect pipes of different specifications. When the network is maintained, the standardized flange interface of the adapter makes disassembly and reassembly more efficient and significantly reduces downtime. When connecting the Rubber Expansion Joint, the adapter can precisely adjust the concentricity of the rubber part and the Pipe Flange , avoid rubber wear caused by eccentricity, and extend the service life of the expansion joint. Whether it is an industrial high-pressure system or a municipal atmospheric pressure pipe network, the adapter can flexibly adapt and enable various pipe components to form an organic whole with complementary functions.
From the harsh transmission of industrial strong acids and strong alkalis to the daily operation of municipal water supply and drainage, ductile iron flange adapters, with their dual advantages of "cross-specification connection + high strength and corrosion resistance", have become the "universal connector" of pipeline systems. It works in synergy with functions such as the Flexible transmission of the Flexible Metal Hose, the displacement compensation of the Bellow Expansion Joint, and the safety protection of the Duckbill Check Valve. Through the precise adaptation of the
Flange Adaptor and the convenient maintenance of the Dismantling Joint, it provides stable, safe and compatible connection solutions for pipeline systems in different fields, becoming an indispensable core component in modern fluid engineering.
