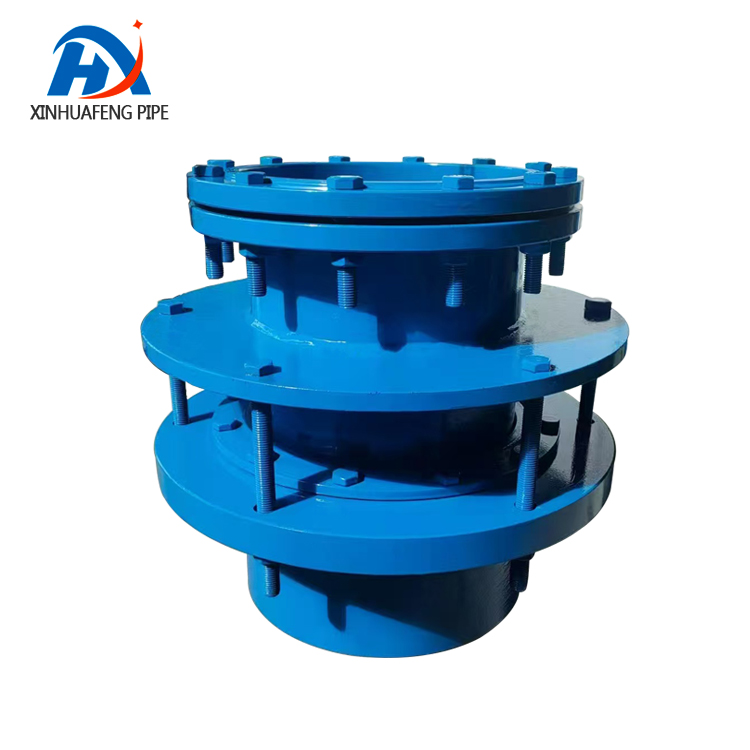

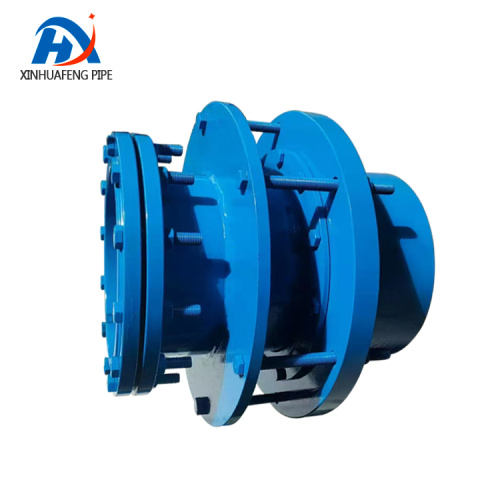

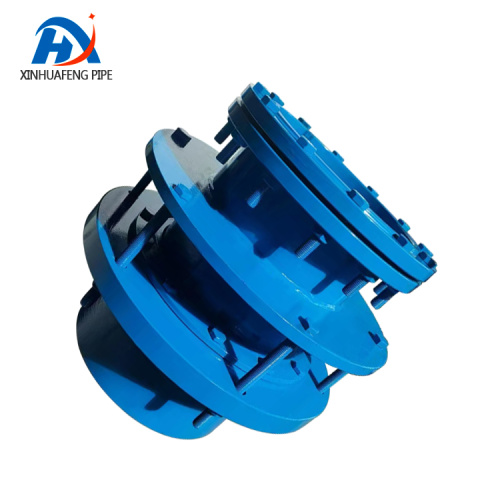

Carbon Steel Flanged Dismantling Joint

Carbon steel Flange disassembly joint: The choice for rigid connection and convenient operation and maintenance of industrial pipelines

In the rigid connection requirements of industrial pipeline systems, Carbon Steel Flanged Dismantling Joint , with the high strength of carbon steel material and the stability of flange connection, becomes the core component for balancing connection reliability and maintenance flexibility. It has the advantages of high pressure resistance and load-bearing capacity, reliable sealing, and easy disassembly and assembly. In coordination with components such as Rubber Expansion Joint, Bellow Expansion Joint, Flexible Metal Hose, Flange Adaptor and Duckbill Check Valve, Provide solid connection and efficient operation and maintenance solutions for pipeline systems in industrial, municipal and other fields. ​

The carbon steel material endows the joint with outstanding structural strength and load-bearing capacity. The precisely processed carbon steel flange and housing can withstand the axial thrust and radial load of high-pressure pipelines. In industrial high-pressure water systems, this characteristic enables it to stably connect Bellow Expansion Joints - bellows compensate for the displacement caused by the thermal expansion and contraction of the pipeline. The carbon steel disassembly joint bears pressure through a rigid structure, preventing the interface from loosening under high pressure. In the main municipal water supply pipe, it is used in conjunction with the Flange Adaptor ( Flange Adapter ). High-strength carbon steel ensures the tight locking of flanges of different specifications, guaranteeing the continuity of long-distance water transportation. ​

The flange connection design enhances the sealing performance and compatibility of the system. The carbon steel flange disassembly joint can achieve reliable sealing by precisely connecting with the Pipe Flange through the bolt holes on the flange plate and combining with high-quality sealing gaskets, effectively preventing the leakage of water, oil, gas and other media. In the fuel delivery pipeline, this sealing advantage complements the Flexible transmission of the Flexible Metal Hose - the metal hose is responsible for absorbing pipeline vibration, while the carbon steel disassembly joint is rigidly connected through the flange to block fuel leakage, providing double protection and reducing potential safety hazards. In the sewage treatment system, when connecting the Duckbill Check Valve (duckbill check valve), the tightness of the flange connection can enhance the anti-backflow sealing effect of the check valve and prevent sewage leakage and environmental pollution. ​

The convenient disassembly and assembly feature is the key to improving the operation and maintenance efficiency of carbon steel flange disassembly joints. As an important category of Dismantling Joint (disassembly joint), its flange structure supports quick disassembly and reassembly. When the pipeline needs maintenance, the pipeline can be separated by loosening the flange bolts, without the need to dismantle the entire system. This flexibility is particularly prominent when replacing the Rubber Expansion Joint - after quickly disassembling the pipeline through the carbon steel disassembly joint, combined with the standardized interface of the Flange Adaptor, the aging rubber expansion joint can be easily replaced, significantly reducing the downtime; In the regular maintenance of chemical pipelines, with the convenient disassembly and assembly of the joints, the bellows integrity of the Bellow Expansion Joint can be quickly inspected and repaired to ensure the reliable operation of the displacement compensation function under high-temperature working conditions. ​

In multi-scenario adaptation, the advantages of carbon steel flange disassembly joints form functional synergy with various pipe components. In normal temperature and high pressure industrial pipelines, it is combined with Bellow Expansion Joint. The high strength of carbon steel bears the pipeline pressure, and the bellows compensates for the slight displacement. Both perform stably in fluid transmission in fields such as metallurgy and power. In the municipal pipe network with less vibration, the Flexible Metal Hose is connected through Flange Adaptor. The flexible connection of the metal hose eliminates installation deviation, and the flange rigidity of the carbon steel disassembly joint ensures the sealing performance during long-term operation. At the outlet of the water pump, it is combined with Rubber Expansion Joint. The elastic shock absorption of the rubber reduces the operating noise, and the flange connection of the carbon steel joint ensures the stable delivery of high-pressure water flow. ​

In response to the protection requirements of different working conditions, the carbon steel flange disassembly joint can expand its application scenarios through anti-corrosion treatment. In the damp municipal drainage system, the anti-corrosion treated joints can resist rust and, in combination with the corrosion-resistant properties of the Duckbill Check Valve, jointly deal with the corrosive components in the sewage. In industrial cooling water pipelines, it works in conjunction with other categories of Dismantling Joint to achieve flexible connection of pipes of different materials through standardized flange interfaces. Combined with regular maintenance, it ensures sealing performance and extends the service life of the system. ​

From industrial high-pressure fluid transmission to municipal infrastructure construction, Carbon Steel Flanged Dismantling Joint, with the triple advantages of "rigid bearing + flange sealing + easy disassembly and assembly", becomes the reliable connection choice for pipeline systems. It works in coordination with functions such as the Flexible transmission of the Flexible Metal Hose, the displacement compensation of the Bellow Expansion Joint, and the safety Check of the Duckbill Check Valve. Through the standardized connection of the Flange Adaptor and its own convenient maintenance characteristics, It provides safe, efficient and easy-to-maintain solutions for various pipeline systems, playing an irreplaceable role in fluid engineering in the industrial and municipal fields. ​

Carbon Steel Dismantling Joint is created by adding a flange spool and force transmission screws to a flange loose sleeve compensation joint. The difference between this type of compensation joint and the loose sleeve compensation joint or loose sleeve limit compensation joint is that its compensation amount refers to the adjustment amount during installation and disassembly. Once all nuts are tightened, it becomes a rigid connection that can transmit axial force, thereby protecting valves, pumps, and other equipment.

Scope of Application

Carbon Steel Material Dismantling Joint is suitable for conveying seawater, freshwater, cold and hot water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, steam with a temperature not exceeding 250 degrees, and particulate powder media.

Brief Installation Instructions:

Dismantling Joint Carbon Steel is suitable for pipelines connected to flanges on both ends. During installation, adjust the installation length of both ends of the product with the flanges, evenly tighten the gland bolts diagonally, making it a whole with a certain displacement for easy adjustment according to the site dimensions during installation and maintenance. During operation, it can transmit axial thrust to the entire pipeline.
