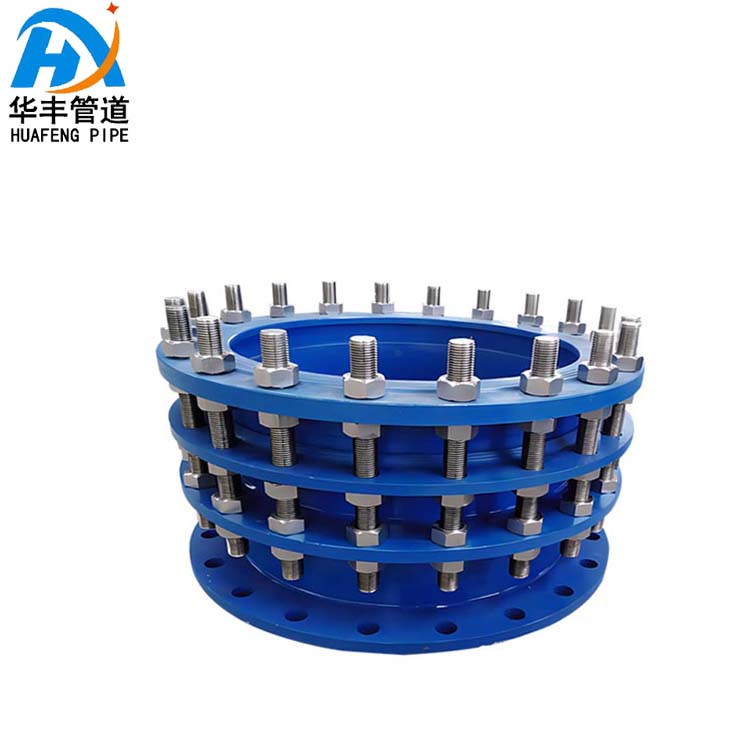

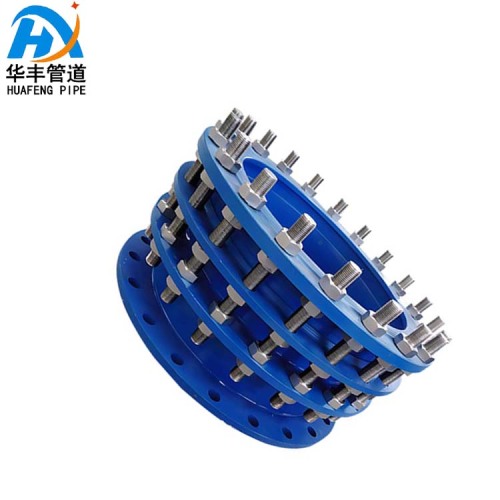

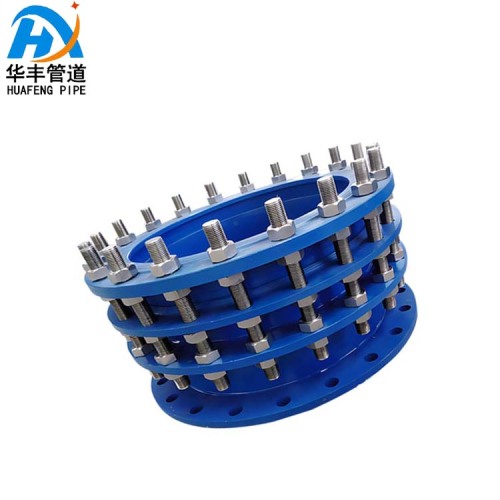

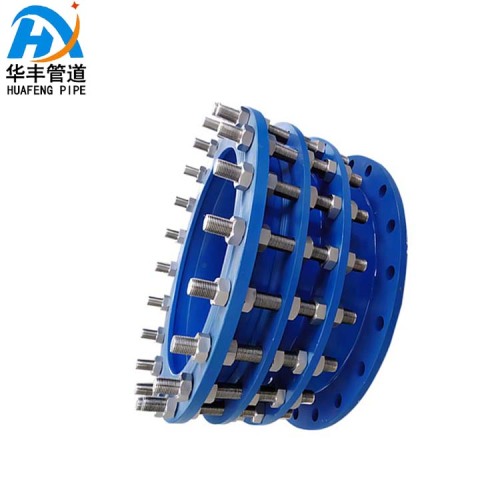

Double Flanged Dismantling Joint

Carbon steel disassembly joint: A powerful tool for precise connection and safety protection of industrial pipelines
In the equipment connection and operation and maintenance of industrial pipeline systems, Carbon Steel Dismantling Joint, with its unique design, becomes the core component for connecting pumps, valves and pipelines. It achieves rapid and precise disassembly and assembly within the pipeline system by adding a Flange short pipe and force transmission screws to the flange loose sleeve compensating joint and adopting a single flange limit expansion design. In coordination with components such as Rubber Expansion Joint, Bellow Expansion Joint, Flexible Metal Hose, Flange Adaptor and Duckbill Check Valve, Provide stable and efficient connection solutions for industrial fluid transmission. ​

High-precision manufacturing processes are the guarantee for the sealing and stability of carbon steel disassembly joints. Its precise processing ensures a tight fit at the connection points. When connecting to the Bellow Expansion Joint with the Flange Adaptor, it can accurately match the expansion trajectory of the bellows and avoid affecting the displacement compensation function due to connection deviation. This high-precision feature also enables it to enhance the sealing performance at the end of the Flexible Metal Hose through the tight fit of the flange interface when connected, preventing the leakage of the conveyed medium. It is especially suitable for the transmission scenarios of oil products and chemical raw materials with high sealing requirements. ​

Made of high-strength carbon steel, this joint features excellent wear resistance and corrosion resistance, and is not prone to rust even after long-term use. This advantage enables it to resist the wear of impurities in the sewage and chemical corrosion when connected to the Duckbill Check Valve for transporting sewage, forming a "double protection" with the anti-backflow function of the check valve, ensuring the long-term stable operation of the sewage network. In pipelines with a lot of industrial dust, it is combined with Rubber Expansion Joint. The wear resistance of carbon steel can reduce the erosion of dust on the connecting parts, and the rubber expansion joint absorbs vibration. Together, they extend the service life of the system. ​

The unique limit design is the key to protecting the pipeline system. It can effectively prevent excessive expansion and contraction of pipelines and avoid equipment damage caused by excessive displacement. When working in coordination with the Bellow Expansion Joint in high-temperature pipelines, the bellows is responsible for the main thermal expansion and contraction compensation, and the limit device of the carbon steel disassembly joint controls the expansion amplitude to prevent excessive stretching or compression of the bellows and ensure that the pipeline system operates within a safe range. When connecting the Flexible Metal Hose, the limit design can restrain the excessive bending of the metal hose, protect its internal bellows structure, and reduce the damage caused by excessive deformation. ​

The convenient installation feature has significantly enhanced the operation and maintenance efficiency of the pipeline system. The design of the carbon steel disassembly Joint makes the installation and disassembly process simpler and faster. During equipment maintenance, pipes and pumps, valves and other equipment can be easily disassembled through it. Combined with the function of Dismantling Joint, It can quickly replace the aged Rubber Expansion Joint or inspect and repair the Bellow Expansion Joint. With the standardized interface of the Flange Adapter, it can also flexibly adapt to pipe components of different specifications. During the installation process, it can be fine-tuned according to the actual size, reducing the probability of rework caused by installation errors and significantly improving work efficiency. ​

In practical applications, the advantages of carbon steel disassembly joints complement the functions of various pipe components. In the pump outlet pipeline system, it is connected to the Rubber Expansion Joint, which utilizes the elastic shock absorption property of rubber to reduce the vibration generated by the pump operation. The limit design of the joint prevents excessive deformation of the rubber expansion joint. In chemical pipelines, Flexible Metal hoses are connected through Flange Adaptor. The combination of the flexible transmission of the Metal Hose and the rigid connection of the joint not only ADAPTS to the installation deviation of the pipeline but also ensures the connection strength. For drainage systems with Duckbill Check valves, the convenient disassembly and assembly feature of carbon steel disassembly joints makes the maintenance and repair of check valves more convenient, ensuring the reliable performance of the anti-backflow function. ​

From the high-pressure fluid transmission in industrial production to the water supply and drainage systems in municipal engineering, carbon steel disassembly joints, with their advantages of high precision, corrosion and wear resistance, limit protection and convenient installation, have become an important component in pipeline connections. It achieves displacement coordination with Bellow Expansion Joint, Flexible fit with Flexible Metal Hose, and leak-proof protection with Duckbill Check Valve, etc. With the flexible adaptation of the Flange Adaptor and the convenient maintenance of the Dismantling Joint, it provides safe, stable and efficient connection guarantees for various pipeline systems, playing an indispensable role in industrial pipeline engineering. ​
