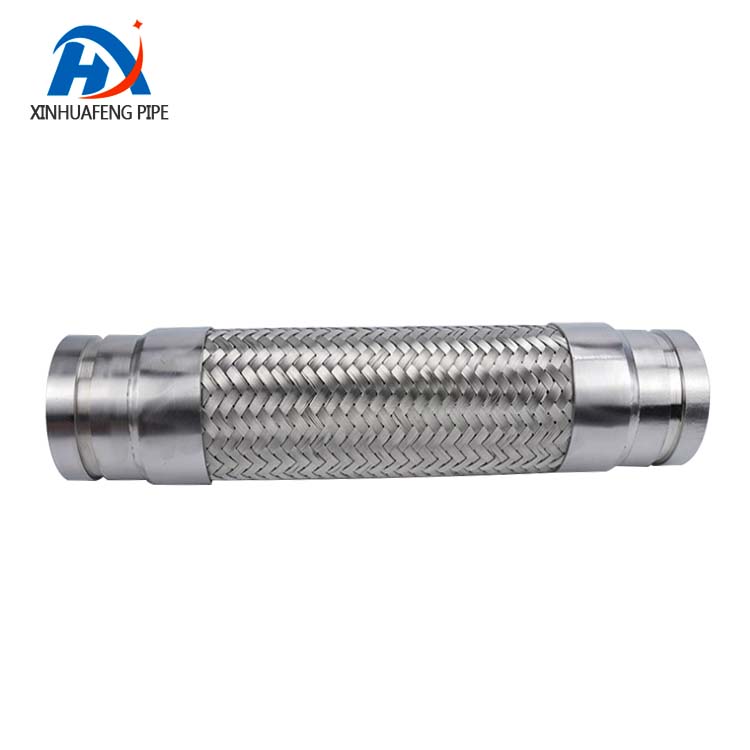

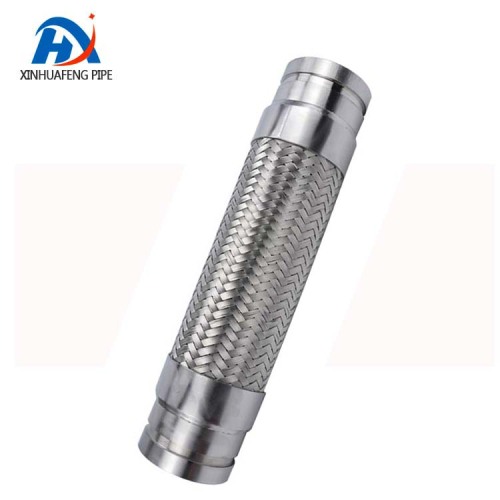

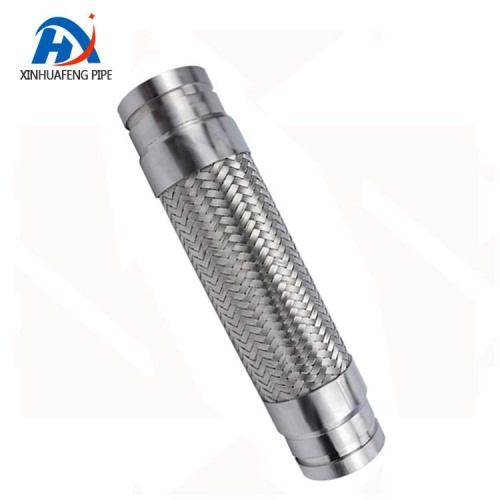

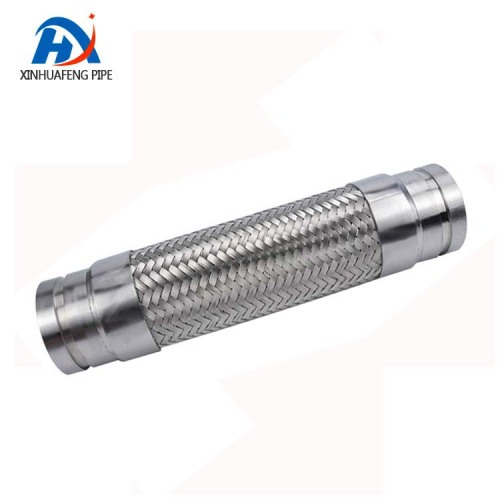

Grooved End Metal Hose

Grooved End Metal Hose : Flexible Connection Solution for Dynamic Piping Systems​
The Grooved End Metal Hose emerges as a versatile and robust component in modern piping systems, combining the flexibility of metal with the convenience of grooved connections to address dynamic movement, vibration, and alignment challenges. As a specialized variant of Flexible Metal Hose, it features grooved ends that enable quick, secure connections without welding, making it ideal for industries ranging from construction to chemical processing. Its ability to collaborate with Rubber Expansion Joint, Bellow Expansion Joint, and other fittings enhances system adaptability, ensuring reliable performance in applications where flexibility, durability, and ease of installation are paramount.​

At the core of the grooved end metal hose’s design is its grooved connection mechanism, which simplifies installation and reduces downtime. The grooved ends—typically made of carbon steel or stainless steel—mate with corresponding grooved fittings, secured by a clamp that compresses a rubber gasket to create a leak-tight seal. This design eliminates the need for welding or threading, making it a preferred choice for emergency repairs or projects requiring rapid deployment. In fire protection systems, for example, it connects to sprinkler lines via grooved clamps, working with Rubber Expansion Joint to absorb vibrations from water pumps while ensuring quick activation during emergencies. The grooved connection also allows for minor angular adjustment, simplifying alignment in complex layouts—enhanced by Flange Adaptor when transitioning to flanged pipeline components.​

The flexibility and durability of the grooved end metal hose stem from its construction: a corrugated metal core (often stainless steel) reinforced by a braided metal sheath, with grooved ends integrated into the design. This structure enables it to handle axial, lateral, and angular displacements, making it suitable for systems with thermal expansion, equipment vibration, or foundation settlement. In HVAC systems, it connects air handlers to ductwork, absorbing vibrations from fans while accommodating thermal movement—complementing the performance of Bellow Expansion Joint in adjacent metal pipelines. In industrial settings with abrasive media, such as mining slurry lines, the stainless steel core resists wear, while the grooved connections ensure secure attachment to pumps or valves, often paired with Dismantling Joint for easy maintenance access.​

A key advantage of the grooved end metal hose is its compatibility with diverse pipeline components, enhancing system versatility. When paired with Rubber Expansion Joint, it creates a dual-flexibility system: the Rubber Joint dampens high-frequency vibrations, while the metal hose handles larger displacements and resists chemical or temperature extremes. In chemical processing plants, this combination is critical for transporting corrosive fluids, where the metal hose’s chemical resistance protects against media degradation, and the rubber joint reduces pump-induced vibration. The hose also works seamlessly with Bellow Expansion Joint in high-temperature lines, such as power plant steam pipelines: the bellows manage major thermal expansion, while the grooved metal hose accommodates lateral shifts, all secured via Flange Adaptor to ensure system cohesion.​

Vibration absorption and noise reduction are standout features of the grooved end metal hose, making it indispensable in machinery-intensive environments. Pumps, compressors, and motors generate vibrations that can damage rigid pipelines and create noise pollution. The hose’s corrugated core and braided sheath absorb these vibrations, preventing them from propagating through the system and extending the lifespan of valves, meters, and supports. In manufacturing facilities, it connects to industrial machinery, working with Duckbill Check Valve to prevent backflow of coolant or lubricants while reducing operational noise. This vibration-damping capability complements the noise-reducing properties of Rubber Expansion Joint in fluid lines, creating a quieter workspace in settings like food processing plants or laboratories.​

The grooved end metal hose excels in applications requiring frequent disassembly or maintenance, thanks to its tool-free connection design. Unlike welded or flanged hoses, it can be quickly disconnected using a clamp tool, simplifying inspections, repairs, or component replacement. In water treatment plants, where regular maintenance of filtration systems is critical, it pairs with Dismantling Joint to allow easy access to pumps or valves, minimizing downtime. In pharmaceutical production lines, the ability to quickly disconnect and sanitize the hose ensures compliance with strict hygiene standards, with grooved connections providing a secure seal that prevents contamination. For retrofitting older systems, compatibility with Flange Adaptor allows the grooved metal hose to integrate with existing flanged components, reducing the need for costly pipeline modifications.​

Corrosion resistance and temperature tolerance expand the grooved end metal hose’s application range across harsh environments. Stainless steel variants resist rust and chemical attack, making them suitable for marine applications, wastewater treatment, or chemical transport. In offshore oil platforms, they connect to drilling equipment, withstanding saltwater exposure and high pressures while working with Bellow Expansion Joint to manage thermal expansion in crude oil lines. High-temperature versions, reinforced with Inconel braiding, thrive in industrial ovens or furnace exhaust systems, where they pair with Flange Adaptor to connect to ductwork, ensuring reliable performance at extreme temperatures. Unlike Rubber Expansion Joint, which may degrade under high heat or corrosive conditions, the grooved end metal hose maintains integrity, making it a durable choice for challenging environments.​

In construction and infrastructure projects, the grooved end metal hose plays a critical role in accommodating structural movement. In high-rise buildings, it connects plumbing lines across expansion joints, absorbing shifts caused by wind or settlement while ensuring water supply continuity. Its grooved connections work with Rubber Expansion Joint in HVAC systems to handle both thermal and structural displacements, ensuring comfort and safety for occupants. In municipal water distribution networks, it connects to mainlines via grooved fittings, with Duckbill Check Valve preventing backflow and Flange Adaptor facilitating transitions to different pipe materials. This versatility makes it a go-to solution for engineers seeking reliable, flexible connections in complex infrastructure layouts.​

In summary, the Grooved End Metal Hose stands as a vital component in dynamic piping systems, offering flexibility, durability, and ease of installation through its innovative grooved connection design. Its ability to collaborate with Rubber Expansion Joint for vibration damping, Bellow Expansion Joint for thermal compensation, Dismantling Joint for maintenance access, Flange Adaptor for compatibility, and Duckbill Check Valve for backflow protection solidifies its role across industries. Whether in fire protection, chemical processing, or construction, this specialized Flexible Metal Hose ensures pipelines adapt to movement, resist corrosion, and maintain integrity—proving that innovation in connection design is key to modern piping efficiency and reliability.​

The Grooved Metal Hose Connection the following notable characteristics:
It possesses excellent flexibility and pliability, enabling it to adapt to various complex installation environments and working conditions.
It exhibits superior corrosion resistance, allowing it to operate stably over long periods in diverse chemical media.
It has high-strength pressure-bearing capacity, meeting the pressure requirements for different fluid transmission needs.
It offers convenient installation and maintenance, reducing industrial production costs and time.

Applications of Grooved Metal Braided Hose

Due to their unique properties, Grooved Flexible Metal Hose is widely used in various industrial fields, including but not limited to:

The oil and gas industry: They are employed for transporting crude oil, natural gas, and other media, adapting to complex underground environments and climatic conditions.

The chemical industry: They are utilized for handling various corrosive chemicals, ensuring the continuity and safety of production processes.

The power industry: They are used for fluid transmission in high-temperature and high-pressure environments such as thermal power plants and nuclear power stations.

The marine industry: They are applied in the connection of fuel oil, fresh water, and other systems on ships to ensure the normal operation of vessels.
