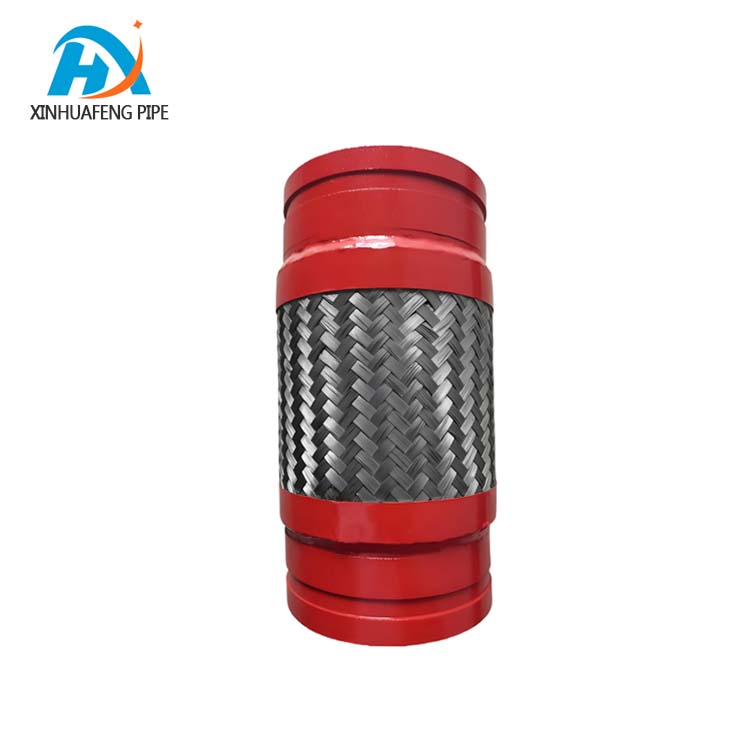

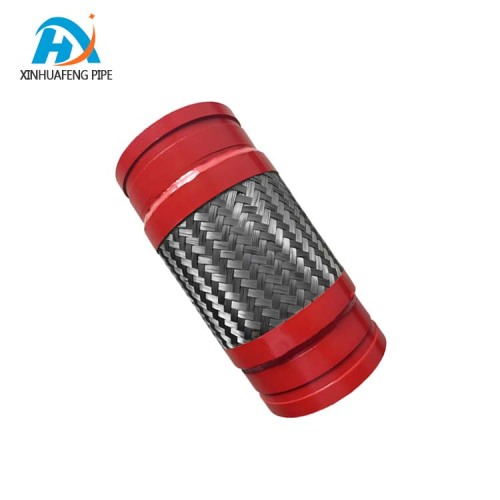

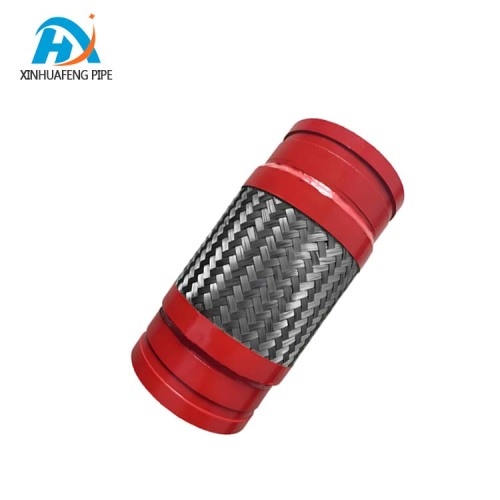

Grooved End Stainless Steel Braided Hose

Grooved Metal Hose : A flexible connection and efficient fitting solution for industrial pipelines
Among the diversified industrial piping systems, Grooved Type Metal Hose stands out with its unique structural design and outstanding performance. It is composed of metal bellows, connectors and grooved clamps. With the perfect balance of flexibility and strength, it has become a key connection component in fields such as water supply drainage, HVAC, fire protection and petrochemicals. At the same time, it works in coordination with various pipe auxiliary components to build a stable and efficient transmission network. ​

Metal corrugated pipes, as the core components of grooved metal hoses, are made of materials such as stainless steel and carbon steel. The corrugated structure endows them with sufficient flexibility and compressive strength, enabling them to easily cope with axial and lateral displacements of the pipeline. This Flexible characteristic forms a "flexible complement" with the Flexible Metal Hose: In the HVAC system, the grooved Metal Hose absorbs equipment vibration through its corrugated structure, while the Flexible Metal Hose ADAPTS to the turning requirements of complex paths. The combination of the two reduces the damage to the interface caused by pipeline stress. Under high-temperature working conditions, it works in coordination with the Bellow Expansion Joint. The metal bellows can withstand the high temperature of the medium, and the bellows expansion joint compensates for the thermal expansion and contraction of the pipeline, jointly ensuring the stability of the system in a high-temperature environment. ​

The connecting parts are the key to connecting grooved metal hoses with other pipes or equipment, and support various methods such as Flange connection and quick couplings. When Flange connection is adopted, the Flange Adaptor ensures its precise connection with the flange end of the pipeline, enhancing the sealing reliability. In the fire water delivery system, the quick coupler type connector can achieve rapid connection in emergency situations. Combined with the Duckbill Check Valve, it can prevent the backflow of fire water and ensure the uniqueness of the water supply direction. For scenarios that require frequent disassembly and assembly, the combination of Dismantling Joint and grooved connectors is more advantageous. Through the flexible adjustment of the disassembly joint, the separation of the hose from the pipe can be quickly completed, simplifying the maintenance process. ​

The grooved clamp, as the core fastening component, tightly combines the metal bellows with the connecting parts through clamping force, enabling rapid installation and disassembly. This convenience is particularly prominent in the emergency repair of water supply drainage pipes: Compared with traditional flange connections, grooved clamps do not need to tighten bolts one by one, significantly shortening the installation time. When used in conjunction with Rubber Expansion Joint, it can not only absorb pipeline vibration with the help of Rubber Expansion Joints, but also ensure the connection sealing through the rapid fixation of grooved clamps. It is suitable for scenarios requiring efficient construction such as municipal pipe networks and building water supply and drainage. In the transmission of corrosive media in the petrochemical industry, the stainless steel groove clamps and metal bellows jointly resist corrosion, forming multiple protections with the corrosion resistance characteristics of the Bellow Expansion Joint and prolonging the service life of the system. ​

From fire protection pipes in high-rise buildings to medium transmission in petrochemical plants, from cold and hot medium transportation in HVAC systems to pipe connections in ships, Grooved type metal hose has always empowered various industries with efficient connections and reliable performance. It achieves precise connection with the Flange Adaptor, builds a solid anti-backflow defense line with the Duckbill Check Valve , and resolves displacement and vibration problems through Bellow Expansion Joint and Rubber Expansion Joint. Enhance system flexibility and maintainability with the help of Flexible Metal Hose and Dismantling Joint. Selecting the appropriate grooved metal hose and matching components can ensure the continuous and stable operation of industrial pipeline systems under complex working conditions such as high pressure, high temperature and corrosion, providing a solid guarantee for the safety and efficiency of fluid transmission. ​
