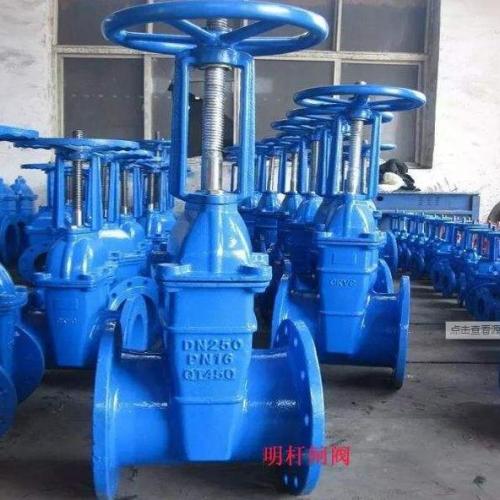

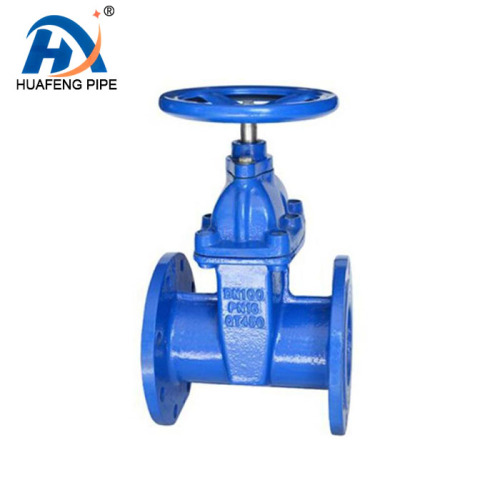

Ductile iron flanged Gate Valve : A reliable opening and closing control hub for pipeline systems
Youdaoplaceholder0 Iron Flange Gate Valve , with the high strength of Ductile iron material and the stability of flange connection, has become the core component for realizing fluid opening and closing control in medium and low pressure pipeline systems. It combines pressure resistance, corrosion resistance and ease of operation.
Rubber Expansion Joint,
Bellow Expansion Joint,
Flexible Metal Hose,
Dismantling Joint,
Flange Adaptor, Duckbill Accessories such as Check Valve work in coordination to provide safe and reliable opening and closing guarantees for pipeline systems in fields such as municipal water supply, industrial circulation, and agricultural irrigation.
Material advantage: The "dual enhancement of strength and toughness" of ductile iron
The Ductile Iron material endows Ductile Iron Flange Gate Valve with excellent mechanical properties. Compared with ordinary cast iron, ductile iron, through spheroidization treatment, makes graphite distributed in a spherical shape, significantly enhancing its strength, toughness and impact resistance. It can withstand the long-term pressure load of medium and low pressure pipelines. This material property makes it stand out in the main pipes of municipal water supply - combined with the metal bellows of Bellow Expansion Joint, The former relies on a high-strength Valve Body to resist fluctuations in water pressure in the pipeline network, while the latter compensates for thermal displacement of the pipeline. The two are precisely connected through a Flange Adaptor to jointly ensure the structural safety of the water supply system.
The corrosion resistance and wear resistance of ductile iron should not be ignored either. In the sewage discharge pipeline, the Ductile Iron Flange Gate Valve can resist the scouring and corrosion of impurities in the sewage, and its corrosion resistance performance corresponds to the corrosion-resistant seals of the
Duckbill Check Valve. In combination with Rubber Expansion Joint to absorb the impact and vibration of water flow, it ensures smooth and controllable sewage discharge. Meanwhile, the excellent processing performance of ductile iron makes the sealing surface of the valve more precise. When closed, the gate and the Valve Seat fit tightly, and the leakage is much lower than that of ordinary cast iron valves.
Structural feature: "Stable sealing guarantee" for flange connection
Youdaoplaceholder0 Iron Flange Gate Valve The flange connection design focuses on installation stability and sealing reliability. The flanges at both ends of the valve body can be directly connected to the Pipe Flange through bolts without the need for additional adapter parts. This structure has excellent compatibility with the
Flange Adapter. In industrial circulating water pipelines, it can quickly achieve connection with pipelines of different pressure grades. When used in conjunction with Dismantling Joint, During later maintenance, the valve can be disassembled separately without affecting the entire pipeline, significantly reducing maintenance costs.
The vertical lifting opening and closing method of the gate plate minimizes fluid resistance. When fully open, the gate plate is completely retracted into the valve cavity, and the fluid in the pipeline can pass through in a straight line with a low flow resistance coefficient. This characteristic is consistent with the low flow resistance design concept of Bellow Expansion Joint. In the outlet pipeline of the water pump, the ductile iron flange gate valve is combined with the Rubber Expansion Joint. The former reduces the water flow resistance and improves the efficiency of the water pump, while the latter absorbs the vibration of the water pump and protects the sealing surface of the valve. The two work together to enhance the operating efficiency of the system.
Scene Adaptation: The "Main Force of Opening and Closing Control" in Multiple fields
The municipal water supply system is the "core battlefield" of Ductile Iron Flange Gate Valve. In the zonal control of the urban water supply network, it can realize the water cut-off maintenance in a certain area. The stability of the Flange connection is combined with the Flange Adaptor to ensure no leakage under high water pressure. Combined with the pressure gauge connected to the Flexible Metal Hose , the pressure of the network can be monitored in real time. Youdaoplaceholder0 Joint facilitates regular maintenance of the valve.
In the industrial circulating water system, Ductile Iron Flange Gate Valve controls the inflow and outflow of water for the equipment. Its temperature resistance characteristics can adapt to the temperature changes of the circulating water. Combined with Bellow Expansion Joint, it compensates for the thermal expansion and contraction displacement of the pipeline. The Rubber Expansion Joint absorbs the vibration generated by the circulating pump. The three work together to ensure the stable cooling effect of the equipment. In the pipeline for transporting low-concentration media in the chemical industry, the corrosion-resistant
Ductile Iron Valve body of the valve works in conjunction with the Duckbill Check Valve. The former controls the on-off of the medium, while the latter prevents the backflow of the medium, forming a dual safety guarantee.
In the agricultural irrigation system, the Ductile Iron Flange Gate Valve can be installed on the 分水口 of the main canal and, through flange connection, cooperate with the field branch pipe of the Flexible Metal Hose to adapt to the undulating terrain and achieve precise water distribution. Its high-strength valve body can withstand frequent operation and water flow impact during the irrigation season. Combined with Dismantling Joint, it is convenient for valve inspection and maintenance during the slack farming season.
System Collaboration: "Efficiency Upgrade" through Accessory Linkage
In a complete piping system, the synergy effect of Ductile Iron Flange Gate Valve with other fittings is significant. In the water supply system of high-rise buildings, it is installed on the riser to control the water supply of each floor. Together with the Bellow Expansion Joint, it compensates for the stress caused by the self-weight of the pipeline. The Flange Adaptor solves the connection problem of pipelines of different diameters to ensure the stability of the water supply pressure. In the fire protection pipeline system, the ductile iron flanged gate Valve serves as a spare valve, cooperating with the Duckbill Check Valve to prevent the backflow of fire water, while the Rubber Expansion Joint absorbs the water hammer impact when the fire engine is pressurized, ensuring the emergency reliability of the fire protection system.
In the cooling water system of the central air conditioning, the Ductile Iron Flange Gate Valve regulates the inlet water volume of the cooling unit. Its low flow resistance characteristic, in combination with the thermal compensation function of the Bellow Expansion Joint, can reduce the energy loss of the system. The filter connected to the Flexible Metal Hose protects the valve from impurity wear. This multi-component collaborative system design enables ductile iron flanged Gate Valves to always play a core role in opening and closing control in complex pipeline networks.
Iron Flange Gate Valve, with the superior performance of Ductile iron and the stable structure of flange connection, has become an indispensable "opening and closing commander" in the pipeline system. It works in coordination with various Pipe Fittings , providing a solid guarantee for the safe operation of pipeline systems in multiple fields through its comprehensive advantages of high strength, low flow resistance and easy maintenance. It always maintains reliable opening and closing control capabilities during long-term use.
