Flange Type Bellow Expansion Joint

View:

Stainless Steel Flanged Metal Bellows Expansion Joint
- Brand: Xinhuafeng
- Packaging: wooden case packing
- Supply Ability: 100000 Piece/ per Month
- Min. Order: 1 Piece/Pieces
- Certificate: ISO9001
Composition and Working Principle of Flange Type Bellow Expansion Joint The flange type bellow expansion joint, a vital Bellow Expansion Joint in pipeline systems, is composed of a corrugated pipe (an elastic component) along with end pipes, supports, flanges, conduits, and other accessories. Its core component is...

Contact Now
High Temperature Flange-Type Bellows Expansion Joint
- Brand: Xinhuafeng
- Packaging: wooden case packing
- Supply Ability: 100000 Piece/ per Month
- Min. Order: 1 Piece/Pieces
- Certificate: ISO9001
Typical Application Scenarios of Flange Type Bellow Expansion Joint and Related Pipeline ComponentsThe flange type bellow expansion joint, a prominent Bellow Expansion Joint variant, is highly valued for its unique advantages and wide range of applications across various industries. Alongside other essential pipeline...

Contact Now
Stainless Steel Bellows Expansion Joint
- Brand: Xinhuafeng
- Packaging: wooden case packing
- Supply Ability: 100000 Piece/ per Month
- Min. Order: 1 Piece/Pieces
- Certificate: ISO9001
Flange Type Bellow Expansion Joint: Selection, Installation, Maintenance and Key Pipeline Components The flange type bellow expansion joint, a crucial Bellow Expansion Joint variant, stands out as an important pipeline compensation component with a wide range of applications and significant advantages. By ensuring...

Contact Now
Stainless Steel Flange Type Expansion Joint
- Brand: Xinhuafeng
- Packaging: wooden case packing
- Supply Ability: 100000 Piece/ per Month
- Min. Order: 1 Piece/Pieces
- Certificate: ISO9001
Stainless Steel Flange Type Bellow Expansion Joint and Key Pipeline ComponentsThe flange type bellow expansion joint with stainless steel, a vital Bellow Expansion Joint variant, plays a critical role in pipeline systems under working conditions. Its core function is to absorb pipeline displacements under pressure,...

Contact Now
Flange-type Bellows Expansion Joint
- Brand: Xinhuafeng
- Packaging: wooden case packing
- Supply Ability: 100000 Piece/ per Month
- Min. Order: 1 Piece/Pieces
- Certificate: ISO9001
Key Compensation and Connection Components in Pipeline SystemsIn complex pipeline systems, various compensators and connection components play a crucial role in ensuring the safe and stable operation of pipelines. Compensators can balance the pressure thrust caused by the working pressure of the medium and reduce the...

Contact Now
Corrugated Metal Expansion Joint
- Brand: Xinhuafeng
- Packaging: wooden case packing
- Supply Ability: 100000 Piece/ per Month
- Min. Order: 1 Piece/Pieces
- Certificate: ISO9001
Flange-Type Corrugated Expansion Joint: Reliable Compensation for High-Demand Piping SystemsThe flange-type corrugated expansion joint—also known as a flange corrugated expansion joint or flange metal expansion joint—stands as a critical pipeline compensation component, engineered to address thermal expansion,...

Contact Now
Flanged Stainless Steel Bellow Expansion Joint
- Brand: Xinhuafeng
- Packaging: wooden case packing
- Supply Ability: 100000 Piece/ per Month
- Min. Order: 1 Piece/Pieces
- Certificate: ISO9001
Flange Type Bellow Expansion Joint: Reliable Pipeline Compensation for Harsh EnvironmentsThe flange type bellow expansion joint—also widely known as flange bellows expansion joint or flange corrugated expansion joint—stands as a cornerstone of pipeline compensation systems, engineered to maintain stability and safety...

Contact Now
Flanged Metal Bellows Expansion Joint
- Brand: Xinhuafeng
- Packaging: wooden case packing
- Supply Ability: 100000 Piece/ per Month
- Min. Order: 1 Piece/Pieces
- Certificate: ISO9001
Flange Type Bellow Expansion Joint: Core Component for Pipeline Displacement CompensationThe flange type bellow expansion joint stands as a vital safeguard in pipeline systems, engineered to absorb displacements from thermal expansion, vibration, and external forces—ultimately protecting pipelines from damage and...

Contact Now

China Flange Type Bellow Expansion Joint Suppliers

A Flange Type Bellow Expansion Joint is a robust pipeline component combining a metal bellows core with Flange connections, designed to absorb thermal expansion, contraction, and mechanical displacements in industrial systems. Its structure features a stainless steel or carbon steel bellows with convolutions for flexibility, flanked by flange ends for secure, leak-tight installation. This design excels in compensating axial, lateral, and angular movements, reducing stress on pipes, pumps, and valves.

The flange connections simplify installation and maintenance, allowing easy bolting to matching pipeline flanges without welding. This makes it ideal for systems requiring periodic disassembly. The metal bellows offers high pressure resistance (up to extreme levels) and temperature tolerance, suitable for power plants, chemical refineries, and steam pipelines handling harsh conditions where rubber variants may degrade.

In system integration, it works synergistically with other components: a Rubber Expansion Joint dampens high-frequency vibrations, while this flange-type joint manages large thermal displacements. A Flexible Metal Hose adds routing flexibility, complementing its movement capabilities. A Flange Adaptor bridges varying flange specs, ensuring compatibility. For maintenance, a Dismantling Joint eases access, and a Duckbill Check Valve prevents backflow, enhancing safety.

Key advantages include durability, precise displacement control, and easy integration. The flange design ensures uniform pressure distribution, minimizing leak risks. Available in diverse sizes and materials, it adapts to industrial needs. By balancing strength, flexibility, and easy installation, it ensures stable operation in demanding environments, proving essential for efficient, safe pipeline performance across critical infrastructure.

Flange Type Bellow Expansion Joint

‌Flange type bellow expansion joint‌ is an elastic element installed in the piping system to absorb thermal expansion, mechanical displacement and vibration. It is usually made of stainless steel or alloy steel and has strong corrosion resistance and high temperature resistance. The flange type design means that it's connection method relies on flanges at both ends, and the expansion joint is fixed to both ends of the pipe by bolts and nuts. This design greatly simplifies the installation and removal process and improves its application flexibility‌.

Application areas

petroleum, chemical, electric power, metallurgy, pharmaceutical and other industries

Flange material

stainless steel、carbon steel.

Product Detail

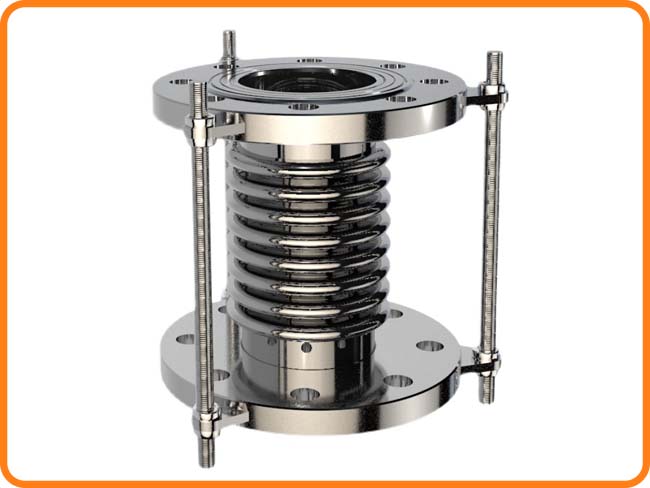

The flange type bellow expansion joint is mainly composed of bellows, end flange, liner, outer protective layer and other possible accessories (such as tie rods, conduits, etc.).

Bellows: As the core component of the expansion joint, the bellows adopts a wave design, and through a reasonable geometric structure, it has high flexibility and pressure bearing capacity. It can deform under the action of external force, and then absorb and release the axial, lateral and angular displacement in the pipeline system.

End flange: The flange is the key component connecting the expansion joint to the pipeline system. The expansion joint is fixed to both ends of the pipeline by bolts and nuts. This design greatly simplifies the installation and disassembly process and improves its application flexibility.

Liner and outer protective layer: The liner is used to protect the bellows from medium erosion, while the outer protective layer prevents the bellows from corrosion or wear by external substances.

CUSTOMER

VOICE

WHAT A CLIENT SAY?

Customers generally reflect that in heating systems with large temperature changes, flange type bellow expansion joints can significantly reduce the thermal expansion and contraction of pipelines and ensure the stable operation of the system. The flange type bellow expansion joint is equipped with flange connection at both ends, and no welding operation is required, which greatly simplifies the installation process. Customer feedback shows that in industries with more corrosive media such as chemicals and petroleum, flange type bellow expansion joints show good corrosion resistance, reducing pipeline leakage and damage caused by corrosion.

xhf

Application areas

The application areas of pipelines are very wide, mainly including municipal engineering, building water supply and drainage, industrial production, agricultural irrigation, new energy and other fields.

FAQ

Important things you should know

Is the number of corrugations of the bellows compensator the more the better?

The number of corrugations is not the more the better. Too many corrugations may cause instability and damage to the bellows compensator.

During the pressure test, if the compensator is found to leak, what should be done?

The leak location should be immediately determined, the relevant valves should be closed, the pressure should be relieved, the compensator should be repaired or replaced, the pressure should be retested, the record and analysis should be made, and the relevant departments should be notified.

Common number of corrugations?

6 waves, 8 waves and 10 waves are common. If the compensation amount is large, it may be necessary to select a bellows compensator with more than 10 corrugations, or even two or more groups of bellows to achieve the required compensation amount together.

What should be prepared before installation?

Check the specifications and confirm the direction (if the compensator is equipped with a guide tube, pay attention to the direction of the guide tube being consistent with the flow direction of the medium during installation.)
