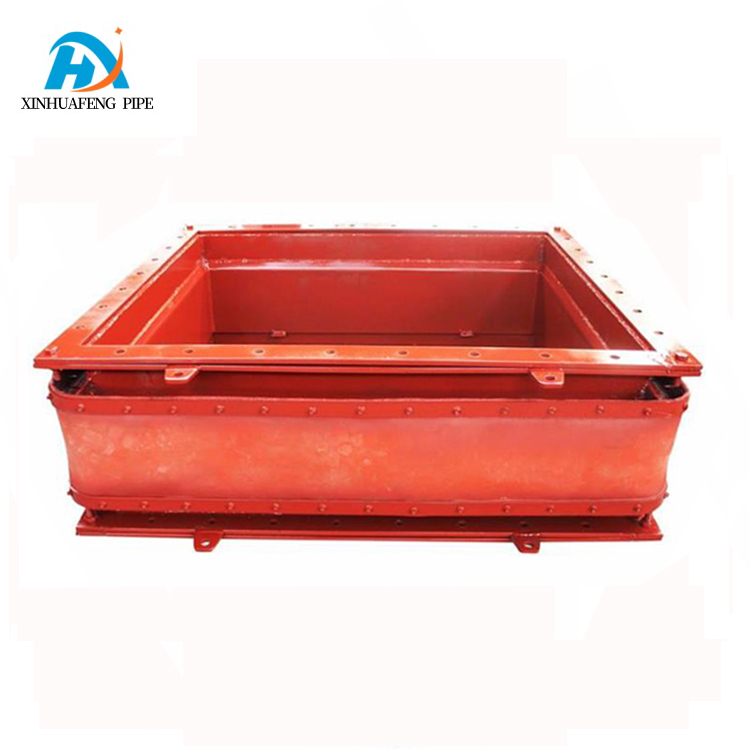

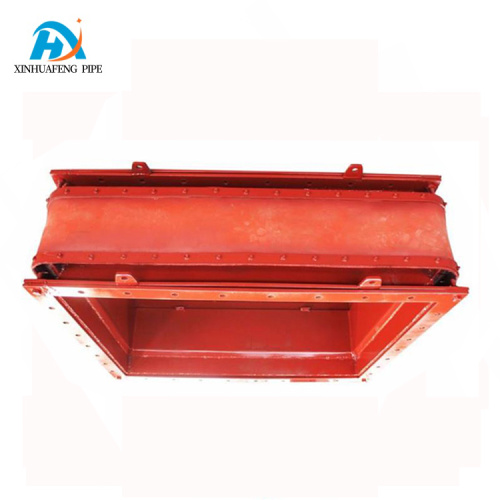

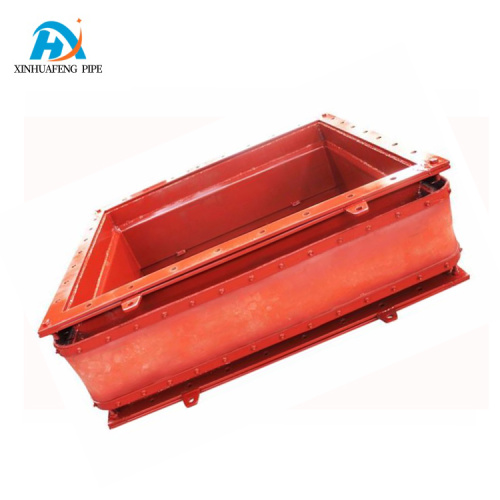

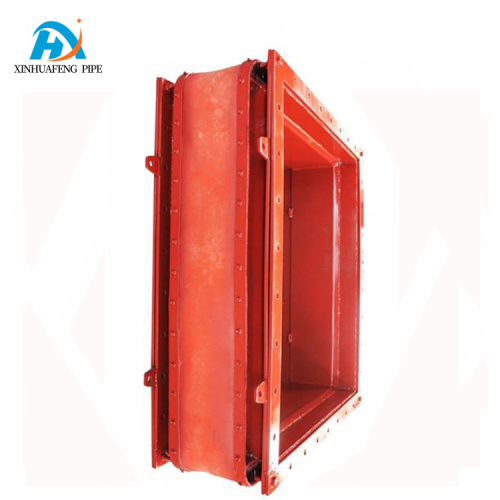

Industrial Silicone Coated
Fabric Expansion Joint: Heat-Resistant Flexibility for Industrial Piping
The Industrial Silicone Coated Fabric Expansion Joint emerges as a specialized solution in industrial piping systems, blending the flexibility of fabric with the heat resistance of silicone to address thermal expansion, vibration, and space constraints. Designed for high-temperature and low-pressure applications, this expansion joint complements traditional components like
Rubber Expansion Joint and
Bellow Expansion Joint, offering unique advantages in environments where heat, chemical exposure, or limited space demand tailored performance. Its integration with
Flexible Metal Hose,
Dismantling Joint, and other fittings enhances system versatility, making it a valuable asset in industries ranging from power generation to chemical processing.
At the core of its design, the industrial silicone coated fabric expansion joint features a multi-layer structure: a fabric reinforcement layer—often made of fiberglass or polyester—coated with high-grade silicone rubber. This combination delivers exceptional heat resistance (typically up to 260°C or higher), flexibility, and chemical resistance, making it ideal for handling hot gases, exhaust fumes, or mild corrosive media. Unlike rigid metal Bellow Expansion Joint, its lightweight fabric construction allows for greater lateral and angular movement, adapting to irregular pipeline shifts caused by thermal cycling or equipment vibration. In power plant boiler exhaust systems, it pairs with
Flange Adaptor to connect to metal ductwork, where its silicone coating resists high temperatures while absorbing vibrations from fans, reducing noise and extending duct lifespan.
A key advantage of the silicone coated fabric expansion joint is its flexibility in space-constrained environments. Its low-profile design and ability to compress or extend significantly make it suitable for tight industrial layouts, such as between heat exchangers or in confined machinery spaces. In chemical processing plants, where pipelines navigate around reactors and pumps, it works with Flexible Metal Hose to create a flexible pathway: the metal hose handles minor abrasion and pressure, while the fabric expansion joint absorbs large lateral displacements, ensuring the system remains intact without requiring extensive space for movement. When paired with Dismantling Joint, it simplifies installation and maintenance in these tight spaces, allowing technicians to access and replace the joint without disassembling entire pipeline sections.
Heat and chemical resistance are standout features that expand its application range in harsh industrial settings. The silicone coating withstands exposure to ozone, UV radiation, and mild acids, making it suitable for outdoor pipelines or waste gas treatment systems. In incineration plants, it connects to exhaust ducts via flanges, withstanding high-temperature fumes while preventing corrosion—a role enhanced by its compatibility with Flange Adaptor to bridge different duct sizes. Unlike Rubber Expansion Joint, which may degrade under extreme heat, the silicone coated fabric variant thrives in environments like kiln exhaust lines, where temperatures exceed the limits of standard rubber materials. It also resists moisture absorption, making it ideal for humid environments such as food processing steam vents, where hygiene and heat resistance are equally critical.
The industrial silicone coated fabric expansion joint excels in vibration absorption and noise reduction, particularly in low-pressure air or gas systems. In HVAC ductwork for industrial facilities, it dampens vibrations from blowers and fans, reducing noise transmission to workspaces. Its fabric construction acts as a sound barrier, complementing the vibration-damping properties of Rubber Expansion Joint in adjacent water or fluid lines. In manufacturing plants with high-speed machinery, it pairs with Bellow Expansion Joint in dual-compensation systems: the bellows handle axial expansion in metal pipelines, while the fabric joint absorbs lateral vibrations in ductwork, creating a quieter and more stable operational environment. This combination is especially valuable in electronics factories, where excessive noise and vibration can disrupt sensitive equipment.
Installation and maintenance of the silicone coated fabric expansion joint are streamlined by its compatibility with standard fittings. It connects to pipelines via flanges, with Flange Adaptor enabling integration with different flange types or sizes—critical for retrofitting older systems. In waste treatment facilities, it attaches to
Duckbill Check Valve in vent lines, where the check Valve prevents backflow of gases and the fabric joint compensates for temperature-induced expansion, ensuring safe and odor-free operation. For systems requiring regular inspection, it works with Dismantling Joint to allow quick removal, simplifying cleaning or replacement of the joint’s fabric layers without halting production. This ease of maintenance is a key advantage in industries like pharmaceuticals, where downtime must be minimized to meet production deadlines.
While the industrial silicone coated fabric expansion joint is optimized for low-pressure, high-temperature scenarios, it often collaborates with other components to handle mixed conditions. In combined heat and power plants, it pairs with Flexible Metal Hose in dual-fluid systems: the metal hose carries high-pressure water, while the fabric joint manages low-pressure exhaust gases, with both components connected via Flange Adaptor to ensure system cohesion. In chemical laboratories, it works alongside Rubber Expansion Joint to separate fluid and gas lines: the
Rubber Joint handles liquid chemical flow, while the fabric joint manages vent gases, each component to resist their respective media.
Selecting the right industrial silicone coated fabric expansion joint involves matching its temperature rating, movement capacity, and chemical resistance to the application. For high-temperature exhaust lines, thicker silicone coatings and reinforced fabric layers enhance durability, while in humid environments, mildew-resistant treatments ensure longevity. Its compatibility with Bellow Expansion Joint and Flexible Metal Hose allows engineers to design hybrid systems that balance heat resistance, pressure handling, and flexibility, ensuring optimal performance across diverse industrial conditions.
In summary, the Industrial Silicone Coated Fabric Expansion Joint fills a unique niche in industrial piping, offering heat resistance, flexibility, and noise reduction where traditional Rubber Expansion Joint or metal Bellow Expansion Joint may fall short. Its ability to collaborate with Flexible Metal Hose for versatility, Dismantling Joint for maintenance ease, Flange Adaptor for compatibility, and Duckbill Check Valve for backflow protection makes it indispensable in high-temperature, low-pressure, and space-constrained applications. Whether in power plants, chemical facilities, or manufacturing plants, this specialized expansion joint ensures pipeline systems adapt to heat, vibration, and layout challenges with reliability and efficiency.
