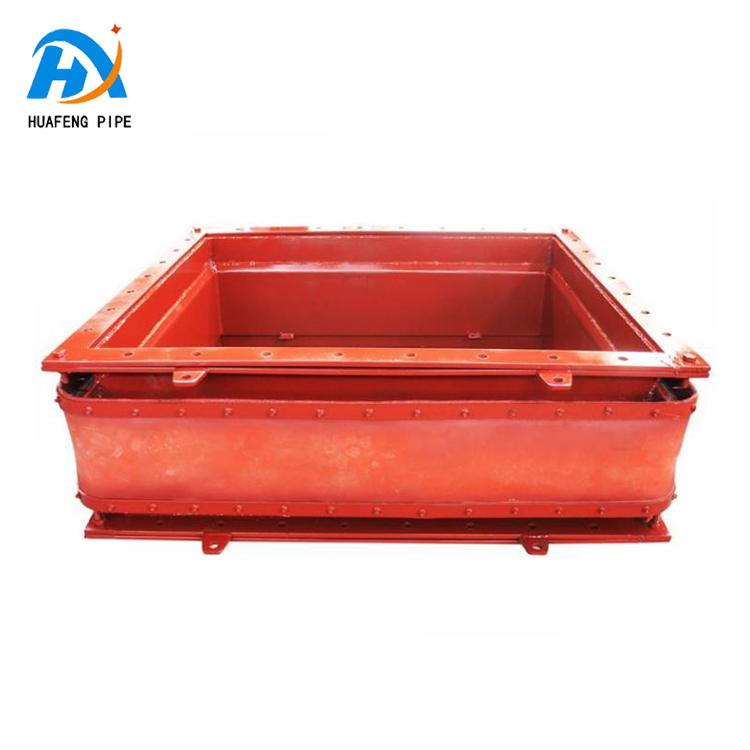

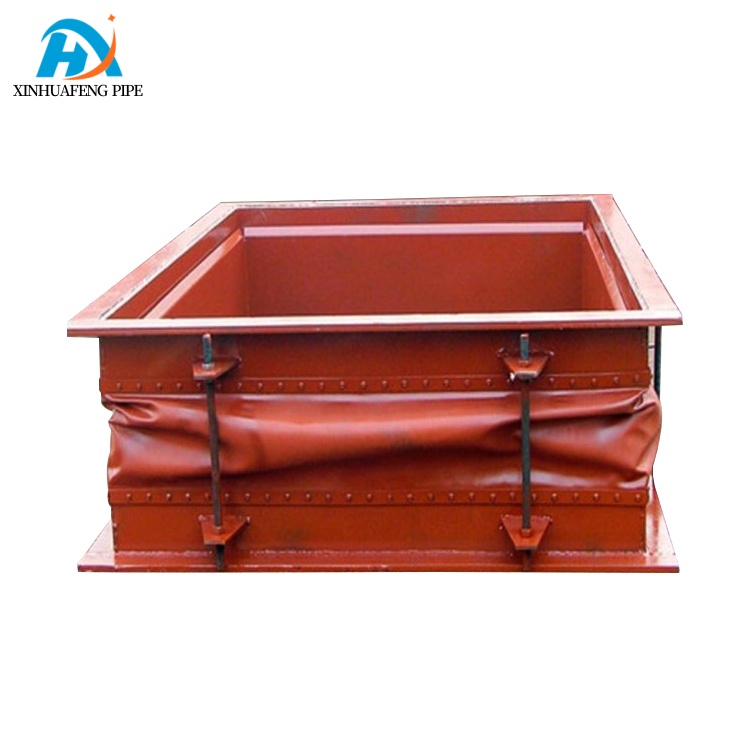

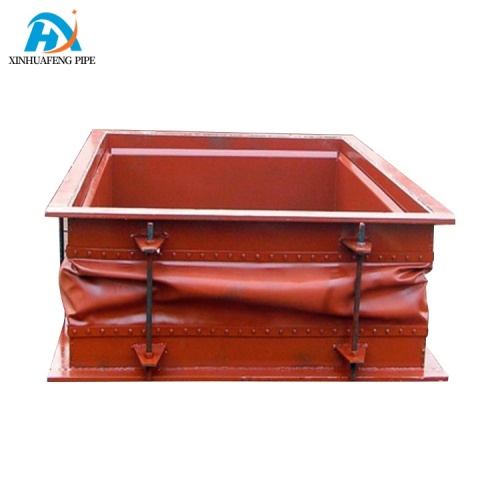

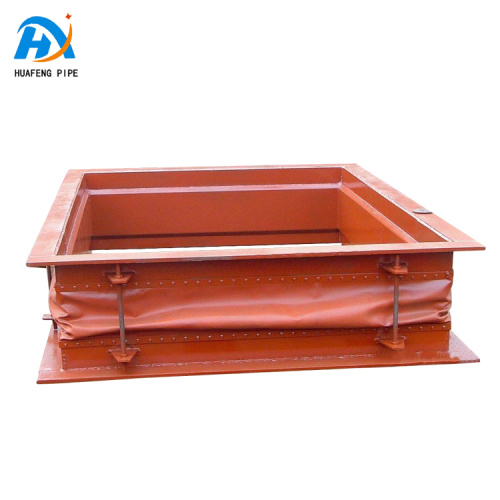

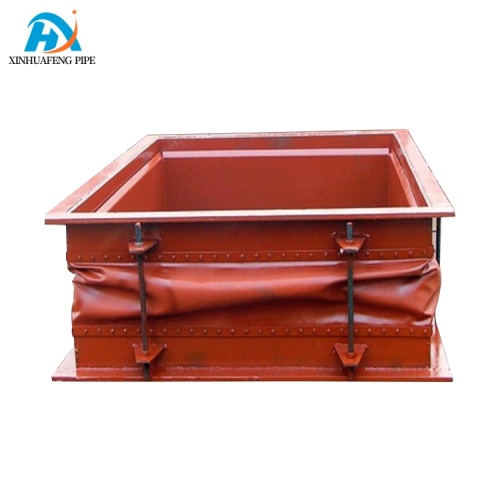

Chemical Resistant Fabric Expansion Joints

Fabric Expansion Joint: Flexible Non-Metallic Solution for Pipeline Compensation​
Fabric expansion joint—also known as Fabric Bellow Expansion Joint—stands as a game-changing Non Metallic Expansion Joint Fabric in modern pipeline systems, engineered to absorb thermal expansion, compensate for displacements, and enhance operational efficiency. Composed of flexible materials like silicone rubber, fiberglass, composite non-alkali fabric, and thermal insulation cotton, this expansion joint offers unique advantages such as zero rigidity, no thrust force, noise reduction, and large compensation capacity—making it a versatile alternative to traditional Bellow Expansion Joint and Rubber Expansion Joint in diverse industrial applications. Its modular design, featuring components like belts, frames, and thermal insulation packing, ensures durability and ease of maintenance, working seamlessly with Flexible Metal Hose, Dismantling Joint, and other fittings to optimize pipeline performance.​
At the core of the fabric expansion joint’s functionality is its component synergy, each part playing a critical role in ensuring flexibility and resilience. The belt (or cover)—the flexible heart of the joint—dampens vibrations and absorbs axial, lateral, and angular displacements caused by temperature fluctuations or equipment movement. Made from silicone rubber or composite fabrics, it adapts to irregular pipeline shifts without generating rigid thrust, unlike metal Bellow Expansion Joint which may exert pressure on supports. In HVAC ductwork, the belt works with Rubber Expansion Joint to create a dual-damping system: the Rubber Joint handles fluid line vibrations, while the fabric belt absorbs air duct movements, minimizing noise in commercial buildings. The frame, a metal support structure, reinforces the belt and accommodates thermal insulation materials, ensuring the joint thrives in high-temperature environments like boiler exhaust lines.​
The clamping plate secures the belt to the frame, maintaining structural integrity even during extreme displacements. This metal plate distributes stress evenly across the belt, preventing tearing and extending service life—especially crucial in systems with frequent thermal cycles, such as incinerator exhaust pipelines. In chemical processing plants, where pipelines navigate complex layouts, the clamping plate’s secure hold allows the fabric expansion joint to work with Flexible Metal Hose : the metal hose adds abrasion resistance, while the fabric joint compensates for lateral shifts, all secured via Flange Adaptor to ensure compatibility with existing flanges. The diversion sleeve further protects the belt and insulation by blocking particulate matter in the medium, making the joint ideal for dusty environments like cement plant ventilation systems, where it pairs with Duckbill Check Valve to prevent backflow of debris-laden air.​
Thermal insulation packing—crafted from wire mesh, fiber cloth, or thermal insulation cotton—fills the cavity between the belt, frame, and diversion sleeve, enhancing heat resistance and energy efficiency. This packing reduces heat loss in high-temperature pipelines, such as those in power plants carrying superheated steam, where it works alongside Bellow Expansion Joint to manage both thermal expansion and insulation. In cold storage facilities, the insulation packing prevents condensation on the belt, ensuring the joint remains flexible even in sub-zero temperatures. When combined with Dismantling Joint, the fabric expansion joint’s modular design simplifies insulation replacement during maintenance, minimizing downtime in critical operations like food processing or pharmaceutical production.​
A standout advantage of fabric expansion joints is their noise reduction and vibration damping capabilities, making them indispensable in noise-sensitive environments. In industrial facilities with pumps, fans, or compressors, the flexible belt absorbs mechanical vibrations, preventing them from propagating through rigid pipelines and causing noise pollution. This feature complements the vibration-damping properties of Rubber Expansion Joint in adjacent fluid lines, creating a quieter workspace. In data centers, where cooling systems generate constant airflow, fabric expansion joints paired with Flexible Metal Hose reduce fan noise in ductwork, ensuring sensitive equipment operates without disruption. Their ability to dampen vibrations also reduces wear on valves and supports, extending the lifespan of the entire pipeline system.​
Large compensation capacity and no rigid thrust make fabric expansion joints ideal for long-distance pipelines or systems with significant movement. Unlike metal Bellow Expansion Joint, which may require additional anchors to counteract thrust, fabric joints exert minimal pressure on pipeline supports, simplifying installation and reducing structural costs. In municipal waste gas pipelines, which span kilometers and experience ground settlement, the joint’s ability to absorb axial and lateral displacements ensures leaks are prevented—enhanced by Flange Adaptor to connect different pipe segments. In offshore platforms, where pipelines are subject to wave-induced movement, fabric expansion joints work with Flexible Metal Hose to accommodate dynamic shifts, ensuring reliable operation in harsh marine environments.​
Ease of installation and maintenance is another key benefit, thanks to the fabric expansion joint’s lightweight design and modular components. Unlike heavy metal expansion joints, it can be installed by a small team without specialized equipment, often paired with Dismantling Joint to allow quick access for inspections. In water treatment plants, where regular maintenance is critical, technicians can easily replace worn belts or insulation packing without disconnecting the entire pipeline. For retrofitting older systems, compatibility with Flange Adaptor ensures seamless integration with existing flanges, reducing the need for costly pipe modifications. This simplicity makes fabric expansion joints a cost-effective choice for industries ranging from agriculture (irrigation systems) to manufacturing (ventilation lines).​
Material versatility expands the fabric expansion joint’s application range across media and environments. Silicone rubber belts excel in high-temperature or ozone-exposed systems, while fiberglass-reinforced variants offer enhanced strength for abrasive media. In corrosive chemical lines, composite non-alkali fabric resists chemical erosion, working with Duckbill Check Valve to prevent backflow of hazardous fluids. This adaptability allows the joint to thrive in diverse settings: from power plant flue gas ducts to food-grade steam lines, where hygiene and heat resistance are equally critical. When paired with Bellow Expansion Joint in hybrid systems, it handles complex displacement scenarios, combining the fabric joint’s lateral flexibility with the bellows’ axial compensation for optimal performance.​
In summary, fabric expansion joint emerges as a flexible, efficient, and cost-effective solution for pipeline compensation, offering unique advantages over traditional Bellow Expansion Joint and Rubber Expansion Joint. Its ability to collaborate with Flexible Metal Hose for versatility, Dismantling Joint for maintenance ease, Flange Adaptor for compatibility, and Duckbill Check Valve for backflow protection solidifies its role in industries spanning power, chemicals, municipal services, and more. Whether absorbing thermal expansion, damping vibrations, or reducing noise, this non-metallic expansion joint ensures pipeline systems operate reliably, efficiently, and quietly—proving that flexibility and innovation are key to modern pipeline design.​
