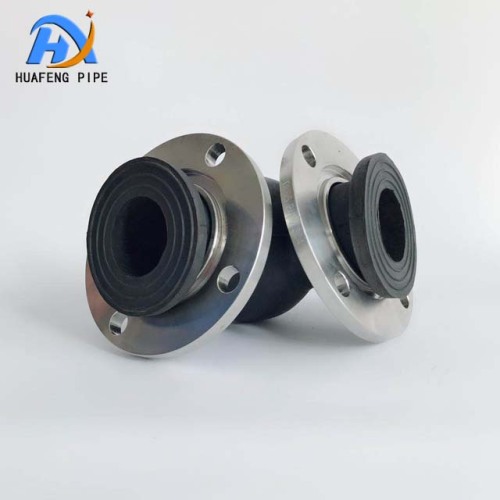

Chemical-Resistant Flanged Expansion Joint

Get Latest Price

Min. Order:

1 Piece/Pieces

Transportation:

Ocean,Land,Air

Port:

QingDao,TianJin,ShangHai

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: Xinhuafeng

Place Of Origin: China

Processing Service: Moulding, Cutting

Operating Temperature: -15℃-70°C/-30℃-150℃

Applicable Media: Air, Water, Oil, Weak Acid and Alkali, etc.

Rubber Ball/Material: NR, NBR, EPDM, PTFE

Dimension: DN32-DN3000

Supply Ability & Additional Information

Packaging: wooden case packing

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 100000 Piece/ per Month

Certificate: ISO9001

Port: QingDao,TianJin,ShangHai

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: wooden case packing

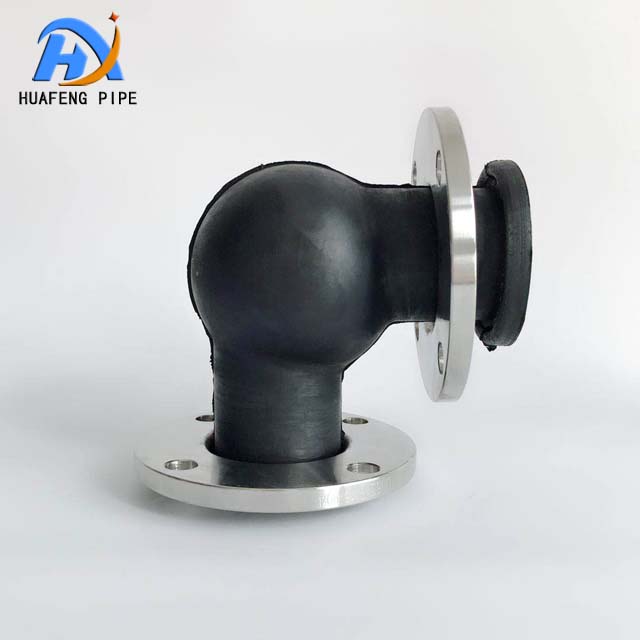

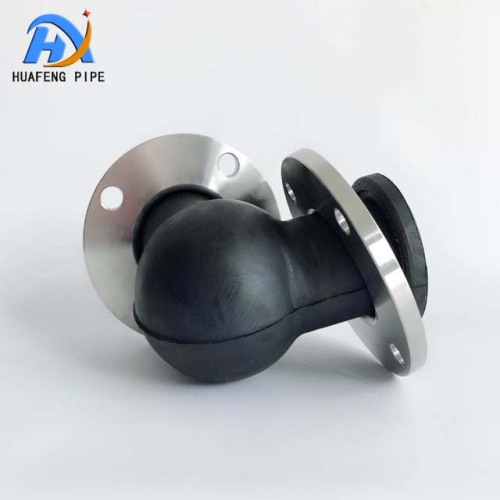

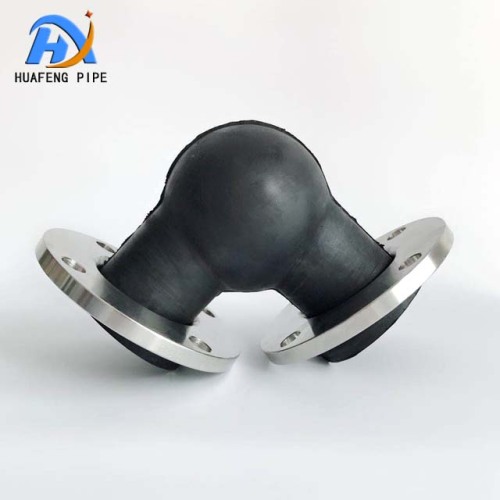

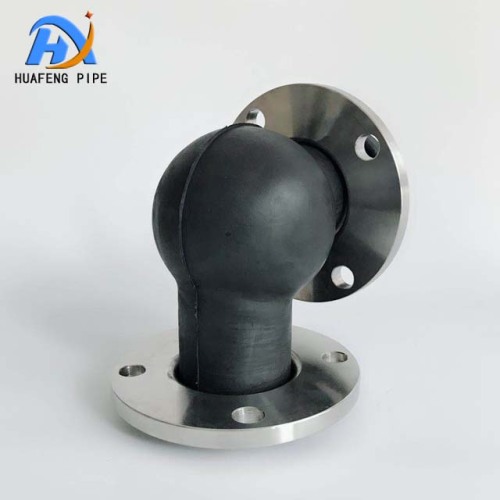

Introduction to Elbow Rubber Expansion Joint

The elbow Rubber Expansion Joint, a specialized type of Rubber Expansion Joint, features an elbow - shaped bend, making it a unique and valuable component in pipeline systems. It leverages the elastic deformation of rubber to compensate for axial, lateral, or angular displacements in piping, while also delivering effective vibration damping and noise reduction effects. This type of joint is mainly used for connecting pipes and equipment, particularly in scenarios where the pipeline needs to bend or change direction, where it offers superior flexibility and adaptability.

One of the notable advantages of the elbow rubber expansion joint is its high pressure resistance and good elasticity. It can withstand high pressures and has excellent elasticity, enabling it to adapt to displacement changes in the pipeline, just as the Bellow Expansion Joint handles thermal - induced displacements through the elastic deformation of its corrugated pipe. Another key advantage is its large displacement capacity. Thanks to the elastic deformation of rubber, it can provide significant displacement, effectively compensating for the expansion and contraction deformations of the pipeline, complementing the compensation capabilities of components like the Flexible Metal Hose which offers flexibility for complex routing.

In terms of functionality, the elbow rubber expansion joint excels in vibration absorption and noise reduction. The rubber material it is made of has excellent vibration absorption and noise reduction properties, reducing vibrations and noise during pipeline operation, which is similar to how some Bellow Expansion Joint variants contribute to noise reduction and vibration damping. Additionally, it offers easy installation as it employs a  Flange  connection. This flange connection can be seamlessly integrated with Flange Adaptor to ensure compatibility with other flanged components in the pipeline system, making the installation process convenient and reliable.​

In a comprehensive pipeline system, the elbow rubber expansion joint works in harmony with other essential components. The Dismantling Joint simplifies the maintenance and replacement of the elbow rubber expansion joint and other pipeline parts when needed. The Duckbill Check Valve ensures the one - way flow of media, preventing backflow and maintaining the stability of the pipeline system. Together with the Bellow Expansion Joint that handles major thermal displacements, the Flexible Metal Hose that provides routing flexibility, and the Flange Adaptor that ensures secure connections, the elbow rubber expansion joint, as a crucial Rubber Expansion Joint type, plays an irreplaceable role in pipeline systems that require bending or direction changes, enhancing the overall performance and reliability of the system.​
