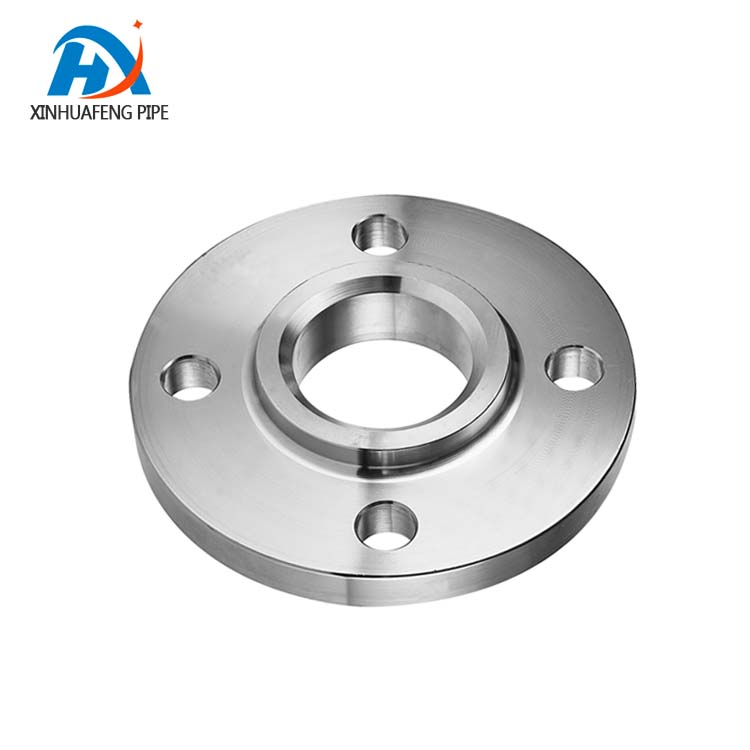

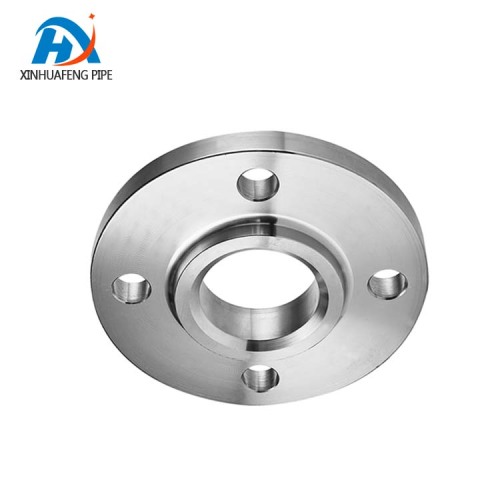

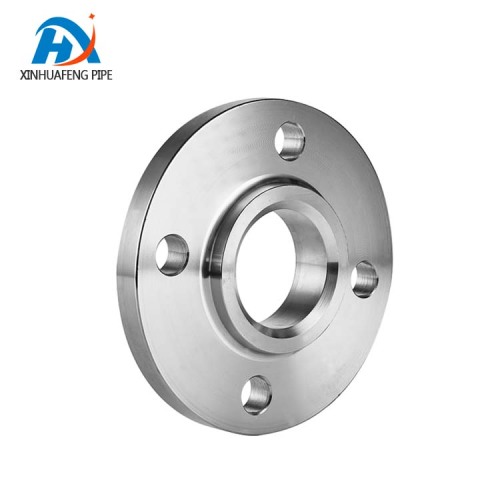

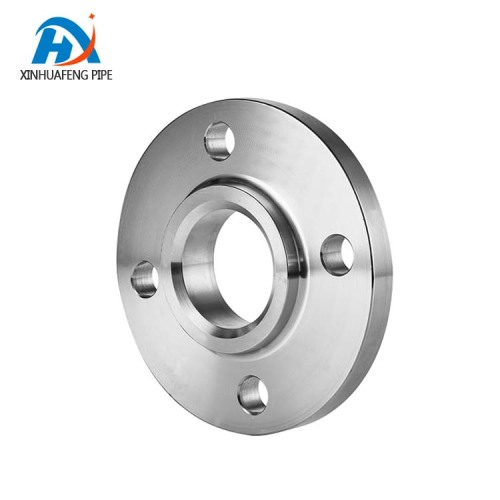

High-Pressure Short Weld Neck Flange

Introduction to Short Neck ANSI Flange ​
The short neck ANSI Flange , a type of American standard flange, mainly adheres to the flange standards established by the American National Standards Institute (ANSI). It serves as a key component for connecting pipes to each other, characterized by a relatively short neck that is designed to link different pipes or Pipe Fittings. In accordance with ANSI standards, American standard flanges can be divided into necked and non - necked types, and the short neck American standard flange falls into the necked category but with a comparatively shorter neck. This unique design enables it to function effectively in various pipeline systems, working in harmony with other essential components like Rubber Expansion Joint, Bellow Expansion Joint, Flexible Metal Hose, Dismantling Joint, Flange Adaptor, and Duckbill Check Valve.​

In terms of application fields, short neck Ansi Flanges find extensive use in pipeline systems across diverse industrial sectors. They are widely employed in chemicals, shipping, and petroleum industries, as well as in machinery equipment, water supply, and heating systems. Their outstanding pressure - bearing capacity, excellent sealing performance, standardized specifications, and ease of installation make them play a crucial role in these fields. In chemical plants, for example, where pipeline systems often handle corrosive media and operate under high pressure, short neck ANSI flanges provide reliable connections. They can be paired with Flange Adaptor to ensure compatibility with other flange types, creating a secure connection network.​

Within these pipeline systems, the short neck ANSI flange works in conjunction with various components to ensure smooth operation. The Bellow Expansion Joint absorbs thermal expansions and contractions of the pipelines, preventing excessive stress on the flange connections. Rubber Expansion Joint helps reduce vibrations and compensate for minor displacements, protecting the flanges from unnecessary wear and tear. Flexible Metal Hose offers flexibility in pipeline routing, and its ends can be connected to short neck ANSI flanges for easy integration into the system.​
Dismantling Joint allows for convenient disassembly and maintenance of pipeline sections connected by short neck ANSI flanges, simplifying the process of replacing or repairing components. Duckbill Check Valve , which is often installed in pipeline systems to prevent media backflow, can also be connected to the pipeline via short neck ANSI flanges, ensuring the one - way flow of media and enhancing the overall safety of the system.​

In summary, the short neck ANSI flange, with its excellent performance and standardized design, forms an integral part of modern pipeline systems. When combined with Rubber Expansion Joint, Bellow Expansion Joint, Flexible Metal Hose, Dismantling Joint, Flange Adaptor, and Duckbill Check Valve, it contributes to the construction of efficient, safe, and reliable pipeline networks that meet the demands of various industrial and domestic applications.​
