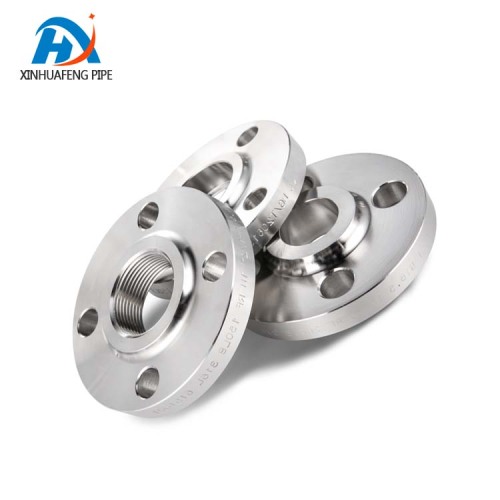

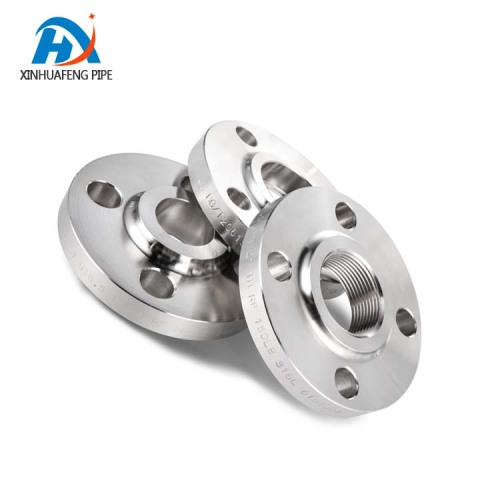

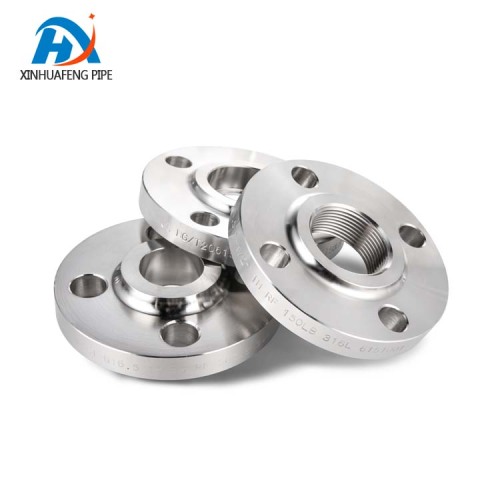

Industrial Short Neck Threaded Flange

Short Neck Threaded ANSI Flange: Compact Connection Solution for Space-Constrained Piping​
The short neck threaded ANSI Flange emerges as a specialized component in American standard piping systems, defined by its compact structure and threaded connection method. Distinguished by a shorter neck compared to welding neck flanges, it comprises a circular flange disk, threaded neck, and bolt holes—engineered to deliver reliable performance in scenarios with limited space, low pressure/temperature demands, or frequent disassembly needs. Its ability to balance ease of installation, cost-effectiveness, and space efficiency makes it a versatile choice across industries, working seamlessly with Rubber Expansion Joint, Bellow Expansion Joint, and other components to enhance pipeline flexibility and maintenance efficiency.​
At the core of its design, the short neck threaded ANSI flange’s compact structure—enabled by its shorter neck—makes it ideal for space-constrained applications. In small equipment or compact layouts, such as laboratory instrumentation lines or industrial machinery piping, it fits into tight spaces where bulkier flanges would fail. The circular flange disk, with evenly spaced bolt holes, allows for secure connection between two flanges via bolts, ensuring a tight seal without sacrificing space. This compactness pairs well with Flexible Metal Hose in confined areas: the Metal Hose adds flexibility for complex routing, while the short neck flange maintains a low-profile connection, critical for navigating around valves or pumps in crowded equipment bays. In residential plumbing systems, it fits neatly under sinks or in wall cavities, connecting to water lines with minimal clearance required.​
The threaded connection method is a defining advantage, eliminating the need for welding and simplifying installation and disassembly. This makes the flange particularly valuable in low-pressure piping systems, where ease of setup and cost-effectiveness are priorities. In municipal water distribution lines or irrigation networks, it connects to PVC or copper pipes via threaded joints, reducing labor costs and installation time compared to welded flanges. For systems requiring frequent maintenance—such as chemical dosing lines in water treatment plants—it integrates with Dismantling Joint to enable quick access: the dismantling joint isolates the section, while the threaded flange allows for tool-free disassembly, minimizing downtime during inspections. When paired with Flange Adaptor, it also bridges different thread sizes, solving compatibility issues in retrofitted systems where new and old pipes have mismatched specifications.​
Low-pressure and low-temperature applications are where the short neck threaded ANSI flange truly excels, leveraging its design to deliver reliable performance without overengineering. In HVAC systems circulating chilled water or air, it connects ductwork sections with minimal pressure drop, working with Rubber Expansion Joint to absorb vibrations from fans: the Rubber Joint dampens noise, while the threaded flange ensures easy disassembly for filter replacements. In residential natural gas lines, it forms secure connections between meters and appliances, with its threaded design allowing for quick shutdown during maintenance. For low-pressure chemical transfer lines in laboratories, it pairs with Duckbill Check Valve to prevent backflow of mild reagents, with the flange’s compact size fitting into fume hoods or benchtop setups—critical for maintaining workspace safety and efficiency.​
Frequent maintenance and equipment replacement scenarios benefit significantly from the flange’s easy disassembly. In food processing plants, where hygiene requires regular pipeline cleaning, it connects to sanitary pipelines via threaded joints, enabling quick removal of sections for sterilization. Paired with Dismantling Joint, it simplifies access to pumps or mixers, ensuring production lines resume quickly after maintenance. In pharmaceutical manufacturing, where batch changes demand frequent equipment swaps, the flange’s threaded connection allows for tool-free replacement of Flexible Metal Hose or valves, reducing the risk of contamination during transitions. Its compatibility with Flange Adaptor further enhances this flexibility, enabling seamless switching between different equipment sizes or brands without reconfiguring the entire pipeline.​
The short neck threaded ANSI flange’s versatility extends to its collaboration with other pipeline components, enhancing system functionality across applications. In low-pressure compressed air systems, it connects to Bellow Expansion Joint to manage minor thermal expansion, with the threaded flange ensuring a leak-free seal even as the bellows flex. In wastewater lift stations, it pairs with Duckbill Check Valve to prevent sewage backflow, with the flange’s compact design fitting into tight pump enclosures. For residential irrigation systems, it works with Rubber Expansion Joint to absorb water hammer effects from sprinkler valves, while its threaded connection allows homeowners to easily adjust or replace sections of the line. This synergy of components ensures the flange adapts to diverse operational needs, from industrial machinery to household utilities.​
Cost-effectiveness is another key advantage, making the short neck threaded ANSI flange a preferred choice for budget-conscious projects. Compared to welding neck flanges, it reduces material and labor costs, making it ideal for low-pressure systems where high-performance flanges would be unnecessary. In agricultural irrigation networks, it connects miles of PVC pipe at a fraction of the cost of welded alternatives, while still ensuring reliable water distribution. For small-scale industrial setups, it pairs with Flange Adaptor to repurpose existing pipes, avoiding the expense of full system overhauls. Its durability in low-stress environments also minimizes replacement costs, ensuring long-term value for applications like HVAC, plumbing, and light industrial use.​
In summary, the short neck threaded ANSI flange stands as a compact, cost-effective solution for space-constrained, low-pressure piping systems. Its threaded connection simplifies installation and disassembly, while its short neck design adapts to tight layouts—making it indispensable for frequent maintenance, small equipment, and low-stress applications. When paired with Rubber Expansion Joint for vibration absorption, Bellow Expansion Joint for minor thermal compensation, Flexible Metal Hose for flexibility, Dismantling Joint for easy access, Flange Adaptor for compatibility, and Duckbill Check Valve for backflow protection, it forms a versatile network that meets the unique demands of industries ranging from plumbing to pharmaceuticals. Whether in a crowded machinery bay or a residential basement, this flange delivers reliable performance where space, cost, and convenience matter most.​
