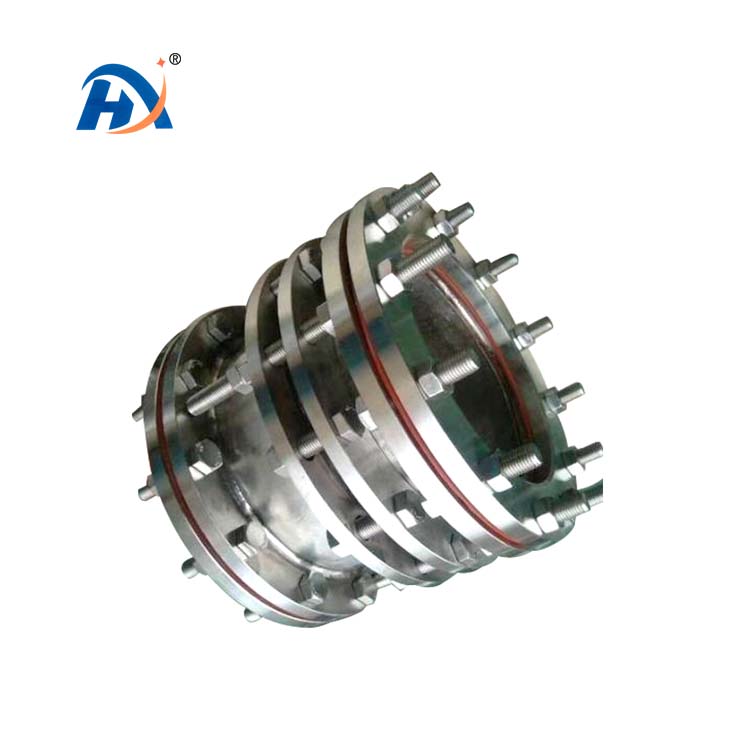

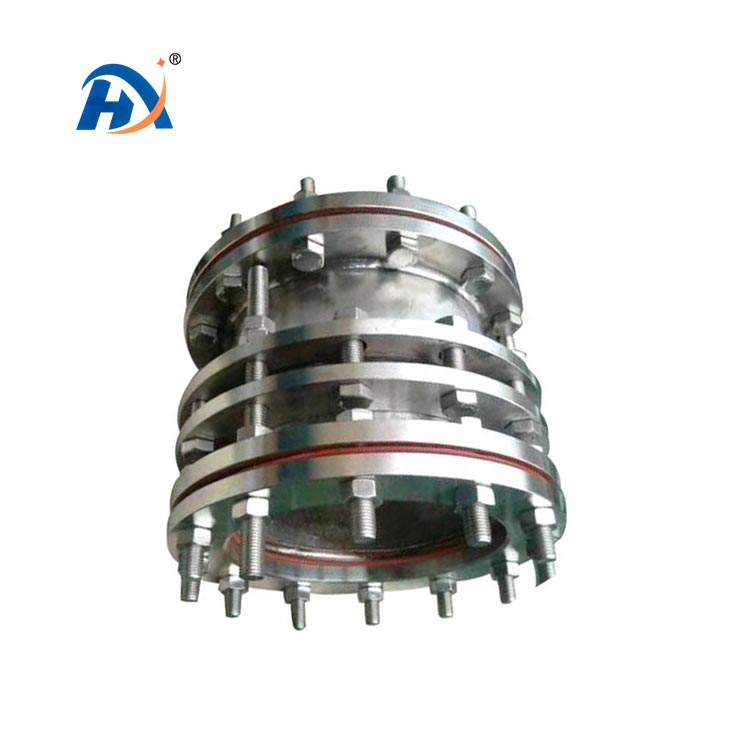

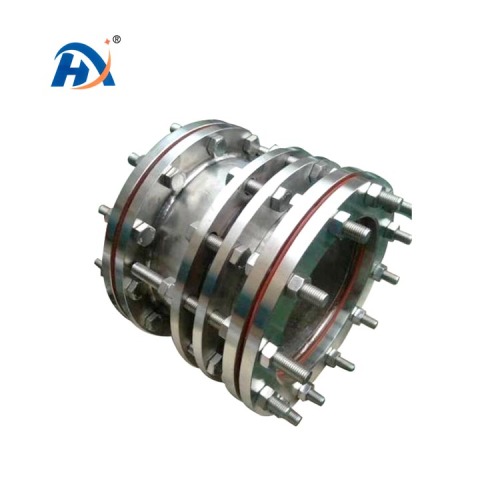

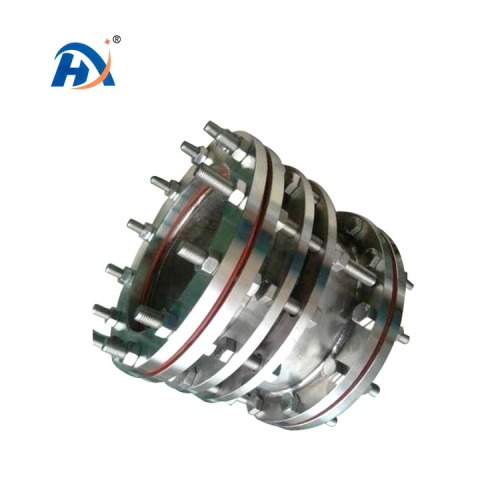

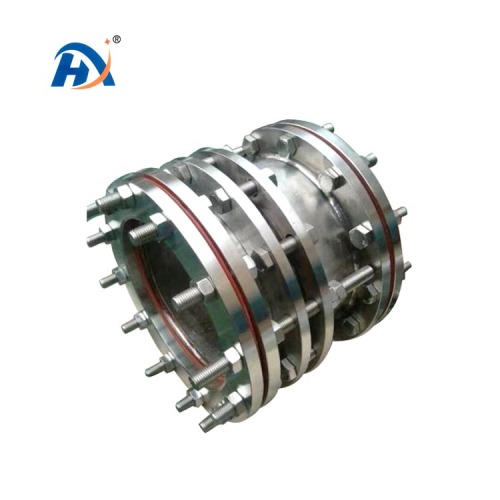

Stainless Steel Material Double Flange Dismantling Joints

Get Latest Price

Material:

Stainless Steel

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: Xinhua Feng

Certification: ISO9001

Support Customization: Odm, Obm, Oem

Place Of Origin: China

Connection Method: Flange

Head Shape: Square

Pressure: High Pressure, PN6 - PN40

Size: 1/2' ~ 48'

Supply Ability & Additional Information

Packaging: wooden case packing

Transportation: Ocean,Land,Air

Supply Ability: 100000 Piece/ per Month

Certificate: ISO9001

Port: QingDao,TianJin,ShangHai

Packaging & Delivery

Package Type:: wooden case packing

Picture Example:

The double Flange Stainless Steel Dismantling Joint is composed of the main parts such as the body, sealing ring, gland, and expansion short pipe. A limit device is added on the basis of the original performance of the loose sleeve expansion joint, and a double nut is used to lock the expansion amount. The pipeline can be freely expanded and contracted within the allowable expansion amount. Once it exceeds its expansion amount, it will be limited to ensure the safe operation of the pipeline. It is particularly suitable for connections in pipelines with vibration or certain slopes and bends.

Installation: The double flange stainless steel Dismantling Joint is suitable for both sides to be connected with flanges. During installation, adjust the connection length between the two ends of the product and the flange, tighten the gland bolts diagonally in turn, and then adjust the limit nuts. In this way, the pipeline can be freely expanded and contracted within the expansion amount range, lock the expansion amount, and ensure the safe operation of the pipeline. It is suitable for pipelines connected with flanges on both sides. During installation, adjust the installation length between the two ends of the product and the flange, and tighten the gland bolts diagonally to make it a whole with a certain displacement, which is convenient for installation and maintenance. Adjust according to the on-site size. During work, the reverse axial thrust can be transmitted to the entire pipeline. It can reduce the pressure thrust (blind plate force) of the connected parts and compensate for the installation error of the pipeline. The double flange Force Transmission Joint cannot absorb axial displacement. The dismantling joint with stainless steel is mainly used for loose sleeve connection of pumps, valves and other accessories.
