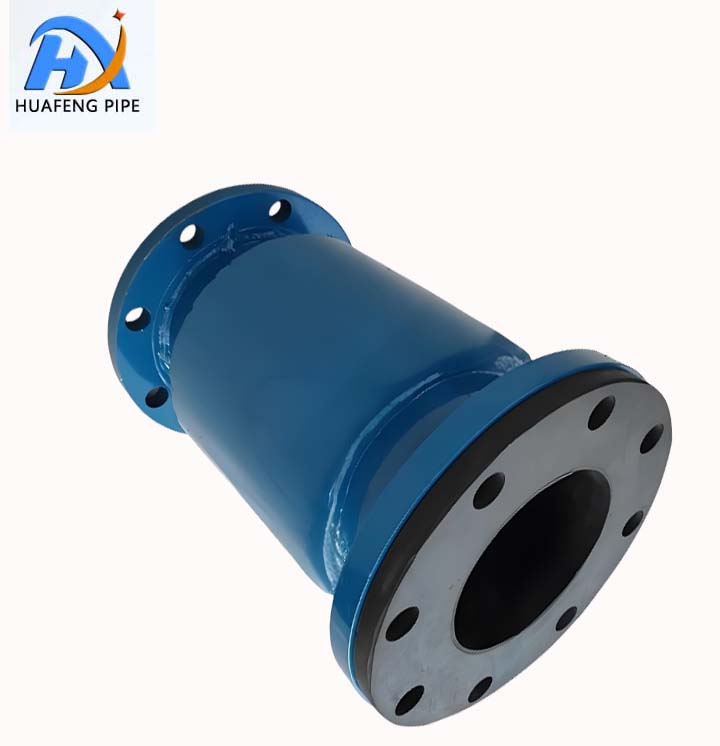

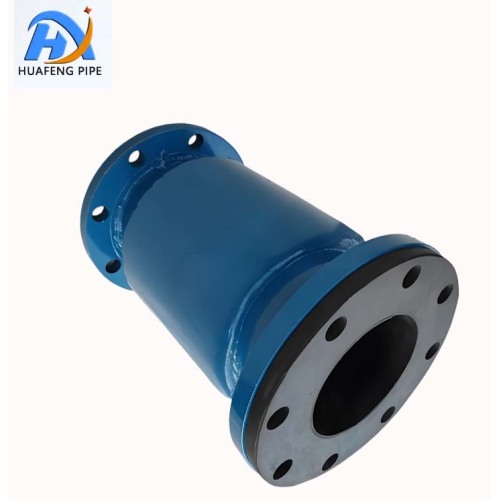

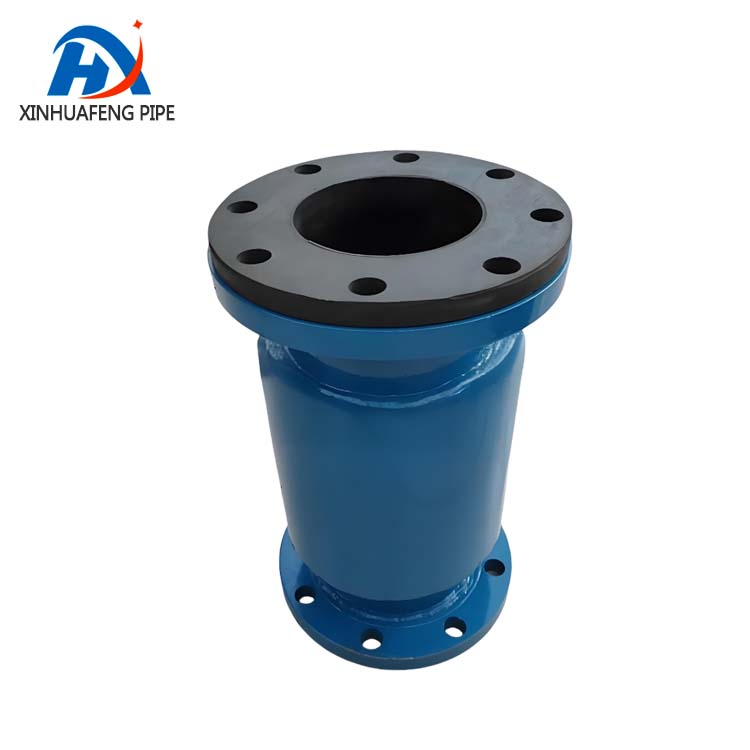

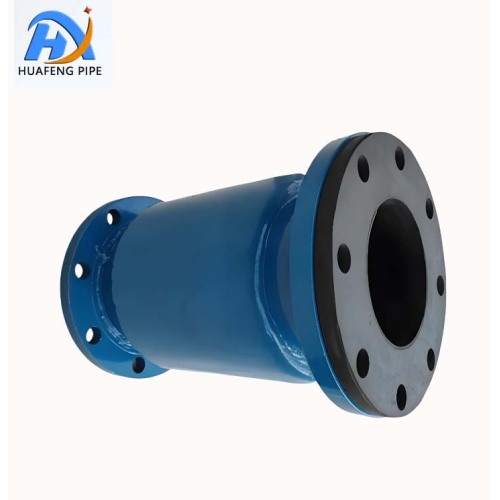

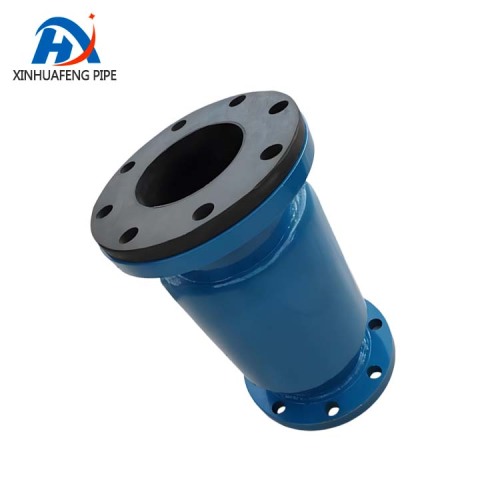

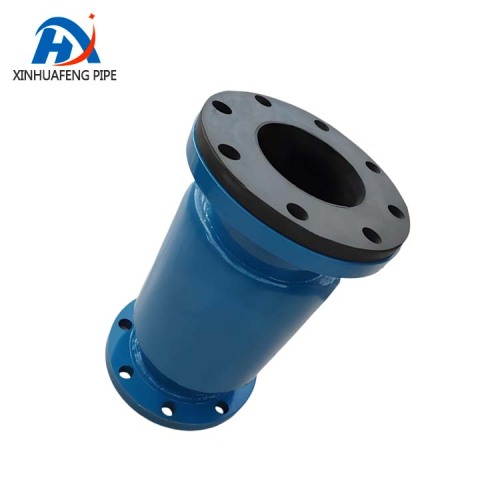

One-way barrier of high-pressure system: High Pressure
Duckbill Check Valve's core performance and system synergy
In high-pressure fluid conveying systems, the unidirectional stable flow of the medium is the key to ensuring the safety and operational efficiency of the equipment. And the High Pressure Duckbill Check Valve , with its unique structural design and pressure resistance performance, becomes the core barrier to prevent the backflow of the medium. It takes the duckbill-shaped valve port made of Rubber or elastic material as the core. It automatically opens when the high-pressure fluid is conveyed in the forward direction and quickly closes when the medium stops flowing or is pressurized in the reverse direction. Reliable sealing can be achieved without additional power. It works in coordination with accessories such as
Rubber Expansion Joint and
Bellow Expansion Joint. Build a safe and efficient transmission network for high-pressure pipelines.
The high-pressure tolerance feature of High Pressure Duckbill Check Valve makes it stand out in extreme industrial scenarios. In the high-pressure oil pipeline for oil extraction, it can withstand medium pressure as high as tens of megapascals. When used in conjunction with Bellow Expansion Joint, the elastic compensation capacity of the bellows can absorb the vibration and displacement of the pipeline caused by high pressure, and the Duckbill Valve precisely prevents the backflow of crude oil. The two form a dual guarantee of "flexible compensation + unidirectional protection", avoiding the impact damage to the pump body and elbows caused by high-pressure backflow. In the discharge pipeline of the chemical high-pressure reactor, the high-pressure duckbill valve is connected to the stainless steel pipe through the
Flange Adaptor. The adapter ensures the sealing alignment of the valve port with the pipeline. The duckbill valve resids the high-pressure corrosion of the reaction medium and works in coordination with the corrosion-resistant inner layer of the
Flexible Metal Hose to safeguard the unidirectional transportation of corrosive high-pressure media.
In the system layout, the installation flexibility and spatial adaptability of the High Pressure Duckbill Check Valve are particularly prominent. Compared with the traditional check valve, it does not require a complex mechanical structure and can be directly integrated into the pipeline through Flange or threaded connection. In the steam output pipeline of the high-pressure boiler, the duckbill valve can be installed in series with Rubber Expansion Joint. The high-temperature resistance property of the rubber absorbs the vibration caused by steam pulsation, and the duckbill valve closes quickly when the steam supply is stopped. Prevent condensate water from flowing back into the boiler in the opposite direction. At the interface of high-pressure equipment with limited space, the compact structure of the high-pressure duckbill valve can be combined with
Dismantling Joint, which not only meets the requirement of one-way check but also facilitates quick disassembly and inspection during later maintenance, significantly reducing the maintenance difficulty in high-pressure environments.
The synergy of High Pressure, Duckbill, Check Valve and other accessories can also optimize the overall performance of the system. In the pipeline of the high-pressure water jet cleaning equipment, the duckbill valve is combined with the Flexible Metal Hose . The flexibility of the metal hose can adapt to the multi-angle operation of the cleaning nozzle, while the duckbill valve prevents the high-pressure water flow from impacting the water pump in the reverse direction. The two are sealed and connected through the Flange Adaptor. Ensure the efficient output of high-pressure water flow and equipment protection. In the main line of high-pressure natural gas transmission, the combination of high-pressure
Duckbill Valves and
Bellow Expansion Joints can cope with the thermal expansion and contraction of pipelines and foundation settlement. Bellows compensate for displacement changes, and duckbill valves prevent pressure fluctuations caused by natural gas backflow. Together with elbows and valves along the way, they form a complete high-pressure protection system.
The selection and installation process should take into account both the adaptation to working conditions and the compatibility of accessories. In view of the characteristics of high-pressure media, the material of the High Pressure Duckbill Check Valve needs to be compatible with the conveyed medium. For example, for pipelines of acidic high-pressure media, corrosion-resistant rubber duckbill valves should be selected, combined with PTFE linings of Flexible Metal Hose. The anti-corrosion coating of the Flange Adaptor is further enhanced to improve the corrosion resistance grade of the system. When installing, it is necessary to ensure that the valve port direction is consistent with the medium flow direction. When connecting with the Rubber Expansion Joint, reserve sufficient expansion and contraction space to avoid the rubber expansion squeezing the Valve Body and affecting the sealing performance. When paired with the Bellow Expansion Joint, the pipeline needs to be fixed through the bracket to prevent the bellows expansion and contraction from causing the duckbill valve to shift.
From high-pressure industrial pipelines to the transportation of special fluids, High Pressure Duckbill Check Valve has always been the "gatekeeper" of one-way protection. It complements the elastic compensation of Rubber Expansion Joint to reduce the influence of vibration on the valve port seal. In coordination with the high-pressure adaptation of Bellow Expansion Joint, it responds to the displacement challenges under extreme working conditions; Seamless connection with different pipelines is achieved through Flange Adaptor, and maintenance convenience is enhanced with the help of Dismantling Joint; Cooperate with Flexible Metal Hose to expand application scenarios. At every node where it is necessary to prevent the backflow of high-pressure media, the High Pressure Duckbill Check Valve, with its reliable sealing performance and durability, builds a solid defense line for the stable operation of the system and becomes an indispensable core accessory in high-pressure fluid transportation.
