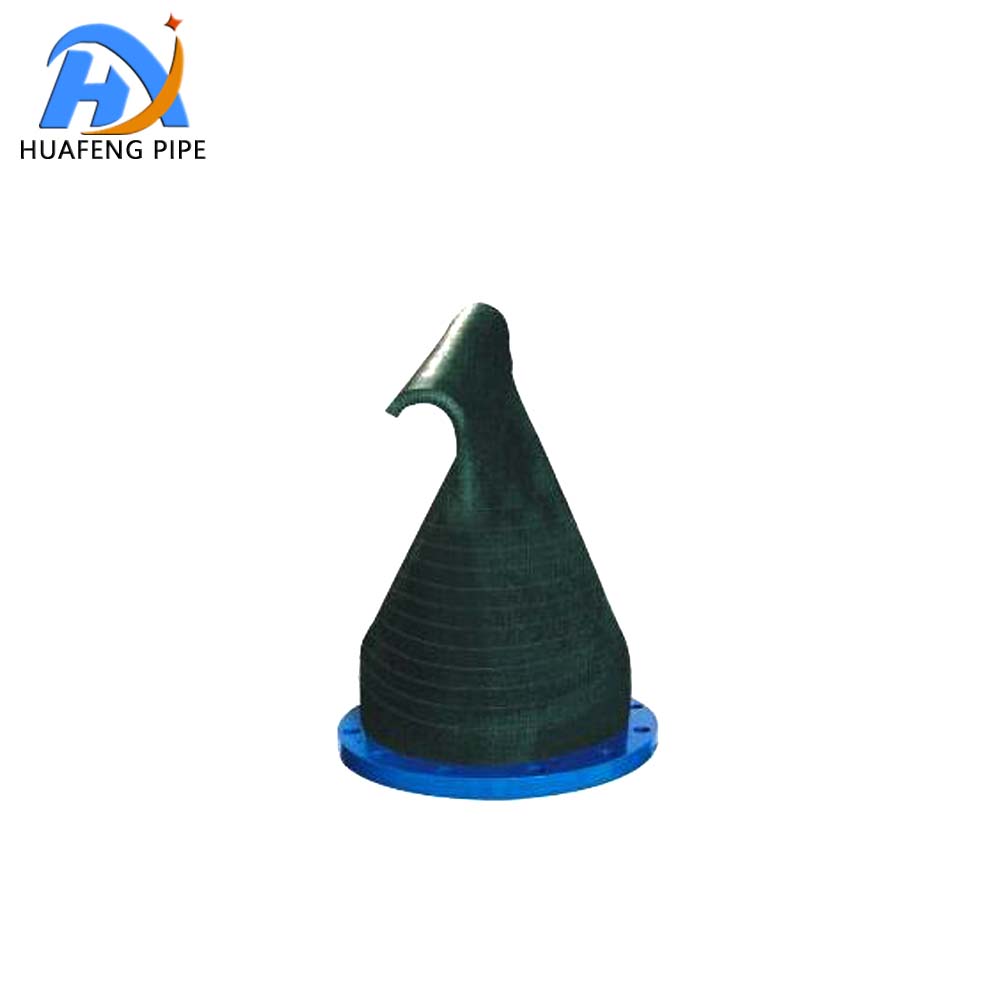

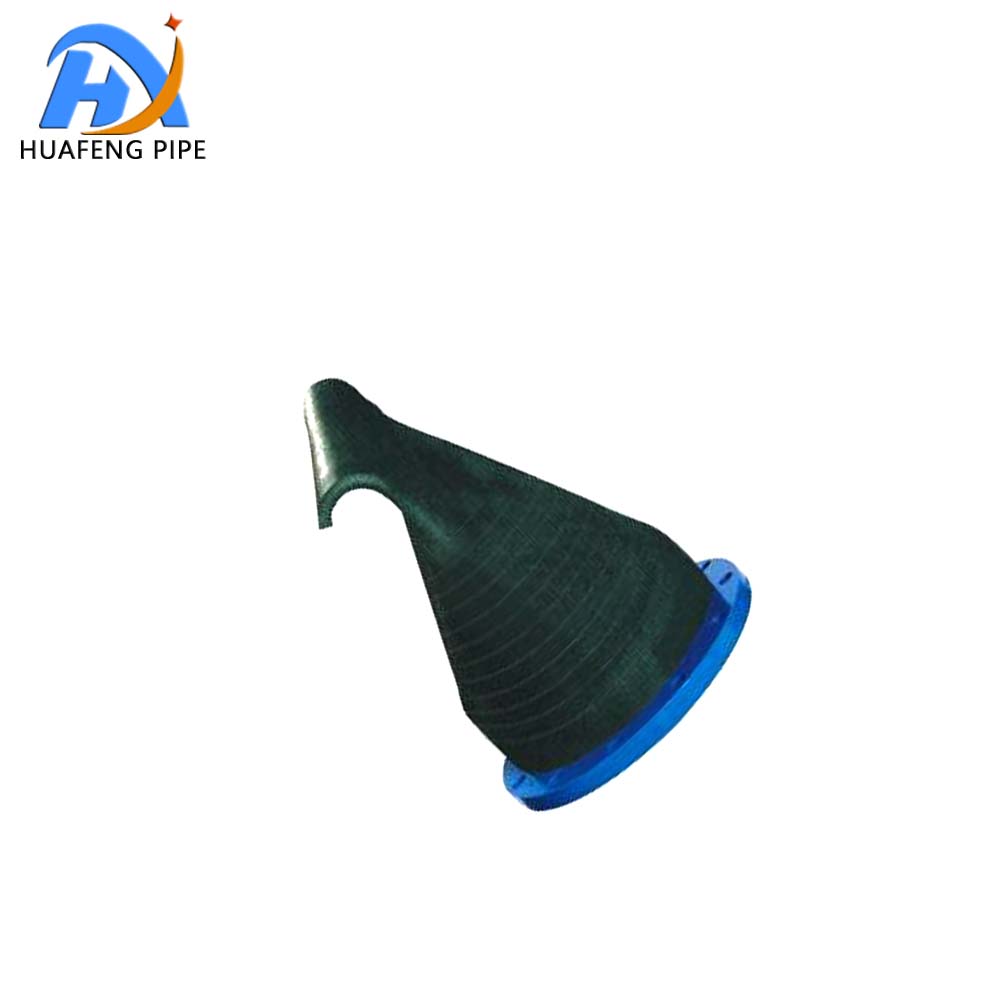

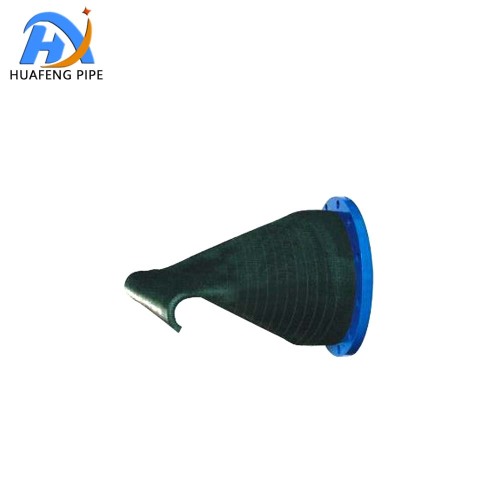

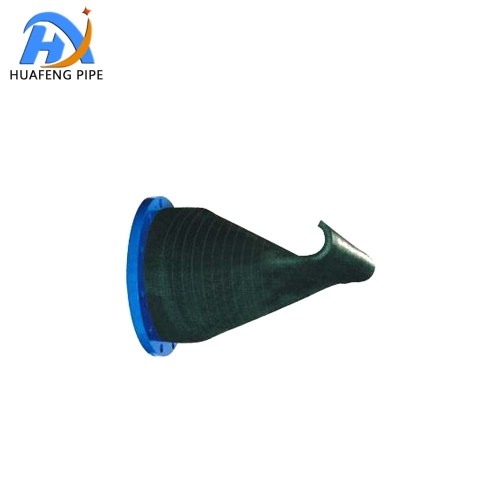

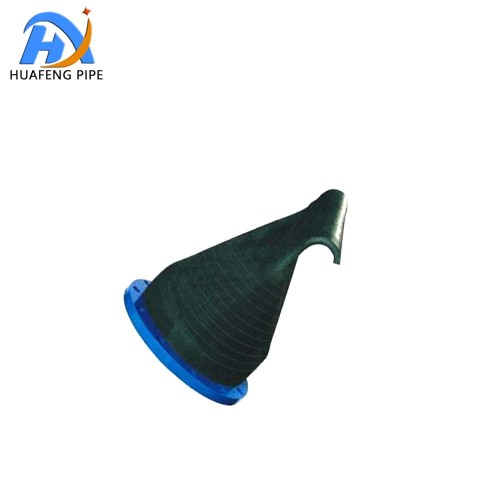

Flanged Duckbill Check Valve

Introduction to Flanged Duckbill Check Valve​

The Flanged Duckbill Check Valve is a robust and reliable Duckbill Check Valve designed for secure and efficient flow control in pipeline systems, leveraging Flange connections to ensure stability and sealing performance in various industrial applications. Its core functionality aligns with other duckbill check valves: when fluid flows normally, the duckbill section opens smoothly to allow unobstructed passage; when flow stops or reverses, the duckbill closes tightly under backpressure, forming a solid barrier against backflow, thus protecting pumps, pipelines, and equipment from potential damage.​

The flange connection design is a key feature of this valve, offering several advantages in installation and operation. Unlike clamp-type variants, the flanged design provides a more rigid and high-pressure-resistant connection, making it suitable for pipeline systems with higher pressure ratings or where a permanent, leak-free seal is critical. The flange ends can be easily bolted to matching flanges on pipelines or equipment, ensuring a secure fit that withstands the demands of high-flow or high-pressure fluid transfer, such as in industrial water treatment, chemical processing, and large-scale irrigation systems.​

In terms of performance, the Flanged Duckbill Check Valve excels in sealing and durability. Its duckbill section, typically made from high-quality elastomers like EPDM or nitrile rubber, ensures tight closure to prevent leakage, even when handling corrosive or abrasive media. The flange ends, often constructed from carbon steel, stainless steel, or other corrosion-resistant materials, enhance the valve’s longevity, allowing it to operate stably in harsh working environments for extended periods.​

Within a comprehensive pipeline system, the Flanged Duckbill Check Valve integrates seamlessly with other essential components. For connecting to pipelines or equipment with non-standard flange dimensions, a Flange Adaptor is invaluable, ensuring compatibility and a secure connection between the valve and varying flange specifications. When addressing pipeline displacements caused by thermal expansion, contraction, or external forces, a Bellow Expansion Joint handles major axial, lateral, and angular adjustments, while a Rubber Expansion Joint absorbs vibrations and minor displacements, reducing stress on the flanged valve and connected piping.​

A Flexible Metal Hose can be incorporated into the system to provide flexibility in routing, allowing the Flanged Duckbill Check Valve to be installed in complex layouts or where slight misalignments exist, without compromising flow efficiency. For maintenance and repair, the Dismantling Joint simplifies access to the valve and surrounding pipeline sections, enabling quick disassembly for inspections, replacements, or cleaning—minimizing downtime in critical operations.​

Together, these components form a cohesive and efficient pipeline network: the Flexible Metal Hose offers routing flexibility, the Bellow Expansion Joint and Rubber Expansion Joint manage displacements and vibrations, the Flange Adaptor ensures compatible connections, the Dismantling Joint facilitates maintenance, and the Flanged Duckbill Check Valve, as a reliable Duckbill Check Valve, guarantees unidirectional flow and backflow prevention. This synergy ensures the smooth, safe, and efficient operation of pipeline systems across diverse industries.​
