Flange

ANSI Flange

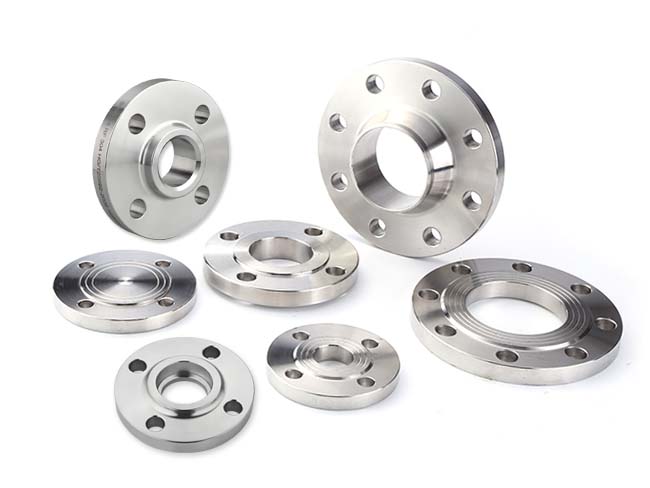

A Flange is a fundamental disc or ring-shaped pipeline component designed to connect pipes, valves, pumps, and other equipment in fluid systems, enabling secure, leak-tight, and connections. Its structure features a circular plate with evenly spaced bolt holes around the perimeter, paired with a gasket between mating flanges to create a seal when tightened with bolts. This design allows for easy assembly, disassembly, and maintenance of pipeline sections without permanent modification.

Available in diverse types, flanges are categorized by design and function: Weld Neck Flanges with a long tapered neck for high-pressure applications, Slip-On Flanges for easy installation in low-pressure systems, and Blind Flanges to seal pipe ends. Socket Weld Flanges suit small-diameter high-pressure lines, while Lap Joint Flanges offer flexibility for alignment adjustments. Each type ensures compatibility with specific pipeline requirements, from industrial high-pressure lines to municipal water networks.

Materials vary based on operational demands: carbon steel flanges handle general industrial fluids like oils and gases, while stainless steel (304 or 316) variants provide corrosion resistance in chemical processing, food production, or marine environments. Alloy steel flanges withstand extreme temperatures in power plants, and PVC flanges serve low-pressure water or drainage systems. Gasket materials—rubber, PTFE, or metal—are chosen to match media compatibility and pressure ratings.

In system integration, flanges work synergistically with critical components: paired with Steel Tees or Radius Elbows, they enable branch connections and directional changes. They facilitate connections between Valves and pipelines, simplify installation of Bellow Expansion Joints, and work with Flange Adaptors to resolve mismatches between different flange standards (e.g., ANSI, DIN). Dismantling Joints with flanged ends enhance maintenance access.

Key advantages include strength, versatility, and reliability. Flanged connections handle high pressures and temperatures, ensuring system integrity in demanding conditions. They allow for component replacement without cutting pipes, reducing downtime during repairs. By providing secure, standardized connections across diverse fluid systems, flanges form the backbone of industrial, commercial, and municipal pipeline networks, ensuring efficient and safe fluid transport.

Flange

The flange, also known as a flange boss or flange rim, is a component used for interconnecting shafts, primarily for connecting pipe ends. It is also used on equipment inlets and outlets for connecting two pieces of equipment, such as in the case of reducer flanges. Generally, any connecting part that uses bolts to join and seal two adjacent surfaces is referred to as a "flange".

Classification

threaded flanges, welded flanges, and clamp flanges, among others.

Materials

carbon steel, low-alloy steel, stainless steel

Hot Selling

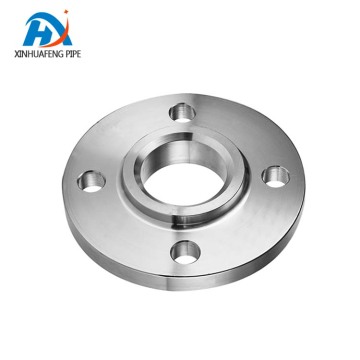

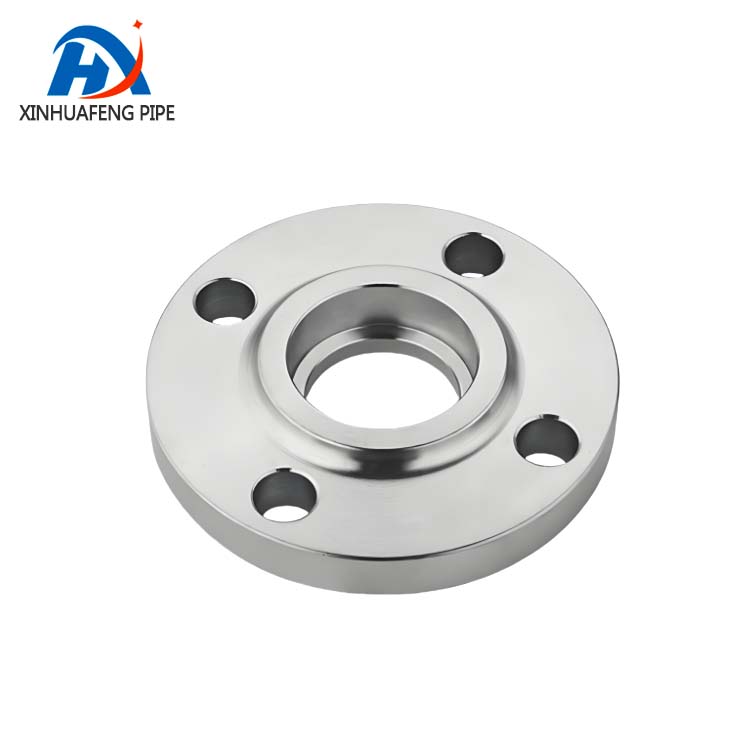

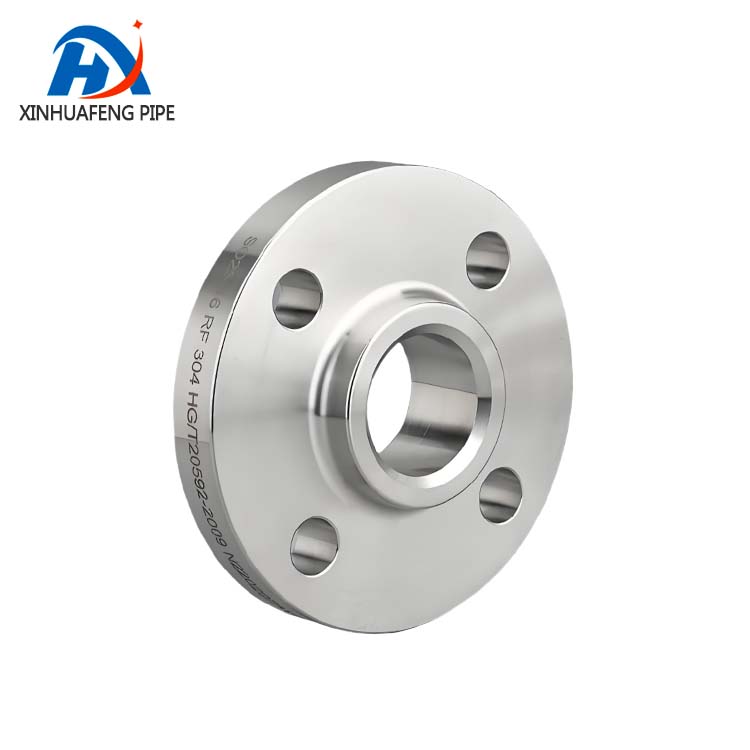

Socket welding flange

Short neck flange

DIN flange

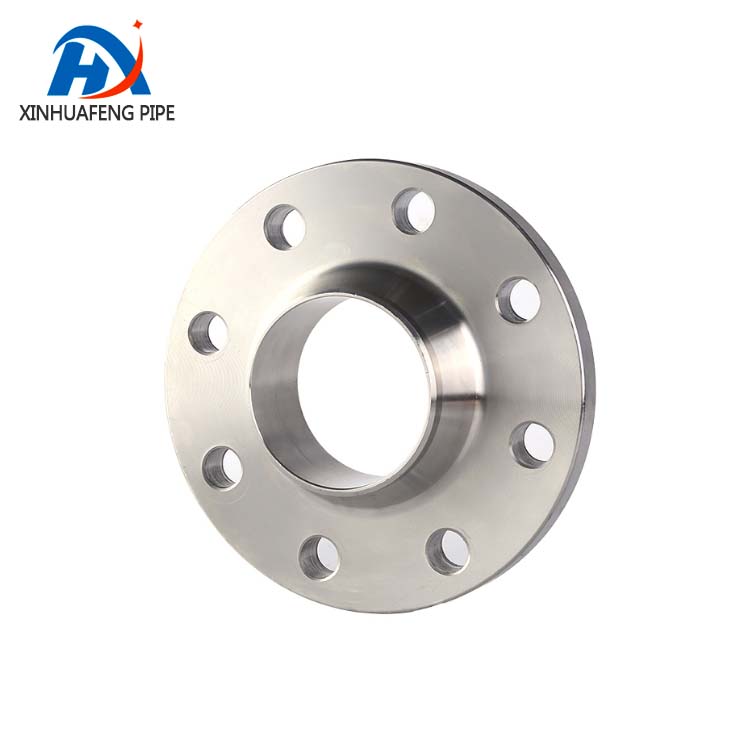

ANSI neck flange

About Us

Gongyi Xinhuafeng Pipeline Equipment Co., Ltd. is a manufacturing enterprise that integrates product design and development, tool manufacturing, machining, assembly, and performance testing.Our company was established in 2003 and is located in Henan,China,covering an area of 6600 square meters with a registered capital of 10 million yuan. Our company offers a comprehensive range of products featuring innovative designs, meticulous craftsmanship, and reliable quality.

WHY CHOOSE US

01

Multiple shipping ports are available

According to customer needs, Qingdao, Tianjin, NingBo and Shanghai ports are available for shipment.
02

Timely delivery

Our customer service is available online 24 hours a day, ready to solve your problems at any time.

Certificate

Tel:

00-86--18574133375

Mobile Phone:

00-86--13783416000

Email:

xinhuafengpipe@gmail.com

Address:

Yongan Road, Xicun Village, Xicun Town, Gongyi City,Henan Province

Country/Region:

China

whatsapp:

86 18574133375

Wechat:

86 18574133375

FAQ

Important things you should know

Is flange a pipe fitting?

Flange is widely used in piping systems for connecting pipes, valves, and other equipment. They play a crucial role in ensuring the integrity and security of the piping system.

What is a flange on a valve?

A flange valve connection is a type of connection that ensures the valve is securely integrated into the piping system through bolted joints.

How many flange standards are there?

ANSI Flange,BS Flange,DIN Flange

PLEASE LEAVE US A MESSAGE

WE WILL CONTACT YOU

Flange

ANSI Flange

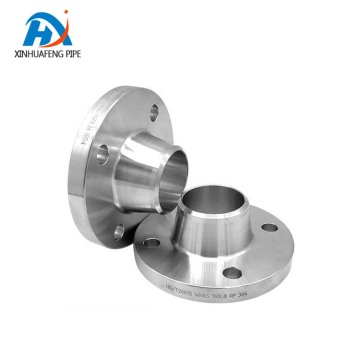

Stainless Steel Welding Neck Flange

High-Pressure Short Weld Neck Flange

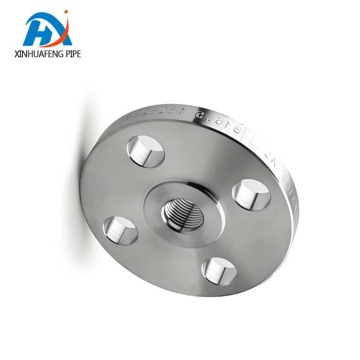

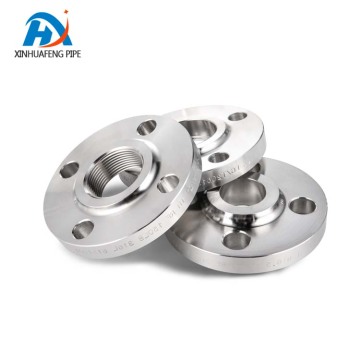

Industrial Short Neck Threaded Flange

Short Weld Neck Flange

Internal Thread Pipe Flange
