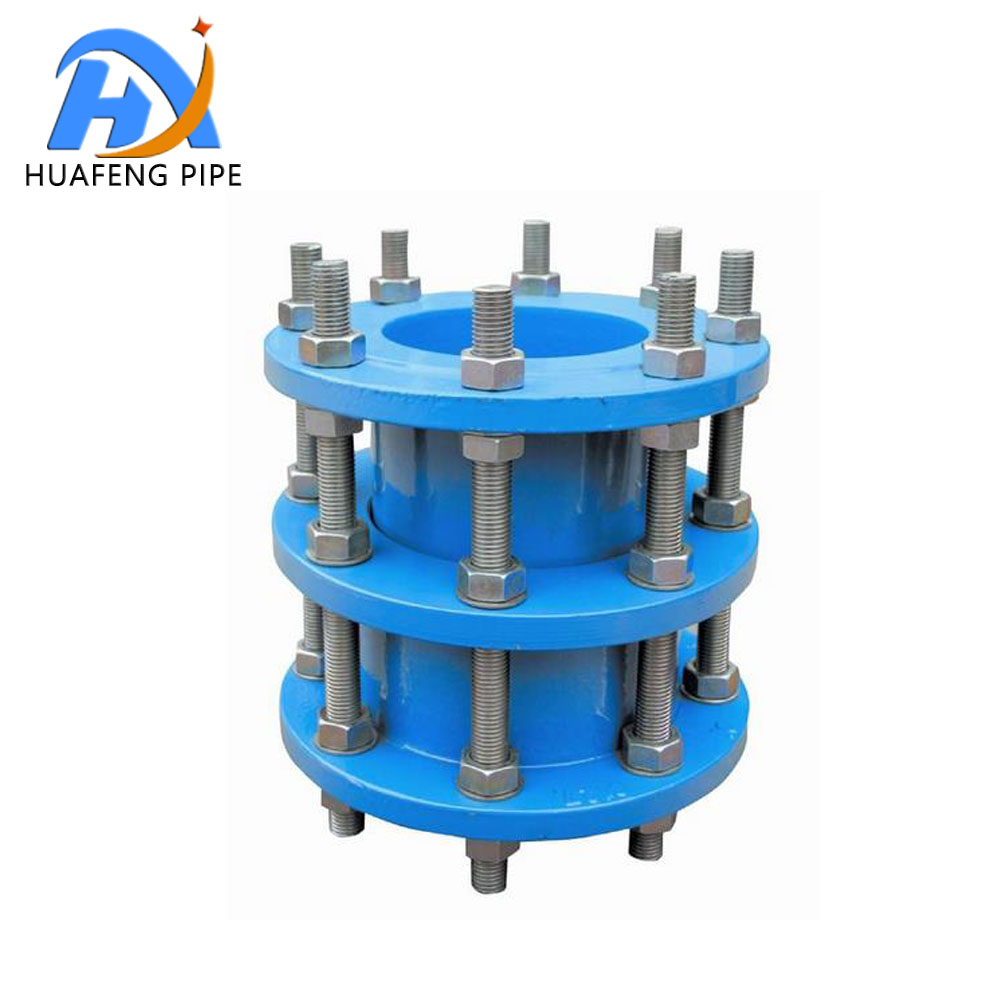

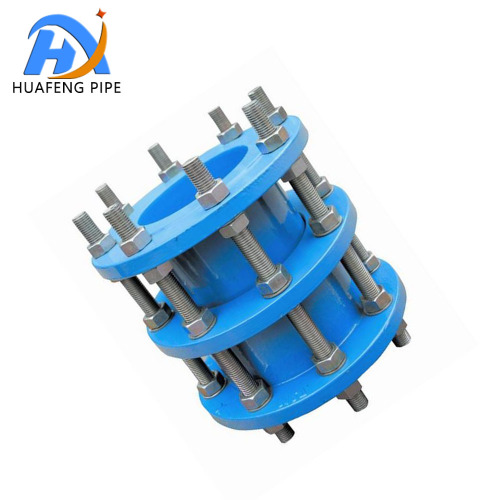

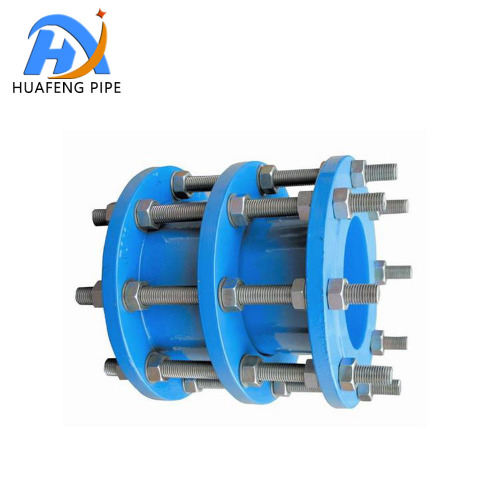

Carbon Steel Dismantling Joint with Ductile Iron

Ductile iron disassembly joint: Wear-resistant connection and long-term guarantee for pipes containing particles
In piping systems for transporting media containing particles, Ductile Iron Dismantling Joint, with the outstanding performance of Ductile iron material, becomes an ideal choice for balancing wear resistance, durability and cost-effectiveness. It stands out in scenarios with complex forces, high strength, high toughness and high wear resistance requirements, thanks to the comprehensive performance of ductile iron close to that of steel. In coordination with components such as Rubber Expansion Joint, Bellow Expansion Joint, Flexible Metal Hose, Flange Adaptor and Duckbill Check Valve, Provide reliable connection solutions for the transportation of granular media in high-standard projects across multiple fields. ​

Ductile iron material is the core support for the wear-resistant and durable joint. Compared with ordinary cast iron, ductile iron has significantly enhanced its strength, toughness and wear resistance through the optimization of the spherical graphite morphology, effectively resisting the erosion and wear of media containing particles. In the tailings conveying pipeline of the mine, this characteristic enables the ductile iron disassembly joint to be combined with the Flexible Metal Hose for conveying slag. The flexible transmission of the metal hose avoids particle blockage, and the wear-resistant material of the joint resikes the impact of slag. The two form a protective system of "flexible buffering + rigid wear resistance". In the fly ash conveying system of the power plant, it works in coordination with the Bellow Expansion Joint. The corrugated pipe compensates for the thermal expansion and contraction of the pipeline, and the ductile iron joint withstands the long-term wear of fly ash particles, significantly extending the service life of the system. ​

The cost advantage and maintenance economy make ductile iron disassembly joints more competitive in high-standard projects. The "iron instead of steel" feature of ductile iron ensures that its performance is close to that of steel while significantly reducing production and procurement costs. Moreover, its wear resistance reduces the frequency of subsequent maintenance and replacement, indirectly lowering operation and maintenance expenses. In the municipal sewage pipe network, it is connected to the Duckbill Check Valve . The corrosion and wear resistance of ductile iron, combined with the anti-backflow function of the check valve, not only reduces the replacement frequency caused by sediment wear, but also lowers the risk of sewage leakage. In the pipeline for conveying granular raw materials in the chemical industry, the connection is made through the Flange Adaptor. The low-cost advantage can save a large amount of procurement budget in large-scale projects while ensuring the reliability of the connection. ​

The wide application adaptability stems from the excellent comprehensive performance of ductile iron. It can handle complex force scenarios and successfully cast components with complex forces and high requirements for strength and toughness. This enables it to stably bear the axial force generated by the Expansion and contraction of bellows when connected to the high-temperature particle pipe of Bellow Expansion Joint. In the particle conveying pipeline with less vibration, in combination with Rubber Expansion Joint, the rubber expansion joint absorbs slight vibration, and the ductile iron joint provides rigid support to prevent the particle medium from depositing and clogging the pipeline due to vibration. Whether in mining, power plants or municipal engineering, ductile iron disassembly joints can become a cost-effective alternative to some steel joints by virtue of their performance advantage of "iron replacing steel". ​

As an important category of Dismantling Joint, ductile iron detachable joints retain the feature of easy disassembly and assembly, which is convenient for pipeline maintenance. When it is necessary to inspect the Flexible Metal Hose in the pipeline containing particles, the pipeline can be quickly disassembled through the joint to check the wear on the inner wall of the metal hose. When replacing the aging Rubber Expansion Joint, with its easy-to-disassemble and assemble design and in combination with the standardized interface of the Flange Adaptor, the system operation can be restored quickly, reducing the production losses caused by shutdown. The combination of this maintenance convenience and wear resistance makes ductile iron disassembly joints more practical in pipelines containing granular media. ​

In terms of material selection, the advantages of ductile iron disassembly joints should be reasonably utilized in combination with the scenarios. For working conditions with particles and not high temperatures, it has a cost advantage over Bellow Expansion Joint. In scenarios with less vibration, its rigid connection can complement the Flexible transmission of the Flexible Metal Hose, avoiding excessive wear of rubber components due to particles. However, it should be noted that the appropriate material of the Expansion Joint should be selected according to the specific use. In high-temperature or highly corrosive particle media, it needs to work in coordination with heat-resistant and corrosion-resistant components such as Bellow Expansion Joint. Ductile iron joints focus on providing wear-resistant support and connection functions. ​

From heavy-load transportation in mines to municipal granular wastewater discharge, ductile iron disassembly joints, with their triple advantages of "wear resistance and durability + economic cost + wide adaptability", have become the core connection components of granular pipeline systems. It makes the particle delivery of the Flexible Metal Hose last longer, makes the anti-backflow function of the Duckbill Check Valve more stable, and through the fitting of the Flange Adaptor and the convenient maintenance of the Dismantling Joint In coordination with components such as Rubber Expansion Joint and Bellow Expansion Joint, it provides long-term and reliable connection guarantee for the transportation of granular media in various high-standard projects, highlighting the technical value and practical charm of "replacing steel with iron". ​
